SB-750 T (31AD7K3E190) - White Outdoor Snow Boss Snow Thrower (2001) Track Assembly & Drive Parts Diagram

Snow Boss Snow Thrower

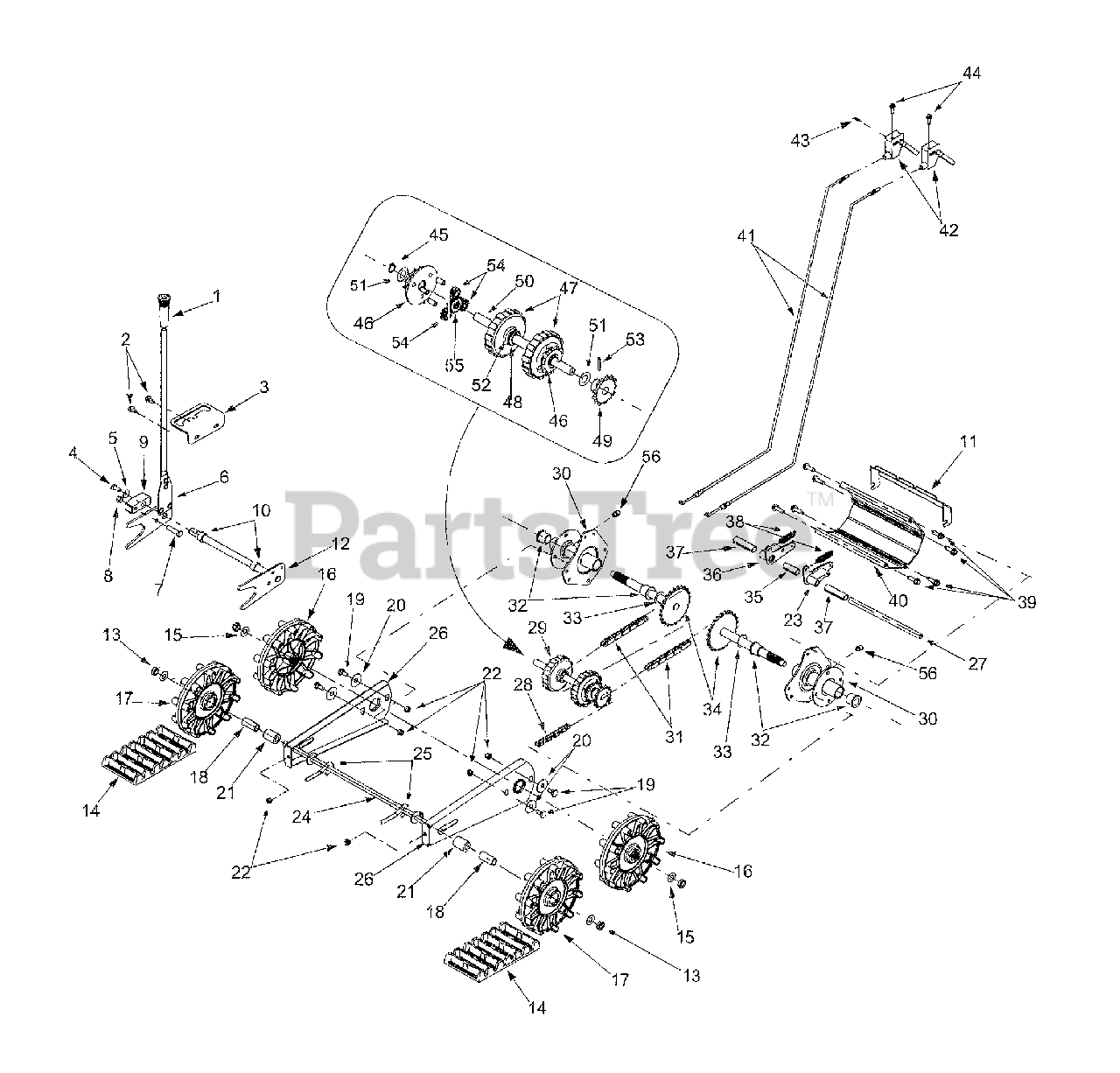

Track Assembly & Drive Parts Diagram

  • Title

1

MTD 720-0223

Grip

$14.99

$

In Stock, Qty 7

0

2

MTD 710-0604A

Tap Screw, 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

3

MTD 784-5642

Track Lockout Plate

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 784-5642-0637

PLATE-TRACK LOCKOU - POWDER BLACK (0637)

$20.99

$

Usually ships in 3-6 days

0

MTD 784-5642-0483

PLATE-TRACK LOCKOU - CHARCOAL GRAY (0483)

$

$

Not available

MTD 784-5642-0498

PLATE-TRACK LOCKOU - OLD CUB YELLOW (0498)

$

$

Not available

MTD 784-5642-0650

PLATE-TRACK LOCKOU - RED METALLIC (0650)

$

$

Not available

MTD 784-5642-0665

PLATE-TRACK LOCKOU - YARDMAN GREEN (0665)

$

$

Not available

MTD 784-5642-0716

PLATE-TRACK LOCKOU - CUB YELLOW-99 (0716)

$

$

Not available

MTD 784-5642-0721

PLATE-TRACK LOCKOU - SEARS RED (0721)

$

$

Not available

MTD 784-5642-4033

PLATE-TRACK LOCKOU - FLINT MICA (4033)

$

$

Not available

MTD 784-5642-4044

PLATE-TRACK LOCKOU - CRAFTSMAN RED (4044)

$

$

Not available

$17.99

$

Usually ships in 3-6 days

0

4

MTD 710-0157

Hex Cap Screw, 5/16-24 x .75

$4.49

$

In Stock, Qty 18

0

5

MTD 736-0242

Bell Washer, .34 ID x .872 OD

$4.49

$

In Stock, Qty 20+

0

6

MTD 684-0038

Track Lock Handle Assembly

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 684-0038-0637

Handle Assembly, Trackloc - POWDER BLACK (0637)

$58.99

$

Usually ships in 3-6 days

0

MTD 684-0038-0638

Handle Assembly, Trackloc - MTD/TROY-BILT RED (0638)

$58.99

$

Usually ships in 3-6 days

0

MTD 684-0038-4021

HANDLE ASM-TRACKLOC - CUB YELLOW 2 (4021)

$58.99

$

Usually ships in 3-6 days

0

MTD 684-0038-0665

HANDLE ASM-TRACKLOC - YARDMAN GREEN (0665)

$58.99

$

Usually ships in 3-6 days

0

$58.99

$

Usually ships in 3-6 days

0

7

MTD 710-0459A

Hex Cap Screw, 3/8-24 x 1.5

$6.99

$

In Stock, Qty 8

0

8

MTD 912-0214

Hex Nut, 3/8-24
(Superseded to 712-0214)

$6.49

$

In Stock, only 3 left!

0

9

MTD 748-0353A

Lift Shaft Drive

$21.99

$

Usually ships in 3-6 days

0

10

MTD 750-0547

Spacer, .628 ID x .875 OD x.5

$5.99

$

In Stock, only 2 left!

0

11

MTD 784-5609

Steering Cable Bracket

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 784-5609-0483

BRACKET-STEERING - CHARCOAL GRAY (0483)

$

$

Not available

MTD 784-5609-0498

BRACKET-STEERING - OLD CUB YELLOW (0498)

$

$

Not available

MTD 784-5609-0499

BRACKET-STEERING - CUB BEIGE (0499)

$

$

Not available

MTD 784-5609-0637

BRACKET-STEERING - POWDER BLACK (0637)

$

$

Not available

MTD 784-5609-0638

BRACKET-STEERING - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 784-5609-0662

BRACKET-STEERING - OYSTER GRAY (0662)

$

$

Not available

MTD 784-5609-0691

BRACKET-STEERING - BLACK JACK (0691)

$

$

Not available

MTD 784-5609-0692

No Longer Available - AGWAY BLUE (0692)

$

$

Not available

MTD 784-5609-0716

BRACKET-STEERING - CUB YELLOW-99 (0716)

$

$

Not available

MTD 784-5609-0721

BRACKET-STEERING - SEARS RED (0721)

$

$

Not available

MTD 784-5609-4021

BRACKET-STEERING - CUB YELLOW 2 (4021)

$

$

Not available

MTD 784-5609-4033

BRACKET-STEERING - FLINT MICA (4033)

$

$

Not available

MTD 784-5609-4044

BRACKET-STEERING - CRAFTSMAN RED (4044)

$

$

Not available

$

$

12

MTD 684-0009

Track Pivot Rod Assembly
(Superseded to 684-0009A)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 684-0009-0721

ROD ASSY PIVOT - SEARS RED (0721)

$52.99

$

Usually ships in 3-6 days

0

MTD 684-0009-4021

ROD ASSY PIVOT - CUB YELLOW 2 (4021)

$52.99

$

Usually ships in 3-6 days

0

MTD 684-0009-4033

ROD ASSY PIVOT - FLINT MICA (4033)

$52.99

$

Usually ships in 3-6 days

0

$43.99

$

Usually ships in 3-6 days

0

13

MTD 912-0346

Jam Nut, 1/2-20
(Superseded to 712-0346)

$4.99

$

In Stock, Qty 6

0

14

MTD 731-1292

Snow Track

$291.99

$

Usually ships in 3-6 days

0

15

MTD 936-0272

Flat Washer, .5 x 1 x .06
(Superseded to 736-0272)

$4.99

$

In Stock, Qty 20+

0

16

MTD 731-1538A

Track Drive Wheel

$36.99

$

In Stock, Qty 8

0

17

MTD 631-0032A

Track Idler Wheel

$45.99

$

In Stock, only 4 left!

0

18

MTD 750-0995

Spacer, .51 ID x .75 OD x 1.67

$16.99

$

Usually ships in 3-6 days

0

19

MTD 938-0140

Screw, .435 x .178-5/16 x .56
(Superseded to 738-0140)

$

$

Not available

20

MTD 936-0406

Flat Washer, .442 x 1.38 x .06

$6.99

$

In Stock, Qty 11

0

21

MTD 750-0909

Spacer, .51 ID x 1 OD x 1.34

$9.49

$

Usually ships in 3-6 days

0

22

MTD 912-0429

Hex Nut, 5/16-18
(Superseded to 712-0429)

$4.49

$

In Stock, Qty 20+

0

23

MTD 618-0044

LH Dogg Assembly

$24.99

$

In Stock, only 1 left!

0

24

MTD 753-05977

Idler Axle Assembly

$100.99

$

Usually ships in 3-6 days

0

25

MTD 710-1231

Eye Bolt, 5/16-18 x 3

$

$

Not available

26

MTD 784-5639

Track Side Plate

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 784-5639-0637

PLATE-TRACK SIDE - POWDER BLACK (0637)

$41.99

$

Usually ships in 3-6 days

0

MTD 784-5639-0638

PLATE-TRACK SIDE - MTD/TROY-BILT RED (0638)

$

$

Not available

$37.99

$

Usually ships in 3-6 days

0

27

MTD 711-0911

Actuator Shaft

$

$

Not available

28

MTD 713-0233

Chain

$41.99

$

Usually ships in 3-6 days

0

29

MTD 918-0169B

Track/Steering Shaft Assy

$345.99

$

Usually ships in 3-6 days

0

30

MTD 683-0024-0637

Track Hub Assy w/Fitting

$84.99

$

Usually ships in 3-6 days

0

31

MTD 713-0437

Chain

$37.99

$

Usually ships in 3-6 days

0

32

MTD 941-0339

Flange Bearing

$12.99

$

In Stock, Qty 20+

0

33

MTD 936-0287

Flat Washer, .793 x 1.24 x .06
(Superseded to 736-0287)

$

$

Not available

34

MTD 611-0053

Axle Assembly

$97.99

$

In Stock, only 4 left!

0

35

MTD 750-0904

Spacer, .514 x .630 x 1.59

$

$

Not available

36

MTD 618-0043

RH Dogg Assembly

$23.99

$

In Stock, only 1 left!

0

37

MTD 750-0903B

Spacer, .514 x .630 x 2.44

$10.99

$

Usually ships in 3-6 days

0

38

MTD 932-0209

Extension Spring

$7.99

$

In Stock, only 2 left!

0

39

MTD 710-0602

Tap Screw, 5/16-18 x 1

$4.49

$

In Stock, Qty 20+

0

40

MTD 719-0295A

Track Housing

$

$

Not available

41

MTD 946-0948A

Steering Cable

$37.99

$

Usually ships in 3-6 days

0

42

MTD 746-0950A

Steering Trigger

$22.99

$

Usually ships in 3-6 days

0

43

MTD 712-0127

Flange Nut

$3.49

$

In Stock, Qty 13

0

44

MTD 710-1233

Screw, #10-24 x 1.375

$4.99

$

In Stock, Qty 11

0

45

MTD 916-0114

Retaining Ring

$6.99

$

In Stock, only 2 left!

0

46

MTD 918-0576A

Carrier Assembly

$224.99

$

Usually ships in 3-6 days

0

47

MTD 717-1211B

Ring Gear

$

$

Not available

48

MTD 916-0115

Retaining Ring

$

$

Not available

49

MTD 713-0414

13-Tooth Sprocket

$35.99

$

Usually ships in 3-6 days

0

50

MTD 711-0912

Track Steering Drive Shaft

$131.99

$

Usually ships in 3-6 days

0

51

MTD 936-0502

Flat Washer, .58 x 1.06 x .02

$6.99

$

Usually ships in 3-6 days

0

52

MTD 936-0336

Flat Washer, 5/8 x 1 x .03

$4.49

$

In Stock, Qty 7

0

53

MTD 715-0120

Spiral Pin, 3/16 x 1

$10.99

$

In Stock, only 1 left!

0

54

MTD 717-1209A

12-Tooth Gear

$4.99

$

Usually ships in 3-6 days

0

55

MTD 717-1210A

18-Tooth Gear

$8.99

$

In Stock, only 2 left!

0

56

MTD 937-3000

Grease Fitting, 3/16" Drive

$4.99

$

In Stock, Qty 20+

0
