SB-750 T (31AD7K3E190) - White Outdoor Snow Boss Snow Thrower (2001) Handle Assembly & Chute Parts Diagram

Snow Boss Snow Thrower

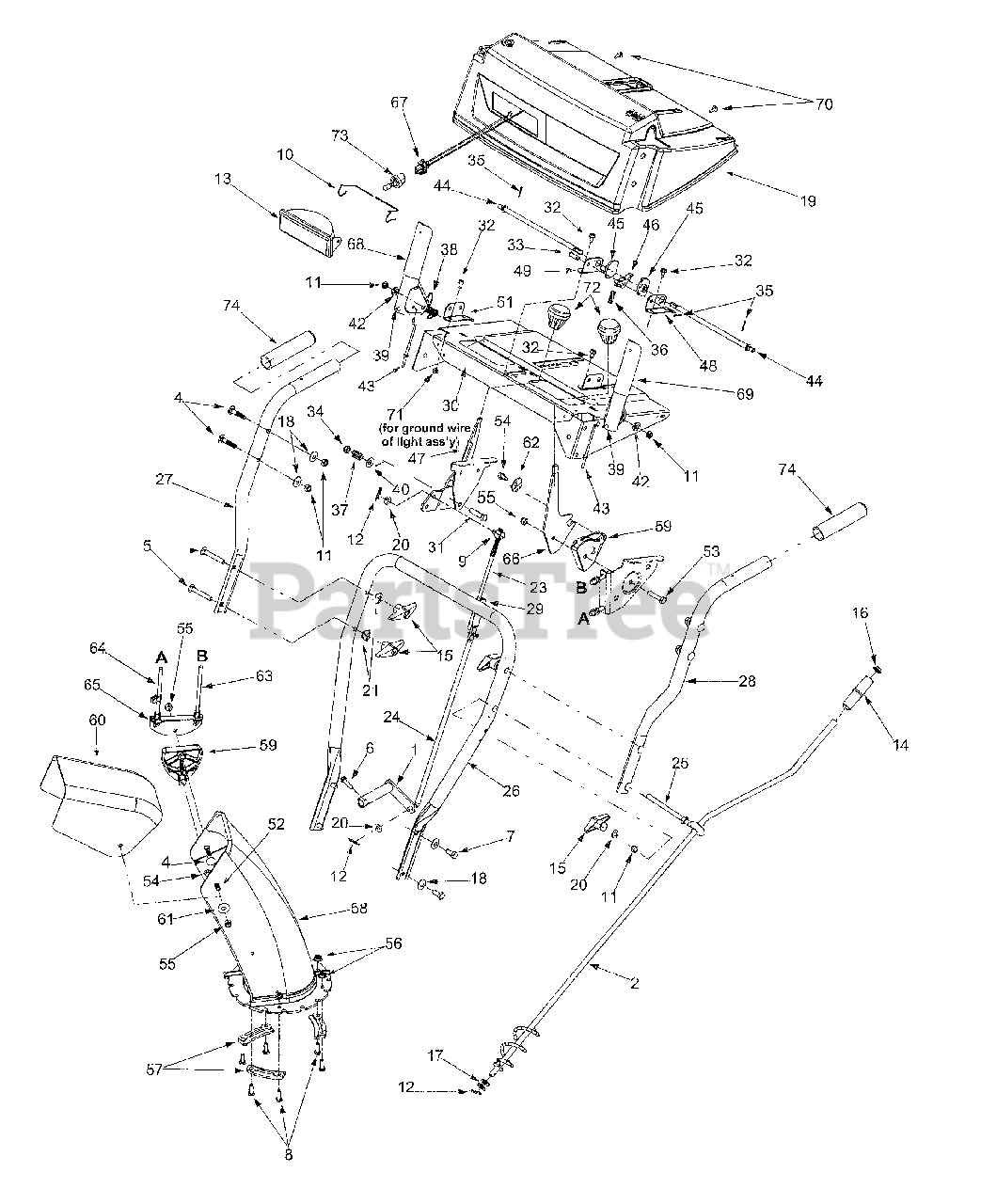

Handle Assembly & Chute Parts Diagram

  • Title

1

MTD 684-0008A-0637

Shift Arm Assembly

$50.99

$

Usually ships in 3-6 days

0

2

MTD 984-0022

Chute Crank Ass'y

$99.99

$

In Stock, only 3 left!

0

4

MTD 710-0262

Carriage Bolt, 5/16-18 x 1.5

$3.99

$

In Stock, Qty 13

0

5

MTD 710-0572

Carriage Bolt, 5/16 18 x 2.25

$4.49

$

In Stock, only 4 left!

0

6

MTD 710-0788

Self Tapping Screw, 1/4-20 x 1

$7.49

$

In Stock, only 4 left!

0

7

MTD 710-3008

Hex Cap Screw, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

8

MTD 710-3015

Hex Cap Screw, 1/4-20 x .75

$3.99

$

In Stock, Qty 20+

0

9

MTD 911-0677

Ferrule, 5/16-18 x .312

$17.99

$

In Stock, only 4 left!

0

10

MTD 747-1136

Headlamp Retainer

$11.99

$

Usually ships in 3-6 days

0

11

MTD 912-3010

Hex Nut, 5/16-18
(Superseded to 712-3010)

$4.49

$

In Stock, Qty 20+

0

12

MTD 914-0104

Internal Cotter Pin
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

13

MTD 925-1672

Lens Assembly/Lamp Housing

$89.99

$

Usually ships in 3-6 days

0

14

MTD 720-0201A

Chute Crank Knob

$10.99

$

In Stock, only 4 left!

0

15

MTD 920-0284

Wing Knob, 5/16-18
(Superseded to 720-0284)

$6.99

$

In Stock, Qty 20+

0

16

MTD 926-0100

Push Cap, 3/8
(Superseded to 726-0100)

$

$

Not available

17

MTD 936-0185

Flat Washer, .375 x .738 x .063
(Superseded to 736-0185)

$3.99

$

In Stock, only 2 left!

0

18

MTD 736-0242

Bell Washer, .34 x .872

$4.49

$

In Stock, Qty 20+

0

19

MTD 731-2506

Handle Panel

Note: NLA

$

$

Not available

20

MTD 936-0275

Flat Washer, .344 x .688 x .065
(Superseded to 736-0275)

$

$

Not available

21

MTD 936-0451

Saddle Washer, .32 x .93
(Superseded to 736-0451)

$4.49

$

In Stock, Qty 18

0

?22

MTD 941-0475

Plastic Bushing

$4.49

$

In Stock, Qty 20+

0

23

MTD 747-0620A

Upper Shift Rod

$11.99

$

In Stock, only 3 left!

0

24

MTD 747-0621

Lower Shift Rod

$

$

Not available

25

MTD 747-0697

Eyebolt

$8.49

$

In Stock, only 1 left!

0

25

MTD 735-0234

Grommet

$5.49

$

In Stock, only 2 left!

0

26

MTD 749-0951A

Lower Handle

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 749-0951A-0637

HANDLE-LOWER SNOW - POWDER BLACK (0637)

$66.99

$

Usually ships in 3-6 days

0

MTD 749-0951A-4033

HANDLE-LOWER SNOW - FLINT MICA (4033)

$66.99

$

Usually ships in 3-6 days

0

MTD 749-0951A-0638

HANDLE-LOWER SNOW - MTD/TROY-BILT RED (0638)

$

$

Not available

$66.99

$

Usually ships in 3-6 days

0

27

MTD 749-0952A

RH Handle (Upper)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 749-0952A-0637

HANDLE-UPPER-RH - POWDER BLACK (0637)

$

$

Not available

MTD 749-0952A-0638

HANDLE-UPPER-RH - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 749-0952A-0665

HANDLE-UPPER-RH - YARDMAN GREEN (0665)

$

$

Not available

$

$

28

MTD 749-0953A

LH Handle (Upper)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 749-0953A-0637

HANDLE-UPPER-LH - POWDER BLACK (0637)

$

$

Not available

MTD 749-0953A-0638

HANDLE-UPPER-LH - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 749-0953A-0665

HANDLE-UPPER-LH - YARDMAN GREEN (0665)

$

$

Not available

$

$

29

MTD 950-0963

Shift Rod Connector

$34.99

$

In Stock, only 3 left!

0

30

MTD 684-0102

Handle Panel Ass'y With Tilt
(Superseded to 684-0102A)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 684-0102-0638

PANEL ASM:HANDLE - MTD/TROY-BILT RED (0638)

$143.99

$

Usually ships in 3-6 days

0

MTD 684-0102-0650

PANEL ASM:HANDLE - RED METALLIC (0650)

$124.99

$

Usually ships in 3-6 days

0

MTD 684-0102-0662

PANEL ASM:HANDLE - OYSTER GRAY (0662)

$143.99

$

Usually ships in 3-6 days

0

MTD 684-0102-0665

PANEL ASM:HANDLE - YARDMAN GREEN (0665)

$143.99

$

Usually ships in 3-6 days

0

MTD 684-0102-0689

PANEL ASM:HANDLE - POLO GREEN (0689)

$124.99

$

Usually ships in 3-6 days

0

MTD 684-0102-0716

HANDLE PANEL ASSEMBLY (CUB YELLOW-99) - CUB YELLOW-99 (0716)

$153.99

$

Usually ships in 3-6 days

0

MTD 684-0102-0721

PANEL ASM:HANDLE - SEARS RED (0721)

$133.99

$

Usually ships in 3-6 days

0

$133.99

$

Usually ships in 3-6 days

0

31

MTD 710-0459A

Hex Cap Screw, 3/8-24 x 1.5

$6.99

$

In Stock, Qty 8

0

32

MTD 710-0599

Self Tapping Screw, 1/4-20 x.5

$4.49

$

In Stock, Qty 20+

0

33

MTD 711-0653

Clevis Pin

$3.99

$

Usually ships in 3-6 days

0

34

MTD 912-0116

Jam Nut, 3/8-24
(Superseded to 712-0116)

$

$

Not available

35

MTD 914-0104

Cotter Pin .072 x 1.12
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

36

MTD 732-0145

Compression Spring, .36 x 1.0

$4.49

$

Usually ships in 3-6 days

0

37

MTD 732-0193

Comp. Spring, .39 x .6 x .88

$4.99

$

In Stock, Qty 6

0

38

MTD 732-0746

Torsion Spring, .44 x .8

$4.49

$

In Stock, Qty 13

0

39

MTD 935-0199A

Rubber Bumper
(Superseded to 735-0199A)

$7.99

$

In Stock, only 4 left!

0

40

MTD 736-0105

Bell Washer, .401 x .87 x .063

$4.49

$

In Stock, Qty 20+

0

42

MTD 736-0509

Special Washer, .35 x .72 x. 13

$6.99

$

In Stock, only 1 left!

0

43

MTD 946-0778

Cable "Z" Fitting

$10.99

$

In Stock, Qty 5

0

44

MTD 747-0877

Cam Rod

$22.99

$

Usually ships in 3-6 days

0

45

MTD 748-0362

Cam Handle Lock

$7.99

$

Usually ships in 3-6 days

0

46

MTD 948-0363

Handle Lock Pawl

$16.99

$

Usually ships in 3-6 days

0

47

MTD 753-05395

Shift Handle

$

$

Not available

48

MTD 784-5679-0637

LH Handle Support Bracket

$8.99

$

Usually ships in 3-6 days

0

49

MTD 784-5680-0637

RH Handle Support Bracket

$12.99

$

Usually ships in 3-6 days

0

50

MTD 784-5681

LH Handle Support Bracket

Variations

MTD 784-5681-0637

BRACKET-HANDLE SUP - POWDER BLACK (0637)

$9.49

$

Usually ships in 3-6 days

0

$9.49

$

Usually ships in 3-6 days

0

51

MTD 784-5682-0637

RH Handle Support Bracket

$28.99

$

Usually ships in 3-6 days

0

52

MTD 710-0451

Carriage Bolt, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

53

MTD 710-0805

Hex Cap Screw, 5/16-18 x 1.5
(Superseded to 710-0805A)

$4.49

$

In Stock, only 3 left!

0

54

MTD 710-0896

Screw, 1/4-14 x .625

$4.49

$

In Stock, Qty 20+

0

55

MTD 912-0429

Hex Lock Nut, 5/16-18
(Superseded to 712-0429)

$4.49

$

In Stock, Qty 20+

0

56

MTD 912-3027

Hex Flange Lock Nut, 1/4-20

$4.49

$

In Stock, Qty 20+

0

57

MTD 731-0851A

Lower Chute Flange Keeper

$4.49

$

In Stock, Qty 20+

0

58

MTD 731-1300E

Lower Chute

$56.99

$

In Stock, Qty 8

0

59

MTD 731-1313C

Chute Tilt Cable Guide

$11.99

$

In Stock, Qty 20+

0

60

MTD 731-04427A

Upper Chute
(Superseded to 731-04427B)

$16.99

$

In Stock, only 1 left!

0

61

MTD 936-0159

Washer, 5/16
(Superseded to 736-0159)

$

$

Not available

62

MTD 736-0506A

Special Washer, .28 x 1.2 x .06

$

$

Not available

63

MTD 946-0896

Chute Deflector Control Cable

$56.99

$

In Stock, only 1 left!

0

64

MTD 946-0901

Chute Deflector Cable w/ Clip

$64.99

$

Usually ships in 3-6 days

0

65

MTD 784-5594

Cable Bracket

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 784-5594-0498

Cable Bracket - OLD CUB YELLOW (0498)

$11.99

$

In Stock, only 1 left!

0

MTD 784-5594-0637

Cable Bracket - POWDER BLACK (0637)

$11.99

$

In Stock, only 1 left!

0

MTD 784-5594-0716

Cable Bracket - CUB YELLOW-99 (0716)

$11.99

$

In Stock, only 1 left!

0

$10.99

$

Usually ships in 3-6 days

0

66

MTD 784-5604A-0637

Chute Tilt Handle

$25.99

$

Usually ships in 3-6 days

0

67

MTD 929-0059

Halogen Light Harness

$100.99

$

Usually ships in 3-6 days

0

68

MTD 684-0036A

RH Engagement Handle Ass'y

$44.99

$

Usually ships in 3-6 days

0

69

MTD 684-0037B

LH Engagement Handle Ass'y

$38.99

$

In Stock, only 2 left!

0

70

MTD 710-04669

Special Screw, #10-16 x .625

$3.49

$

In Stock, Qty 10

0

71

MTD 712-0271

Hex Sems Nut, 1/4-20

$4.49

$

In Stock, Qty 10

0

72

MTD 720-0232

Plastic Knob
(Superseded to 920-0232)

$10.99

$

In Stock, only 1 left!

0

73

MTD 920-0232

Halogen Lamp, 12-volt, 27 Watt

$10.99

$

In Stock, only 1 left!

0

74

MTD 925-1658

Handle Grip

$60.99

$

In Stock, only 4 left!

0
