SB-750 T (31AD7K3E190) - White Outdoor Snow Boss Snow Thrower (2001) Blower Housing Parts Diagram

Snow Boss Snow Thrower

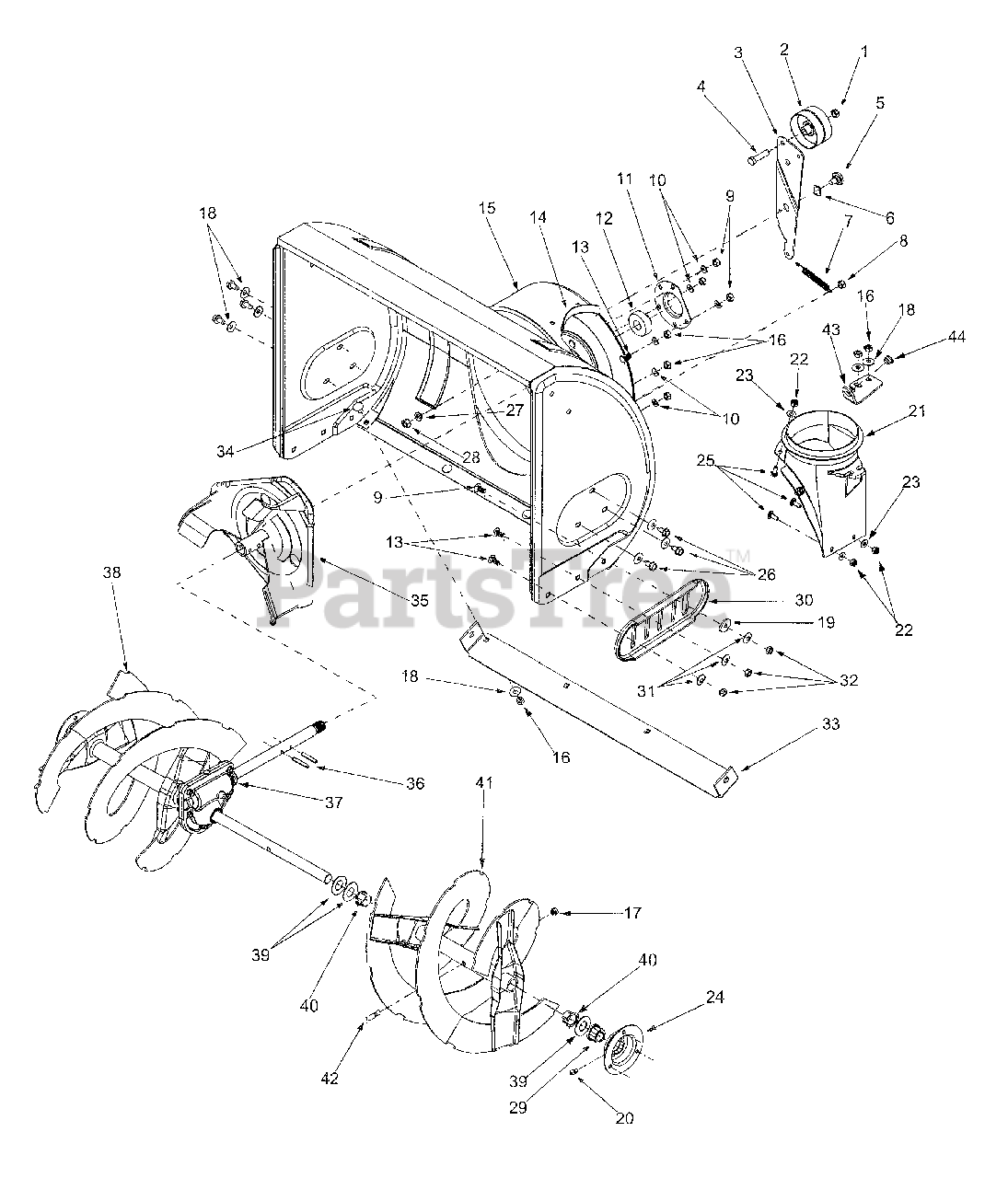

Blower Housing Parts Diagram

  • Title

1

MTD 912-0116

Lock Jam Nut 3/8-2:4
(Superseded to 712-0116)

$

$

Not available

2

MTD 756-0178

Flat Idler

$20.99

$

In Stock, Qty 6

0

3

MTD 984-0064-0637

Auger Idler Arm

$32.99

$

In Stock, only 2 left!

0

4

MTD 710-0459A

Hex Cap Screw 3/8-24 x 1.50

$6.99

$

In Stock, Qty 8

0

5

MTD 938-0281

Shoulder Screw
(Superseded to 738-0281)

$

$

Not available

6

MTD 936-0167

Flat Washer .656 ID x 1.25 OD

$6.99

$

In Stock, Qty 6

0

7

MTD 932-0611

Extension Spring

$7.49

$

In Stock, Qty 20+

0

8

MTD 912-3009

Hex Nut 5/16-18
(Superseded to 712-3009)

$

$

Not available

9

MTD 710-0276

Carriage Bolt, 5/16-18 x 1.00

$3.99

$

In Stock, Qty 20+

0

10

MTD 936-0119

Lock Washer 5/16

$4.99

$

In Stock, Qty 20+

0

11

MTD 05931A

Housing

$10.99

$

Usually ships in 3-6 days

0

12

MTD 941-0309

Ball Bearing

$74.99

$

Usually ships in 3-6 days

0

13

MTD 710-0451

Carriage Bolt, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

14

MTD 705-5226

Chute Reinforcement

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 705-5226-0637

Chute Reinforcement - POWDER BLACK (0637)

$10.99

$

In Stock, Qty 7

0

MTD 705-5226-0638

Chute Reinforcement - MTD/TROY-BILT RED (0638)

$10.99

$

In Stock, Qty 7

0

$9.99

$

Usually ships in 3-6 days

0

15

MTD 684-0039D

24" Housing Assy

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 684-0039D-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

MTD 684-0039D-0498

No Longer Available HOUSINGAS - OLD CUB YELLOW (0498)

$

$

Not available

MTD 684-0039D-0629

HOUSING ASM-24" - SILVER FLAKE (0629)

$

$

Not available

MTD 684-0039D-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 684-0039D-0650

HOUSING ASM-24" - RED METALLIC (0650)

$

$

Not available

MTD 684-0039D-0662

HOUSING ASM-24" - OYSTER GRAY (0662)

$

$

Not available

MTD 684-0039D-0665

HOUSING ASM-24" - YARDMAN GREEN (0665)

$

$

Not available

MTD 684-0039D-0687

HOUSING ASM-24" - PINE GREEN (0687)

$

$

Not available

MTD 684-0039D-0689

HOUSING ASM-24" - POLO GREEN (0689)

$

$

Not available

MTD 684-0039D-0691

HOUSING ASM-24" - BLACK JACK (0691)

$

$

Not available

MTD 684-0039D-0716

"No Longer Available HOUSING ASM-24""" - CUB YELLOW-99 (0716)

$

$

Not available

MTD 684-0039D-0709

"No Longer Available HOUSING ASM-24""" - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

16

MTD 912-3010

Hex Nut 5/16-18
(Superseded to 712-3010)

$4.49

$

In Stock, Qty 20+

0

17

MTD 912-0429

Lock Nut 5/16-18
(Superseded to 712-0429)

$4.49

$

In Stock, Qty 20+

0

18

MTD 736-0242

Belleville Washer

$4.49

$

In Stock, Qty 20+

0

19

MTD 936-0231

Flat Wshr, .344 ID x 1.125 OD
(Superseded to 736-0231)

$

$

Not available

20

MTD 937-3000

Grease Fitting, 3/16" Drive

$4.99

$

In Stock, Qty 20+

0

21

MTD 731-1379D

Chute Adapter

$65.99

$

In Stock, Qty 8

0

22

MTD 712-0324

Hex Lock Nut 1/4-20

$3.99

$

In Stock, Qty 16

0

23

MTD 936-0463

Flat Washer
(Superseded to 736-0463)

$4.49

$

In Stock, Qty 12

0

24

MTD 784-5618A-0637

Bearing Housing w/Fitting

$13.99

$

In Stock, only 2 left!

0

25

MTD 710-0703

Carriage Screw 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

26

MTD 710-0604A

Hex Screw 5/16-18

$4.49

$

In Stock, Qty 20+

0

27

MTD 936-0169

Lock Washer 3/8
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

28

MTD 712-0798

Hex Nut 3/8-16

$4.49

$

In Stock, Qty 12

0

29

MTD 941-0245

Hex Flange Bearing

$9.99

$

In Stock, Qty 20+

0

30

MTD 784-5038B-0637

Skid Shoe

$27.99

$

Usually ships in 3-6 days

0

31

MTD 736-0242

Bell Washer

$4.49

$

In Stock, Qty 20+

0

32

MTD 912-3010

Hex Nut 5/16-18
(Superseded to 712-3010)

$4.49

$

In Stock, Qty 20+

0

33

MTD 790-00120-0637

Shave Plate

$34.99

$

In Stock, Qty 20+

0

34

MTD 710-0451

Carriage Bolt 5/16-18 x 1.00

$4.49

$

In Stock, Qty 20+

0

35

MTD 984-0065-0637

Impeller Assembly
(Superseded to 684-06276-0637)

$90.99

$

In Stock, Qty 6

0

36

MTD 915-0114

Pin
(Superseded to 715-0114)

$9.49

$

In Stock, Qty 20+

0

37

MTD 918-0414B

24" Gear Assy

$

$

Not available

38

MTD 905-5188A

24" Spiral RH
(Superseded to 684-04180-0637)

Variations

MTD 905-5188A-0637

Auger Spiral Assembly, RH 24" - POWDER BLACK (0637)

$

$

Not available

MTD 905-5188A-0638

Auger Spiral Assembly, RH 24" - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

39

MTD 736-0188

Flat Washer

$4.49

$

In Stock, Qty 20+

0

40

MTD 741-0493A

Flange Bushing
(Superseded to 741-0493C)

$4.49

$

In Stock, Qty 20+

0

41

MTD 684-04181-0637

24" Spiral LH

$178.99

$

In Stock, only 1 left!

0

42

MTD 710-0890A

Shear Bolt 5/16-18 x 1.5

$1.99

$

In Stock, Qty 20+

0

43

MTD 784-5647-0637

Chute Crank Bracket

$14.99

$

In Stock, Qty 5

0

44

MTD 941-0475

Bushing

$4.49

$

In Stock, Qty 20+

0

MTD 777D04524

Label: Side Housing

$

$

Not available

MTD 777D04535

Label: Engine

$

$

Not available

MTD 777D04587

Label: Top Housing SB 750T

Note: NLA

$

$

Not available

MTD 777D04588

Label: Handle Panel

Note: NLA

$

$

Not available

MTD 777120324

Label: Transport

Note: NLA

$

$

Currently unavailable

MTD 777120820

Label: Panel LH

Note: NLA

$

$

Currently unavailable

MTD 777120821

Label: Panel RH

Note: NLA

$

$

Currently unavailable

MTD 777530511

Label: Chute Danger

Note: NLA

$

$

Currently unavailable

MTD 777530514

Label: Housing Danger

Note: NLA

$

$

Currently unavailable
