SB-750 ST (317E733E190) - White Outdoor Snow Boss Snow Thrower (1997) Housing And Gear Assembly Parts Diagram

Snow Boss Snow Thrower

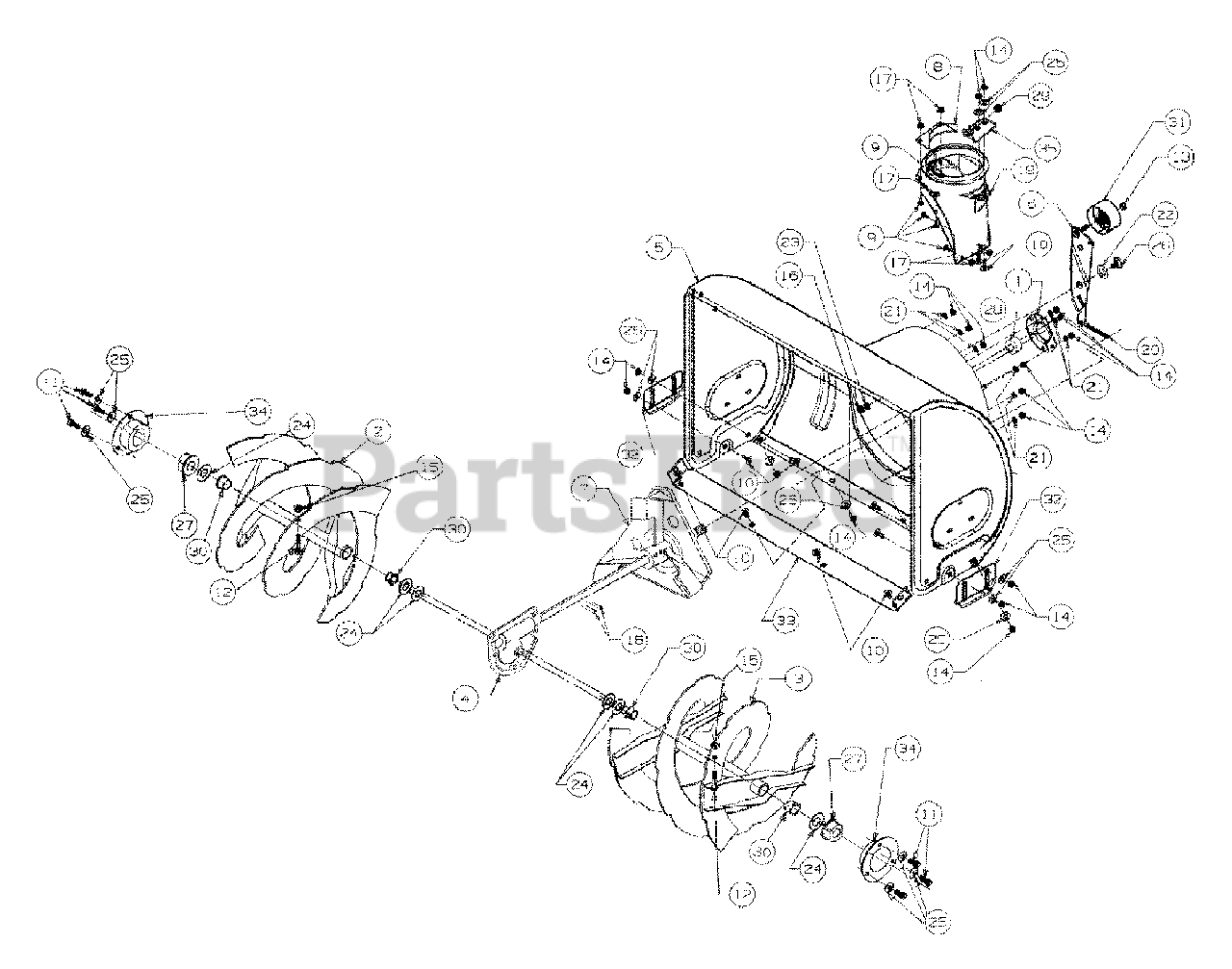

Housing And Gear Assembly Parts Diagram

  • Title

1

MTD 05931A

Housing-Bearing

$10.99

$

In Stock, only 2 left!

0

2

MTD 684-04181-0637

Spiral Assembly - L.H. 24"

$178.99

$

In Stock, only 1 left!

0

2

MTD 684-04183-0637

Spiral Assembly - L.H. 26"

$

$

Not available

3

MTD 684-04180-0637

Spiral Assembly - R.H. 24"

$

$

Not available

3

MTD 684-04182-0637

Spiral Assembly - R.H. 26"

$187.99

$

Usually ships in 3-6 days

0

4

MTD 918-0414B

Gear Assembly 24"

$

$

Not available

4

MTD 918-0415B

Gear Assembly 28"

$442.99

$

Usually ships in 3-6 days

0

5

MTD 684-0039D-0662

Housing Assembly 24"

$

$

Not available

5

MTD 684-0040A

Housing Assembly 28"
(Superseded to 684-0040D)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 684-0040A-0483

HOUSING ASM-26" - CHARCOAL GRAY (0483)

$

$

Not available

MTD 684-0040A-0498

No Longer Available HOUSING AS - OLD CUB YELLOW (0498)

$

$

Not available

MTD 684-0040A-0638

HOUSING ASM-26" - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 684-0040A-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

MTD 684-0040A-0629

HOUSING ASM-26" - SILVER FLAKE (0629)

$

$

Not available

MTD 684-0040A-0665

HOUSING ASM-26" - YARDMAN GREEN (0665)

$

$

Not available

MTD 684-0040A-0667

HOUSING ASM-26" - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 684-0040A-0689

HOUSING ASM-26" - POLO GREEN (0689)

$

$

Not available

$

$

6

MTD 984-0064-0637

Arm-Idler Assembly

$32.99

$

In Stock, only 3 left!

0

7

MTD 984-0065-0637

Impeller Assembly
(Superseded to 684-06276-0637)

$90.99

$

In Stock, only 1 left!

0

8

MTD 705-5226

Reinforcement-Chute

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 705-5226-0637

Chute Reinforcement - POWDER BLACK (0637)

$10.99

$

In Stock, Qty 7

0

MTD 705-5226-0638

Chute Reinforcement - MTD/TROY-BILT RED (0638)

$10.99

$

In Stock, Qty 7

0

$9.99

$

Usually ships in 3-6 days

0

9

MTD 710-0167

Screw-Carriage
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

10

MTD 710-0451

Screw-Carriage

$4.49

$

In Stock, Qty 20+

0

11

MTD 710-0604A

Screw-Hex

$4.49

$

In Stock, Qty 20+

0

12

MTD 710-0890A

Shear Bolt

$1.99

$

In Stock, Qty 20+

0

13

MTD 912-0116

Nut-Hex Lock
(Superseded to 712-0116)

$

$

Not available

14

MTD 912-0267

Nut-Hex
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

15

MTD 912-0429

Nut-Hex
(Superseded to 712-0429)

$4.49

$

In Stock, Qty 20+

0

16

MTD 712-0798

Nut-Hex

$4.49

$

In Stock, only 2 left!

0

17

MTD 912-3027

Nut-Hex Lock

$4.49

$

In Stock, Qty 20+

0

18

MTD 915-0114

Pin-Spring
(Superseded to 715-0114)

$9.49

$

In Stock, only 3 left!

0

19

MTD 731-1379D

Adapter-Chute

$65.99

$

In Stock, only 1 left!

0

20

MTD 932-0611

Spring

$7.49

$

In Stock, Qty 20+

0

21

MTD 936-0119

Washer-Lock

$4.99

$

In Stock, Qty 20+

0

22

MTD 936-0167

Washer-Flat

$6.99

$

In Stock, Qty 7

0

23

MTD 936-0169

Washer-Lock
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

24

MTD 736-0188

Washer-Flat

$4.49

$

In Stock, Qty 20+

0

25

MTD 736-0242

Washer-Bell

$4.49

$

In Stock, Qty 20+

0

26

MTD 938-0281

Screw-Shoulder
(Superseded to 738-0281)

$

$

Not available

27

MTD 941-0245

Bearing-Flange

$9.99

$

In Stock, Qty 20+

0

28

MTD 941-0309

Bearing-Ball

$74.99

$

In Stock, only 1 left!

0

29

MTD 941-0475

Bushing-Plastic

$4.49

$

In Stock, Qty 20+

0

30

MTD 741-0493A

Bushing-Flange
(Superseded to 741-0493C)

$4.49

$

In Stock, Qty 20+

0

31

MTD 756-0178

Idler-Flat

$20.99

$

In Stock, only 4 left!

0

32

MTD 784-5580-0637

Shoe-Slide

$23.99

$

In Stock, Qty 20+

0

33

MTD 790-00120-0637

Shave Plate 24"

$34.99

$

In Stock, Qty 20+

0

33

MTD 790-00121-0637

Shave Plate 26"

$36.99

$

In Stock, Qty 20+

0

34

MTD 784-5618A-0637

Housing-Bearing

$13.99

$

In Stock, Qty 6

0

35

MTD 784-5647-0637

Bracket-Chute Crank

$14.99

$

In Stock, Qty 7

0
