SB-750 ST (317E733E190) - White Outdoor Snow Boss Snow Thrower (1997) Axle & Frame Parts Diagram

Snow Boss Snow Thrower

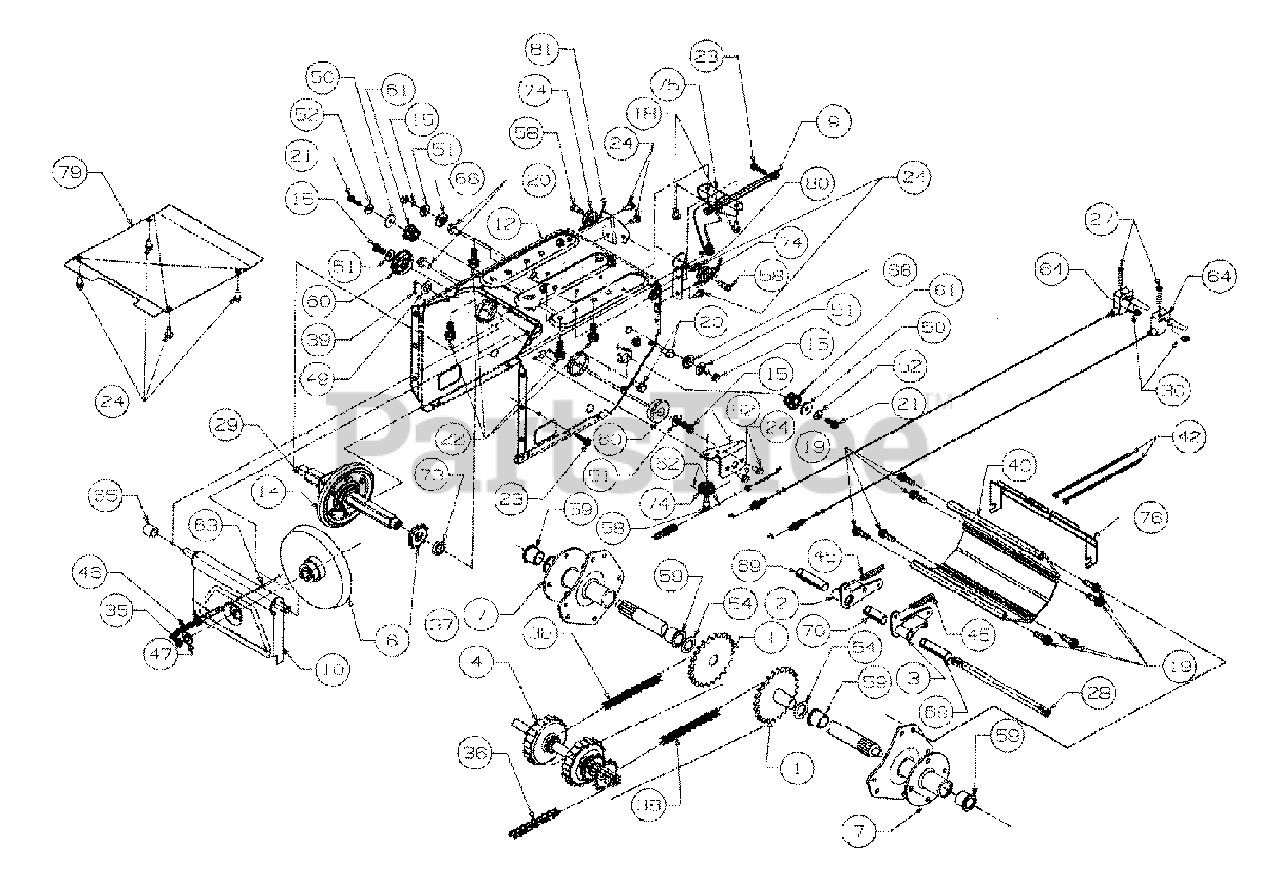

Axle & Frame Parts Diagram

  • Title

1

MTD 611-0053

Axle Assembly

$97.99

$

In Stock, only 2 left!

0

2

MTD 618-0043

Dog Assembly-R.H.

$23.99

$

In Stock, only 1 left!

0

3

MTD 618-0044

Dog Assembly-L.H.

$24.99

$

In Stock, only 1 left!

0

4

MTD 918-0169B

Shaft Assembly

$345.99

$

Usually ships in 3-6 days

0

6

MTD 956-0012A

Disc Assembly

$125.99

$

In Stock, Qty 9

0

7

MTD 683-0024-0637

Hub Assembly

$84.99

$

Usually ships in 3-6 days

0

9

MTD 684-0014B-0637

Rod Shift Assembly

$47.99

$

In Stock, only 1 left!

0

10

MTD 984-0021-0637

Bracket Assembly

$

$

Not available

12

MTD 753-06327

Frame Assembly

$

$

Not available

14

MTD 984-0042C

Wheel Assembly Friction

$138.99

$

Usually ships in 3-6 days

0

14

MTD 935-0243B

Rubber Only

$15.99

$

In Stock, Qty 20+

0

15

MTD 710-3008

Screw

$4.49

$

In Stock, Qty 20+

0

18

MTD 710-0599

Screw

$4.49

$

In Stock, Qty 20+

0

19

MTD 710-0602

Screw

$4.49

$

In Stock, Qty 20+

0

20

MTD 710-0604A

Screw

$4.49

$

In Stock, Qty 20+

0

21

MTD 710-0642

Screw

$4.49

$

In Stock, Qty 20+

0

22

MTD 710-0654A

Screw

$4.49

$

In Stock, only 3 left!

0

23

MTD 710-0788

Screw

$7.49

$

In Stock, only 4 left!

0

24

MTD 710-0896

Screw

$4.49

$

In Stock, Qty 20+

0

27

MTD 710-1233

Screw

$4.99

$

In Stock, Qty 11

0

28

MTD 711-0911

Shaft

$

$

Not available

29

MTD 711-1042

Shaft

$149.99

$

In Stock, only 2 left!

0

30

MTD 712-0127

Nut Flange

$3.49

$

In Stock, Qty 13

0

35

MTD 712-0711

Nut Jam

$4.49

$

In Stock, Qty 20+

0

36

MTD 713-0233

Chain

$41.99

$

Usually ships in 3-6 days

0

37

MTD 713-0413

Sprocket

$12.99

$

Usually ships in 3-6 days

0

38

MTD 713-0437

Chain

$37.99

$

Usually ships in 3-6 days

0

39

MTD 914-0474

Pin Cotter
(Superseded to 714-0474)

$

$

Not available

40

MTD 719-0295A

Housing Track

$

$

Not available

42

MTD 725-0157

Cable Tie

$3.99

$

In Stock, only 2 left!

0

45

MTD 932-0209

Spring

$7.99

$

In Stock, only 2 left!

0

46

MTD 932-0264

Spring

$4.99

$

In Stock, Qty 20+

0

47

MTD 736-0105

Washer-Bell

$4.49

$

In Stock, Qty 20+

0

49

MTD 936-0160

Washer-Flat

$4.49

$

In Stock, Qty 9

0

50

MTD 936-0176

Washer-Flat
(Superseded to 736-0176)

$4.99

$

In Stock, Qty 6

0

51

MTD 736-0242

Washer-Bell

$4.49

$

In Stock, Qty 20+

0

52

MTD 736-0270

Washer-Bell

$3.99

$

In Stock, Qty 20+

0

54

MTD 936-0287

Washer-Flat
(Superseded to 736-0287)

$

$

Not available

58

MTD 738-0924A

Screw-Shoulder

$6.99

$

In Stock, Qty 5

0

59

MTD 941-0339

Bearing-Flange

$12.99

$

In Stock, Qty 20+

0

60

MTD 941-0563

Bearing-Ball

$36.99

$

In Stock, Qty 11

0

61

MTD 941-0597

Bearing-Hex Flange

$12.99

$

In Stock, Qty 12

0

62

MTD 946-0897

Cable-Auger Clutch

$24.99

$

In Stock, Qty 20+

0

63

MTD 946-0898

Cable-Drive Clutch

$27.99

$

In Stock, Qty 20+

0

64

MTD 753-0707

Cable with Trigger Lever

$74.99

$

In Stock, Qty 5

0

65

MTD 748-0190

Spacer

$6.49

$

In Stock, only 1 left!

0

66

MTD 748-0234

Spacer-Shoulder

$4.49

$

Usually ships in 3-6 days

0

69

MTD 750-0903B

Spacer-Split

$10.99

$

Usually ships in 3-6 days

0

70

MTD 750-0904

Spacer-Split

$

$

Not available

73

MTD 950-0997

Spacer

$6.99

$

In Stock, only 4 left!

0

74

MTD 756-0625

Roller-Cable

$9.49

$

In Stock, Qty 16

0

75

MTD 784-5590

Bracket

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 784-5590-0637

Shift Fram Bracket - POWDER BLACK (0637)

$15.99

$

Usually ships in 3-6 days

0

MTD 784-5590-0662

Shift Fram Bracket - OYSTER GRAY (0662)

$15.99

$

Usually ships in 3-6 days

0

MTD 784-5590-0638

BRACKET-SHIFT FRAM - MTD/TROY-BILT RED (0638)

$15.99

$

Usually ships in 3-6 days

0

MTD 784-5590-4033

BRACKET-SHIFT FRAM - FLINT MICA (4033)

$12.99

$

Usually ships in 3-6 days

0

MTD 784-5590-0650

BRACKET-SHIFT FRAM - RED METALLIC (0650)

$

$

Not available

MTD 784-5590-0689

BRACKET-SHIFT FRAM - POLO GREEN (0689)

$

$

Not available

MTD 784-5590-4021

BRACKET-SHIFT FRAM - CUB YELLOW 2 (4021)

$

$

Not available

$12.99

$

Usually ships in 3-6 days

0

76

MTD 784-5609-0662

Bracket

$

$

Not available

79

MTD 784-5648A-0662

Cover-Frame
(Superseded to 784-5648A-0637)

$

$

Not available

80

MTD 784-5687A-0637

Bracket-Guide

$

$

Not available

81

MTD 784-5688-0637

Bracket-Guide

$

$

Not available

82

MTD 784-5689A-0637

Bracket-Guide

$

$

Not available

MTD 777-4337

Label-Auger Housing

Note: NLA

$

$

Currently unavailable

MTD 777-4338

Label-Auger Housing

Note: NLA

$

$

Currently unavailable

MTD 777-4345

Label-Handle Panel

Note: NLA

$

$

Not available
