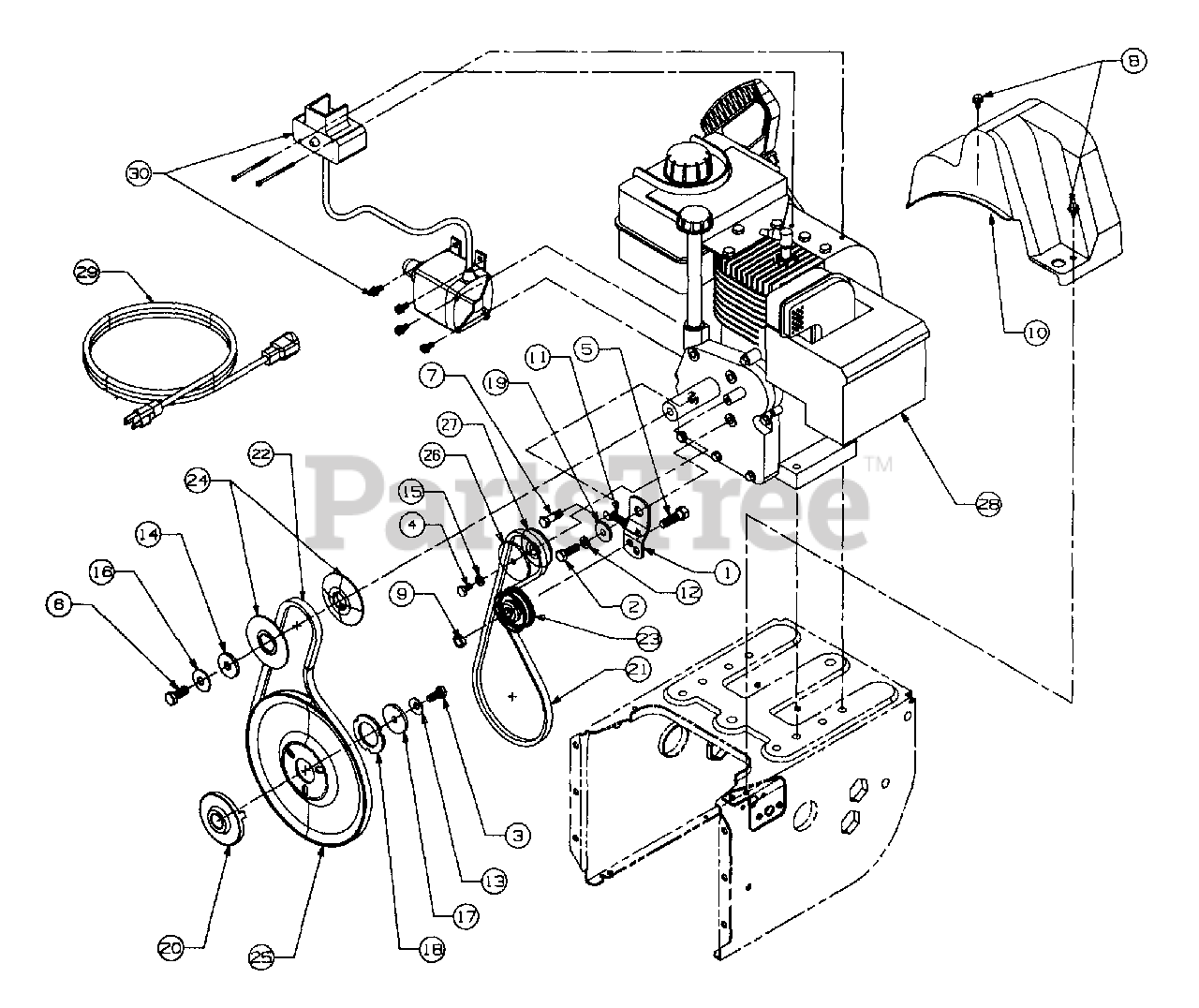

SB-750 (31AE633E190) - White Outdoor Snow Boss Snow Thrower (1999) Engine And V-Belts Parts Diagram

Snow Boss Snow Thrower

Engine And V-Belts Parts Diagram

  • Title
1

MTD 05896A

Bracket

Note: NLA

Variations

MTD 05896A-0637

No Longer Available BRACKET-ID - POWDER BLACK (0637)

$

$

Not available

$

$

2

MTD 710-0627

Screw

$4.49

$

In Stock, Qty 20+

0

3

MTD 710-1245

Screw

$8.49

$

In Stock, only 2 left!

0

4

MTD 710-0230

Screw

$

$

Not available

5

MTD 710-3005

Screw

$3.99

$

In Stock, Qty 10

0

6

MTD 710-0696

Screw

$6.99

$

In Stock, only 2 left!

0

7

MTD 710-0627

Screw

$4.49

$

In Stock, Qty 20+

0

8

MTD 710-1652

Screw

$4.49

$

In Stock, Qty 20+

0

9

MTD 912-0181

Nut, Hex Jam
(Superseded to 712-0181)

$

$

Not available

10

MTD 731-1324

Belt Cover

$21.99

$

Usually ships in 3-6 days

0

11

MTD 932-0339

Spring

$

$

Not available

12

MTD 936-0159

Washer
(Superseded to 736-0159)

$

$

Not available

13

MTD 736-0242

Washer - Bell

$4.49

$

In Stock, Qty 20+

0

14

MTD 736-0247

Washer

$9.49

$

In Stock, Qty 15

0

15

MTD 736-0270

Washer

$3.99

$

In Stock, Qty 20+

0

16

MTD 736-0331

Washer - Bell

$3.99

$

In Stock, Qty 16

0

17

MTD 736-0505

Washer - Flat

$6.49

$

In Stock, only 2 left!

0

18

MTD 936-0507

Washer

$6.99

$

Usually ships in 3-6 days

0

19

MTD 750-1053

Spacer

$

$

Not available

20

MTD 948-0360

Pulley, Adapter

$22.99

$

In Stock, only 2 left!

0

21

MTD 954-0456

V-Belt

$29.99

$

In Stock, only 4 left!

0

22

MTD 954-0430B

V-Belt Matched
(Superseded to 954-0430C)

$28.99

$

In Stock, Qty 20+

0

23

MTD 756-0313

Idler, Flat

$26.99

$

In Stock, Qty 6

0

24

MTD 756-0569

Pulley, Half

$10.99

$

Usually ships in 3-6 days

0

25

MTD 756-0967

Pulley, Auger

$56.99

$

Usually ships in 3-6 days

0

26

MTD 756-0984

Pulley Half

Note: NLA

$

$

Not available

27

MTD 756-0985

Pulley, Half

Note: NLA

$

$

Not available

28

Engine

$

$

Not available

29

MTD 929-0071A

Cord Extension
(Superseded to 929-0071B)

$21.99

$

In Stock, only 2 left!

0

30

MTD TC-33290F

Starter
(Superseded to TC-33290H)

$377.99

$

Usually ships in 3-6 days

0
