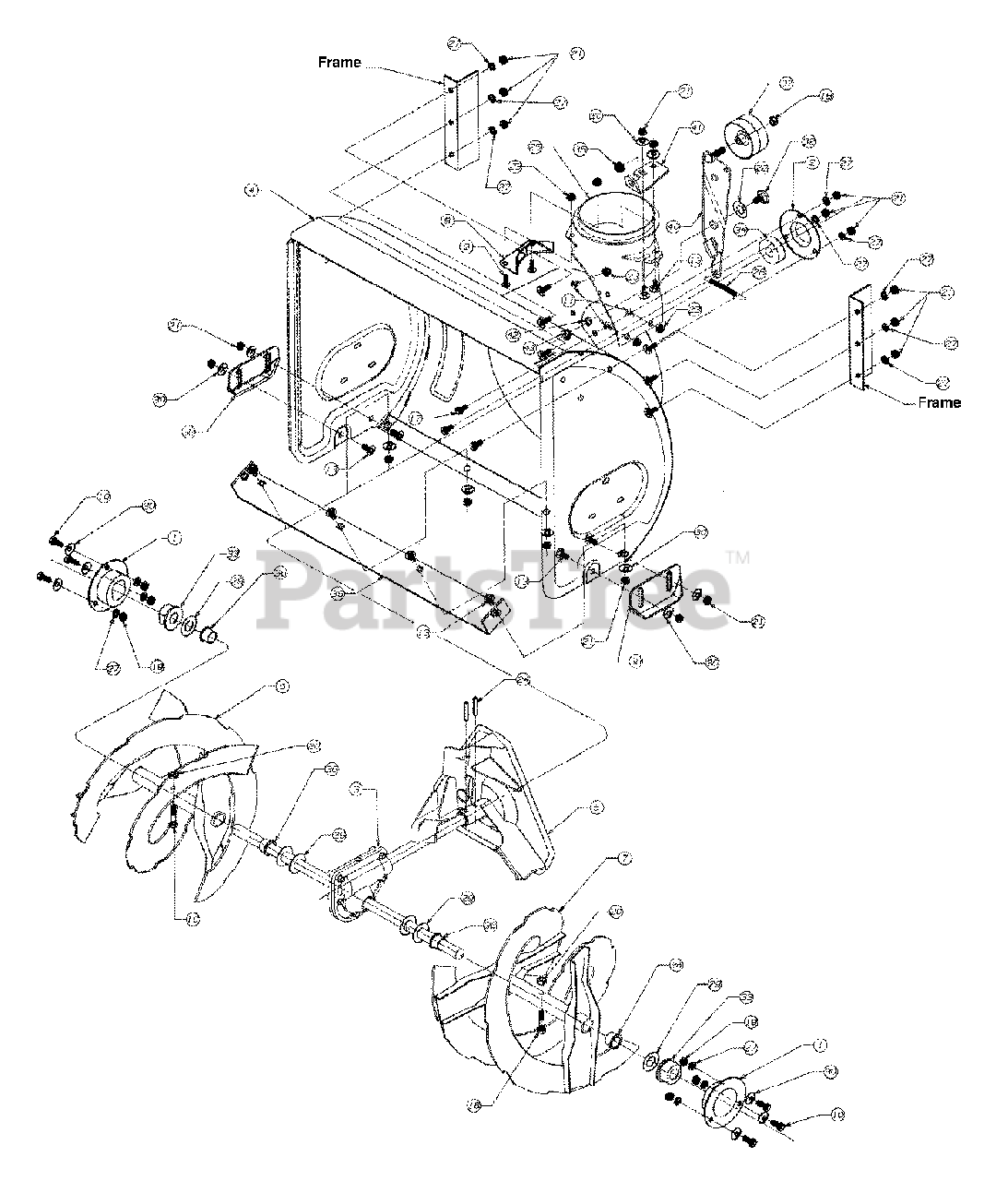

SB-750 (317E633E190) - White Outdoor Snow Boss Snow Thrower (1997) Housing, Axle And Shaft Parts Diagram

Snow Boss Snow Thrower

Housing, Axle And Shaft Parts Diagram

  • Title

1

MTD 784-5618A-0637

Housing, Bearing

$13.99

$

In Stock, Qty 6

0

2

MTD 05931A

Housing, Bearing

$10.99

$

In Stock, only 2 left!

0

3

MTD 918-0413B

Gear Assembly

Note: (623)

$

$

Not available

3

MTD 918-0414B

Gear Assembly

Note: (633)

$

$

Not available

3

MTD 918-0415B

Gear Assembly

Note: (653)

$442.99

$

Usually ships in 3-6 days

0

3

MTD 918-0417B

Gear Assembly

Note: (663)

$400.99

$

Usually ships in 3-6 days

0

4

MTD 684-0052C-0662

22" Housing Assembly

Note: (623)

$

$

Not available

4

MTD 684-0039D-0662

24" Housing Assembly

Note: (633)

$

$

Not available

4

MTD 684-0040D-0662

26" Housing Assembly

Note: (653)

$

$

Not available

4

MTD 684-0055C-0662

30" Housing Assembly

Note: (663)

$

$

Not available

5

MTD 984-0065-0637

Impeller Assembly
(Superseded to 684-06276-0637)

$90.99

$

In Stock, only 1 left!

0

6

MTD 684-04178-0637

Spiral, 22" R.H.

Note: (623)

$170.99

$

In Stock, only 1 left!

0

6

MTD 684-04180-0637

Spiral, 24" R.H.

Note: (633)

$

$

Not available

6

MTD 684-04182-0637

Spiral, 26" R.H.

Note: (653)

$187.99

$

Usually ships in 3-6 days

0

6

MTD 684-04186-0637

Spiral, 30" R.H.

Note: (663)

$201.99

$

Usually ships in 3-6 days

0

7

MTD 684-04179-0637

Spiral, 22" L.H.

Note: (623)

$

$

Not available

7

MTD 684-04181-0637

Spiral, 24" L.H.

Note: (633)

$178.99

$

In Stock, only 1 left!

0

7

MTD 684-04183-0637

Spiral, 26" L.H.

Note: (653)

$

$

Not available

7

MTD 684-04187-0637

Spiral, 30" L.H.

Note: (663)

$

$

Not available

8

MTD 705-5226

Reinforcement, Chute

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 705-5226-0637

Chute Reinforcement - POWDER BLACK (0637)

$10.99

$

In Stock, Qty 7

0

MTD 705-5226-0638

Chute Reinforcement - MTD/TROY-BILT RED (0638)

$10.99

$

In Stock, Qty 7

0

$9.99

$

Usually ships in 3-6 days

0

9

MTD 710-0167

Bolt, Carriage
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

10

MTD 710-0604A

Screw, Hex

$4.49

$

In Stock, Qty 20+

0

11

MTD 710-0167

Screw, Carriage
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

13

MTD 710-0451

Screw, Carriage

$4.49

$

In Stock, Qty 20+

0

16

MTD 710-0890A

Bolt, Shear

$1.99

$

In Stock, Qty 20+

0

17

UNKNOWN

$

$

Not available

18

MTD 912-0116

Hex Lock Nut
(Superseded to 712-0116)

$

$

Not available

19

UNKNOWN

$

$

Not available

20

MTD 912-0429

Nut, Hex Lock
(Superseded to 712-0429)

$4.49

$

In Stock, Qty 20+

0

21

MTD 912-0267

Nut, Hex
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

23

MTD 912-3027

Nut, Lock, Hex, Flanged

$4.49

$

In Stock, Qty 20+

0

24

MTD 915-0114

Spring Pin
(Superseded to 715-0114)

$9.49

$

In Stock, only 3 left!

0

25

MTD 731-1379D

Adapter, Chute

$65.99

$

In Stock, only 1 left!

0

26

MTD 932-0611

Spring

$7.49

$

In Stock, Qty 20+

0

27

MTD 936-0119

Lock Washer

$4.99

$

In Stock, Qty 20+

0

28

MTD 936-0167

Washer, Flat

$6.99

$

In Stock, Qty 7

0

29

MTD 736-0188

Washer, Flat, .76 I.D. x 1.49 O.D. x .06

$4.49

$

In Stock, Qty 20+

0

30

MTD 736-0242

Washer, Bell

$4.49

$

In Stock, Qty 20+

0

32

MTD 938-0281

Screw, Shoulder
(Superseded to 738-0281)

$

$

Not available

33

MTD 941-0245

Bearing, Flange

$9.99

$

In Stock, Qty 20+

0

34

MTD 941-0309

Bearing, Ball

$74.99

$

In Stock, only 1 left!

0

35

MTD 941-0475

Bushing, Plastic

$4.49

$

In Stock, Qty 20+

0

36

MTD 741-0493A

Bushing, Flange
(Superseded to 741-0493C)

$4.49

$

In Stock, Qty 20+

0

37

MTD 756-0178

Idler, Flat

$20.99

$

In Stock, only 4 left!

0

38

MTD 784-5580-0637

Shoe, Slide

$23.99

$

In Stock, Qty 20+

0

39

MTD 790-00117-0637

22" Shave Plate

Note: (623)

$30.99

$

In Stock, Qty 20+

0

39

MTD 790-00120-0637

24" Shave Plate

Note: (633)

$34.99

$

In Stock, Qty 20+

0

39

MTD 790-00121-0637

26" Shave Plate

Note: (653)

$36.99

$

In Stock, Qty 20+

0

39

MTD 790-00119-0637

30" Shave Plate

Note: (663)

$39.99

$

In Stock, only 3 left!

0

40

MTD 984-0064-0637

Arm, Auger Idler

$32.99

$

In Stock, only 3 left!

0

41

MTD 784-5647-0637

Bracket, Chute Crank

$14.99

$

In Stock, Qty 7

0

42

MTD 936-0169

Lock Washer
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

43

MTD 712-0798

Hex Nut

$4.49

$

In Stock, only 2 left!

0
