SB 720 R (41AJSB-B034) - Ryobi Sweeper Blower Attachment Replacement Parts Parts Diagram

Sweeper Blower Attachment

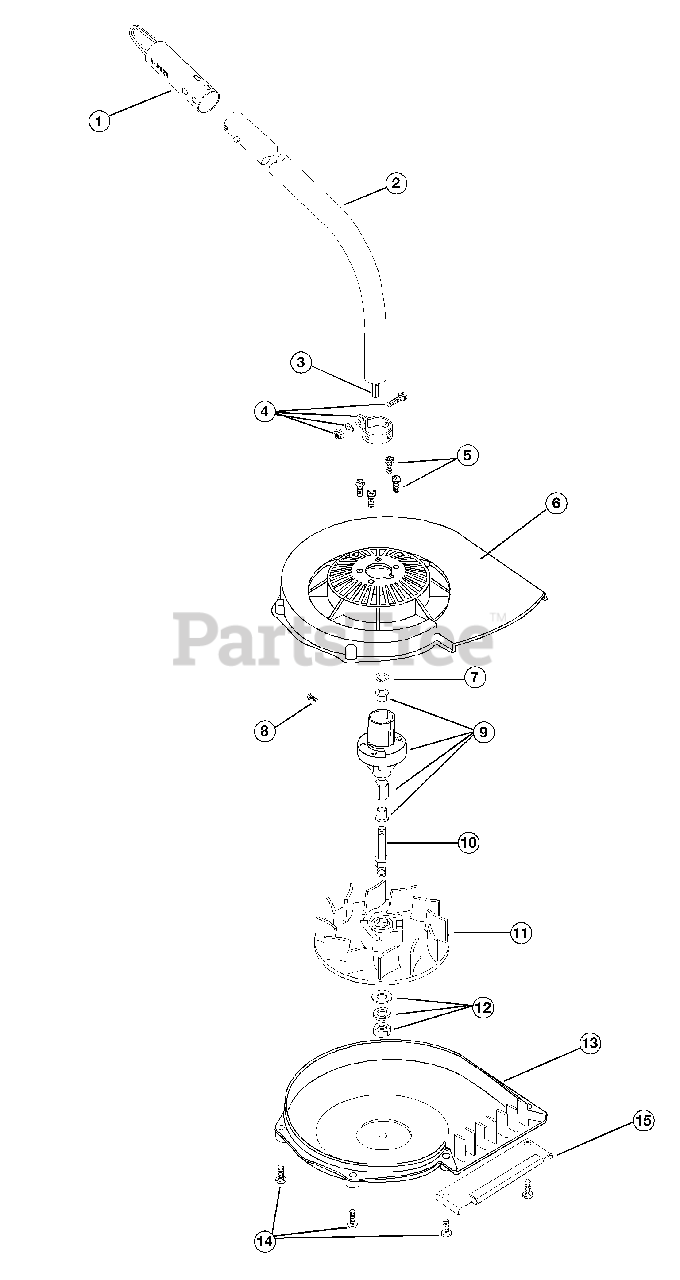

Replacement Parts Parts Diagram

  • Title

1

MTD 791-612605

Hanger
(Superseded to 731-08926)

$2.99

$

In Stock, only 3 left!

0

2

MTD 791-180340

Drive Shaft Housing Assembly
(Superseded to 753-1218)

$105.99

$

Usually ships in 3-6 days

0

3

MTD 791-181852

Drive Shaft Assembly

$59.99

$

In Stock, Qty 11

0

4

MTD 791-153597

Lower Clamp Assembly

Note: (includes 8)

$

$

Not available

5

MTD 791-153318

Mounting Screw Assembly

$

$

Not available

6

MTD 791-180105

Upper Housing Assembly

$

$

Not available

7

MTD 791-181560

Palnut
(Superseded to 753-04348)

$6.99

$

Usually ships in 3-6 days

0

8

MTD 791-145569

Anti-Rotation Screw

$9.99

$

In Stock, Qty 7

0

9

MTD 791-181636

Bushing Housing Assembly

$

$

Not available

10

MTD 791-612559

Impeller Shaft

$

$

Not available

11

MTD 791-180196

Impeller

$

$

Not available

12

MTD 791-182217

Nut and Washer Assembly

$

$

Not available

13

MTD 791-180106

Lower Housing Assembly

$

$

Not available

14

MTD 791-145888

Mounting Screw Assembly

$

$

Not available

15

MTD 791-612562

Edge Guard

$

$

Not available
