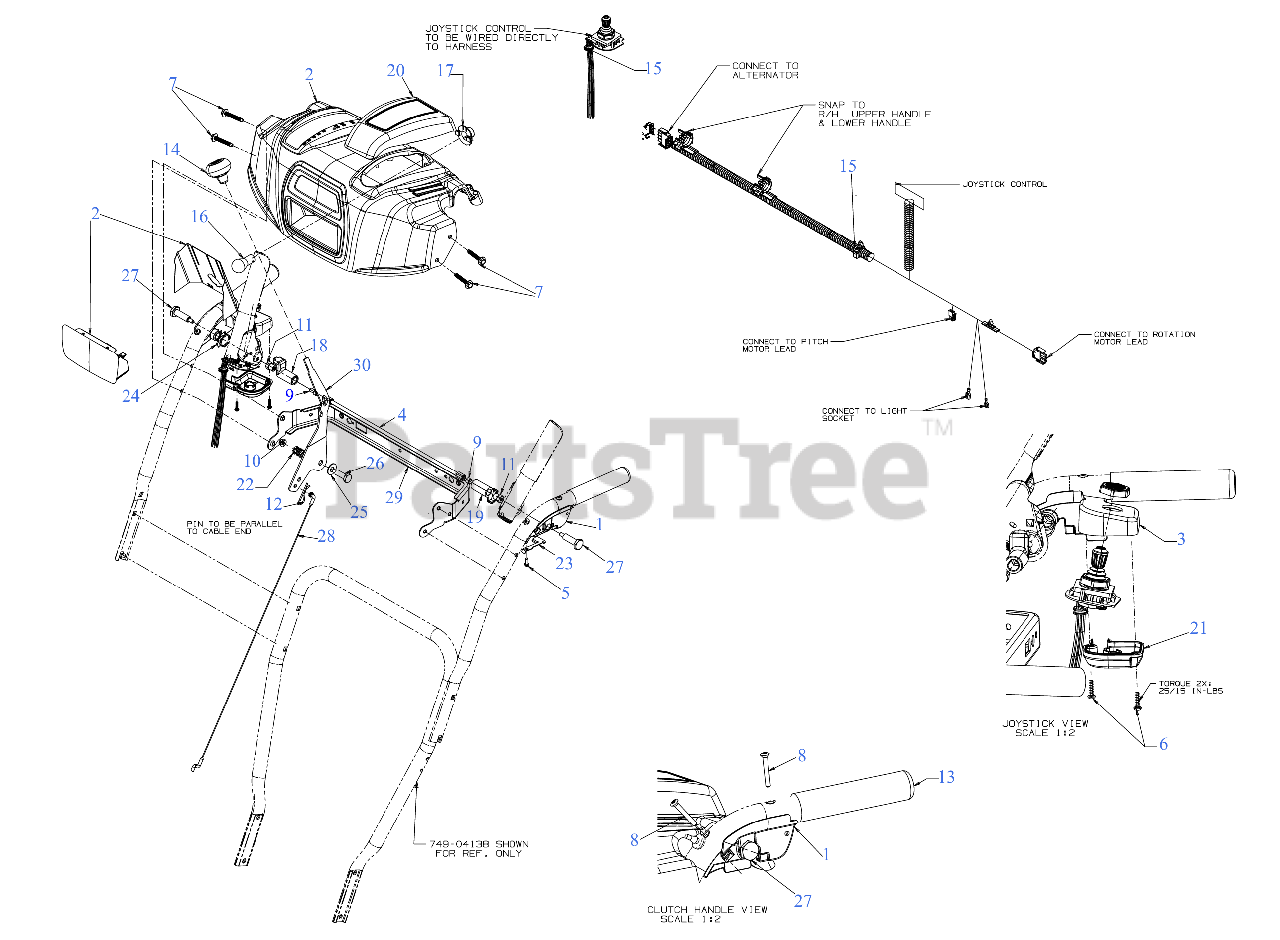

SB 710 (CMXGBAM1054545) (31AM7BTF793) - Craftsman Snow Blower (2019) Panel Parts Diagram

Snow Blower

Panel Parts Diagram

  • Title
1

MTD 631-04133A

CLUTCH LOCK HANDLE ASSEMBLY (LH)

$15.99

$

In Stock, Qty 7

0

2

MTD 931-04187A

HANDLE PANEL ASSEMBLY

$71.99

$

Usually ships in 3-6 days

0

2

MTD 731-05324

HANDLE PANEL LENS

Note: (Not Shown)

$14.99

$

Usually ships in 3-6 days

0

2

MTD 777X41804

LABEL-LENS

Note: (Not Shown)

$9.99

$

Usually ships in 3-6 days

0

3

MTD 931-04653

CLUTCH HANDLE ASSEMBLY (RH)

$12.99

$

In Stock, only 1 left!

0

4

MTD 684-04250

PIVOT ROD

$12.99

$

In Stock, only 2 left!

0

5

MTD 710-04326

SCREW #8-16 x .50

$3.99

$

In Stock, only 2 left!

0

6

MTD 710-04329

SCREW .159 x .610

$4.99

$

In Stock, only 1 left!

0

7

MTD 710-04586

SCREW 1/4-20 x 1.625

$6.99

$

In Stock, only 2 left!

0

8

MTD 710-1233

SCREW #10-24 x 1.375

$4.99

$

In Stock, Qty 11

0

9

MTD 710-3069

SCREW 1/4-20 x .50

$4.99

$

In Stock, Qty 10

0

10

MTD 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

11

MTD 712-04081A

HEX NUT W/PATCH

$7.49

$

In Stock, Qty 20+

0

12

MTD 914-0145

INTERNAL COTTER PIN
(Superseded to 714-0145)

$4.99

$

In Stock, Qty 20+

0

13

$11.99

$

In Stock, Qty 8

0

14

MTD 720-04039

SHIFT KNOB

$10.99

$

In Stock, only 1 left!

0

15

MTD 925-06905

4-WAY ELEC CHUTE HARNESS

$193.99

$

Usually ships in 3-6 days

0

16

MTD 925-1629

LAMP-12 VOLT

$11.99

$

In Stock, Qty 10

0

17

MTD 925-1649

HEADLIGHT SOCKET
(Superseded to 925-1649A)

$11.99

$

In Stock, Qty 20+

0

18

MTD 731-04894D

LOCK PLATE

$5.49

$

In Stock, Qty 9

0

19

MTD 731-04896B

CLUTCH LOCK CAM
(Superseded to 731-04896C)

$4.49

$

In Stock, Qty 20+

0

20

MTD 731-08947

HANDLE COVER PANEL

$16.99

$

Usually ships in 3-6 days

0

21

MTD 731-11147

JOYSTICK HOUSING COVER

$6.49

$

In Stock, Qty 10

0

22

MTD 732-0193

COMPRESSION SPRING

$4.99

$

In Stock, Qty 6

0

23

MTD 732-04219C

CLUTCH SPRING

$4.49

$

In Stock, Qty 20+

0

24

MTD 732-04238B

TORSION SPRING

$5.49

$

In Stock, Qty 10

0

25

MTD 936-0267

FLAT WASHER .40X.88X.060
(Superseded to 736-0267)

$4.49

$

In Stock, Qty 20+

0

26

MTD 738-04125

SHOULDER SCREW

$4.99

$

In Stock, only 3 left!

0

27

MTD 738-04348

SHOULDER SCREW .437 x 1.345 1/4-20

$3.99

$

In Stock, Qty 20+

0

28

MTD 946-04396A

SPEED SELECTOR CABLE (PLASTIC)

$20.99

$

In Stock, Qty 20+

0

29

MTD 790-00248E-0637

HANDLE SUPPORT BRACKET (POWDER BLACK)

$24.99

$

In Stock, Qty 5

0

30

MTD 790-00311C

SHIFT LEVER

Variations

MTD 790-00311C-0637

Shift Lever - POWDER BLACK (0637)

$27.99

$

In Stock, Qty 5

0

$22.99

$

Usually ships in 3-6 days

0
