SB 650 (CMXGBAM1054546) (31AH5DTQ793) - Craftsman Snow Blower (2022) Handle Panel Parts Diagram

Snow Blower

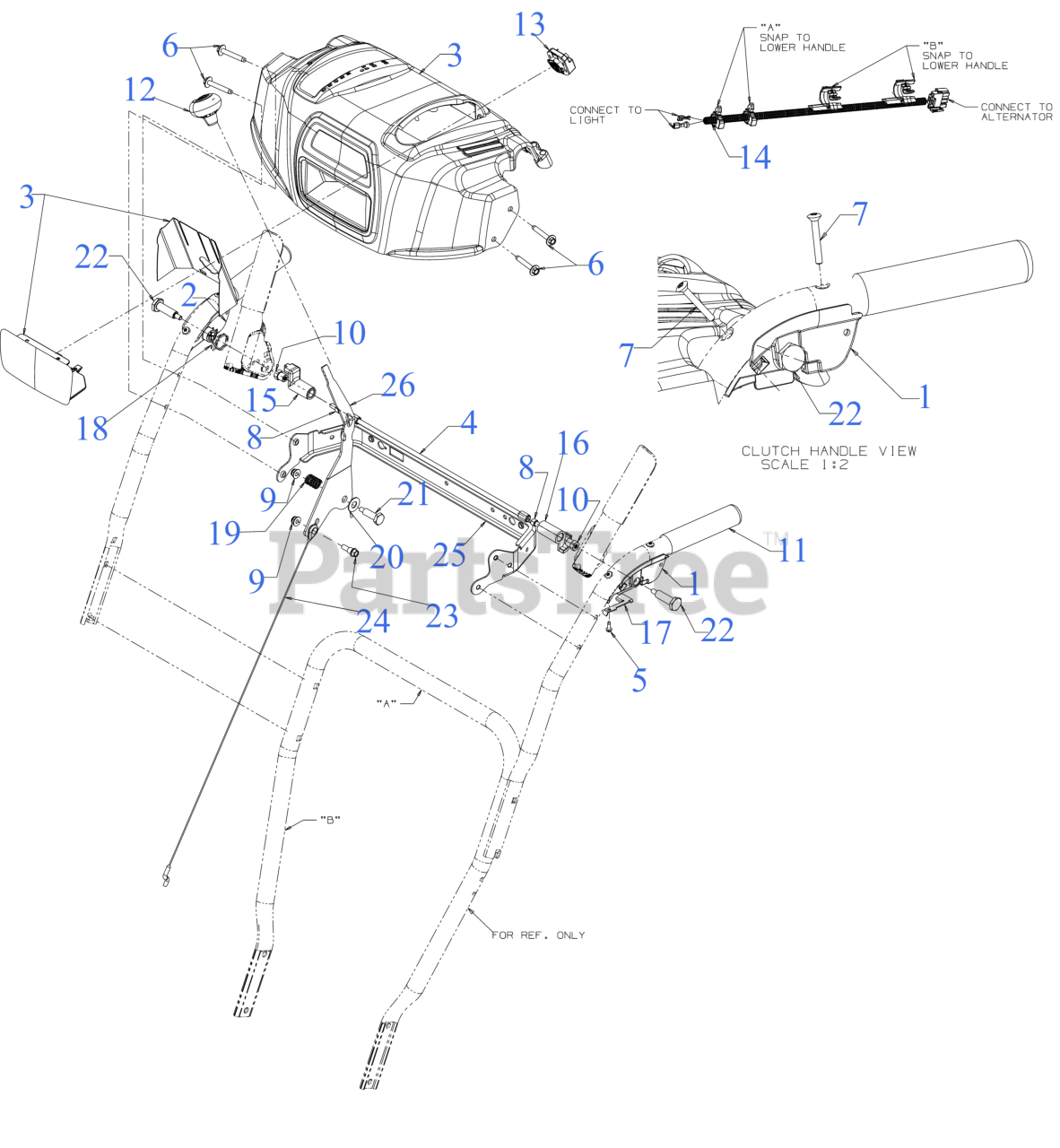

Handle Panel Parts Diagram

  • Title

1

MTD 631-04133A

CLUTCH LOCK HANDLE ASSEMBLY (LH)

$15.99

$

In Stock, only 1 left!

0

1

MTD 712-0161

HEX NUT

Note: (Not Shown)

$4.49

$

In Stock, only 3 left!

0

2

MTD 631-04134B

CLUTCH LOCK HANDLE ASSEMBLY (RH)

$15.99

$

In Stock, only 1 left!

0

2

MTD 712-0161

HEX NUT

Note: (Not Shown)

$4.49

$

In Stock, only 3 left!

0

3

MTD 931-04187A

HANDLE PANEL ASSEMBLY

$71.99

$

In Stock, only 1 left!

0

3

MTD 731-05324

HANDLE PANEL LENS

Note: (Not Shown)

$14.99

$

Usually ships in 3-6 days

0

3

MTD 777X41804

LABEL-LENS

Note: (Not Shown)

$9.99

$

Usually ships in 3-6 days

0

4

MTD 684-04250

PIVOT ROD

$12.99

$

In Stock, Qty 6

0

5

MTD 710-04326

SCREW #8-16 x .50

$3.99

$

In Stock, Qty 11

0

6

MTD 710-04586

SCREW 1/4-20 x 1.625

$6.99

$

In Stock, only 2 left!

0

7

MTD 710-1233

SCREW #10-24 x 1.375

$4.99

$

In Stock, Qty 11

0

8

MTD 710-3069

SCREW 1/4-20 x .50

$4.99

$

In Stock, Qty 10

0

9

MTD 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 18

0

10

MTD 712-04081A

HEX NUT W/PATCH

$7.49

$

In Stock, only 4 left!

0

11

MTD 720-0274

GRIP

$11.99

$

In Stock, only 3 left!

0

12

MTD 720-04039

SHIFT KNOB

$10.99

$

In Stock, only 2 left!

0

13

MTD 925-06095A

LED HEADLIGHT & SOCKET (150 LUMNES)

$52.99

$

Usually ships in 3-6 days

0

14

MTD 925-06927

LIGHT HARNESS

$26.99

$

Usually ships in 3-6 days

0

15

MTD 731-04894D

LOCK PLATE

$5.49

$

In Stock, only 2 left!

0

16

MTD 731-04896C

CLUTCH LOCK CAM

$4.49

$

In Stock, Qty 9

0

17

MTD 732-04219C

CLUTCH SPRING

$4.49

$

In Stock, Qty 20+

0

18

MTD 732-04238B

TORSION SPRING

$5.49

$

In Stock, Qty 11

0

19

MTD 732-04756

COMPRESSION SPRING

Note: (4/26/21 & After)

$3.49

$

Usually ships in 3-6 days

0

19

MTD 732-0193

COMPRESSION SPRING

Note: (4/26/21 & Before)

$4.99

$

In Stock, Qty 8

0

20

MTD 736-0267

FLAT WASHER .38X.88

Note: (11/1/22 & Before)

$4.49

$

In Stock, only 1 left!

0

20

MTD 736-05080

FLAT WASHER .401X.88

Note: (11/1/22 & After)

$3.49

$

Usually ships in 3-6 days

0

21

MTD 738-04125

SHOULDER SCREW

$4.99

$

In Stock, Qty 7

0

22

MTD 738-04348

SHOULDER SCREW .437 x 1.345 1/4-20

$3.99

$

In Stock, Qty 6

0

23

MTD 738-05149A

SHOULDER SCREW .342X.335X1/4-20

$6.49

$

In Stock, only 2 left!

0

24

MTD 746P06984

SELECTION CABLE

Note: (3/28/22 & After)

$5.49

$

In Stock, only 2 left!

0

24

MTD 946-04396A

SPEED SELECTOR CABLE (PLASTIC)

Note: (3/28/22 & Before)

$20.99

$

In Stock, Qty 20+

0

25

MTD 790-00248E

HANDLE SUPPORT BRACKET
(Superseded to 790-00248E-0637)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 790-00248E-0637

Handle Support Bracket - POWDER BLACK (0637)

$24.99

$

In Stock, only 1 left!

0

$24.99

$

In Stock, only 1 left!

0

29

MTD 790-00311C-0637

SHIFT LEVER

$27.99

$

In Stock, only 1 left!
