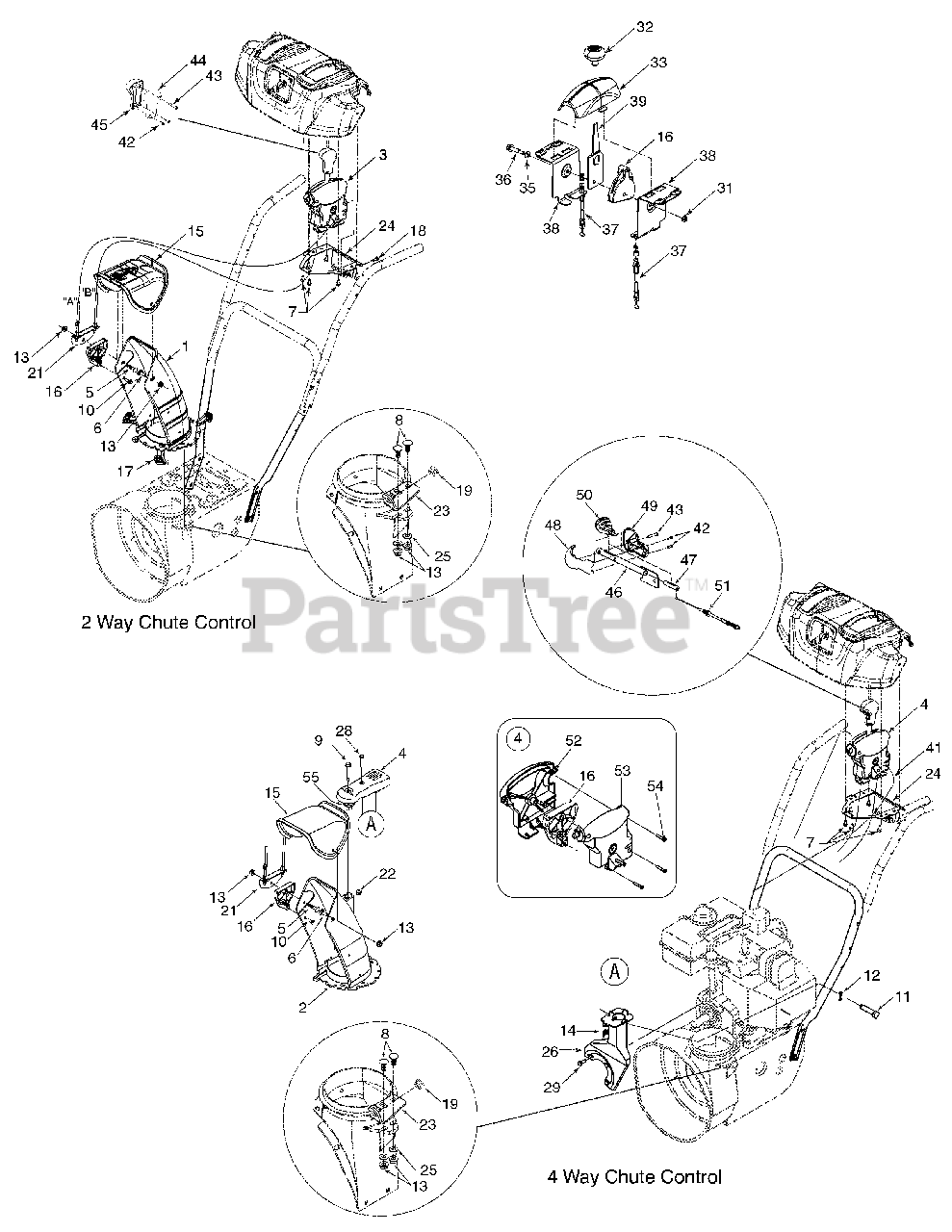

SB-630 (31AH5MLH590) - White Outdoor Snow Boss Snow Thrower (2006) Chute Assembly Parts Diagram

Snow Boss Snow Thrower

Chute Assembly Parts Diagram

  • Title

1

731-04131A

Lower Chute (2 Way)

$

$

Not available

2

White Outdoor 731-04861A

Lower Chute (4 Way)
(Superseded to 731-04861B)

$43.99

$

In Stock, only 1 left!

0

3

White Outdoor 684-04117A

2 Way Chute Control Assembly
(Superseded to 984-04117A)

$138.99

$

Usually ships in 3-6 days

0

4

White Outdoor 684-04116B

4 Way Chute Control Assembly
(Superseded to 753-08388A)

$304.99

$

Usually ships in 3-6 days

0

5

White Outdoor 710-0262

Carriage Bolt 5/16-18 x 1.50 Gr. 2

$3.99

$

In Stock, Qty 11

0

6

White Outdoor 710-04071

Carriage Screw 5/16-18 x 1.0

$4.49

$

In Stock, Qty 13

0

7

White Outdoor 710-04187

Hi-Lo Screw 1/4-15 x .5
(Superseded to 710-04187A)

$6.99

$

In Stock, Qty 20+

0

8

White Outdoor 710-0276

Carriage Bolt 5/16-18 x 1.00" Lg

$3.99

$

In Stock, Qty 10

0

9

White Outdoor 738-04194

Shoulder Screw .312 x 1.7:1/4-20

$6.49

$

In Stock, only 2 left!

0

10

White Outdoor 710-0895

Hex Tapp Scr 1/4 x .75" Lg.

$6.49

$

Usually ships in 3-6 days

0

11

White Outdoor 711-04469A

Clevis Pin 3/8 x 1.87

$5.99

$

In Stock, only 3 left!

0

12

White Outdoor 714-04040

Bow Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

13

White Outdoor 712-04063

Flange Locknut 5/16-18 Gr. F Nylon

$3.99

$

In Stock, Qty 5

0

14

712-03087

Wing Nut 1/4-20

$

$

Not available

15

White Outdoor 731-04425A

Upper Chute w/Export Label, Remote
(Superseded to 931-04425B)

$22.99

$

Usually ships in 3-6 days

0

16

White Outdoor 731-1313C

Cable Guide

$11.99

$

In Stock, Qty 20+

0

17

White Outdoor 731-04869

Chute Flange Keeper
(Superseded to 731-04869A)

$4.49

$

In Stock, Qty 20+

0

18

White Outdoor 738-04135

Shoulder Screw .25 x .50:10-24

$

$

Not available

19

White Outdoor 741-0475

Plastic Bushing .380 ID
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

20

White Outdoor 749-04155

Chute Support Tube

Variations

White Outdoor 749-04155-0606

TUBE-CNTRL HEAD MT - MAJESTIC ORANGE (0606)

$

$

Not available

White Outdoor 749-04155-0638

TUBE-CNTRL HEAD MT - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 749-04155-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 749-04155-0716

TUBE-CNTRL HEAD MT - CUB YELLOW-99 (0716)

$

$

Not available

$

$

21

White Outdoor 784-5594

Cable Bracket Chute Tilt

Variations

White Outdoor 784-5594-0498

Cable Bracket - OLD CUB YELLOW (0498)

$11.99

$

In Stock, only 3 left!

0

White Outdoor 784-5594-0637

Cable Bracket - POWDER BLACK (0637)

$11.99

$

In Stock, only 3 left!

0

White Outdoor 784-5594-0716

Cable Bracket - CUB YELLOW-99 (0716)

$11.99

$

In Stock, only 3 left!

0

$10.99

$

Usually ships in 3-6 days

0

22

White Outdoor 712-04064

Hex L-Flanged Nut 1/4-20 Gr. F Nylon

$3.99

$

In Stock, Qty 20+

0

23

White Outdoor 784-5647

Chute Crank Brkt.
(Superseded to 784-5647-0637)

Variations

White Outdoor 784-5647-0637

Chute Crank Bracket, Black - POWDER BLACK (0637)

$14.99

$

In Stock, Qty 5

0

$14.99

$

In Stock, Qty 5

0

24

White Outdoor 790-00131

Bracket: Chute Control
(Superseded to 790-00131A-0637)

Variations

Cub Cadet 790-00131A-0637

BRACKET-LOCK CONTR - POWDER BLACK

$25.99

$

Usually ships in 3-6 days

0

$25.99

$

Usually ships in 3-6 days

0

25

White Outdoor 736-0159

Flat Washer .349 ID x .879 OD x .063

$4.49

$

In Stock, Qty 20+

0

26

White Outdoor 684-04162

Support Bracket
(Superseded to 684-04162B-0637)

Variations

White Outdoor 684-04162-0637

BRACKET ASSY: SUPPORT - POWDER BLACK (0637)

$

$

Not available

$

$

27

White Outdoor 710-04187

Hi-Lo Screw 1/4-15 x .50
(Superseded to 710-04187A)

$6.99

$

In Stock, Qty 20+

0

28

White Outdoor 710-0606

Hex Hd. Cap Screw 1/4-20 x 1.5 Gr. 5

$5.49

$

In Stock, Qty 10

0

29

White Outdoor 710-0627

Hex Hd. Cap Screw 5/16-24 x .75

$4.49

$

In Stock, Qty 20+

0

30

White Outdoor 736-0463

Flat Washer .25 ID x .63 OD x .0515

$4.49

$

In Stock, Qty 12

0

31

White Outdoor 712-04064

Flange Locknut 1/4-20 Gr. F, Nylon

$3.99

$

In Stock, Qty 20+

0

32

White Outdoor 720-04039

Knob

$10.99

$

In Stock, only 2 left!

0

33

White Outdoor 731-05307

Control Cover - 2 Way

$11.99

$

Usually ships in 3-6 days

0

35

White Outdoor 736-0413

Spring Washer .390 x .625 x .012

$6.99

$

In Stock, only 2 left!

0

36

White Outdoor 738-04185

Flg Shlder Spacer .310 x .995 x 1/4-20

$8.49

$

Usually ships in 3-6 days

0

37

White Outdoor 746-04238

Cable - 2 Way
(Superseded to 946-04238)

$36.99

$

Usually ships in 3-6 days

0

38

White Outdoor 790-00200

Mounting Bracket - 2 Way
(Superseded to 790-00200A)

Variations

White Outdoor 790-00200-0637

BRACKET-2 WAY CNTRL - POWDER BLACK (0637)

$18.99

$

Usually ships in 3-6 days

0

$15.99

$

Usually ships in 3-6 days

0

39

White Outdoor 790-00210

Lever - 2 Way
(Superseded to 790-00210A-0637)

Variations

White Outdoor 790-00210-0637

LEVER 2-WAY CONTROL - POWDER BLACK (0637)

$14.99

$

Usually ships in 3-6 days

0

$14.99

$

Usually ships in 3-6 days

0

40

731-04889

Joystick Pulley

$

$

Not available

41

746-04166

Chute Rotation Cable

$

$

Not available

42

White Outdoor 710-04352

Plastite Screw #6 x .375

$4.49

$

Usually ships in 3-6 days

0

43

White Outdoor 710-04353

Plastite Screw #8 x 1.00

$6.99

$

Usually ships in 3-6 days

0

44

731-04891

RH Control Knob

$

$

Not available

45

731-04892

LH Control Knob

$

$

Not available

46

White Outdoor 684-04115

Tube & Brkt. Lever Ass'y
(Superseded to 984-04115)

$

$

Not available

47

White Outdoor 731-04893

Plunger
(Superseded to 731-04893A)

$6.49

$

Usually ships in 3-6 days

0

48

White Outdoor 731-04904

RH Trigger Control Knob

$11.99

$

Usually ships in 3-6 days

0

49

White Outdoor 731-04905

LH Trigger Control Knob

$10.99

$

Usually ships in 3-6 days

0

50

731-04910

Trigger Levier

$

$

Not available

51

746-04164

Detent Cable

$

$

Not available

52

731-04888

Control Head Housing LH

$

$

Not available

53

731-04887

Control Head Housing RH

$

$

Not available

54

White Outdoor 710-04353

Screw #8 x 1.0 Plastite

$6.99

$

Usually ships in 3-6 days

0

55

731-04889

Joystick Pulley

$

$

Not available
