SB-628 (31AH6LLG790) - White Outdoor Snow Boss Snow Thrower (2006) Handle Assembly Parts Diagram

Snow Boss Snow Thrower

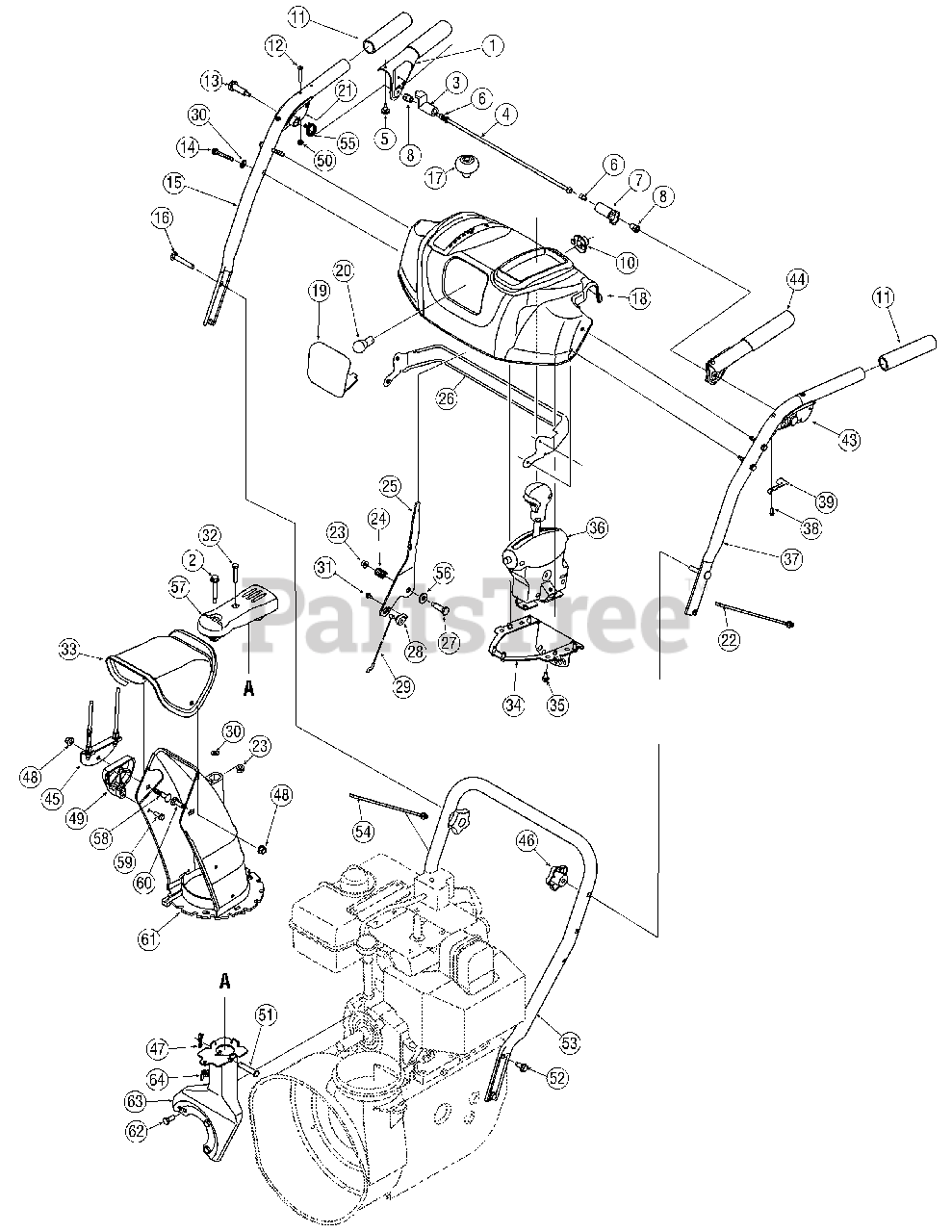

Handle Assembly Parts Diagram

  • Title

1

MTD 684-04109B

Handle Engagement Assembly RH
(Superseded to 684-04106D)

$21.99

$

In Stock, only 1 left!

0

2

MTD 738-04194

Flange Shoulder Screw

$6.49

$

In Stock, only 2 left!

0

3

MTD 731-04894D

Lock Plate

$5.49

$

In Stock, only 1 left!

0

4

MTD 753-04882C

Pivot Rod

$42.99

$

In Stock, only 2 left!

0

5

MTD 935-0199A

Rubber Bumper
(Superseded to 735-0199A)

$7.99

$

In Stock, only 4 left!

0

6

MTD 710-04354

Screw, 1/4-20 x.375

$3.99

$

In Stock, only 4 left!

0

7

MTD 731-04896B

Clutch Lock Cam
(Superseded to 731-04896C)

$4.49

$

In Stock, Qty 6

0

8

MTD 712-04081A

Shoulder Nut, 1/4-20

$7.49

$

In Stock, only 2 left!

0

9

MTD 725-04214

Wire Harness

$

$

Not available

10

MTD 925-1649

Light Socket
(Superseded to 925-1649A)

$11.99

$

In Stock, Qty 20+

0

11

MTD 720-0274

Handle Grip

$11.99

$

In Stock, only 2 left!

0

12

MTD 710-1233

Screw, #10-24 x 0.375

$4.99

$

In Stock, Qty 11

0

13

MTD 738-04348

Shoulder Screw, 1/4-20 x 1.345

$3.99

$

In Stock, Qty 20+

0

14

MTD 710-1026

Screw, 1/4-20 x 1.750

$6.99

$

In Stock, Qty 13

0

15

MTD 749-04141

Upper Handle RH

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 749-04141-0637

Right Upper Handle - POWDER BLACK (0637)

$45.99

$

Usually ships in 3-6 days

0

MTD 749-04141-0638

HANDLE-UPPER RH - MTD/TROY-BILT RED (0638)

$45.99

$

Usually ships in 3-6 days

0

$53.99

$

Usually ships in 3-6 days

0

16

MTD 710-0572

Carriage Screw, 5/16-18 x 2.25

$4.49

$

In Stock, only 4 left!

0

17

MTD 720-04046

Shift Knob

$

$

Not available

18

MTD 931-04183

Handle Panel, K/L-Style, Black

$108.99

$

Usually ships in 3-6 days

0

19

MTD 731-05320

Lens

$12.99

$

Usually ships in 3-6 days

0

20

MTD 925-04213

Lamp

$4.99

$

In Stock, only 1 left!

0

21

MTD 631-04134B

Handle Clutch Lock - RH

$15.99

$

In Stock, only 1 left!

0

22

MTD 725-0157

Cable Tie

$3.99

$

In Stock, only 2 left!

0

23

MTD 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

24

MTD 732-0193

Compression Spring

$4.99

$

In Stock, Qty 6

0

25

MTD 790-00203-0637

Shift Lever

$

$

Not available

26

MTD 790-00140-0637

Panel Bracket

$

$

Not available

27

MTD 738-04125

Shoulder Screw

$4.99

$

In Stock, only 4 left!

0

28

MTD 946-0605

Cable Barrel Holder

$4.49

$

In Stock, Qty 5

0

29

MTD 746-04227A

Speed Selector Cable

$22.99

$

In Stock, only 4 left!

0

30

MTD 936-0463

Flat Washer, .25 x .630 x .0515
(Superseded to 736-0463)

$4.49

$

In Stock, only 2 left!

0

31

MTD 910-0224

Screw, #10-16 x .500

$3.99

$

In Stock, only 2 left!

0

32

MTD 710-0606

Hex Screw, 1/4-20 x 1.50

$5.49

$

In Stock, Qty 9

0

33

MTD 731-04427A

Upper Chute
(Superseded to 731-04427B)

$16.99

$

In Stock, only 1 left!

0

34

MTD 790-00131A-0637

Joystick Bracket

$25.99

$

Usually ships in 3-6 days

0

35

MTD 710-04187

Hi-Lo Screw, 1/4-15 x 0.5
(Superseded to 710-04187A)

$6.99

$

In Stock, Qty 7

0

36

MTD 753-08388

4 Way Chute Control Assembly Service Kit
(Superseded to 753-08388A)

Note: (Also order 684-04310A-0637 support bracket in this application) (Replaces 684-04116B 4 Way Chute Control)

$304.99

$

Usually ships in 3-6 days

0

37

MTD 749-04142A

Upper Handle LH
(Superseded to 749-04191A)

Variations

MTD 749-04142A-0638

HANDLE-UPPER LH - MTD/TROY-BILT RED (0638)

$45.99

$

Usually ships in 3-6 days

0

MTD 749-04142A-0637

HANDLE-UPPER LH - POWDER BLACK (0637)

$45.99

$

Usually ships in 3-6 days

0

MTD 749-04142A-4033

HANDLE-UPPER LH - FLINT MICA (4033)

$45.99

$

Usually ships in 3-6 days

0

$39.99

$

Usually ships in 3-6 days

0

38

MTD 710-04326

Screw, #8-16 x 0.50

$3.99

$

In Stock, only 2 left!

0

39

MTD 732-04219C

Clutch Lock Spring

$4.49

$

In Stock, Qty 20+

0

40

MTD 731-04954

Steering Control

$5.99

$

In Stock, Qty 9

0

41

MTD 738-04126

Pin, 3/16

$3.99

$

In Stock, Qty 17

0

42

MTD 716-04036

E Ring

$6.49

$

In Stock, Qty 6

0

43

MTD 631-04133A

Handle Clutch Lock - LH

$15.99

$

In Stock, only 1 left!

0

44

MTD 684-04110B

Handle Engagement Assembly LH
(Superseded to 684-04105D)

$22.99

$

In Stock, only 1 left!

0

45

MTD 784-5594

Cable Bracket

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 784-5594-0498

Cable Bracket - OLD CUB YELLOW (0498)

$11.99

$

In Stock, only 1 left!

0

MTD 784-5594-0637

Cable Bracket - POWDER BLACK (0637)

$11.99

$

In Stock, only 1 left!

0

MTD 784-5594-0716

Cable Bracket - CUB YELLOW-99 (0716)

$11.99

$

In Stock, only 1 left!

0

$10.99

$

Usually ships in 3-6 days

0

46

MTD 720-04072A

Handle Knob Assembly

$6.99

$

In Stock, Qty 20+

0

47

MTD 714-04040

Bow Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

48

MTD 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

49

MTD 731-1313C

Chute Tilt Cable Guide

$11.99

$

In Stock, Qty 20+

0

50

MTD 712-0161

Hex Lock Nut, #10-24

$4.49

$

In Stock, only 2 left!

0

51

MTD 711-04469A

Clevis Pin

$5.99

$

In Stock, only 4 left!

0

52

MTD 710-1260A

AB Screw, 5/16-18 x 0.75

$3.99

$

In Stock, Qty 20+

0

53

MTD 749-04138A

Lower Handle

Variations

MTD 749-04138A-0637

Lower Handle, Snow - POWDER BLACK (0637)

$88.99

$

Usually ships in 3-6 days

0

MTD 749-04138A-0638

Lower Handle, Snow - MTD/TROY-BILT RED (0638)

$88.99

$

Usually ships in 3-6 days

0

MTD 749-04138A-0650

HANDLE-LOWER SNOW - RED METALLIC (0650)

$77.99

$

Usually ships in 3-6 days

0

MTD 749-04138A-0662

HANDLE-LOWER SNOW - OYSTER GRAY (0662)

$88.99

$

Usually ships in 3-6 days

0

MTD 749-04138A-0665

HANDLE-LOWER SNOW - YARDMAN GREEN (0665)

$77.99

$

Usually ships in 3-6 days

0

MTD 749-04138A-0668

HANDLE-LOWER SNOW - MOSS GREEN (0668)

$88.99

$

Usually ships in 3-6 days

0

MTD 749-04138A-0689

HANDLE-LOWER SNOW - POLO GREEN (0689)

$77.99

$

Usually ships in 3-6 days

0

MTD 749-04138A-0691

HANDLE-LOWER SNOW - BLACK JACK (0691)

$88.99

$

Usually ships in 3-6 days

0

MTD 749-04138A-0709

HANDLE-LOWER SNOW - MASTERCRAFT GREEN (0709)

$88.99

$

Usually ships in 3-6 days

0

MTD 749-04138A-0729

HANDLE-LOWER SNOW - STORM GRAY (0729)

$77.99

$

Usually ships in 3-6 days

0

MTD 749-04138A-4033

HANDLE-LOWER SNO - FLINT MICA (4033)

$88.99

$

Usually ships in 3-6 days

0

$88.99

$

Usually ships in 3-6 days

0

54

MTD 726-0470

Cable Tie

$4.99

$

Usually ships in 3-6 days

0

55

MTD 732-04238

Torsion Spring
(Superseded to 732-04238B)

$5.49

$

In Stock, Qty 11

0

56

MTD 736-0262

Flat Washer

$3.99

$

Usually ships in 3-6 days

0

57

MTD 753-04875

Joystick Pulley Cover
(Superseded to 753-04875P)

Note: (use with 684-04116B 4 Way Chute Control)

$114.99

$

In Stock, Qty 5

0

58

MTD 710-0262

Carriage Bolt, 5/16-18 x 1.50

$3.99

$

In Stock, Qty 12

0

59

MTD 710-0895

Hi-Lo Screw, 1/4-15 x .75

$6.49

$

In Stock, Qty 5

0

60

MTD 710-04071

Carriage Bolt, 5/16-18 x 1.0

$4.49

$

In Stock, Qty 15

0

61

MTD 731-04861B

Lower Chute

$43.99

$

In Stock, only 1 left!

0

62

MTD 710-0627

Hex Screw, 5/16-24 x .750

$4.49

$

In Stock, Qty 20+

0

63

MTD 684-04162B-0637

Support Bracket

Note: (use with 684-04116B 4 Way Chute Control Assembly)

$

$

Not available

63

MTD 684-04310A-0637

Support Bracket
(Superseded to 684-04310B-0637)

Note: (use with 753-08388 4 Way Chute Control Assembly Service Kit)

$40.99

$

Usually ships in 3-6 days

0

64

MTD 712-3087

Wing Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0
