SB-626 (31AH6GLF790) - White Outdoor Snow Boss Snow Thrower (2007) L-Style Handle, Frame & Discharge Chute Parts Diagram

Snow Boss Snow Thrower

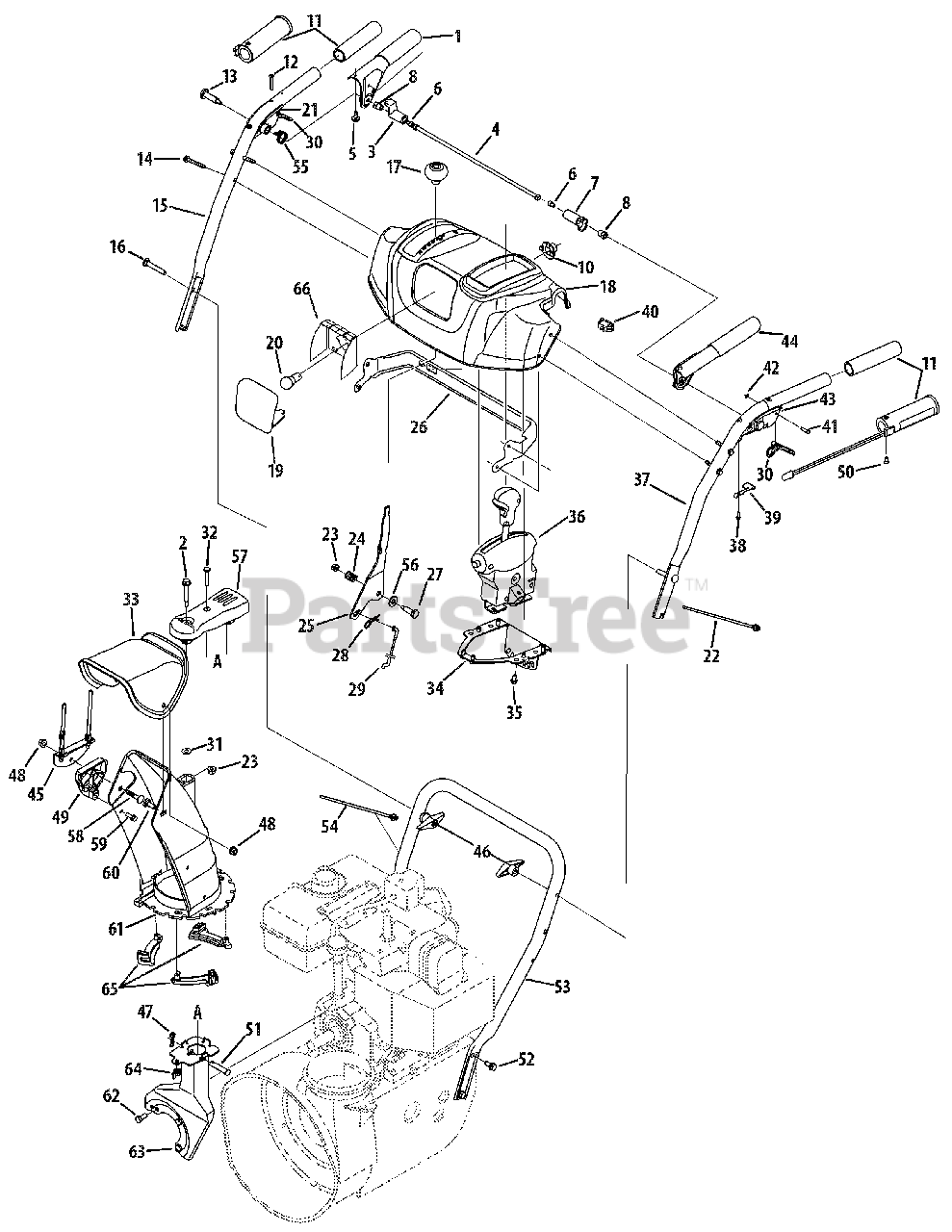

L-Style Handle, Frame & Discharge Chute Parts Diagram

  • Title

1

White Outdoor 684-04106B

Handle Engagement Assembly RH
(Superseded to 684-04106D)

$21.99

$

In Stock, only 2 left!

0

2

White Outdoor 738-04194

Flange Shoulder Screw

$6.49

$

In Stock, only 2 left!

0

3

White Outdoor 731-04894C

Lock Plate
(Superseded to 731-04894D)

$5.49

$

In Stock, Qty 11

0

4

White Outdoor 711-04287

Pivot Rod
(Superseded to 753-04882C)

$42.99

$

In Stock, only 2 left!

0

5

White Outdoor 735-0199A

Rubber Bumper

$7.99

$

In Stock, only 4 left!

0

6

White Outdoor 710-04354

Screw,1/4-20 x .375

$3.99

$

In Stock, Qty 20+

0

7

White Outdoor 731-04896B

Clutch Lock Cam
(Superseded to 731-04896C)

$4.49

$

In Stock, Qty 20+

0

8

White Outdoor 712-04081A

Shoulder Nut, 1/4-20

$7.49

$

In Stock, Qty 20+

0

9

White Outdoor 725-04214

Wire Harness

Note: Not Shown

$

$

Not available

9

White Outdoor 725-04216A

Wire Harness w/ Htd Grip
(Superseded to 725-04216B)

Note: Not Shown

$75.99

$

Usually ships in 3-6 days

0

10

White Outdoor 725-1649

Light Socket
(Superseded to 925-1649A)

$11.99

$

In Stock, Qty 20+

0

11

White Outdoor 720-0274

Handle Grip

$11.99

$

In Stock, Qty 11

0

11

White Outdoor 725-1757

Heated Handle Grip

$111.99

$

Usually ships in 3-6 days

0

12

White Outdoor 710-1233

Screw, #10-24 x 0.375

$4.99

$

In Stock, Qty 11

0

13

White Outdoor 738-04122

Shoulder Screw, 1/4-20 x 1.345
(Superseded to 738-04348)

$3.99

$

In Stock, Qty 20+

0

14

White Outdoor 710-04586

Screw, 1/4-20 x 1.625

$6.99

$

In Stock, only 2 left!

0

15

White Outdoor 749-04190A

Upper Handle RH

Variations

White Outdoor 749-04190A-0637

Right Upper Handle with Hole - POWDER BLACK (0637)

$45.99

$

Usually ships in 3-6 days

0

White Outdoor 749-04190A-0638

Right Upper Handle with Hole - MTD/TROY-BILT RED (0638)

$45.99

$

Usually ships in 3-6 days

0

White Outdoor 749-04190A-0650

HANDLE-UPPER RH W/HOLE - RED METALLIC (0650)

$39.99

$

Usually ships in 3-6 days

0

White Outdoor 749-04190A-0662

HANDLE-UPPER RH W/HOLE - OYSTER GRAY (0662)

$39.99

$

Usually ships in 3-6 days

0

White Outdoor 749-04190A-0689

HANDLE-UPPER RH W/HOLE - POLO GREEN (0689)

$39.99

$

Usually ships in 3-6 days

0

White Outdoor 749-04190A-0691

HANDLE-UPPER RH W/HOLE - BLACK JACK (0691)

$45.99

$

Usually ships in 3-6 days

0

White Outdoor 749-04190A-0709

HANDLE-UPPER RH W/HOLE - MASTERCRAFT GREEN (0709)

$39.99

$

Usually ships in 3-6 days

0

White Outdoor 749-04190A-0729

HANDLE-UPPER RH W/HOLE - STORM GRAY (0729)

$39.99

$

Usually ships in 3-6 days

0

White Outdoor 749-04190A-4033

HANDLE-UPPER RH W/HOLE - FLINT MICA (4033)

$45.99

$

Usually ships in 3-6 days

0

White Outdoor 749-04190A-0665

HANDLE-UPPER RH W/HOLE - YARDMAN GREEN (0665)

$

$

Not available

$39.99

$

Usually ships in 3-6 days

0

16

White Outdoor 710-0449

Carriage Screw, 5/16-18 x 2.25
(Superseded to 710-0572)

$4.49

$

In Stock, Qty 20+

0

17

White Outdoor 720-04039

Shift Knob

$10.99

$

In Stock, only 2 left!

0

18

White Outdoor 931-05348

Handle Panel L-Style
(Superseded to 931-05348A)

$68.99

$

Usually ships in 3-6 days

0

19

White Outdoor 731-05320

Lens

$12.99

$

Usually ships in 3-6 days

0

20

White Outdoor 725-04213

Lamp
(Superseded to 925-04213)

$4.99

$

In Stock, Qty 11

0

21

White Outdoor 631-04134B

Handle Clutch Lock -RH

$15.99

$

In Stock, only 1 left!

0

22

White Outdoor 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

23

White Outdoor 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

24

White Outdoor 732-0193

Compression Spring

$4.99

$

In Stock, Qty 6

0

25

White Outdoor 790-00311

Shift Lever
(Superseded to 790-00311C-0637)

Variations

White Outdoor 790-00311-0637

Shift Lever - POWDER BLACK (0637)

$27.99

$

In Stock, only 4 left!

0

$27.99

$

In Stock, only 4 left!

0

26

White Outdoor 790-00248A

Panel Bracket
(Superseded to 790-00248E-0637)

Variations

White Outdoor 790-00248A-0637

Handle Support Bracket - POWDER BLACK (0637)

$24.99

$

In Stock, Qty 5

0

$24.99

$

In Stock, Qty 5

0

27

White Outdoor 738-04125

Shoulder Screw

$4.99

$

In Stock, only 3 left!

0

28

White Outdoor 714-0145

Click Pin

$4.99

$

In Stock, Qty 20+

0

29

White Outdoor 746-04396

Speed Selector Cable
(Superseded to 946-04396A)

$20.99

$

In Stock, Qty 20+

0

30

White Outdoor 731-04954

Steering Triggers

$5.99

$

In Stock, only 2 left!

0

31

White Outdoor 736-0463

Flat Washer, .25 x .630 x .0515

$4.49

$

In Stock, Qty 12

0

32

White Outdoor 710-0606

Hex Screw, 1/4-20 x 1.50

$5.49

$

In Stock, Qty 10

0

33

White Outdoor 731-04427A

Upper Chute
(Superseded to 731-04427B)

$16.99

$

In Stock, Qty 6

0

34

White Outdoor 790-00131

Joystich Bracket
(Superseded to 790-00131A-0637)

Variations

Cub Cadet 790-00131A-0637

BRACKET-LOCK CONTR - POWDER BLACK

$25.99

$

Usually ships in 3-6 days

0

$25.99

$

Usually ships in 3-6 days

0

35

White Outdoor 710-04187

Hi-Lo Screw, 1/4-15 x 0.5
(Superseded to 710-04187A)

$6.99

$

In Stock, Qty 20+

0

36

White Outdoor 684-04116B

4-Way Chute Control
(Superseded to 753-08388A)

$304.99

$

Usually ships in 3-6 days

0

37

White Outdoor 749-04191A

Upper Handle LH

Variations

White Outdoor 749-04191A-0638

Left Upper Handle with Hole - MTD/TROY-BILT RED (0638)

$45.99

$

Usually ships in 3-6 days

0

White Outdoor 749-04191A-0637

Left Upper Handle with Hole - POWDER BLACK (0637)

$45.99

$

Usually ships in 3-6 days

0

White Outdoor 749-04191A-0650

HANDLE-UPPER LH W/HOLE - RED METALLIC (0650)

$39.99

$

Usually ships in 3-6 days

0

White Outdoor 749-04191A-0662

HANDLE-UPPER LH W/HOLE - OYSTER GRAY (0662)

$39.99

$

Usually ships in 3-6 days

0

White Outdoor 749-04191A-0665

HANDLE-UPPER LH W/HOLE - YARDMAN GREEN (0665)

$39.99

$

Usually ships in 3-6 days

0

White Outdoor 749-04191A-0689

HANDLE-UPPER LH W/HOLE - POLO GREEN (0689)

$39.99

$

Usually ships in 3-6 days

0

White Outdoor 749-04191A-0691

HANDLE-UPPER LH W/HOLE - BLACK JACK (0691)

$39.99

$

Usually ships in 3-6 days

0

White Outdoor 749-04191A-0709

HANDLE-UPPER LH W/HOLE - MASTERCRAFT GREEN (0709)

$39.99

$

Usually ships in 3-6 days

0

White Outdoor 749-04191A-0729

HANDLE-UPPER LH W/HOLE - STORM GRAY (0729)

$39.99

$

Usually ships in 3-6 days

0

White Outdoor 749-04191A-4033

HANDLE-UPPER LH W/HOLE - FLINT MICA (4033)

$45.99

$

Usually ships in 3-6 days

0

$39.99

$

Usually ships in 3-6 days

0

38

White Outdoor 710-04326

Screw, #8-16 x 0.50

$3.99

$

In Stock, only 2 left!

0

39

White Outdoor 732-04219A

Clutch Lock Spring
(Superseded to 732-04219C)

$4.49

$

In Stock, Qty 20+

0

40

White Outdoor 725-04393

Heated Grip Switch

$16.99

$

Usually ships in 3-6 days

0

41

White Outdoor 738-04126

Pin, 3/16

$3.99

$

In Stock, Qty 20+

0

42

White Outdoor 716-04036

E-Ring

$6.49

$

In Stock, Qty 20+

0

43

White Outdoor 631-04133A

Handle Clutch Lock - LH

$15.99

$

In Stock, Qty 8

0

44

White Outdoor 684-04105B

Handle Engagement Assembly LH
(Superseded to 684-04105D)

$22.99

$

In Stock, only 4 left!

0

45

White Outdoor 784-5594

Cable Braket

Variations

White Outdoor 784-5594-0498

Cable Bracket - OLD CUB YELLOW (0498)

$11.99

$

In Stock, only 3 left!

0

White Outdoor 784-5594-0637

Cable Bracket - POWDER BLACK (0637)

$11.99

$

In Stock, only 3 left!

0

White Outdoor 784-5594-0716

Cable Bracket - CUB YELLOW-99 (0716)

$11.99

$

In Stock, only 3 left!

0

$10.99

$

Usually ships in 3-6 days

0

46

White Outdoor 720-0284

Wing Knob

$6.99

$

In Stock, Qty 20+

0

47

White Outdoor 714-04040

Bow-Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

48

White Outdoor 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 5

0

49

White Outdoor 731-1313C

Chute Tilt Cable Guide

$11.99

$

In Stock, Qty 20+

0

50

White Outdoor 710-0837

AB Screw

$4.49

$

In Stock, Qty 5

0

51

White Outdoor 711-04469A

Clevis Pin

$5.99

$

In Stock, only 3 left!

0

52

White Outdoor 710-04484

AB Screw, 5/16-18 x 0.750

$3.99

$

In Stock, Qty 20+

0

53

White Outdoor 749-04138A

Lower Handle

Variations

White Outdoor 749-04138A-0637

Lower Handle, Snow - POWDER BLACK (0637)

$88.99

$

Usually ships in 3-6 days

0

White Outdoor 749-04138A-0638

Lower Handle, Snow - MTD/TROY-BILT RED (0638)

$88.99

$

Usually ships in 3-6 days

0

White Outdoor 749-04138A-0650

HANDLE-LOWER SNOW - RED METALLIC (0650)

$77.99

$

Usually ships in 3-6 days

0

White Outdoor 749-04138A-0662

HANDLE-LOWER SNOW - OYSTER GRAY (0662)

$88.99

$

Usually ships in 3-6 days

0

White Outdoor 749-04138A-0665

HANDLE-LOWER SNOW - YARDMAN GREEN (0665)

$77.99

$

Usually ships in 3-6 days

0

White Outdoor 749-04138A-0668

HANDLE-LOWER SNOW - MOSS GREEN (0668)

$88.99

$

Usually ships in 3-6 days

0

White Outdoor 749-04138A-0689

HANDLE-LOWER SNOW - POLO GREEN (0689)

$77.99

$

Usually ships in 3-6 days

0

White Outdoor 749-04138A-0691

HANDLE-LOWER SNOW - BLACK JACK (0691)

$88.99

$

Usually ships in 3-6 days

0

White Outdoor 749-04138A-0709

HANDLE-LOWER SNOW - MASTERCRAFT GREEN (0709)

$88.99

$

Usually ships in 3-6 days

0

White Outdoor 749-04138A-0729

HANDLE-LOWER SNOW - STORM GRAY (0729)

$77.99

$

Usually ships in 3-6 days

0

White Outdoor 749-04138A-4033

HANDLE-LOWER SNOW - FLINT MICA (4033)

$88.99

$

Usually ships in 3-6 days

0

$88.99

$

Usually ships in 3-6 days

0

54

White Outdoor 726-0470

Cable Tie

$4.99

$

Usually ships in 3-6 days

0

55

White Outdoor 732-04238

Torsion Spring
(Superseded to 732-04238B)

$5.49

$

In Stock, Qty 11

0

56

White Outdoor 736-0267

Flat Washer, .385 x .87 x .06

$4.49

$

In Stock, Qty 20+

0

57

White Outdoor 731-04890A

JoyStick Pulley Cover
(Superseded to 753-04875P)

$114.99

$

In Stock, Qty 5

0

58

White Outdoor 710-0262

Carriage Bolt, 5/16-18 x 1.0

$3.99

$

In Stock, Qty 11

0

59

White Outdoor 710-0895

Hi-Lo Screw, 1/4-15 x .75

$6.49

$

Usually ships in 3-6 days

0

60

White Outdoor 710-04071

Carriage Bolt, 5/16-18 x 1.0

$4.49

$

In Stock, Qty 13

0

61

White Outdoor 731-04861B

Lower Chute

$43.99

$

In Stock, only 1 left!

0

62

White Outdoor 710-0627

Hex Screw, 5/16-18 x 1.0

$4.49

$

In Stock, Qty 20+

0

63

White Outdoor 684-04162B

Chute Support Bracket
(Superseded to 684-04162B-0637)

Variations

White Outdoor 684-04162B-0637

BRACKET ASSY-SUPPORT - POWDER BLACK (0637)

$

$

Not available

$

$

64

White Outdoor 712-3087

Wing Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

65

White Outdoor 731-04869

Chute Flange Keeper
(Superseded to 731-04869A)

$4.49

$

In Stock, Qty 20+

0

66

White Outdoor 777X41803

Lens Refector Label

$10.99

$

Usually ships in 3-6 days

0
