SB-626 (31AE6GLF791) - White Outdoor Snow Boss Snow Thrower (2005-2) Drive Assembly Parts Diagram

Snow Boss Snow Thrower

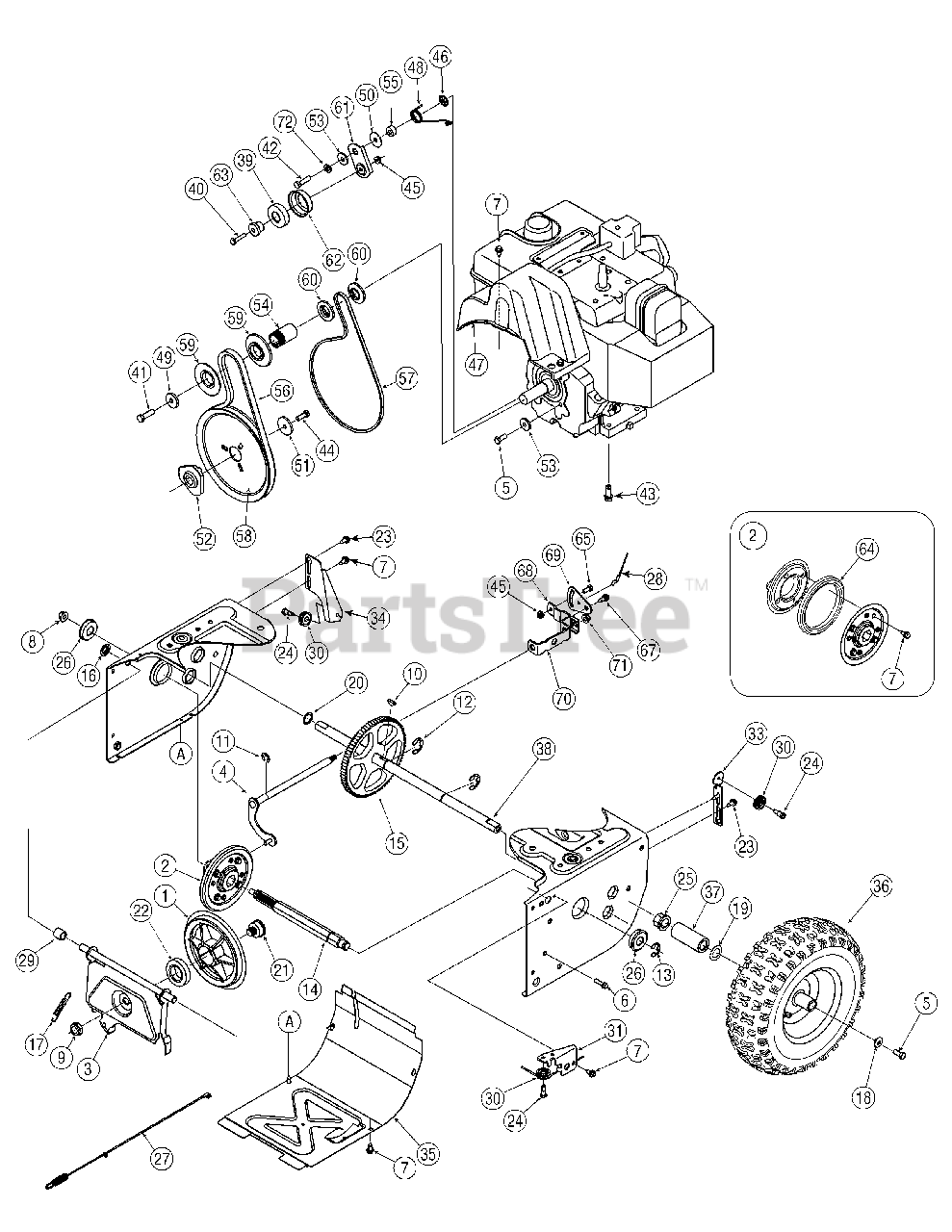

Drive Assembly Parts Diagram

  • Title

1

White Outdoor 756-04177

Disc, Friction Wheel
(Superseded to 656-04055A)

$59.99

$

In Stock, Qty 20+

0

2

White Outdoor 684-04153

Friction Wheel Assembly, 5.5 OD
(Superseded to 684-04153C)

$101.99

$

In Stock, Qty 20+

0

3

White Outdoor 684-04154

Support Bracket, Friction Wheel
(Superseded to 684-04154B-0637)

Variations

White Outdoor 684-04154-0637

BRACKET ASSY-SUPPORT - POWDER BLACK (0637)

$41.99

$

Usually ships in 3-6 days

0

$41.99

$

Usually ships in 3-6 days

0

4

White Outdoor 684-04156

Shift Assembly, Rod
(Superseded to 684-04156A)

$61.99

$

Usually ships in 3-6 days

0

5

White Outdoor 710-0627

Hex Screw, 5/16-24, .750, Gr5

$4.49

$

In Stock, Qty 20+

0

6

White Outdoor 710-0788

Screw, 1/4-20, 1.000

$7.49

$

In Stock, only 2 left!

0

7

White Outdoor 710-0896

Screw, 1/4-14 x .625

$4.49

$

In Stock, Qty 20+

0

8

White Outdoor 712-04065

Nut, Flange Lock, 3/8-16, Nylon

$3.99

$

In Stock, Qty 20+

0

9

White Outdoor 712-0413

Nut, Jam Lock, 5/8-18, Gr5, Nylon

$6.49

$

In Stock, only 1 left!

0

10

White Outdoor 714-0126

Key, Hi Pro, 3/16 x 3/4 Dia

$4.99

$

In Stock, Qty 16

0

11

White Outdoor 716-0104

E-ring, .500 Dia.
(Superseded to 916-0104)

$3.99

$

In Stock, Qty 20+

0

12

White Outdoor 716-0136

E-ring, Retaining, .875 Dia.

$8.99

$

In Stock, only 2 left!

0

13

White Outdoor 716-0231

E-ring, .750 Dia.

$3.99

$

In Stock, Qty 20+

0

14

White Outdoor 717-04209

Hex Shaft, .8125, 7-Tooth
(Superseded to 917-04209B)

$143.99

$

In Stock, only 3 left!

0

15

White Outdoor 717-04230

Gear, 80-Tooth
(Superseded to 917-04230)

$108.99

$

Usually ships in 3-6 days

0

16

White Outdoor 726-0221

Speed Nut, .500

$6.49

$

In Stock, only 2 left!

0

17

White Outdoor 732-0264

Extension Spring
(Superseded to 932-0264)

$4.99

$

In Stock, Qty 20+

0

18

White Outdoor 736-0242

Washer, Bell, .340 x .872 x .060

$4.49

$

In Stock, Qty 20+

0

19

White Outdoor 736-0287

Washer, Flat, .793 x 1.24 x .060

$4.49

$

In Stock, Qty 20+

0

20

White Outdoor 736-04161

Washer, Flat, .75 x 1.00 x .060

$6.99

$

In Stock, only 1 left!

0

21

White Outdoor 738-04164

Pin, Friction Disc
(Superseded to 738-04164A)

$24.99

$

Usually ships in 3-6 days

0

22

White Outdoor 741-04098

Ball Bearing, 30 x 55 x .13

$21.99

$

Usually ships in 3-6 days

0

23

White Outdoor 738-04184

Screw, Shoulder, .37 x .105, 1/4-20
(Superseded to 738-04184A)

$6.99

$

In Stock, Qty 11

0

24

White Outdoor 738-0924

Screw, 1/4-28, .375
(Superseded to 738-0924A)

$6.99

$

In Stock, Qty 5

0

25

White Outdoor 741-0245

Bearing, Hex Flange x .75 ID
(Superseded to 941-0245)

$9.99

$

In Stock, Qty 20+

0

26

White Outdoor 741-0563

Bearing, Ball, 17 x 40 x 12
(Superseded to 941-0563)

$36.99

$

In Stock, Qty 11

0

27

White Outdoor 746-04229

Clutch Cable, Wheel, 44.95"
(Superseded to 946-04229B)

$21.99

$

In Stock, Qty 20+

0

28

White Outdoor 746-04230

Clutch Cable, Auger, 47.23"
(Superseded to 946-04230B)

$23.99

$

In Stock, Qty 20+

0

29

White Outdoor 748-0190

Spacer, .508 ID x .75 OD

$6.49

$

In Stock, Qty 11

0

30

White Outdoor 756-0625

Roller, Cable

$9.49

$

In Stock, Qty 14

0

31

White Outdoor 790-00096

Front Guide Bracket, Auger
(Superseded to 790-00096B)

Variations

Cub Cadet 790-00096A-0637

Auger Cable Bracket, Black - POWDER BLACK

$9.49

$

In Stock, only 2 left!

0

$7.99

$

Usually ships in 3-6 days

0

32

White Outdoor 790-00180

Frame
(Superseded to 790-00180D)

Variations

Cub Cadet 790-00180C-0637

FRAME-WHL DRV 600 - POWDER BLACK

$160.99

$

Usually ships in 3-6 days

0

Cub Cadet 790-00180D-0638

FRAME-DRIVE HSG - MTD/TROY-BILT RED

$160.99

$

Usually ships in 3-6 days

0

Cub Cadet 790-00180D-0665

FRAME-DRIVE HSG - YARDMAN GREEN

$139.99

$

Usually ships in 3-6 days

0

Cub Cadet 790-00180D-4044

FRAME-DRIVE HSG - CRAFTSMAN RED

$153.99

$

Usually ships in 3-6 days

0

$139.99

$

Usually ships in 3-6 days

0

33

White Outdoor 790-00206

Guide Bracket, Auger Cable
(Superseded to 790-00206B)

Variations

White Outdoor 790-00206-0637

Auger Cable Guide Bracket - POWDER BLACK (0637)

$8.49

$

In Stock, only 1 left!

0

$8.49

$

In Stock, only 1 left!

0

34

White Outdoor 790-00207

Guide Bracket, Drive Cable
(Superseded to 790-03997)

Variations

White Outdoor 790-00207-0637

Clutch Drive Cable - POWDER BLACK (0637)

$5.49

$

In Stock, Qty 6

0

$5.49

$

In Stock, Qty 6

0

35

White Outdoor 790-00226

Cover, Frame

Variations

White Outdoor 790-00226-0637

Frame Cover - POWDER BLACK (0637)

$

$

Not available

White Outdoor 790-00226-0638

Frame Cover - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

36

White Outdoor 634-04142A

Wheel Assembly 15 X 5

Variations

White Outdoor 634-04142A-0911

WHL ASM-COMP - Carlisle Gray (0911)

$201.99

$

Usually ships in 3-6 days

0

$163.99

$

Usually ships in 3-6 days

0

36

White Outdoor 634-04141

Wheel Assembly 16 X 4.8

Note: (the wheel axle is mounted in the frame side's upper hex-hole on models equipped with 16" wheels

Variations

White Outdoor 634-04141-0911

WHL ASM-COMP - Carlisle Gray (0911)

$243.99

$

Usually ships in 3-6 days

0

White Outdoor 634-04141-0941

WHL ASM-COMP - Carlisle Yellow (0941)

$226.99

$

Usually ships in 3-6 days

0

White Outdoor 634-04141-0951

WHL ASM-COMP - Carlisle Yellow (0951)

$226.99

$

Usually ships in 3-6 days

0

$197.99

$

Usually ships in 3-6 days

0

36

White Outdoor 634-04151

Rim Only - Wheel size 15 x 5
(Superseded to 634-04172A)

Variations

White Outdoor 634-04151-0662

RIM ASSY 6X3.25 W/VALVE - OYSTER GRAY (0662)

$54.99

$

Usually ships in 3-6 days

0

$43.99

$

Usually ships in 3-6 days

0

36

White Outdoor 634-04140

Rim Only - Wheel size 16 x 4.8
(Superseded to 634-04173-0662)

Variations

White Outdoor 634-04140-0662

RIM ASSY-8.0X3.75 W/VALVE - OYSTER GRAY (0662)

$83.99

$

Usually ships in 3-6 days

0

$83.99

$

Usually ships in 3-6 days

0

36

White Outdoor 734-1859

Tire Only - Wheel size 15 x 5
(Superseded to 734-1859-0901)

Variations

White Outdoor 734-1859-0901

TIRE 15X5 - Carlisle (0901)

$105.99

$

Usually ships in 3-6 days

0

$105.99

$

Usually ships in 3-6 days

0

36

White Outdoor 734-1530

Tire Only - Wheel size 16 x 4.8

Variations

White Outdoor 734-1530-0901

SNOW HOG TIRE 4.80 - Carlisle (0901)

$168.99

$

Usually ships in 3-6 days

0

White Outdoor 734-1530-0905

TIRE-SNOW HOG-4.80 - Duro (0905)

$168.99

$

Usually ships in 3-6 days

0

$137.99

$

Usually ships in 3-6 days

0

36

White Outdoor 734-0255

Valve Only
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

37

White Outdoor 731-04873

Spacer, 1.25 x .75 x 3.0

$10.99

$

In Stock, Qty 13

0

38

White Outdoor 738-04168

Axle, .75 x 22"
(Superseded to 938-04493)

$63.99

$

In Stock, Qty 7

0

39

White Outdoor 741-0919

Ball Bearing
(Superseded to 941-0919B)

$21.99

$

In Stock, Qty 20+

0

40

White Outdoor 710-0106

Hex Screw, 1/4-20, 1.25, Gr5

$3.99

$

In Stock, Qty 12

0

41

White Outdoor 710-0191

Hex Screw, 3/8-24, 1.25, Gr8

$4.99

$

In Stock, Qty 9

0

42

White Outdoor 710-0672

Hex Screw, 5/16-24, 1.25,

$4.49

$

In Stock, Qty 18

0

43

White Outdoor 710-0654A

Screw, Sems, 3/8-16, 1.00

$4.49

$

In Stock, only 4 left!

0

44

White Outdoor 710-1245B

Hex Screw, 5/16-24, .875, Gr8

$8.49

$

In Stock, only 1 left!

0

45

White Outdoor 712-04064

Nut, Flange Lock, 1/4-20, Nylon

$3.99

$

In Stock, Qty 20+

0

46

White Outdoor 726-04012

Nut, Push-on, .25 Dia.

$7.49

$

In Stock, Qty 11

0

47

White Outdoor 731-05353

Cover, Belt
(Superseded to 731-05353B)

$

$

Not available

48

White Outdoor 732-04308A

Spring, Torsion, .850 ID x .354
(Superseded to 732-04308C)

$5.49

$

In Stock, Qty 20+

0

49

White Outdoor 736-0247

Washer, Flat, .406 x 1.25 x .157

$9.49

$

In Stock, Qty 14

0

50

White Outdoor 736-0362

Washer, Flat, .330 x 1.25 x .06

$4.49

$

In Stock, Qty 7

0

51

White Outdoor 736-0505

Washer, Flat, .34 x 1.50 x .150

$6.49

$

In Stock, Qty 11

0

52

White Outdoor 748-04053

Pulley, Adap, .75 Dia W/dd
(Superseded to 748-04053A)

$22.99

$

In Stock, only 3 left!

0

53

White Outdoor 748-04112

Spacer, Shoulder
(Superseded to 748-04112B)

$4.49

$

In Stock, Qty 11

0

54

White Outdoor 750-04303

Spacer, .875 ID x 1.185 OD

$17.99

$

In Stock, Qty 5

0

55

White Outdoor 750-04477

Spacer, .340 x .750 x .360
(Superseded to 750-04477A)

$5.49

$

In Stock, only 4 left!

0

56

White Outdoor 754-04050

Belt, Auger Drive
(Superseded to 954-04050A)

$27.99

$

In Stock, Qty 20+

0

57

White Outdoor 754-04088

Belt, Wheel Drive

$15.99

$

In Stock, Qty 20+

0

58

White Outdoor 756-04109

Pulley, Auger Drive, 8.1 x .5

$54.99

$

Usually ships in 3-6 days

0

59

White Outdoor 756-04113

Pulley, Half, V x 2.600 OD
(Superseded to 756-06563)

$3.99

$

In Stock, Qty 6

0

60

White Outdoor 756-04179

Pulley, Half, 1/4-V x 1.5 OD
(Superseded to 956-04179)

$8.99

$

In Stock, only 1 left!

0

61

White Outdoor 790-00208

Idler Bracket, Wheel Drive
(Superseded to 790-00208D)

$8.99

$

In Stock, Qty 12

0

62

White Outdoor 790-00230

Sleeve, Bearing Idler

$7.49

$

Usually ships in 3-6 days

0

63

White Outdoor 750-04571

Spacer, Shoulder, .26 x .79 X.538

$6.99

$

In Stock, only 3 left!

0

64

White Outdoor 735-04054

Rubber, Friction Wheel, 5.5 OD
(Superseded to 935-04054A)

$39.99

$

In Stock, Qty 20+

0

65

White Outdoor 710-0751

Hex Screw, 1/4-20, .620, Gr5

$3.99

$

In Stock, Qty 20+

0

66

White Outdoor 732-04311

Spring, Torsion, .750 ID x . .968
(Superseded to 732-04311A)

$10.99

$

In Stock, only 3 left!

0

67

White Outdoor 738-04184

Screw, Shoulder, .37 x .105, 1/4-20
(Superseded to 738-04184A)

$6.99

$

In Stock, Qty 11

0

68

White Outdoor 790-00156

Bracket, Shift Spacer

$7.99

$

Usually ships in 3-6 days

0

69

White Outdoor 790-00217

Pivot Bracket, Speed Selector
(Superseded to 790-00217A-0637)

Variations

White Outdoor 790-00217-0637

Pivot Bracket - POWDER BLACK (0637)

$53.99

$

In Stock, only 1 left!

0

$53.99

$

In Stock, only 1 left!

0

70

White Outdoor 790-00218

Shift Bracket, Speed Selector
(Superseded to 790-00218A-0637)

Variations

White Outdoor 790-00218-0637

Shift Speed Bracket - POWDER BLACK (0637)

$47.99

$

In Stock, only 4 left!

0

$47.99

$

In Stock, only 4 left!

0

71

White Outdoor 712-04063

Nut, Flange Lock, 5/16-18, Nylon

$3.99

$

In Stock, Qty 5

0

72

White Outdoor 736-0119

Washer, Lock, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0
