SB-624 (31AH6BHE790) - White Outdoor Snow Boss Snow Thrower (2006) Handle Assembly Parts Diagram

Snow Boss Snow Thrower

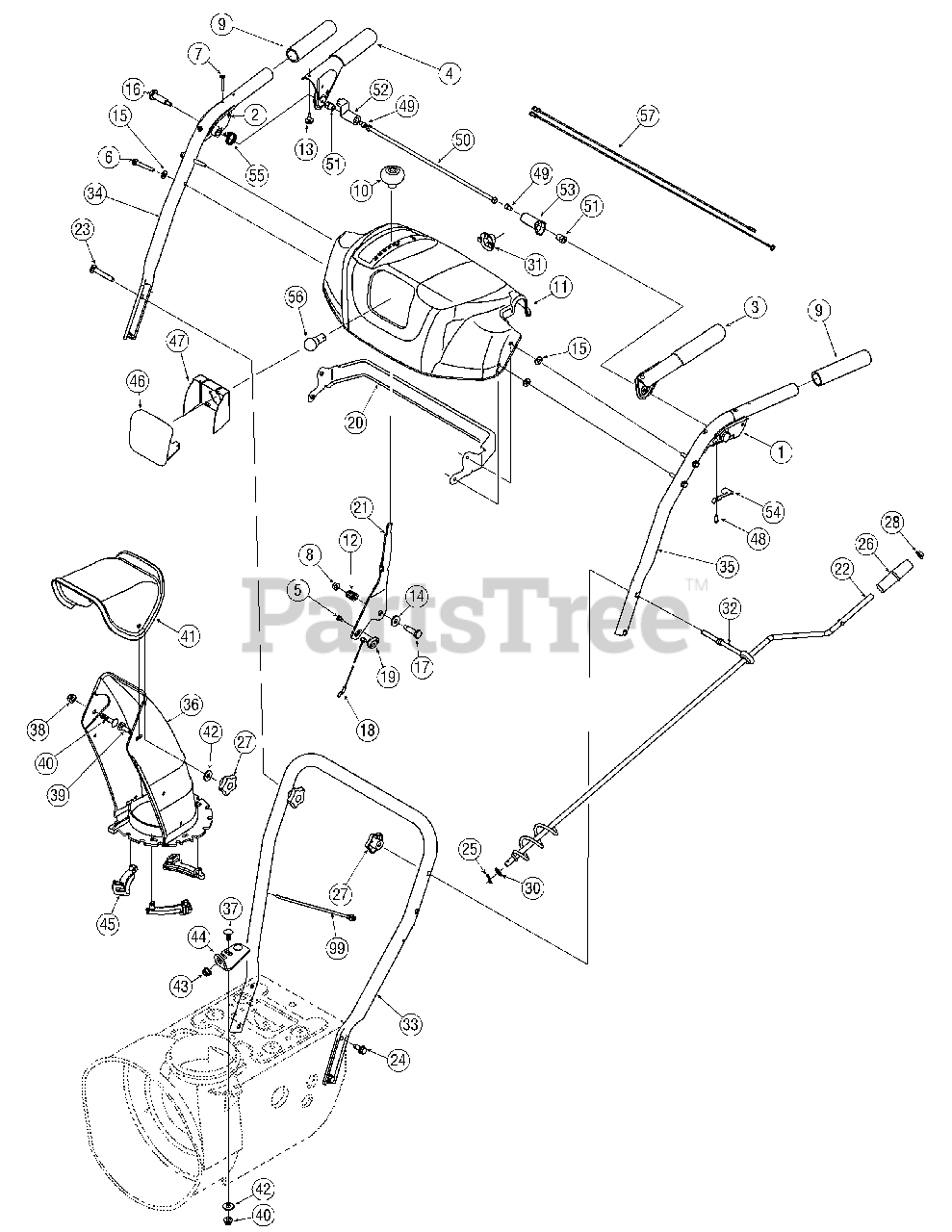

Handle Assembly Parts Diagram

  • Title

1

MTD 631-04133A

Handle Assembly, Lock, LH

$15.99

$

In Stock, only 1 left!

0

2

MTD 631-04134B

Handle Assembly, Lock, RH

$15.99

$

In Stock, only 1 left!

0

3

MTD 684-04105B

Handle Ass’ y, Engagement LH
(Superseded to 684-04105D)

$22.99

$

In Stock, only 1 left!

0

4

MTD 684-04106C

Handle Ass’y, Engagement, RH
(Superseded to 684-04106D)

$21.99

$

In Stock, only 1 left!

0

5

MTD 910-0224

Screw, #10-16, 0.500

$3.99

$

In Stock, only 2 left!

0

6

MTD 710-1026

Screw, 1/4-20, 1.750

$6.99

$

In Stock, Qty 13

0

7

MTD 710-1233

Screw, Machine, #10-24, 1.375

$4.99

$

In Stock, Qty 11

0

8

MTD 712-04064

Nut, Flange Lock, 1/4-20, Nylon

$3.99

$

In Stock, Qty 20+

0

9

MTD 720-0274

Grip, 1.0 ID x 5.0

$11.99

$

In Stock, only 2 left!

0

10

MTD 720-04039

Knob, Shift

$10.99

$

In Stock, only 2 left!

0

11

MTD 931-05298

Handle Panel, H-Style

$

$

Not available

12

MTD 732-0193

Spring, .39 x .60 x .88

$4.99

$

In Stock, Qty 6

0

13

MTD 935-0199A

Bumper, Rubber, .62 OD x .22
(Superseded to 735-0199A)

$7.99

$

In Stock, only 4 left!

0

14

MTD 736-0262

Washer, Flat, .385 x .870 x .092

$3.99

$

Usually ships in 3-6 days

0

15

MTD 936-0463

Washer, Flat, .25 x .630 x .0515
(Superseded to 736-0463)

$4.49

$

In Stock, only 2 left!

0

16

MTD 738-04348

Screw, Shoulder, .43 x 1.34, 1/4-20

$3.99

$

In Stock, Qty 20+

0

17

MTD 738-04125

Screw, Shoulder, .374 Dia. x 1.05

$4.99

$

In Stock, only 4 left!

0

18

MTD 746-04227A

Cable, Speed Selector

$22.99

$

In Stock, only 4 left!

0

19

MTD 946-0605

Barrel Holder, Cable, LH

$4.49

$

In Stock, Qty 5

0

20

MTD 790-00140-0637

Bracket, Panel

$

$

Not available

21

MTD 790-00203-0637

Lever, Shift

$

$

Not available

22

MTD 684-04104-0637

Crank Assembly, Chute

$62.99

$

In Stock, only 1 left!

0

23

MTD 710-0572

Screw, Carriage, 5/16-18, 2.25

$4.49

$

In Stock, only 4 left!

0

24

MTD 710-1260A

Screw, 5/16-18, 0.75, Gr5

$3.99

$

In Stock, Qty 20+

0

25

MTD 914-0104

Pin, Cotter, .072 x 1.13
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

26

MTD 720-0201A

Crank Knob, 1.0 Dia. x 3.2, Black

$10.99

$

In Stock, only 4 left!

0

27

MTD 920-0284

Knob Assembly, Wing Nut, 5/16-18
(Superseded to 720-0284)

$6.99

$

In Stock, Qty 20+

0

28

MTD 926-0100

Cap, Push, 3/8 Rod
(Superseded to 726-0100)

$

$

Not available

29

MTD 735-0234

Grommet, .44 ID x .94 OD x .50

$5.49

$

In Stock, only 2 left!

0

30

MTD 936-0185

Washer, Flat, .375 x .738 x .063
(Superseded to 736-0185)

$3.99

$

In Stock, only 2 left!

0

31

MTD 925-1649

Light Socket
(Superseded to 925-1649A)

$11.99

$

In Stock, Qty 20+

0

32

MTD 747-04263

Eye Bolt, Chute Crank

$9.49

$

In Stock, only 2 left!

0

33

MTD 749-04138A

Handle, Lower

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 749-04138A-0637

Lower Handle, Snow - POWDER BLACK (0637)

$88.99

$

Usually ships in 3-6 days

0

MTD 749-04138A-0638

Lower Handle, Snow - MTD/TROY-BILT RED (0638)

$88.99

$

Usually ships in 3-6 days

0

MTD 749-04138A-0650

HANDLE-LOWER SNOW - RED METALLIC (0650)

$77.99

$

Usually ships in 3-6 days

0

MTD 749-04138A-0662

HANDLE-LOWER SNOW - OYSTER GRAY (0662)

$88.99

$

Usually ships in 3-6 days

0

MTD 749-04138A-0665

HANDLE-LOWER SNOW - YARDMAN GREEN (0665)

$77.99

$

Usually ships in 3-6 days

0

MTD 749-04138A-0668

HANDLE-LOWER SNOW - MOSS GREEN (0668)

$88.99

$

Usually ships in 3-6 days

0

MTD 749-04138A-0689

HANDLE-LOWER SNOW - POLO GREEN (0689)

$77.99

$

Usually ships in 3-6 days

0

MTD 749-04138A-0691

HANDLE-LOWER SNOW - BLACK JACK (0691)

$88.99

$

Usually ships in 3-6 days

0

MTD 749-04138A-0709

HANDLE-LOWER SNOW - MASTERCRAFT GREEN (0709)

$88.99

$

Usually ships in 3-6 days

0

MTD 749-04138A-0729

HANDLE-LOWER SNOW - STORM GRAY (0729)

$77.99

$

Usually ships in 3-6 days

0

MTD 749-04138A-4033

HANDLE-LOWER SNO - FLINT MICA (4033)

$88.99

$

Usually ships in 3-6 days

0

$88.99

$

Usually ships in 3-6 days

0

34

MTD 749-04141

Handle, Upper, RH

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 749-04141-0637

Right Upper Handle - POWDER BLACK (0637)

$45.99

$

Usually ships in 3-6 days

0

MTD 749-04141-0638

HANDLE-UPPER RH - MTD/TROY-BILT RED (0638)

$45.99

$

Usually ships in 3-6 days

0

$53.99

$

Usually ships in 3-6 days

0

35

MTD 749-04142A

Handle, Upper, LH
(Superseded to 749-04191A)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 749-04142A-0638

HANDLE-UPPER LH - MTD/TROY-BILT RED (0638)

$45.99

$

Usually ships in 3-6 days

0

MTD 749-04142A-0637

HANDLE-UPPER LH - POWDER BLACK (0637)

$45.99

$

Usually ships in 3-6 days

0

MTD 749-04142A-4033

HANDLE-UPPER LH - FLINT MICA (4033)

$45.99

$

Usually ships in 3-6 days

0

$39.99

$

Usually ships in 3-6 days

0

36

MTD 731-04912B

Chute, Lower, 5.0 Diameter

$38.99

$

In Stock, only 3 left!

0

37

MTD 710-0276

Bolt, Carriage, 5/16-18, 1.0

$3.99

$

In Stock, Qty 12

0

38

MTD 712-04063

Nut, Flange Lock, 5/16-18, Nylon

$3.99

$

In Stock, Qty 20+

0

39

MTD 710-04071

Bolt, Carriage, 5/16-18, 1.0

$4.49

$

In Stock, Qty 15

0

40

MTD 710-0451

Bolt, Carriage, 5/16-18, .750

$4.49

$

In Stock, Qty 20+

0

41

MTD 731-04426A

Chute, Upper, w/ Label
(Superseded to 731-04426C)

$19.99

$

In Stock, only 4 left!

0

42

MTD 936-0159

Washer.349 ID x .879 OD x .063
(Superseded to 736-0159)

$

$

Not available

43

MTD 941-0475

Bushing, Plastic, .380

$4.49

$

In Stock, Qty 20+

0

44

MTD 784-5647-0637

Bracket, Chute Crank

$14.99

$

In Stock, Qty 6

0

45

MTD 731-04869A

Flange Keeper, Chute

$4.49

$

In Stock, Qty 20+

0

46

MTD 731-05320

Lens

$12.99

$

Usually ships in 3-6 days

0

47

MTD 777X41803

Reflector Label, Lens

$10.99

$

Usually ships in 3-6 days

0

48

MTD 710-04326

Screw, #8-16 x 0.50

$3.99

$

In Stock, only 2 left!

0

49

MTD 710-04354

Screw, 1/4-20 x.375

$3.99

$

In Stock, only 4 left!

0

50

MTD 753-04882C

Pivot Rod

$42.99

$

In Stock, only 2 left!

0

51

MTD 712-04081A

Shoulder Nut, 1/4-20

$7.49

$

In Stock, only 2 left!

0

52

MTD 731-04894D

Lock Plate

$5.49

$

In Stock, only 1 left!

0

53

MTD 731-04896B

Clutch Lock Cam
(Superseded to 731-04896C)

$4.49

$

In Stock, Qty 6

0

54

MTD 732-04219C

Clutch Lock Spring

$4.49

$

In Stock, Qty 20+

0

55

MTD 732-04238

Torsion Spring
(Superseded to 732-04238B)

$5.49

$

In Stock, Qty 11

0

56

MTD 925-04213

Lamp

$4.99

$

In Stock, only 1 left!

0

57

MTD 725-04214

Wire Harness

$

$

Not available
