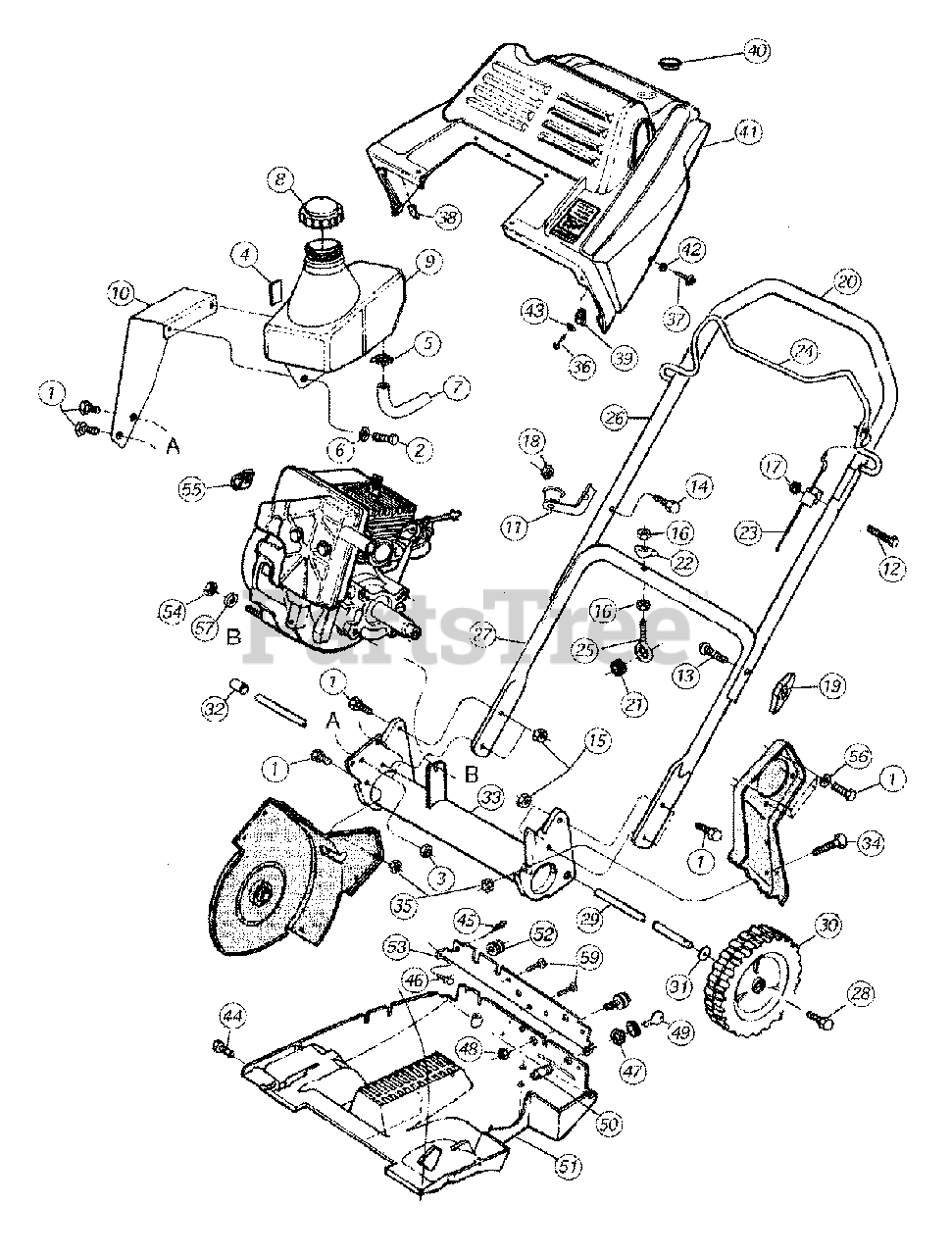

SB-55 (317E262-190) - White Outdoor Snow Boss Snow Thrower (1997) Frame And Handle Parts Diagram

Snow Boss Snow Thrower

Frame And Handle Parts Diagram

  • Title

1

White Outdoor 710-0118

Hex Screw: 5/16 - 18 x .75 Gr 2
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

2

White Outdoor 710-0896

Hex Screw: 1/4 - 14 x .625

$4.49

$

In Stock, Qty 20+

0

3

White Outdoor 712-0265

Sems Nut

$3.99

$

Usually ships in 3-6 days

0

4

White Outdoor 722-0157

Foam Strip

$4.49

$

Usually ships in 3-6 days

0

5

White Outdoor 726-0205

Hose Clamp 1/2" OD

$3.99

$

In Stock, Qty 20+

0

6

White Outdoor 736-0173

Flat Washer

$4.49

$

In Stock, Qty 20+

0

7

751-0535

Hose, Fuel Line

$

$

Not available

8

White Outdoor 751-0634

Fuel Tank Cap
(Superseded to 751-0603B)

$23.99

$

Usually ships in 3-6 days

0

9

White Outdoor 751-0635

Fuel Tank

$

$

Not available

10

White Outdoor 784-0368

Support Bracket

$

$

Not available

11

White Outdoor 684-0089

Bracket Assembly, Rope Guide

$

$

Not available

12

White Outdoor 710-0501

Hex Screw: 1/4 - 20 x 2.0 Gr 5

$7.49

$

Usually ships in 3-6 days

0

13

White Outdoor 710-1174

Carriage Bolt: 5/16 - 18 x 2.0 Lg. Carved

$7.49

$

In Stock, Qty 20+

0

14

White Outdoor 710-1270

Oval C-Sunk Screw

$4.49

$

Usually ships in 3-6 days

0

15

White Outdoor 712-0265

Sems Nut

$3.99

$

Usually ships in 3-6 days

0

16

White Outdoor 712-0267

Hex Nut: 5/16 - 18
(Superseded to 912-3010)

$

$

Not available

17

White Outdoor 712-0271

Sems Nut 1/4 - 20

$4.49

$

In Stock, Qty 20+

0

18

White Outdoor 712-0324

Top Lock Nut 1/4 - 20

$3.99

$

In Stock, Qty 16

0

19

White Outdoor 720-0284

Knob Assembly

$6.99

$

In Stock, Qty 20+

0

20

White Outdoor 720-0296

Foam Grip, Handle

$

$

Not available

21

White Outdoor 735-0234

Grommet: .44 ID x .94 OD x .50

$5.49

$

In Stock, only 2 left!

0

22

White Outdoor 736-0451

Side Lock Washer

$4.49

$

In Stock, Qty 7

0

23

White Outdoor 746-0934

Drive Cable, Auger

$

$

Not available

24

White Outdoor 747-0942

Auger Bail, Drive Dipped

$

$

Not available

25

White Outdoor 747-0943

Eye Bolt 5/16 - 18

$

$

Not available

26

White Outdoor 749-0994

Upper Handle

Variations

White Outdoor 749-0994-0637

No Longer Available HANDLE-UPPER - POWDER BLACK (0637)

$

$

Not available

$

$

27

White Outdoor 749-0995

Lower Handle
(Superseded to 749-0995-0637)

Variations

White Outdoor 749-0995-0637

HANDLE-LOWER - POWDER BLACK (0637)

$

$

Not available

$

$

28

White Outdoor 710-0773

Tap Screw: 3/8 - 16 x .5

$7.49

$

In Stock, only 3 left!

0

29

White Outdoor 711-1123

Axle, Tube

$

$

Not available

30

White Outdoor 734-1797

Wheel Assembly

$

$

Not available

31

White Outdoor 736-0108

Flat washer: .510 ID x .75 OD x .03

$6.99

$

Usually ships in 3-6 days

0

32

White Outdoor 750-1069

Spacer
(Superseded to 950-1069)

$

$

Not available

33

White Outdoor 684-0086

Frame Assembly

Variations

White Outdoor 684-0086-0637

TUBE FRAME ASSEMBLY BLACK - POWDER BLACK (0637)

$

$

Not available

$

$

34

White Outdoor 710-1088

Hex Cap Screw: 5/16 - 18 x 1.00

$

$

Not available

35

White Outdoor 712-0265

Sems Nut

$3.99

$

Usually ships in 3-6 days

0

36

White Outdoor 710-1329

Hex Screw

$

$

Not available

37

White Outdoor 710-1339

Ab Screw

$

$

Not available

38

White Outdoor 726-0342

Retainer Clip, U-Style

$

$

Not available

39

White Outdoor 726-0344

U Nut

$

$

Not available

40

White Outdoor 731-0732

Snap-In Plug

$

$

Not available

41

White Outdoor 731-1748

Upper Engine Cover: Oyster Gray 662

$

$

Not available

42

White Outdoor 736-0173

Flat Washer

$4.49

$

In Stock, Qty 20+

0

43

White Outdoor 736-0400

Flat Washer

$5.49

$

In Stock, Qty 12

0

44

White Outdoor 710-0258

Hex Screw: 1/4 - 20 x .625
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

45

White Outdoor 710-1334

Tap Screw: 10 - 24 x .75

$

$

Not available

46

White Outdoor 710-1335

Tap Screw: 10 - 25 x .75

$

$

Not available

47

White Outdoor 712-0252

Jam Nut: 5/8 - 32 x .12

$5.99

$

Usually ships in 3-6 days

0

48

White Outdoor 712-0271

Sems Nut 1/4 - 20

$4.49

$

In Stock, Qty 20+

0

49

White Outdoor 725-0201

Ignition Key
(Superseded to 925-0201)

$9.49

$

In Stock, only 1 left!

0

50

White Outdoor 725-1425

Recoil Starter Key
(Superseded to 925-1425)

$35.99

$

In Stock, Qty 6

0

51

White Outdoor 731-1747

Lower Engine Cover : Oyster Gray 662

$

$

Not available

52

750-1049

Grommet: .280 x .750 x .40

$

$

Not available

53

White Outdoor 784-0361

Control Panel

$

$

Not available

54

White Outdoor 712-0265

Sems Nut 5/16 - 18

$3.99

$

Usually ships in 3-6 days

0

55

White Outdoor 726-0152

Mounting Clamp

$

$

Not available

56

White Outdoor 736-0119

Lock Washer
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

57

White Outdoor 736-0275

Flat Washer

$6.99

$

Usually ships in 3-6 days

0

?58

White Outdoor 710-1003

Tap Screw
(Superseded to 710-04669)

Note: (Electric Start Models only)

$3.49

$

In Stock, Qty 20+

0

59

White Outdoor 629-0236

Cord Assembly

Note: (Electric Start Models only)

$

$

Not available
