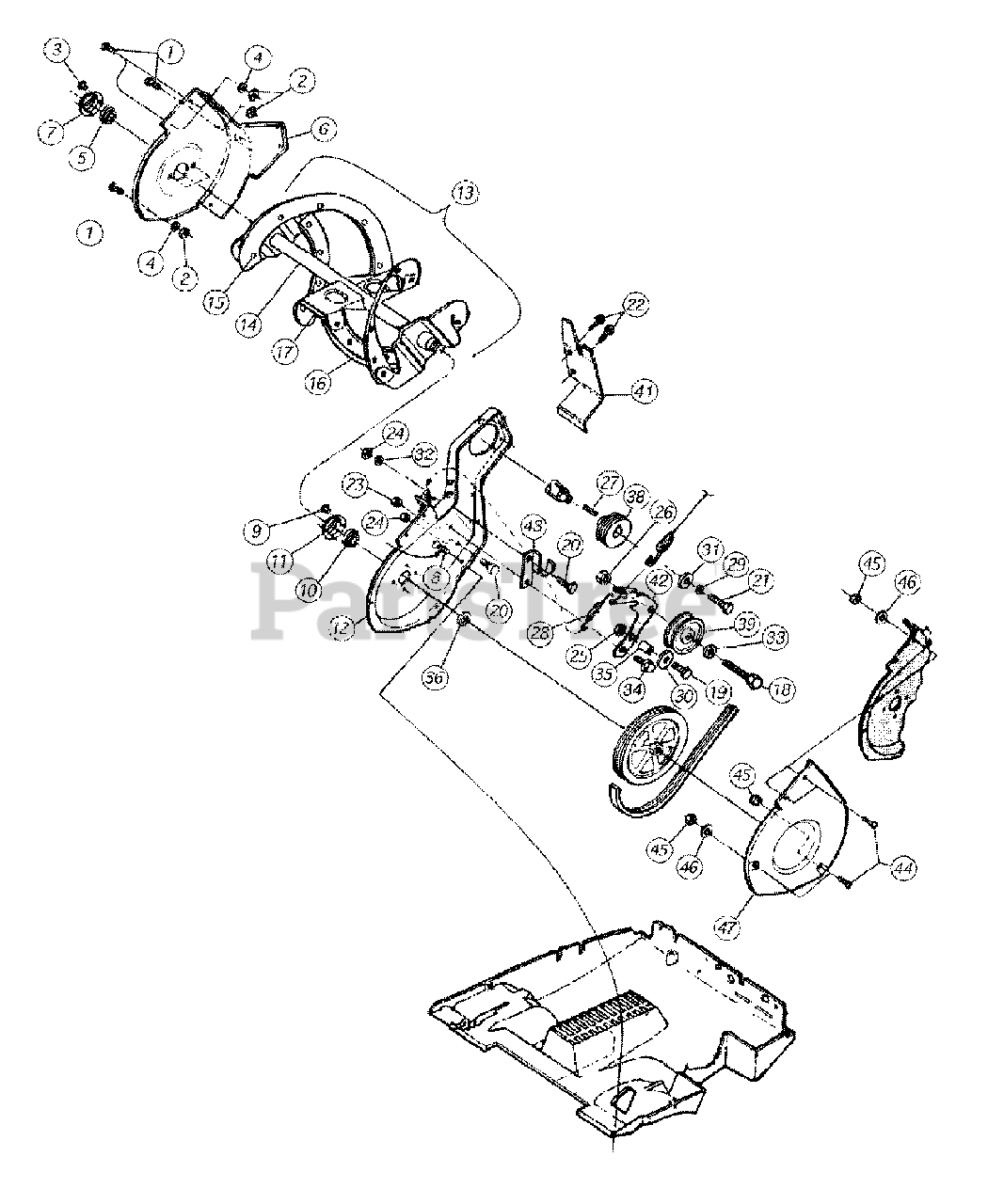

SB-55 (317E262-190) - White Outdoor Snow Boss Snow Thrower (1997) Auger And Drive Parts Diagram

Snow Boss Snow Thrower

Auger And Drive Parts Diagram

  • Title

1

White Outdoor 710-0473

Truss Machine Screw

$4.49

$

In Stock, only 2 left!

0

2

White Outdoor 712-0121

Hex Nut

$4.49

$

In Stock, Qty 20+

0

3

White Outdoor 728-0145

Rivet
(Superseded to 928-0145)

$

$

Not available

4

White Outdoor 736-0400

Flat Washer

$5.49

$

In Stock, Qty 11

0

5

White Outdoor 741-0976

Ball Bearing, Auger Axle
(Superseded to 941-0155)

$23.99

$

In Stock, Qty 13

0

6

White Outdoor 784-0355

Frame, RH

Variations

White Outdoor 784-0355-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 784-0355-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 784-0355-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

$

$

7

White Outdoor 784-0357

Retainer Bearing

$

$

Not available

8

White Outdoor 710-0258

Hex Screw: 1/4 - 20 X .625 Gr 2
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

9

White Outdoor 728-0145

Rivet .252 Dia X .31
(Superseded to 928-0145)

$

$

Not available

10

White Outdoor 741-0976

Ball Bearing, Auger Axle
(Superseded to 941-0155)

$23.99

$

In Stock, Qty 13

0

11

White Outdoor 784-0357

Retainer Bearing

$

$

Not available

12

White Outdoor 784-0359

Frame, LH

Variations

White Outdoor 784-0359-0637

No Longer Available FRAME-LH - POWDER BLACK (0637)

$

$

Not available

$

$

13

White Outdoor 684-0087

Auger Assembly, Complete

$

$

Not available

14

White Outdoor 684-0085

Auger Assembly, Weld.

$

$

Not available

15

White Outdoor 728-0197

Rivet, Truss
(Superseded to 928-0197)

$

$

Not available

16

White Outdoor 731-1717

Auger Blade

$20.99

$

In Stock, only 1 left!

0

17

White Outdoor 731-1716

Auger Paddle

$6.99

$

Usually ships in 3-6 days

0

18

White Outdoor 710-0520

Hex Screw: 3/8 - 16 X 1.50 Gr 5

$4.49

$

In Stock, Qty 5

0

19

White Outdoor 710-0597

Hex Screw: 1/4 - 20 X 1.0 Gr 5

$3.99

$

In Stock, Qty 13

0

20

White Outdoor 710-3015

Hex Screw: 1/4 - 20 X .75 Gr 5

$3.99

$

In Stock, Qty 20+

0

21

White Outdoor 710-1245

Hex Screw: 5/16 - 24 X .88 Gr 2

$8.49

$

In Stock, only 4 left!

0

22

White Outdoor 710-1335

Hex Screw

$

$

Not available

23

White Outdoor 712-0265

Sems Nut: 5/16 - 18

$3.99

$

Usually ships in 3-6 days

0

24

White Outdoor 712-0271

Sems Nut: 1/4 - 20

$4.49

$

In Stock, Qty 19

0

25

White Outdoor 712-0291

Lock Nut: 1/4 - 20

$4.49

$

In Stock, Qty 8

0

26

White Outdoor 712-0431

Flanged Lock Nut
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

27

White Outdoor 714-0105

Key
(Superseded to 914-0105)

$3.99

$

Usually ships in 3-6 days

0

28

White Outdoor 732-0691

Extension Spring
(Superseded to 932-0691)

$

$

Not available

29

White Outdoor 736-0119

Lock Washer
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

30

White Outdoor 736-0123

Flat Washer: .344 ID X 1.12 OD
(Superseded to 936-0123)

$6.49

$

Usually ships in 3-6 days

0

31

White Outdoor 736-0262

Flat Washer: .385 ID X .87 OD X .092

$3.99

$

In Stock, Qty 20+

0

32

White Outdoor 736-0463

Flat Washer: .25 ID X .62 OD

$4.49

$

In Stock, Qty 20+

0

33

White Outdoor 736-3050

Flat Washer: .406 ID X .81 OD X .051

$4.49

$

In Stock, Qty 16

0

34

White Outdoor 738-0961

Shoulder Screw

$

$

Not available

35

White Outdoor 750-1045

Spacer, Brake Belt

$

$

Not available

36

White Outdoor 750-1046

Spacer, Auger Pulley

$

$

Not available

?37

White Outdoor 754-0452

Belt, Auger Drive
(Superseded to 954-0452)

$51.99

$

Usually ships in 3-6 days

0

38

White Outdoor 756-0652

Engine Pulley

$

$

Not available

39

White Outdoor 756-0653

Idler Pulley

$

$

Not available

?40

White Outdoor 756-0654

Auger Pulley

$

$

Not available

41

White Outdoor 784-0356

Shield, Bolt
(Superseded to 784-0356A-0662)

$

$

Not available

42

White Outdoor 784-0358

Idler Arm

$

$

Not available

43

White Outdoor 784-0362

Bracket, Belt

$

$

Not available

44

White Outdoor 710-0425

Machine Screw #10 - 24 X .62

$4.99

$

Usually ships in 3-6 days

0

45

White Outdoor 712-0121

Hex Nut

$4.49

$

In Stock, Qty 20+

0

46

White Outdoor 736-0400

Flat Washer: .218 ID X .62 OD X .063

$5.49

$

In Stock, Qty 11

0

47

White Outdoor 784-0360

Belt Guard
(Superseded to 784-0360-0637)

Variations

White Outdoor 784-0360-0637

GUARD BELT 582784 - POWDER BLACK (0637)

$

$

Not available

$

$
