SB-524 (31AE600E022) - White Outdoor Snow Boss 24" Snow Thrower (2002) General Assembly Parts Diagram

Snow Boss 24" Snow Thrower

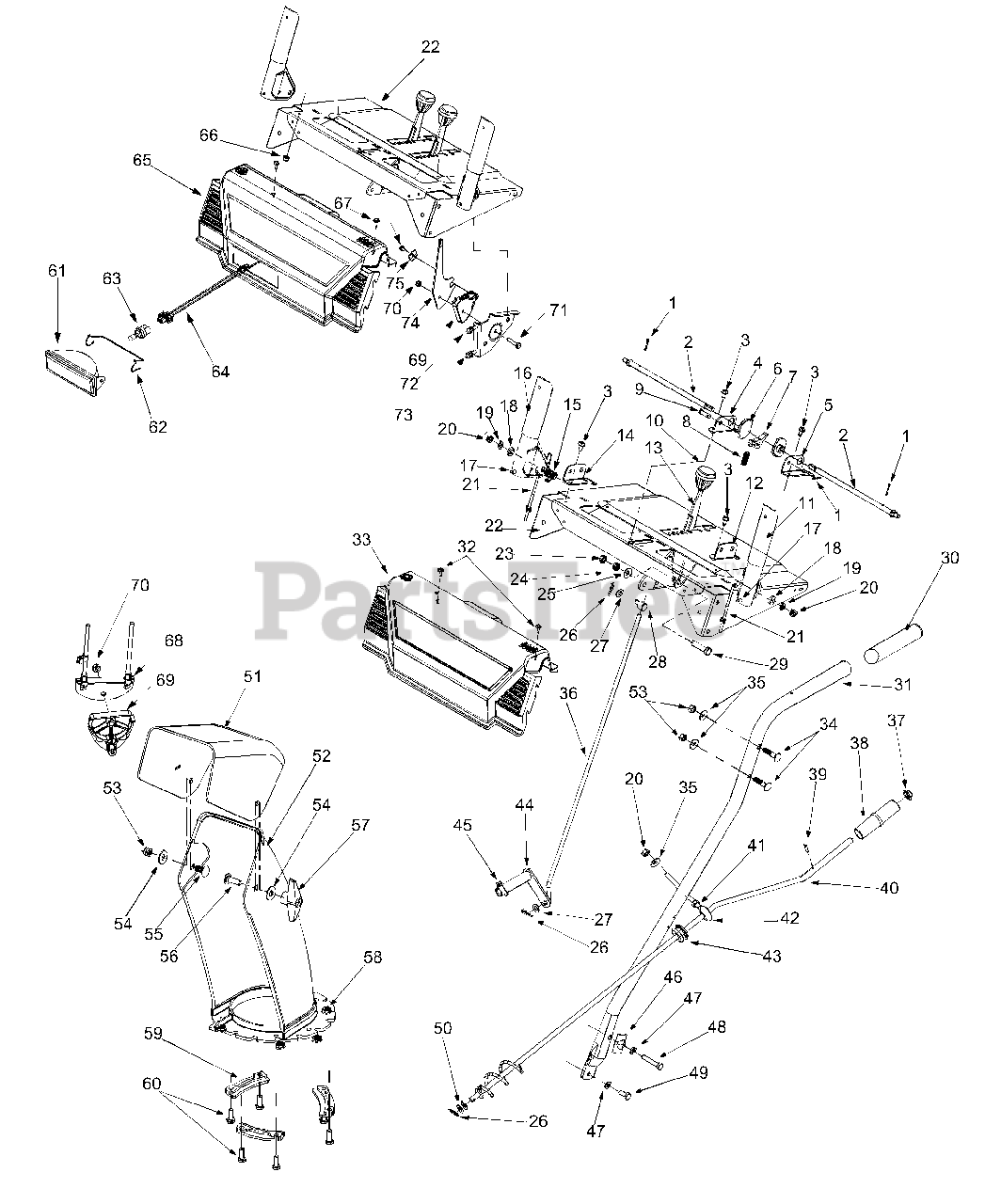

General Assembly Parts Diagram

  • Title

1

MTD 914-0507

Cotter Pin

$4.49

$

In Stock, Qty 17

0

2

MTD 747-0877

Rod

$22.99

$

Usually ships in 3-6 days

0

3

MTD 710-0599

Hex Washer Screw 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

4

MTD 784-5680-0637

Handle Support Bracket - RH

$12.99

$

Usually ships in 3-6 days

0

5

MTD 784-5679-0637

Handle Support Bracket - LH

$8.99

$

Usually ships in 3-6 days

0

6

MTD 748-0362

Cam Lock Handle

$7.99

$

Usually ships in 3-6 days

0

7

MTD 948-0363

Handle Lock Pawl

$16.99

$

Usually ships in 3-6 days

0

8

MTD 732-0145

Compression Spring

$4.49

$

Usually ships in 3-6 days

0

9

MTD 711-0653

Clevis Pin

$3.99

$

Usually ships in 3-6 days

0

10

MTD 920-0232

Knob

$10.99

$

In Stock, Qty 10

0

11

MTD 684-0037B

Handle Assy - LH

$38.99

$

In Stock, only 2 left!

0

12

MTD 784-5681

Handle Support Bracket - LH

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 784-5681-0637

BRACKET-HANDLE SUP - POWDER BLACK (0637)

$9.49

$

Usually ships in 3-6 days

0

$9.49

$

Usually ships in 3-6 days

0

13

MTD 753-05395

Shift Handle

$

$

Not available

14

MTD 784-5682-0637

Handle Support Bracket - RH

$28.99

$

Usually ships in 3-6 days

0

15

MTD 732-0746

Torsion Spring

$4.49

$

In Stock, Qty 13

0

16

MTD 684-0036A

Handle Assy - RH

$44.99

$

Usually ships in 3-6 days

0

17

MTD 935-0199A

Rubber Bumper
(Superseded to 735-0199A)

$7.99

$

In Stock, only 2 left!

0

18

MTD 736-0509

Washer

$6.99

$

In Stock, only 1 left!

0

19

MTD 936-0119

Lock Washer 5/16

$4.99

$

In Stock, Qty 20+

0

20

MTD 912-3010

Hex Nut 5/16-18
(Superseded to 712-3010)

$4.49

$

In Stock, Qty 20+

0

21

MTD 946-0778

Cable

$10.99

$

In Stock, Qty 5

0

22

MTD 684-0103

Panel
(Superseded to 684-0103A)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 684-0103-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

MTD 684-0103-0629

No Longer Available PANELASM: - SILVER FLAKE (0629)

$

$

Not available

MTD 684-0103-0637

PANEL ASM:HANDLE - POWDER BLACK (0637)

$

$

Not available

MTD 684-0103-0638

PANEL ASM:HANDLE - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 684-0103-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

MTD 684-0103-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

$

$

22

MTD 684-0102

Panel - Chute Tilt Models only
(Superseded to 684-0102A)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 684-0102-0638

PANEL ASM:HANDLE - MTD/TROY-BILT RED (0638)

$143.99

$

Usually ships in 3-6 days

0

MTD 684-0102-0650

PANEL ASM:HANDLE - RED METALLIC (0650)

$124.99

$

Usually ships in 3-6 days

0

MTD 684-0102-0662

PANEL ASM:HANDLE - OYSTER GRAY (0662)

$143.99

$

Usually ships in 3-6 days

0

MTD 684-0102-0665

PANEL ASM:HANDLE - YARDMAN GREEN (0665)

$143.99

$

Usually ships in 3-6 days

0

MTD 684-0102-0689

PANEL ASM:HANDLE - POLO GREEN (0689)

$124.99

$

Usually ships in 3-6 days

0

MTD 684-0102-0716

HANDLE PANEL ASSEMBLY (CUB YELLOW-99) - CUB YELLOW-99 (0716)

$153.99

$

Usually ships in 3-6 days

0

MTD 684-0102-0721

PANEL ASM:HANDLE - SEARS RED (0721)

$133.99

$

Usually ships in 3-6 days

0

$133.99

$

Usually ships in 3-6 days

0

23

MTD 912-0116

Jam Lock Nut 3/8-24
(Superseded to 712-0116)

$

$

Not available

24

MTD 732-0193

Compression Spring

$4.99

$

In Stock, Qty 6

0

25

MTD 736-0105

Bell Washer

$4.49

$

In Stock, Qty 20+

0

26

MTD 914-0104

Cotter Pin
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

27

MTD 936-0275

Flat Washer 5/16
(Superseded to 736-0275)

$

$

Not available

28

MTD 911-0677

Ferrule

$17.99

$

In Stock, only 4 left!

0

29

MTD 710-0459A

Hex Cap Screw 3/8-24 x 1.50

$6.99

$

In Stock, Qty 8

0

30

MTD 720-0274

Grip

$11.99

$

In Stock, Qty 8

0

31

MTD 749-0911C-0637

Handle -LH

$

$

Not available

31

MTD 749-0910C-0637

Handle -RH

$

$

Not available

32

MTD 710-04669

Hex Washer Screw

$3.49

$

In Stock, Qty 20+

0

33

MTD 731-1391

Handle Panel

$43.99

$

Usually ships in 3-6 days

0

33

MTD 931-1393

Handle Panel w/ Top Light

$

$

Not available

34

MTD 710-0262

Carriage Bolt 5/16-18 x 1.50

$3.99

$

In Stock, Qty 9

0

35

MTD 736-0242

Bell Washer .340 ID x .872 OD

$4.49

$

In Stock, Qty 20+

0

36

MTD 747-0798A

Shift Rod

$38.99

$

Usually ships in 3-6 days

0

37

MTD 926-0100

Push Cap
(Superseded to 726-0100)

$

$

Not available

38

MTD 720-0201A

Chute Knob

$10.99

$

In Stock, Qty 5

0

39

MTD 915-0138

Roll Pin

$4.99

$

In Stock, only 1 left!

0

40

MTD 984-0022

Chute Crank

$99.99

$

In Stock, only 3 left!

0

42

MTD 747-0697

Chute Crank Eyebolt

$8.49

$

In Stock, only 1 left!

0

43

MTD 735-0234

Rubber Grommet

$5.49

$

In Stock, only 2 left!

0

44

MTD 684-0008A-0637

Shift Arm Assembly

$50.99

$

Usually ships in 3-6 days

0

45

MTD 710-0788

Hex Washer Screw 1/4-20 x 1.0

$7.49

$

In Stock, only 2 left!

0

46

MTD 984-5599

Handle Tab

$4.49

$

In Stock, Qty 18

0

47

MTD 936-0119

Lock Washer 5/16

$4.99

$

In Stock, Qty 20+

0

48

MTD 710-3259

Hex Cap Screw 5/16-18 x 1.75

$3.49

$

Usually ships in 3-6 days

0

49

MTD 710-1880

Hex Cap Screw 5/16-18 x .75

$4.99

$

In Stock, Qty 11

0

50

MTD 936-0185

Flat Washer
(Superseded to 736-0185)

$3.99

$

In Stock, Qty 20+

0

51

MTD 731-04426A

Upper Chute
(Superseded to 731-04426C)

$19.99

$

In Stock, Qty 11

0

52

MTD 731-1300E

Lower Chute

$56.99

$

In Stock, Qty 8

0

53

MTD 912-3009

Hex Lock Nut 5/16-18
(Superseded to 712-3009)

$

$

Not available

54

MTD 936-0159

5/16 Washer
(Superseded to 736-0159)

$

$

Not available

55

MTD 710-0451

Carriage Bolt 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

56

MTD 710-0276

Carriage Screw 5/16-18 x 1.0

$3.99

$

In Stock, Qty 20+

0

57

MTD 920-0284

Knob
(Superseded to 720-0284)

$6.99

$

In Stock, Qty 20+

0

58

MTD 912-3027

Hex Lock Nut 1/4-20

$4.49

$

In Stock, Qty 20+

0

59

MTD 731-0851A

Flange Keeper

$4.49

$

In Stock, Qty 20+

0

60

MTD 710-3015

Hex Cap Screw 1/4-20 x .75

$3.99

$

In Stock, Qty 20+

0

61

MTD 925-1672

Lens Housing Assembly

Note: If Equipped

$89.99

$

Usually ships in 3-6 days

0

62

MTD 747-1136

Headlight Retaining Wire

Note: If Equipped

$11.99

$

Usually ships in 3-6 days

0

63

MTD 925-1658

Halogen Light

Note: If Equipped

$60.99

$

In Stock, only 4 left!

0

64

MTD 929-0059

Light Harness

Note: If Equipped

$100.99

$

Usually ships in 3-6 days

0

65

MTD 731-1392

Panel w/ Light

Note: If Equipped

$

$

Not available

66

MTD 712-0271

Hex Nut 1/4-20

Note: If Equipped

$4.49

$

In Stock, Qty 19

0

67

MTD 710-04669

Hex Washer Screw #10-16 x .625

Note: If Equipped

$3.49

$

In Stock, Qty 20+

0

68

MTD 784-5594

Chute Cable Bracket

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 784-5594-0498

Cable Bracket - OLD CUB YELLOW (0498)

$11.99

$

In Stock, only 3 left!

0

MTD 784-5594-0637

Cable Bracket - POWDER BLACK (0637)

$11.99

$

In Stock, only 3 left!

0

MTD 784-5594-0716

Cable Bracket - CUB YELLOW-99 (0716)

$11.99

$

In Stock, only 3 left!

0

$10.99

$

Usually ships in 3-6 days

0

69

MTD 731-1313C

Chute Tilt Cable Guide

Note: Chute Tilt Models only

$11.99

$

In Stock, Qty 20+

0

70

MTD 912-0429

Lock Nut
(Superseded to 712-0429)

Note: Chute Tilt Models only

$4.49

$

In Stock, Qty 20+

0

71

MTD 710-0805

Hex Bolt 5/16-18 x 1.5"
(Superseded to 710-0805A)

Note: Chute Tilt Models only

$4.49

$

In Stock, Qty 20+

0

72

MTD 946-0896

Chute Control Cable

Note: Chute Tilt Models only

$56.99

$

In Stock, only 1 left!

0

73

MTD 946-0901

Chute Deflector Control Cable w/Clip

Note: Chute Tilt Models only

$64.99

$

Usually ships in 3-6 days

0

74

MTD 784-5604A-0637

Chute Tilt Handle

Note: Chute Tilt Models only

$25.99

$

Usually ships in 3-6 days

0

75

MTD 736-0506A

Special Washer

Note: Chute Tilt Models only

$

$

Not available

76

MTD 710-0896

AB Screw 1/4-14 x 0.625"

Note: Chute Tilt Models only

$4.49

$

In Stock, Qty 20+

0
