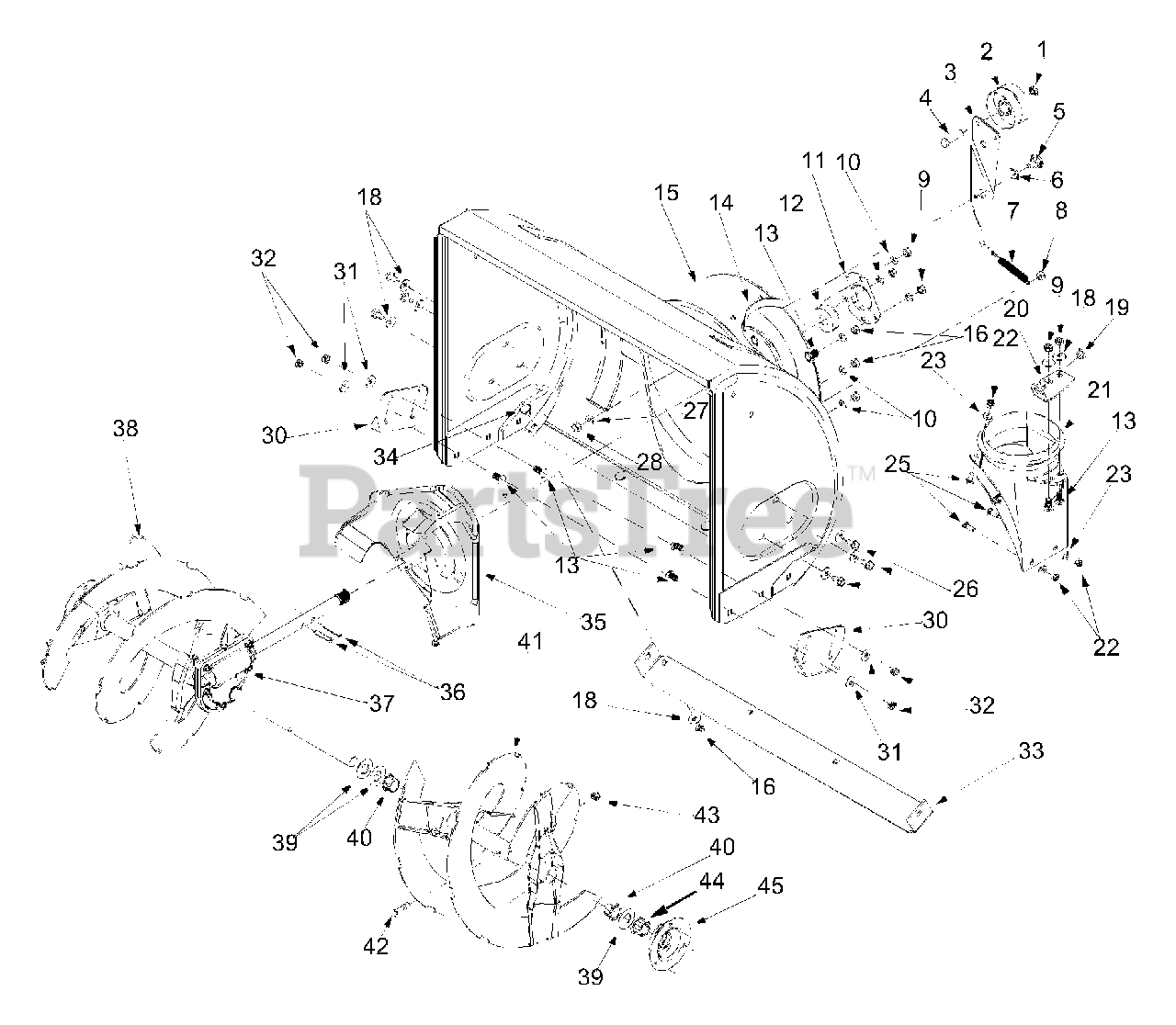

SB-524 (31AE600E022) - White Outdoor Snow Boss 24" Snow Thrower (2002) Blower Housing Parts Diagram

Snow Boss 24" Snow Thrower

Blower Housing Parts Diagram

  • Title

1

MTD 912-0116

Lock Jam Nut 3/8-24
(Superseded to 712-0116)

$

$

Not available

2

MTD 756-0178

Flat Idler

$20.99

$

In Stock, only 4 left!

0

3

MTD 984-0064-0637

Auger Idler Arm

$32.99

$

In Stock, only 3 left!

0

4

MTD 710-0459A

Hex Cap Screw 3/8-24 x 1.50

$6.99

$

In Stock, Qty 8

0

5

MTD 938-0281

Shoulder Screw
(Superseded to 738-0281)

$

$

Not available

6

MTD 736-0174

Wave Washer

$6.99

$

In Stock, only 2 left!

0

7

MTD 932-0611

Extension Spring

$7.49

$

In Stock, Qty 20+

0

8

MTD 912-3009

Hex Nut 5/16-18
(Superseded to 712-3009)

$

$

Not available

9

MTD 912-3010

Hex Nut 5/16-18
(Superseded to 712-3010)

$4.49

$

In Stock, Qty 20+

0

10

MTD 936-0119

Lock Washer 5/16

$4.99

$

In Stock, Qty 20+

0

11

MTD 05931A

Housing

$10.99

$

In Stock, only 2 left!

0

12

MTD 941-0309

Ball Bearing

$74.99

$

In Stock, only 1 left!

0

13

MTD 710-0451

Carriage Bolt 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

14

MTD 705-5226

Reinforcement Chute

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 705-5226-0637

Chute Reinforcement - POWDER BLACK (0637)

$10.99

$

In Stock, Qty 7

0

MTD 705-5226-0638

Chute Reinforcement - MTD/TROY-BILT RED (0638)

$10.99

$

In Stock, Qty 7

0

$9.99

$

Usually ships in 3-6 days

0

15

MTD 684-0039D

24" Housing Assembly

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 684-0039D-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

MTD 684-0039D-0498

No Longer Available HOUSINGAS - OLD CUB YELLOW (0498)

$

$

Not available

MTD 684-0039D-0629

HOUSING ASM-24" - SILVER FLAKE (0629)

$

$

Not available

MTD 684-0039D-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 684-0039D-0650

HOUSING ASM-24" - RED METALLIC (0650)

$

$

Not available

MTD 684-0039D-0662

HOUSING ASM-24" - OYSTER GRAY (0662)

$

$

Not available

MTD 684-0039D-0665

HOUSING ASM-24" - YARDMAN GREEN (0665)

$

$

Not available

MTD 684-0039D-0687

HOUSING ASM-24" - PINE GREEN (0687)

$

$

Not available

MTD 684-0039D-0689

HOUSING ASM-24" - POLO GREEN (0689)

$

$

Not available

MTD 684-0039D-0691

HOUSING ASM-24" - BLACK JACK (0691)

$

$

Not available

MTD 684-0039D-0716

"No Longer Available HOUSING ASM-24""" - CUB YELLOW-99 (0716)

$

$

Not available

MTD 684-0039D-0709

"No Longer Available HOUSING ASM-24""" - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

15

MTD 684-0041C

28" Housing Assembly
(Superseded to 684-0041D)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 684-0041C-0689

HOUSING ASM-28" - POLO GREEN (0689)

$

$

Not available

MTD 684-0041C-0650

HOUSING ASM-28" - RED METALLIC (0650)

$

$

Not available

MTD 684-0041C-0483

HOUSING ASM-28" - CHARCOAL GRAY (0483)

$

$

Not available

MTD 684-0041C-0629

No Longer Available - SILVER FLAKE (0629)

$

$

Not available

MTD 684-0041C-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 684-0041C-0662

HOUSING ASM-28" - OYSTER GRAY (0662)

$

$

Not available

MTD 684-0041C-0665

HOUSING ASM-28" - YARDMAN GREEN (0665)

$

$

Not available

MTD 684-0041C-0691

HOUSING ASM-28" - BLACK JACK (0691)

$

$

Not available

MTD 684-0041C-0716

28" HOUSING ASSEMBLY (CUB YELLOW-99) - CUB YELLOW-99 (0716)

$

$

Not available

$

$

16

MTD 912-3010

Hex Nut 5/16-18
(Superseded to 712-3010)

$4.49

$

In Stock, Qty 20+

0

18

MTD 736-0242

Bell Washer

$4.49

$

In Stock, Qty 20+

0

19

MTD 941-0475

Bushing

$4.49

$

In Stock, Qty 20+

0

20

MTD 784-5647-0637

Chute Crank Bracket

$14.99

$

In Stock, Qty 7

0

21

MTD 731-1379D

Chute Adapter

$65.99

$

In Stock, only 1 left!

0

22

MTD 712-0324

Hex Lock Nut 1/4-20

$3.99

$

In Stock, Qty 16

0

23

MTD 936-0463

Flat Washer
(Superseded to 736-0463)

$4.49

$

In Stock, only 2 left!

0

25

MTD 710-0703

Carriage Screw 1/4-20 x .75

$4.49

$

In Stock, Qty 15

0

26

MTD 710-0604A

Hex Washer TT Screw 5/16-18

$4.49

$

In Stock, Qty 20+

0

27

MTD 936-0169

Lock Washer 3/8
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

28

MTD 712-0798

Hex Nut 3/8-16

$4.49

$

In Stock, only 2 left!

0

30

MTD 784-5580

Snow Shoe

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 784-5580-0637

Snow Slide Shoe, Black - POWDER BLACK (0637)

$23.99

$

In Stock, Qty 20+

0

MTD 784-5580-0638

Snow Slide Shoe, Black - MTD/TROY-BILT RED (0638)

$23.99

$

In Stock, Qty 20+

0

MTD 784-5580-0662

Snow Slide Shoe, Black - OYSTER GRAY (0662)

$23.99

$

In Stock, Qty 20+

0

MTD 784-5580-0665

Snow Slide Shoe, Black - YARDMAN GREEN (0665)

$23.99

$

In Stock, Qty 20+

0

MTD 784-5580-0688

Snow Slide Shoe, Black - SPRING GREEN (0688)

$23.99

$

In Stock, Qty 20+

0

MTD 784-5580-0721

Snow Skid Shoe - SEARS RED (0721)

$23.99

$

In Stock, Qty 18

0

MTD 784-5580-4044

Snow Skid Shoe - CRAFTSMAN RED (4044)

$23.99

$

In Stock, Qty 18

0

MTD 784-5580-0691

Snow Slide Shoe, Black - BLACK JACK (0691)

$23.99

$

In Stock, Qty 7

0

MTD 784-5580-0729

Snow Skid Shoe - STORM GRAY (0729)

$23.99

$

In Stock, Qty 20+

0

MTD 784-5580-4043

Snow Skid Shoe - CRAFTSMAN METALLIC GRAY (4043)

$23.99

$

In Stock, Qty 20+

0

$23.99

$

In Stock, Qty 20+

0

31

MTD 736-0242

Bell Washer

$4.49

$

In Stock, Qty 20+

0

32

MTD 912-3010

Hex Nut 5/16-18
(Superseded to 712-3010)

$4.49

$

In Stock, Qty 20+

0

33

MTD 790-00120-0637

24" Shave Plate

$34.99

$

In Stock, Qty 20+

0

33

MTD 790-00118-0637

28" Shave Plate

$37.99

$

In Stock, only 4 left!

0

34

MTD 710-0260A

Carriage Bolt 5/16-18 x .62

$4.49

$

In Stock, Qty 20+

0

35

MTD 984-0065-0637

Impeller Assembly
(Superseded to 684-06276-0637)

$90.99

$

In Stock, only 1 left!

0

36

MTD 915-0114

Pin
(Superseded to 715-0114)

$9.49

$

In Stock, only 3 left!

0

37

MTD 918-0414B

24" Gear Assembly

$

$

Not available

37

MTD 918-0416B

28" Gear Assembly

$474.99

$

Usually ships in 3-6 days

0

38

MTD 905-5188A

Spiral 24" RH
(Superseded to 684-04180-0637)

Variations

MTD 905-5188A-0637

Auger Spiral Assembly, RH 24" - POWDER BLACK (0637)

$

$

Not available

MTD 905-5188A-0638

Auger Spiral Assembly, RH 24" - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

38

MTD 684-04184-0637

Spiral 28" RH

$218.99

$

Usually ships in 3-6 days

0

39

MTD 736-0188

Flat Washer

$4.49

$

In Stock, Qty 20+

0

40

MTD 741-0493A

Flange Bushing
(Superseded to 741-0493C)

$4.49

$

In Stock, Qty 20+

0

41

MTD 684-04181-0637

Spiral 24" LH

$178.99

$

In Stock, only 1 left!

0

41

MTD 684-04185-0637

Spiral 28" LH

$184.99

$

Usually ships in 3-6 days

0

42

MTD 710-0890A

Shear Bolt 5/16-18 x 1.5

$1.99

$

In Stock, Qty 20+

0

43

MTD 912-0429

Lock Nut 5/16-18
(Superseded to 712-0429)

$4.49

$

In Stock, Qty 20+

0

44

MTD 941-0245

Hex Flange Bearing

$9.99

$

In Stock, Qty 20+

0

45

MTD 784-5618A-0637

Bearing Housing

$13.99

$

In Stock, Qty 6
