SB-521 (31AS2B5-790) - White Outdoor Snow Boss 21" Snow Thrower (2007) Auger & Drive System Parts Diagram

Snow Boss 21" Snow Thrower

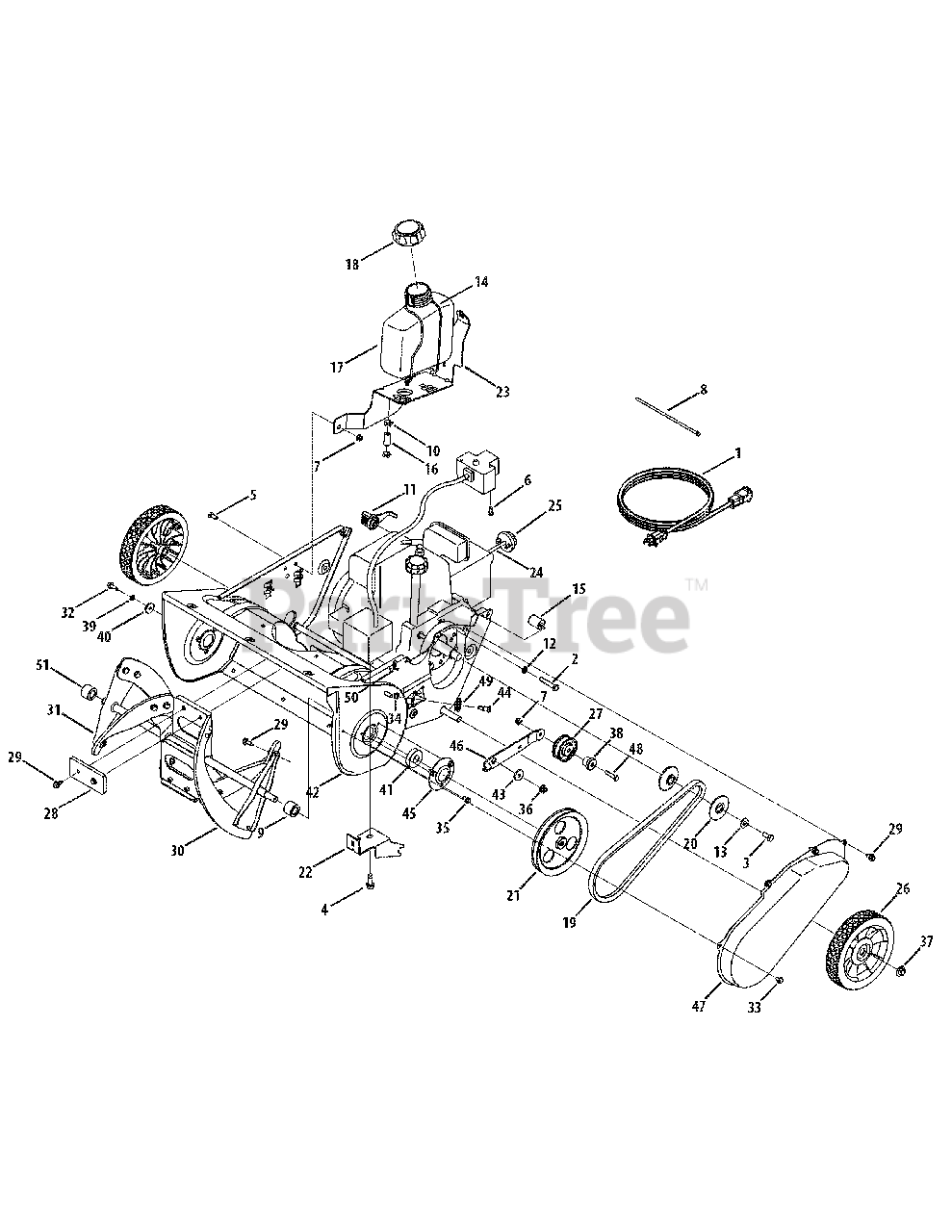

Auger & Drive System Parts Diagram

  • Title

1

White Outdoor 629-0071

Extension Cord
(Superseded to 929-0071B)

$21.99

$

In Stock, Qty 12

0

2

White Outdoor 710-0409

Hex Screw, 5/16-24 x 1.75

$4.99

$

Usually ships in 3-6 days

0

3

White Outdoor 710-0627

Hex Screw, 5/16-24 x .75

$4.49

$

In Stock, Qty 20+

0

4

White Outdoor 710-0654A

Self Tapping Screw, 3/8-16 x 1

$4.49

$

In Stock, Qty 20+

0

5

White Outdoor 710-0751

Hex Screw, 1/4-20 x .62

$3.99

$

In Stock, Qty 20+

0

6

White Outdoor 710-1003

Screw, #10-16 x .625
(Superseded to 710-04669)

$3.49

$

In Stock, Qty 20+

0

7

White Outdoor 712-04064

Hex Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

8

White Outdoor 726-0154

Push Mount Cable Tie
(Superseded to 926-0154)

$6.49

$

Usually ships in 3-6 days

0

9

White Outdoor 750-04757

Spacer, Auger - LH

$8.49

$

Usually ships in 3-6 days

0

10

White Outdoor 726-0205

Clamp, Hose

$3.99

$

In Stock, Qty 20+

0

11

White Outdoor 731-2825

Knob, Choke

$17.99

$

Usually ships in 3-6 days

0

12

White Outdoor 736-0119

Washer, Lock 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

13

White Outdoor 736-0242

Flat Washer .340 x .872 x .060

$4.49

$

In Stock, Qty 20+

0

14

White Outdoor 747-04236

Gas Tank Support Wire

$

$

Not available

15

White Outdoor 750-04297B

Spacer, Engine

$4.49

$

Usually ships in 3-6 days

0

16

751-0535

Hose, Fuel Line

$

$

Not available

17

White Outdoor 751-10023

Tank, Fuel
(Superseded to 951-10023)

$

$

Not available

18

White Outdoor 751-10487

Cap, Fuel
(Superseded to 751-10487C)

$16.99

$

In Stock, Qty 5

0

19

White Outdoor 754-0101A

V-Belt, 1/2
(Superseded to 954-0101A)

$28.99

$

In Stock, Qty 20+

0

20

White Outdoor 756-0416B

Pulley Half, .625 ID x 2.25 OD
(Superseded to 956-0416B)

$10.99

$

In Stock, only 2 left!

0

21

White Outdoor 756-04232

Pulley, 1/2 x 6.0 OD

$60.99

$

In Stock, only 1 left!

0

22

White Outdoor 790-00216

Bracket, Engine
(Superseded to 790-00216-0637)

Variations

White Outdoor 790-00216-0637

BRACKET:ENGINE - POWDER BLACK (0637)

$

$

Not available

$

$

23

White Outdoor 790-00134

Bracket Support Gas Tank
(Superseded to 790-00134-0637)

Variations

White Outdoor 790-00134-0637

BRACKET-FUEL TANK - POWDER BLACK

$

$

Not available

$

$

24

White Outdoor 7511152847

Primer Hose Line
(Superseded to TC-32180C)

$6.99

$

In Stock, Qty 9

0

25

White Outdoor 7512B1476

Primer
(Superseded to TC-570682A)

$10.99

$

In Stock, Qty 7

0

26

White Outdoor 734-04063

Wheel
(Superseded to 734-04063B)

$18.99

$

In Stock, only 3 left!

0

27

White Outdoor 684-04168

Idler Pulley (1/4" hole)

$38.99

$

Usually ships in 3-6 days

0

28

White Outdoor 735-04033

Rubber Paddle

$8.49

$

In Stock, Qty 20+

0

29

White Outdoor 710-0896

Hex Screw, 1/4-20 x .62

$4.49

$

In Stock, Qty 20+

0

30

White Outdoor 735-04032

Cresent Spiral

$18.99

$

In Stock, Qty 20+

0

31

White Outdoor 684-04253

Auger Assembly
(Superseded to 984-04253-0637)

Variations

White Outdoor 684-04253-0637

Auger Assembly, 21" Black - POWDER BLACK (0637)

$160.99

$

In Stock, only 1 left!

0

$160.99

$

In Stock, only 1 left!

0

32

White Outdoor 710-0642

Hex Screw 1/4-20 x .75 Gr. 5

$4.49

$

In Stock, Qty 20+

0

33

White Outdoor 710-0653

Self-tapping Screw 1/4-20 x .

$4.49

$

In Stock, Qty 7

0

34

White Outdoor 712-0896

Hex Lock Nut 1/4-28

$4.99

$

In Stock, Qty 6

0

35

White Outdoor 710-1005

Screw, 1/4-14 x .500"
(Superseded to 710-0599)

$4.49

$

In Stock, Qty 20+

0

36

White Outdoor 712-04063

Hex Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

37

White Outdoor 726-0299

Push Cap, 1/2"

$8.49

$

In Stock, Qty 20+

0

38

White Outdoor 750-04571

Shoulder Spacer .260 x .785 x .538

$6.99

$

In Stock, only 1 left!

0

39

White Outdoor 736-0329

Lock Washer, 1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

40

White Outdoor 736-0176

Flat Washer .265 x .938 x .120

$4.99

$

In Stock, only 4 left!

0

41

White Outdoor 741-04188A

Ball Bearing .625 x 37 x 12

$12.99

$

In Stock, only 2 left!

0

42

White Outdoor 684-04227

Auger Assembly Housing

Variations

White Outdoor 684-04227-0691

HOUSING ASSY-AUGER - BLACK JACK (0691)

$140.99

$

Usually ships in 3-6 days

0

White Outdoor 684-04227-0667

HOUSING ASSY-AUGER - MIDNIGHT BLUE (0667)

$121.99

$

In Stock, only 1 left!

0

White Outdoor 684-04227-0721

HOUSING ASSY-AUGER - SEARS RED (0721)

$161.99

$

Usually ships in 3-6 days

0

White Outdoor 684-04227-4044

HOUSING ASSY-AUGER - CRAFTSMAN RED (4044)

$161.99

$

Usually ships in 3-6 days

0

White Outdoor 684-04227-0606

HOUSING ASSY-AUGER - MAJESTIC ORANGE (0606)

$

$

Not available

White Outdoor 684-04227-0638

HOUSING ASSY-AUGER - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 684-04227-0665

HOUSING ASSY-AUGER - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 684-04227-0684

HOUSING ASSY-AUGER - ZINC YELLOW (0684)

$

$

Not available

White Outdoor 684-04227-0709

HOUSING ASSY-AUGER - MASTERCRAFT GREEN (0709)

$

$

Not available

$140.99

$

Usually ships in 3-6 days

0

43

White Outdoor 748-0234

Shoulder Spacer .25

$4.49

$

In Stock, Qty 20+

0

44

White Outdoor 738-0924A

Carriage Screw 1/4-28

$6.99

$

In Stock, Qty 5

0

45

White Outdoor 790-00249

Bearing Cup
(Superseded to 790-00249-0637)

Variations

White Outdoor 790-00249-0637

CUP:BEARING:SINGLE - POWDER BLACK (0637)

$18.99

$

Usually ships in 3-6 days

0

$18.99

$

Usually ships in 3-6 days

0

46

White Outdoor 790-00238A

Idler Brkt. w/ brake
(Superseded to 790-00238A-0637)

Variations

White Outdoor 790-00238A-0637

Idler Bracket with Brake - POWDER BLACK (0637)

$10.99

$

Usually ships in 3-6 days

0

$10.99

$

Usually ships in 3-6 days

0

47

White Outdoor 790-00045A

Belt Cover
(Superseded to 790-00045C)

Variations

White Outdoor 790-00045A-0637

Belt Cover, Black - POWDER BLACK (0637)

$57.99

$

Usually ships in 3-6 days

0

White Outdoor 790-00045A-0638

Belt Cover, Red - MTD/TROY-BILT RED (0638)

$57.99

$

Usually ships in 3-6 days

0

White Outdoor 790-00045A-0691

COVER BELT - BLACK JACK (0691)

$

$

Not available

White Outdoor 790-00045A-0662

COVER BELT - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 790-00045A-0665

COVER-BELT SINGLE - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 790-00045A-0684

COVER-BELT SINGLE - ZINC YELLOW (0684)

$

$

Not available

White Outdoor 790-00045A-0709

COVER-BELT SINGLE - MASTERCRAFT GREEN (0709)

$

$

Not available

$46.99

$

Usually ships in 3-6 days

0

48

White Outdoor 710-0106

Hex Screw, 1/4-20 x 1.00 Gr. 5

$3.99

$

In Stock, Qty 12

0

49

White Outdoor 756-0625

Cable Roller

$9.49

$

In Stock, Qty 14

0

50

White Outdoor 732-0357A

Extension Spring

$4.49

$

In Stock, Qty 13

0

51

White Outdoor 750-04758

Spacer, Auger - RH

$6.49

$

In Stock, Qty 8

0
