SB-520 (319-552-190) - White Outdoor Snow Boss Snow Thrower (1989) Track Chain Drive Assembly Parts Diagram

Snow Boss Snow Thrower

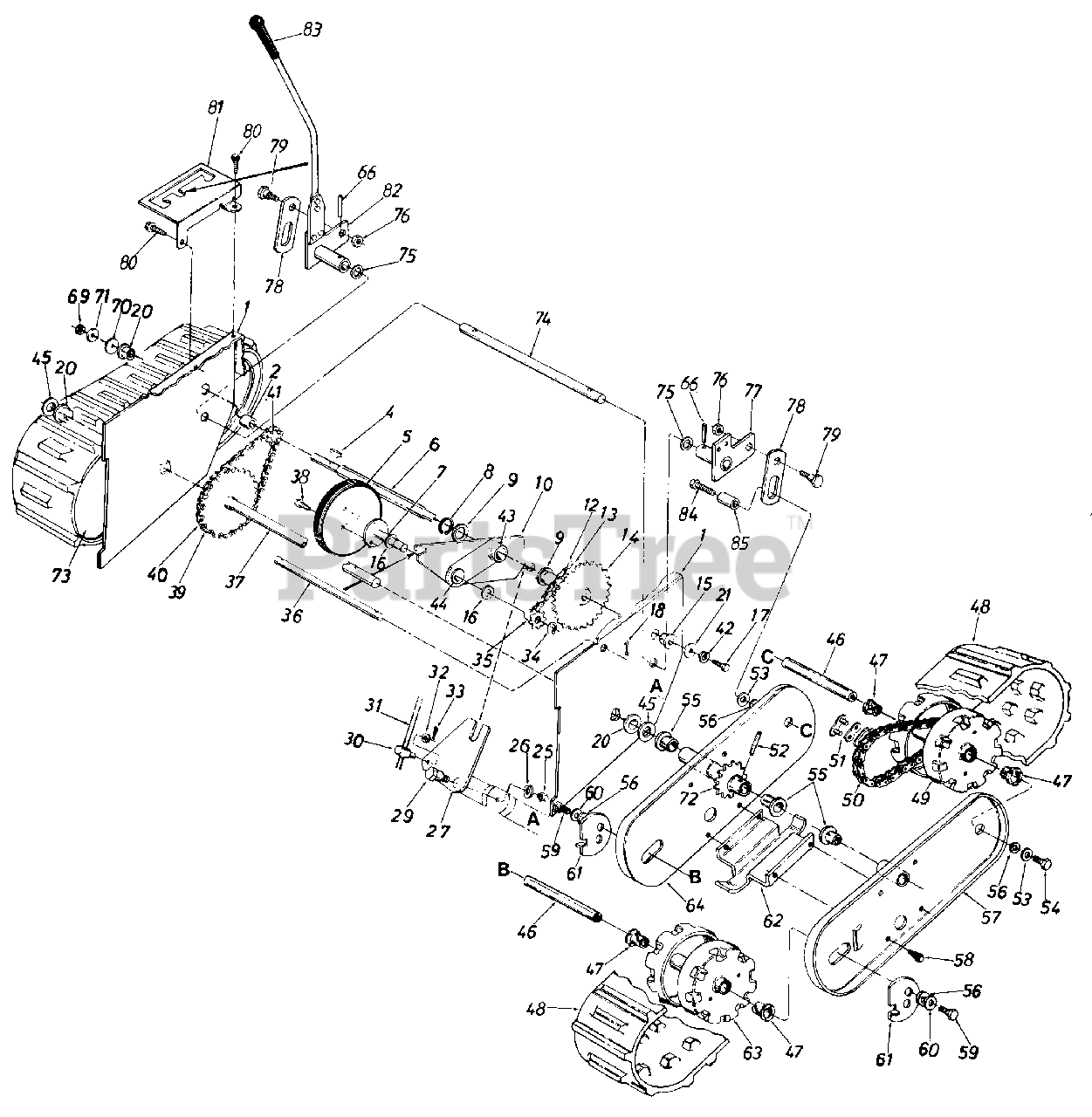

Track Chain Drive Assembly Parts Diagram

  • Title

1

White Outdoor 784-5197

Frame Ass'y.

$

$

Not available

2

White Outdoor 750-0499

Spacer 50n l.D. x .75" O.D. x.78" Lg.

$23.99

$

Usually ships in 3-6 days

0

4

White Outdoor 714-0129

#4 Hi-Pro Key 3/32 x 5/8" Dia.
(Superseded to 914-0129)

$

$

Not available

5

White Outdoor 05080

Friction Wheel Ass'y.
(Superseded to 05080AP)

$30.99

$

In Stock, Qty 11

0

6

White Outdoor 738-0496

Hex Shaft

$

$

Not available

7

White Outdoor 05883

Friction Wheel Mounting Plate Ass'y.

$

$

Not available

8

White Outdoor 716-0102

Snap Ring 1.00" Dia. Shaft

$5.49

$

In Stock, Qty 20+

0

9

White Outdoor 736-0163

Fl-Wash. 1.00" x 1.63" O.D. x .03

$4.49

$

In Stock, Qty 20+

0

10

White Outdoor 05880

Sliding Bracket Ass'y.

$

$

Not available

12

White Outdoor 713-0285

#41 Chain 1/2" Pitch x 35 Links

$

$

Not available

13

White Outdoor 713-0723

Master Link for #41 Chain
(Superseded to 913-0723)

$

$

Not available

14

713-0281

32 Teeth Sprocket Ass'y.

$

$

Not available

15

White Outdoor 741-0225

Hex Flange Brg. .630" I.D.
(Superseded to 941-0225)

$7.49

$

In Stock, Qty 20+

0

16

White Outdoor 736-0290

Fl-Wash. .62" I.D. x 1.00" O.D. x .06

$6.99

$

In Stock, Qty 20+

0

17

White Outdoor 710-0538

Hex Lock Bolt 5/16-18 x .62" Lg.

$4.49

$

In Stock, Qty 9

0

18

White Outdoor 714-0507

Cotter Pin 3/32" Dia. x .75" Lg.

$4.49

$

In Stock, Qty 12

0

20

White Outdoor 741-0490

Flange Brg. w/Flats .756" I.D.
(Superseded to 941-0490)

$13.99

$

In Stock, Qty 20+

0

21

White Outdoor 736-0231

Fl-Wash. .34" I.D. x 1.12" O.D. x . 1 25

$4.99

$

In Stock, Qty 20+

0

25

White Outdoor 712-0342

Hex Jam Nut 3/8-16 Thd.
(Superseded to 912-3008)

$4.99

$

In Stock, Qty 16

0

26

White Outdoor 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

27

White Outdoor 05898

Shifting Linkage Bracket

$

$

Not available

29

White Outdoor 738-0281

Shld. Bolt .625" Dia. x .170" Lg.

$10.99

$

In Stock, Qty 7

0

30

White Outdoor 711-0677

Adjustment Ferrule
(Superseded to 911-0677)

$17.99

$

In Stock, only 4 left!

0

31

White Outdoor 747-0356

Shifting Rod 5/16" Dia. x 32.50" Lg.

$

$

Not available

32

White Outdoor 736-0264

Fl-Wash. .34" I.D. x .64" O.D. x .06

$6.99

$

In Stock, only 1 left!

0

33

White Outdoor 714-0507

Cotter Pin 3/32" Dia. x .75" Lg.

$4.49

$

In Stock, Qty 12

0

34

White Outdoor 716-0145

Snap Ring .562" Dia. Shaft
(Superseded to 716-0397)

$

$

Not available

35

White Outdoor 713-0280

Sprocket 7 Teeth x .50" Pitch

$

$

Not available

36

738-0497

Shaft .50" Dia. x 9.50" Lg.

$

$

Not available

37

White Outdoor 713-0323

32 Teeth Wheel Shaft Ass'y.

$

$

Not available

38

White Outdoor 710-0600

Hex Wash. Hd. Self-Tap Scr. 5/16-24 x .50" Lg.

$3.49

$

Usually ships in 3-6 days

0

39

White Outdoor 713-0287

#420 Chain 1/2" Pitch x 39 Links
(Superseded to 913-0287)

$

$

Not available

40

White Outdoor 713-0154

Master Link for #420 Chain
(Superseded to 913-0154)

$

$

Not available

41

White Outdoor 748-0204

8 Teeth Center Sprocket

$

$

Not available

42

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

43

White Outdoor 741-0476

Plastic Bearing
(Superseded to 741-04488)

$9.49

$

In Stock, Qty 20+

0

44

White Outdoor 748-0184

Bronze Bearing

$7.49

$

Usually ships in 3-6 days

0

45

White Outdoor 736-0188

Fl-Wash. .76" I.D. x 1.49 O.D.

$4.49

$

In Stock, Qty 20+

0

46

White Outdoor 738-0684

Wheel Shaft 5/8 x 4.25" Lg.

$

$

Not available

47

White Outdoor 741-0313

Flange Brg. .632" I.D.
(Superseded to 741-0487C)

$7.49

$

Usually ships in 3-6 days

0

48

White Outdoor 731-0775

Snow Track 5" x 48"

$314.99

$

Usually ships in 3-6 days

0

49

784-5310

Drive Wheel Ass'y.

$

$

Not available

50

White Outdoor 713-0269

Chain #420 x 50 Pitch x 37 Link
(Superseded to 913-0269)

$32.99

$

Usually ships in 3-6 days

0

51

White Outdoor 713-0154

Master Link #420
(Superseded to 913-0154)

$

$

Not available

52

White Outdoor 715-0114

Spring Pin Spir. 1/4n Dia. x 1.50" Lg.

$9.49

$

In Stock, Qty 20+

0

53

White Outdoor 736-0242

Bell-Wash. .345" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

54

White Outdoor 710-0237

Hex Bolt 5/16-24 x .62" Lg.

$4.49

$

In Stock, only 1 left!

0

55

White Outdoor 741-0382

Flange Brg. .757" I.D.
(Superseded to 941-0382)

$

$

Not available

56

White Outdoor 736-0326

Fl-Wash. .510" I.D. x 1.0" O.D.

$4.49

$

In Stock, only 4 left!

0

57

White Outdoor 784-5305

Outer Plate Ass'y.-L.H.

$

$

Not available

White Outdoor 784-5306

Outer Plate Ass'y.-R.H.

Note: (Not Shown)

$

$

Not available

58

White Outdoor 710-0599

Hex Wash. S-Tap Scr. 1/4-20 0 x.50" Lg.

$4.49

$

In Stock, Qty 20+

0

59

White Outdoor 710-0237

Hex Bolt 5/16-24 x .62" Lg.

$4.49

$

In Stock, only 1 left!

0

60

White Outdoor 736-0242

Bell-Wash. .345" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

61

White Outdoor 784-5312

Track Adjuster
(Superseded to 784-5312A)

$

$

Not available

62

White Outdoor 784-5301

Skid Shoe

$

$

Not available

63

White Outdoor 784-5311

Idler Wheel Ass'y.

Variations

White Outdoor 784-5311-0637

IDLER ASSY-WHEEL - POWDER BLACK (0637)

$

$

Not available

$

$

64

784-5453

Inner Plate Ass'y.-L.H.

$

$

Not available

66

White Outdoor 715-0143

Spring Pin l/4n x 1.25n Lg.

$4.99

$

In Stock, Qty 15

0

69

White Outdoor 712-0200

Hex Ins. L-Nut 1/2-20 Thd.
(Superseded to 712-0200A)

$4.49

$

In Stock, only 1 left!

0

70

White Outdoor 736-0257

Fl-Wash. .53 I.D. x 1.25 O.D. x .1
(Superseded to 936-0179)

$4.99

$

In Stock, only 2 left!

0

71

White Outdoor 736-0253

Bell-Wash. .50 I.D. x 1.0 O.D. x .075

$3.99

$

In Stock, Qty 20+

0

72

White Outdoor 713-0366

17T Sprocket Hub Ass'y.

$

$

Not available

73

White Outdoor 784-5454

Inner Plate Ass'y.-R.H.

$

$

Not available

74

738-0734

Track Lock Axle

$

$

Not available

75

White Outdoor 736-0290

Fl-Wash. 5/8 I.D. x 1" O.D.

$6.99

$

In Stock, Qty 20+

0

76

White Outdoor 712-0375

Hex L-Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 6

0

77

784-5422

Pivot Arm Ass'y.-L.H.

$

$

Not available

78

White Outdoor 784-5424

Slotted Link

$

$

Not available

79

White Outdoor 738-0322

Shld. Bolt .625" Dia. x .217
(Superseded to 738-0322A)

$6.99

$

In Stock, only 3 left!

0

80

White Outdoor 710-0726

Hex Wash. AB-Tap Scr. 5/16 x 75n Lg.

$4.49

$

In Stock, Qty 20+

0

81

White Outdoor 784-5450

Position Selector Plate

$

$

Not available

82

White Outdoor 784-5421

Track Lock Handle Ass'y.

$

$

Not available

83

White Outdoor 720-0143

Grip

$

$

Not available

84

White Outdoor 710-0672

Hex Bolt 5/16-24 x 1.25n Lg. Gr. 5

$4.49

$

In Stock, Qty 18

0

85

White Outdoor 750-0589

Spacer.325" I.D.
(Superseded to 950-0589)

$6.49

$

Usually ships in 3-6 days

0
