SB-520 (312-552-190) - White Outdoor Snow Boss Snow Thrower (1992) Blower Housing Ass'y Parts Diagram

Snow Boss Snow Thrower

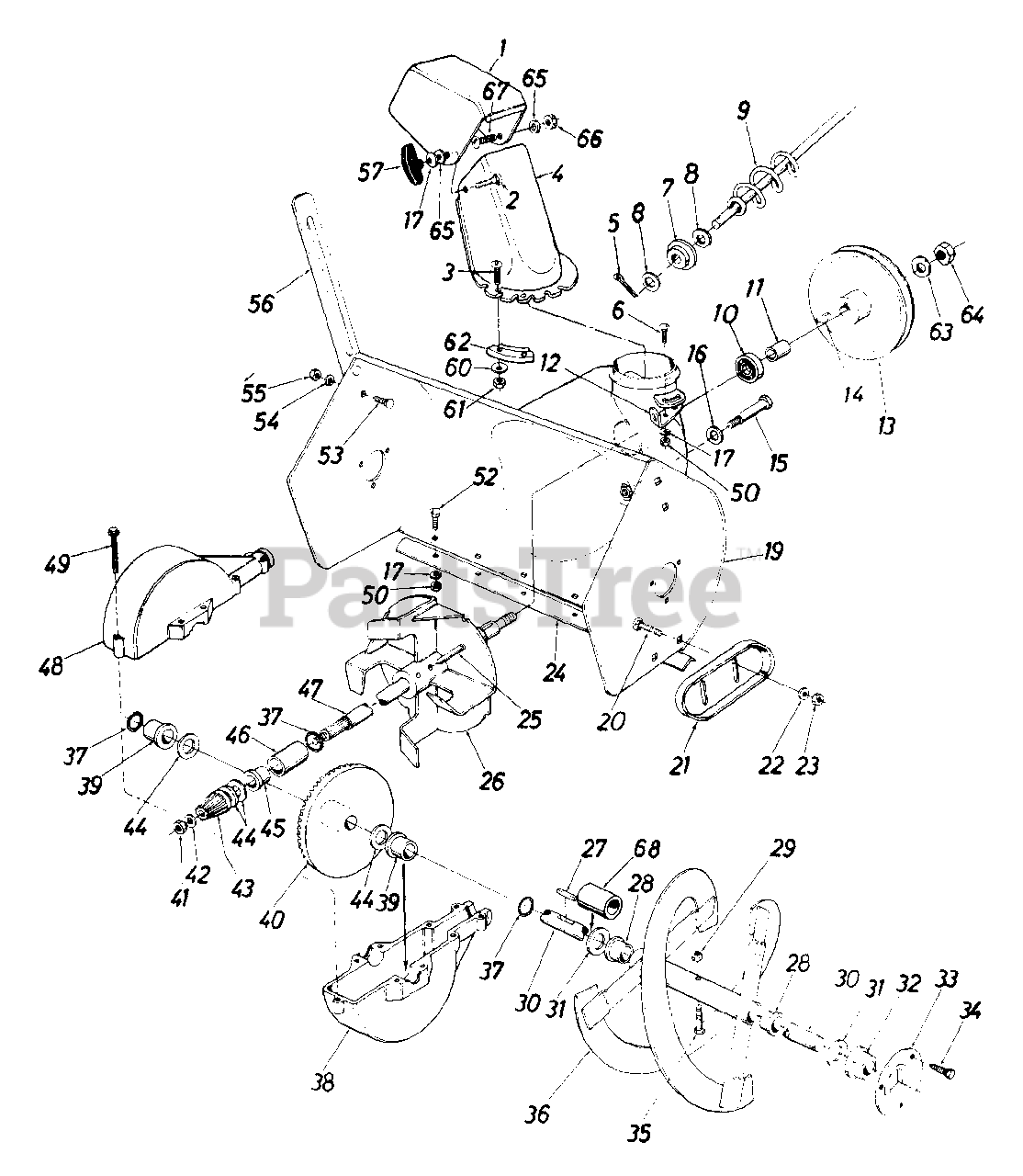

Blower Housing Ass'y Parts Diagram

  • Title

1

White Outdoor 731-0846B

Upper Chute
(Superseded to 731-0846C)

Note: Code: N Notates a new part (not previously existing)

$52.99

$

In Stock, only 3 left!

0

2

White Outdoor 710-0276

Carriage Bolt 5/16-18 x 1.0"

$3.99

$

In Stock, Qty 20+

0

3

White Outdoor 710-0255

Truss Mach. Scr. 1/4-20 x .75"
(Superseded to 710-0924)

$4.49

$

In Stock, Qty 20+

0

4

White Outdoor 731-0840B

Lower Chute
(Superseded to 931-0840B)

Note: Code: N Notates a new part (not previously existing)

$84.99

$

Usually ships in 3-6 days

0

5

White Outdoor 714-0507

Cotter Pin

$4.49

$

In Stock, Qty 12

0

6

White Outdoor 710-0451

Carriage Bolt 5/16-18 x .75"

$4.49

$

In Stock, Qty 20+

0

7

White Outdoor 741-0475

Bushing
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

8

White Outdoor 736-0140

Fl-Wash. .385 I.D. x .62" O.D.

$7.49

$

In Stock, Qty 6

0

9

White Outdoor 05980

Chute Crank Ass'y.

$

$

Not available

10

White Outdoor 741-0155

Ball Brg. .62" I.D. x 1.38" O.D.
(Superseded to 941-0155)

$23.99

$

In Stock, Qty 13

0

11

White Outdoor 750-0118

Spacer .63" I.D. x .88" O.D. x .900" Lg.
(Superseded to 950-0118)

$

$

Not available

12

White Outdoor 784-5123

Chute Crank Brkt.
(Superseded to 784-5123-0637)

Variations

White Outdoor 784-5123-0637

Chute Crank Bracket - POWDER BLACK (0637)

$17.99

$

In Stock, only 1 left!

0

$17.99

$

In Stock, only 1 left!

0

13

White Outdoor 756-0344

1/2" "V"-Pulley .625" I.D. x 7.50" O.D.

Note: (440, 550 & 552)

$81.99

$

Usually ships in 3-6 days

0

White Outdoor 756-0418

5/8" "V"-Pulley .625" I.D. x 7.50" O.D.

Note: (586)

$

$

Not available

14

White Outdoor 714-0388

#61 Hi-Pro Key 3/16" x 5/8" Dia.
(Superseded to 914-0388)

$7.99

$

In Stock, Qty 20+

0

15

White Outdoor 738-0154A

Shld. Bolt .50" Dia. x 2.11"

Note: Code: N Notates a new part (not previously existing)

$

$

Not available

16

White Outdoor 736-0105

Bell-Wash. .40" I.D. x .88" O.D. x .06

$4.49

$

In Stock, Qty 20+

0

17

White Outdoor 736-0242

Bell-Wash. .34" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

19

White Outdoor 784-5124

20" Blower Housing Ass'y.

Note: (440)

Variations

White Outdoor 784-5124-0638

No Longer Available HOUSING 20 - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

784-5125

24" Blower Housing Ass'y.

Note: (550 & 552)

$

$

Not available

784-5243

26" Blower Housing Ass'y.

Note: (586)

$

$

Not available

20

White Outdoor 710-0790

Carriage Bolt 3/8-16 x .62"
(Superseded to 710-0389)

$4.49

$

Usually ships in 3-6 days

0

21

White Outdoor 784-5038A

Slide Shoe
(Superseded to 784-5038B-0637)

Note: Code: N Notates a new part (not previously existing)

$27.99

$

Usually ships in 3-6 days

0

22

White Outdoor 736-0105

Bell-Wash. 3/8" I.D.

$4.49

$

In Stock, Qty 20+

0

23

White Outdoor 712-0342

Hex Jam Nut 3/8-16 Thd.
(Superseded to 912-3008)

$4.99

$

In Stock, Qty 16

0

24

White Outdoor 784-5057

20" Shave Plate

Note: (440)

$

$

Not available

White Outdoor 05847

24" Shave Plate

Note: (550 & 552)

Variations

White Outdoor 05847-0637

SHAVE PLATE-POWDER BLACK - POWDER BLACK (0637)

$

$

Not available

$

$

White Outdoor 784-5244

26" Shave Plate
(Superseded to 784-5244-0637)

Note: (586)

Variations

White Outdoor 784-5244-0637

Shave Plate26" Black - POWDER BLACK (0637)

$

$

Not available

$

$

25

White Outdoor 715-0114

Spring Pin Spiral 1/4" Dia. x 1.50" Lg.

$9.49

$

In Stock, Qty 20+

0

26

White Outdoor 05865A

11" Dia. Blower Fan Ass'y.

Note: Code: N Notates a new part (not previously existing)

Variations

White Outdoor 05865A-0637

FAN ASSY-BLOWER - POWDER BLACK (0637)

$

$

Not available

$

$

27

White Outdoor 714-0133

Sq. Key 3/16" x 1.5" Lg.

$4.99

$

In Stock, Qty 12

0

28

White Outdoor 741-0493

Flange Brg. .75" I.D. x .88" O.D.
(Superseded to 741-0493A)

$4.49

$

In Stock, Qty 20+

0

29

White Outdoor 712-0429

Hex Ins. L-Nut 5/16-18

$4.49

$

In Stock, Qty 20+

0

30

White Outdoor 738-0565A

Spiral Axle

Note: (440)

$

$

Not available

White Outdoor 738-0488A

Spiral Axle

Note: (550 & 552)

$129.99

$

Usually ships in 3-6 days

0

White Outdoor 738-0711A

Spiral Axle

Note: (586)

$

$

Not available

31

White Outdoor 736-0188

Fl-Wash. .75" I.D. x 1.50" O.D. x .06

$4.49

$

In Stock, Qty 20+

0

32

White Outdoor 741-0300

Flange Brg. w/Flats .755" I.D.
(Superseded to 941-0300)

$14.99

$

In Stock, Qty 11

0

33

White Outdoor 05845

Bearing Housing
(Superseded to 05845C-0637)

$23.99

$

In Stock, only 1 left!

0

34

White Outdoor 710-0726

Hex Wash. Hd. Self-Tap Scr. 5/16-24 x .62" Lg.

$4.49

$

In Stock, Qty 20+

0

35

White Outdoor 710-0890

Hex Bolt 5/16-18 x 1.50" Lg.
(Superseded to 710-0890A)

$1.99

$

In Stock, Qty 20+

0

36

784-5053

20" Spiral Ass'y. - L.H.

Note: (440)

$

$

Not available

784-5054

20" Spiral Ass'y. - R.H.

Note: (440 - Not shown)

$

$

Not available

05923

24" & 26" Spiral Ass'y. - L.H.

Note: (550 thru 586)

$

$

Not available

05924

24" & 26" Spiral Ass'y. - R.H.

Note: (550 thru 586 - Not shown)

$

$

Not available

37

White Outdoor 721-0176

"O"-Ring - 3/4" I.D.
(Superseded to 921-0176)

$8.99

$

Usually ships in 3-6 days

0

38

717-0456

Bevel Gear Housing - Lower Half

$

$

Not available

39

White Outdoor 741-0293

Plastic Flange Brg. .755" I.D.

$10.99

$

In Stock, only 3 left!

0

40

White Outdoor 717-0457B

Bevel Gear

Note: Code: N Notates a new part (not previously existing)

$

$

Not available

41

White Outdoor 712-0237

Hex Cent. L-Nut 5/16-24 Thd.

$4.99

$

In Stock, only 4 left!

0

42

White Outdoor 736-0264

Fl-Wash. .34" I.D. x .62" O.D. x .06

$6.99

$

In Stock, only 2 left!

0

43

White Outdoor 748-0237

Pinion Gear
(Superseded to 948-0237)

$21.99

$

In Stock, only 1 left!

0

44

White Outdoor 736-0287

Fl-Wash. .75" I.D. x 1.25" O.D. x .06

$4.49

$

In Stock, Qty 20+

0

45

White Outdoor 748-0171

Flange Brg. .755" I.D.

$11.99

$

Usually ships in 3-6 days

0

46

White Outdoor 748-0106

Sleeve Brg. .755" I.D.

$

$

Not available

47

White Outdoor 738-0649

Blower Axle

$

$

Not available

48

717-0455

Bevel Gear Housing - Upper Half

$

$

Not available

49

White Outdoor 710-0588

Hex Wash. Hd. Self-Tap Scr. 1/4-20 x 1.00" Lg.
(Superseded to 710-0788)

$7.49

$

In Stock, only 2 left!

0

50

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

52

White Outdoor 710-0260

Carriage Bolt 5/16-18 x .62" Lg.
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

53

White Outdoor 710-0260

Carriage Bolt 5/16-18 x .62" Lg.
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

54

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

55

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

56

White Outdoor 05139

Drift Cutter Bar
(Superseded to 790-00181-0637)

$43.99

$

Usually ships in 3-6 days

0

57

White Outdoor 09966

Knob
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 20+

0

60

White Outdoor 736-0142

Fl-Wash. 1/4" I.D.

$4.99

$

In Stock, Qty 20+

0

61

White Outdoor 712-0107

Hex L-Nut 1/4-20 Thd.
(Superseded to 912-0107)

$4.99

$

In Stock, only 1 left!

0

62

White Outdoor 731-0851

Chute Flange Keeper
(Superseded to 731-0851A)

$4.49

$

In Stock, Qty 20+

0

63

White Outdoor 736-0116

Fl-Wash. .64" I.D. x .94" O.D. x .06
(Superseded to 936-0116)

$6.99

$

In Stock, only 1 left!

0

64

White Outdoor 712-0923

Hex Jam Nut 5/8-18 Thd.

$6.99

$

Usually ships in 3-6 days

0

65

White Outdoor 736-0231

Fl-Wash. .344 I.D. x 1.125 O.D.

$4.99

$

In Stock, Qty 20+

0

66

White Outdoor 712-0158

Hex L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 18

0

67

White Outdoor 710-0323

Truss Mach. Scr. 5/16-18 x .75" Lg."

$4.99

$

In Stock, only 2 left!

0

68

White Outdoor 750-0190

Spacer

Note: (586)

$

$

Not available

White Outdoor 717-0864A

Gear Box Complete

Note: (440)

$

$

Not available

White Outdoor 717-0867A

Gear Box Complete

Note: (550 & 552)

$

$

Not available

White Outdoor 717-0836A

Gear Box Complete

Note: (586)

$

$

Not available
