SB 52 (59A40134727) - Cub Cadet Yanmar Tractor 52" Snowblower Attachment Snow Blower Chute & Crank Parts Diagram

Tractor 52" Snowblower Attachment

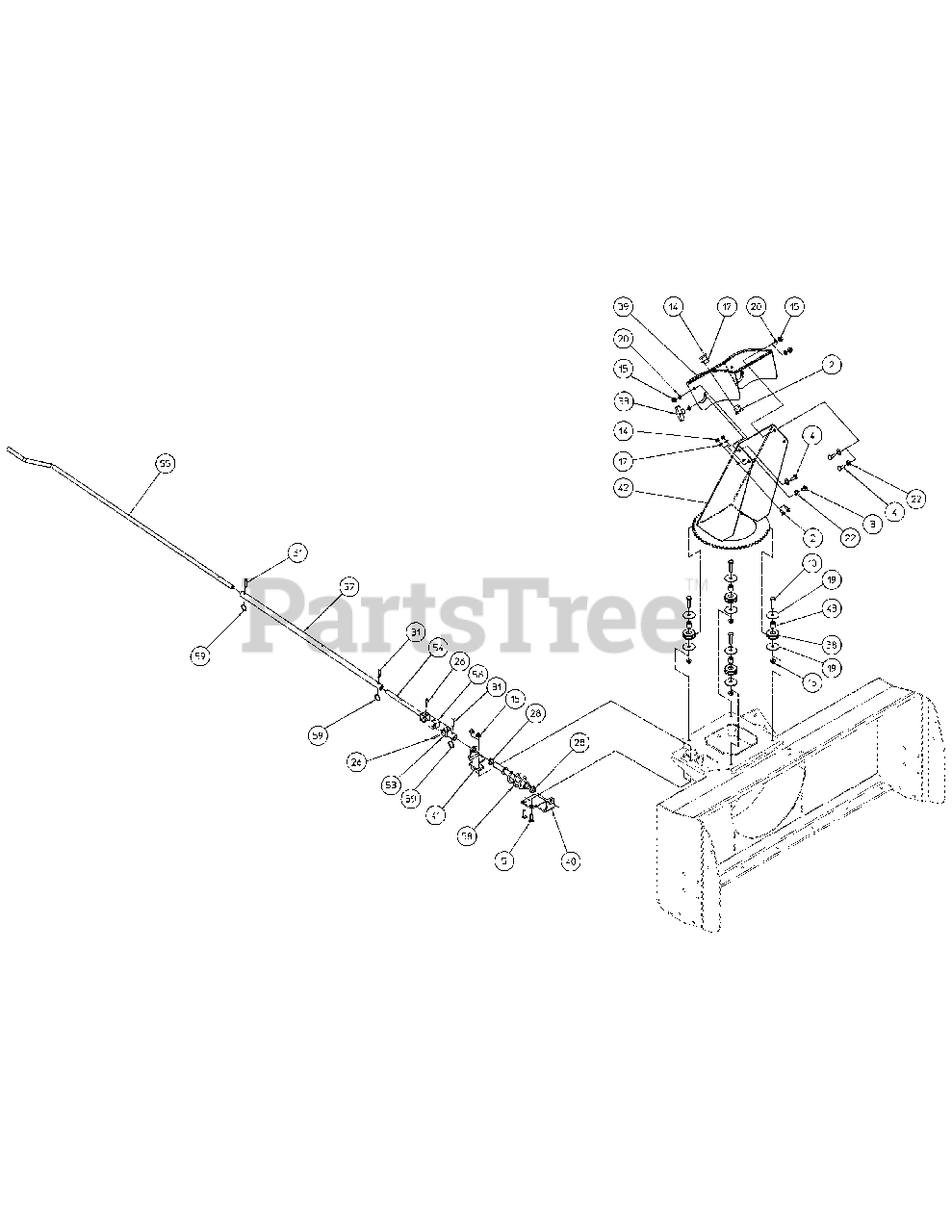

Snow Blower Chute & Crank Parts Diagram

  • Title
2

Cub Cadet YS-006574

CARRIAGE BOLT 5/16-18X.75 G5 SAE ZY

$

$

Not available

3

Cub Cadet YS-006606

CARRIAGE BOLT 3/8-16X.75 ZY

$

$

Not available

4

Cub Cadet YS-006608

CARRIAGE BOLT 3/8-16X1.0 ZY

$

$

Not available

5

Cub Cadet YS-006612

CARRIAGE BOLT 3/8-16X1.25 G5 SAE ZY

$

$

Not available

10

Cub Cadet YS-006867

HEX HEAD CAP SCREW 3/8-16X1.75 G8 ZY

$

$

Not available

14

Cub Cadet YS-007433

NUT HEX 5/16-18 G5 ZY LOCK

$

$

Not available

15

Cub Cadet YS-007457

NUT HEX FLG 3/8-16 GF ZY LOCK-NYL

$

$

Not available

17

Cub Cadet YS-008152

FLAT WASHER 5/16 ZY SAE

$

$

Not available

19

Cub Cadet YS-008159

FLAT WASHER 3/8 .39X2.0X.125 ZC

$

$

Not available

20

Cub Cadet YS-008160

FLAT WASHER 3/8 NYL BLK

$

$

Not available

22

Cub Cadet YS-008177

FLAT WASHER 1/2 NYL WHT

$

$

Not available

26

$

$

Not available

28

Cub Cadet YS-011967

BUSHING-NYLON SHOULDER

$

$

Not available

31

Cub Cadet YS-013432

PIN-CLEVIS (1/4 X 1-1/2)

$

$

Not available

33

Cub Cadet YS-014054

KNOB-PLASTIC BAR

$

$

Not available

38

Cub Cadet YS-066137

BUSHING-CHUTE

$

$

Not available

39

Cub Cadet YS-754000

WELDMENT-CHUTE DEFLECTOR

$

$

Not available

40

Cub Cadet YS-754003

PLATE-LOWER PINION SUPPORT

$

$

Not available

41

Cub Cadet YS-754004

PLATE-UPPER PINION SUPPORT

$

$

Not available

42

Cub Cadet YS-754005

WELDMENT-CHUTE

$

$

Not available

43

Cub Cadet YS-754009

BUSHING-LONG

$

$

Not available

53

Cub Cadet YS-754100

WELDMENT-LOWER YOKE

$

$

Not available

54

Cub Cadet YS-754105

WELDMENT-CHUTE CRANK

$

$

Not available

55

Cub Cadet YS-754111

ROD-CHUTE ROTATION

$

$

Not available

56

Cub Cadet YS-754112

BLOCK-PIVOT JOINT

$

$

Not available

57

Cub Cadet YS-754113

TUBE-SPLICE

$

$

Not available

58

Cub Cadet YS-754115

WELDMENT-CHUTE ROTATION WORM

$

$

Not available

59

Cub Cadet YS-M88183

RING-LOCKING

$

$

Not available
