SB-510 (315-550-190) - White Outdoor Snow Boss Snow Thrower (1985) Top Chute Assembly Parts Diagram

Snow Boss Snow Thrower

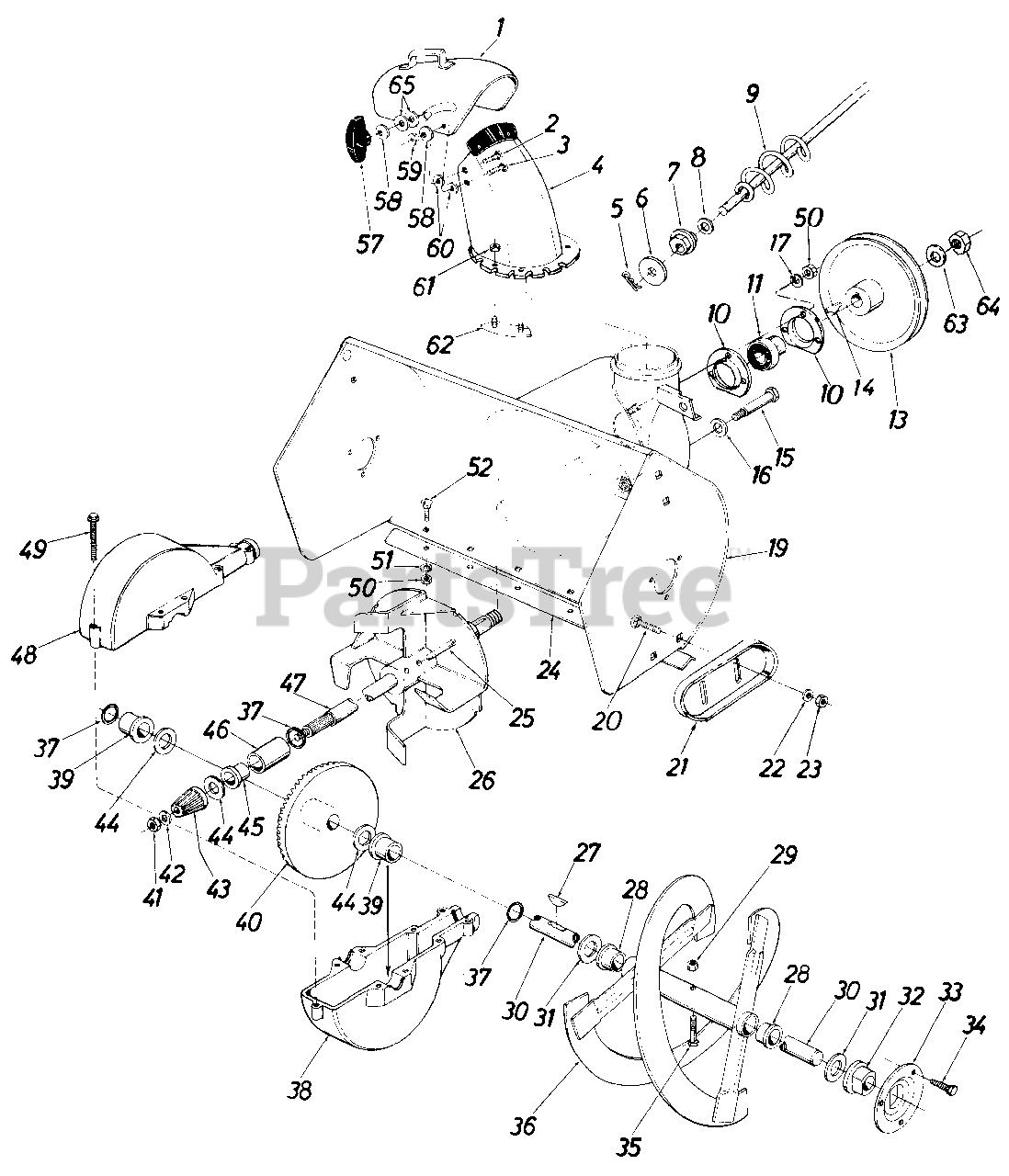

Top Chute Assembly Parts Diagram

  • Title

1

05225

Top Chute Ass'y.

$

$

Not available

2

White Outdoor 710-0276

Carriage Bolt 5/16-18 x 1.00" Lg.*

$3.99

$

In Stock, Qty 20+

0

3

White Outdoor 710-0260

Carriage Bolt 5/16-18 x .62" Lg.*
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

4

05951

Chute Ass'y.

$

$

Not available

5

White Outdoor 714-0507

Cotter Pin

$4.49

$

In Stock, Qty 12

0

6

White Outdoor 736-0234

Fl-Wash. .390 I.D. x 1.50" O.D.

$6.49

$

Usually ships in 3-6 days

0

7

White Outdoor 741-0403

Hex Bushing

$

$

Not available

8

White Outdoor 736-0140

Fl-Wash. .385 0 I.D. x .62" O.D.

$7.49

$

In Stock, Qty 6

0

9

White Outdoor 05981

Chute Crank Ass'y.

$

$

Not available

10

White Outdoor 05931

Bearing Housing
(Superseded to 05931A)

$10.99

$

Usually ships in 3-6 days

0

11

White Outdoor 741-0310

Self-Align Brg. w/ Collar .75" I .D.
(Superseded to 941-0310)

$

$

Not available

13

White Outdoor 756-0344

1/2" "V"-Pulley .625" I.D. x 7.50" O.D.

$81.99

$

Usually ships in 3-6 days

0

14

White Outdoor 714-0388

#61 Hi-Pro Key 3/16" x 5/8" Dia.
(Superseded to 914-0388)

$7.99

$

In Stock, Qty 20+

0

15

White Outdoor 738-0154

Shld. Bolt .50" Dia. x 2.11" Lg.

$

$

Not available

16

White Outdoor 736-0105

Bell-Wash. .40" I.D. x .88" O.D. x .06

$4.49

$

In Stock, Qty 20+

0

17

White Outdoor 736-0119

L-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

19

784-5024

24" Blower Housing Ass'y.

$

$

Not available

20

White Outdoor 710-0790

Carriage Bolt 3/8-16 x .62" Lg.*
(Superseded to 710-0389)

$4.49

$

Usually ships in 3-6 days

0

21

White Outdoor 784-5038

Slide Shoe
(Superseded to 784-5038B-0637)

$27.99

$

Usually ships in 3-6 days

0

22

White Outdoor 736-0105

Bell-Wash. 3/8" I.D.

$4.49

$

In Stock, Qty 20+

0

23

White Outdoor 712-0342

Hex Jam Nut 3/8-16 Thd.
(Superseded to 912-3008)

$4.99

$

In Stock, Qty 16

0

24

White Outdoor 05847

24" Shave Plate

Variations

White Outdoor 05847-0637

SHAVE PLATE-POWDER BLACK - POWDER BLACK (0637)

$

$

Not available

$

$

25

White Outdoor 715-0114

Spring Pin Spiral 1/4" Dia x 1.50" Lg.

$9.49

$

In Stock, Qty 20+

0

26

White Outdoor 05865

11" Dia. Blower Fan Ass'y.
(Superseded to 05865A-0637)

$

$

Not available

27

White Outdoor 714-0126

#9 Hi-Pro Key 3/16 x 314" Dia.

$4.99

$

In Stock, Qty 12

0

28

White Outdoor 741-0321

Flange Brg. .75" I.D. x .88" O.D. x .62
(Superseded to 741-0493A)

$4.49

$

In Stock, Qty 20+

0

29

White Outdoor 712-0429

Hex Ins. L-Nut 5/16-18

$4.49

$

In Stock, Qty 20+

0

30

White Outdoor 738-0488

Spiral Axle
(Superseded to 738-0488A)

$129.99

$

Usually ships in 3-6 days

0

31

White Outdoor 736-0188

Fl-Wash. .75" I.D. x 1.50" O.D. x .06

$4.49

$

In Stock, Qty 20+

0

32

White Outdoor 741-0300

Flange Brg. w/ Flats .755"
(Superseded to 941-0300)

$14.99

$

In Stock, Qty 11

0

33

White Outdoor 05845

Bearing Housing
(Superseded to 05845C-0637)

$23.99

$

In Stock, only 1 left!

0

34

White Outdoor 710-0600

Hex Wash. Hd. Self-Tap Scr. 5/16-24 x .50" Lg.

$3.49

$

Usually ships in 3-6 days

0

35

White Outdoor 710-0890

Hex Bolt 5/16-18 x 1.50" Lg.
(Superseded to 710-0890A)

$1.99

$

In Stock, Qty 20+

0

36

05923

24" Spiral Ass'y. L.H.

$

$

Not available

05924

24" Spiral Ass'y. R.H.

Note: (Not Shown)

$

$

Not available

37

White Outdoor 721-0176

"O"-Ring 3/4" I.D.
(Superseded to 921-0176)

$8.99

$

Usually ships in 3-6 days

0

38

717-0456

Bevel Gear Housing Lower Half

$

$

Not available

39

White Outdoor 741-0293

Plastic Flange Brg. .755" I.D.

$10.99

$

In Stock, only 3 left!

0

40

White Outdoor 717-0457

Bevel Gear

$

$

Not available

41

White Outdoor 712-0237

Hex Cent. L-Nut 5/16-24 Thd.

$4.99

$

In Stock, only 4 left!

0

42

White Outdoor 736-0264

Fl-Wash. .34" I.D. x .62 " O.D. x .06

$6.99

$

In Stock, only 2 left!

0

43

White Outdoor 748-0237

Pinion Gear
(Superseded to 948-0237)

$21.99

$

In Stock, only 1 left!

0

44

White Outdoor 736-0287

Fl-Wash. .75" I.D. x 1.25" O.D. x .06

$4.49

$

In Stock, Qty 20+

0

45

White Outdoor 748-0171

Flange Brg. .755" I.D.

$11.99

$

Usually ships in 3-6 days

0

46

White Outdoor 748-0106

Sleeve Brg. .755" I.D.

$

$

Not available

47

White Outdoor 738-0546

Blower Axle

$

$

Not available

48

717-0455

Bevel Gear Housing Upper Half

$

$

Not available

49

White Outdoor 710-0588

Hex Wash. Hd. Self-Tap Scr. 1/4-20 x 1.00" Lg.
(Superseded to 710-0788)

$7.49

$

In Stock, only 2 left!

0

50

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$

$

Not available

51

White Outdoor 736-0242

Bell-Wash. .34" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

52

White Outdoor 710-0260

Carriage Bolt 5/16-18 x .62"*
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

57

White Outdoor 09966

Knob
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 20+

0

58

White Outdoor 736-0242

Bell-Wash. .34" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

59

White Outdoor 712-0158

Hex Cent. L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 18

0

60

White Outdoor 736-0179

Fl-Wash. .53" I.D. x 1.25" O.D. x .100

$4.99

$

In Stock, only 2 left!

0

61

White Outdoor 712-0107

Hex Cent. L-Nut 1/4-20 Thd.
(Superseded to 912-0107)

$4.99

$

In Stock, only 1 left!

0

62

White Outdoor 05783

Chute Flange Keeper Ass'y.

$

$

Not available

63

White Outdoor 736-0116

Fl-Wash. .64" I.D. x .94" O.D. x .06
(Superseded to 936-0116)

$6.99

$

In Stock, only 1 left!

0

64

White Outdoor 712-0923

Hex Jam Nut 5/8-18 Thd.

$6.99

$

Usually ships in 3-6 days

0

65

White Outdoor 736-0231

Fl-Wash. .344 I.D. x 1.125 O.D.

$4.99

$

In Stock, Qty 20+

0

717-0454

Gear Box Complete

$

$

Not available
