SB-500 (315-616E190) - White Outdoor Snow Boss Snow Thrower (1995) Snow Throwers Illustration (Part 3) Parts Diagram

Snow Boss Snow Thrower

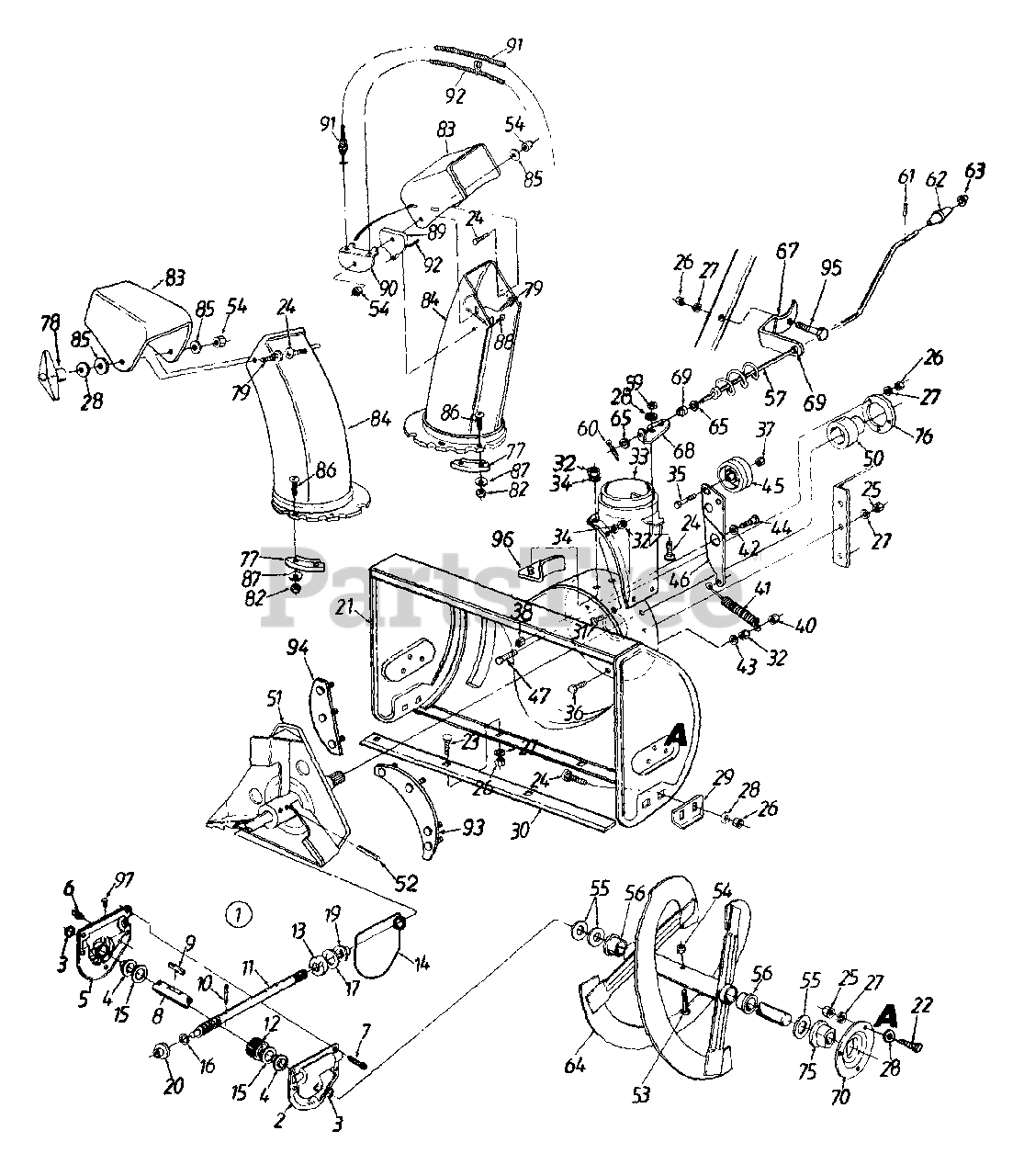

Snow Throwers Illustration (Part 3) Parts Diagram

  • Title

1

MTD 918-0414B

Worm Drive Ass'y. Comp. (616E)

$

$

Not available

1

MTD 918-0415B

Worm Drive Ass'y. Comp. (646F)

$442.99

$

Usually ships in 3-6 days

0

1

MTD 918-0416B

Auger Gear Box Ass'y. (666H)

$474.99

$

Usually ships in 3-6 days

0

2

MTD 719-0292

Reducer Housing - L.H.

Note: NLA

$

$

Not available

3

MTD 921-0179

Oil Seal
(Superseded to 721-0179)

$

$

Not available

4

MTD 941-0339

Flange Bearing .75" I.D.

$12.99

$

In Stock, Qty 20+

0

5

MTD 719-0293

Reducer Housing - R.H.

Note: NLA

$

$

Not available

6

MTD 937-3000

Grease Fitting

$4.99

$

In Stock, Qty 20+

0

7

MTD 710-0642

Hex TT-Tap Scr. 1/4-20 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

8

MTD 711-0908A

24" Auger Shaft (616E)

$

$

Not available

8

MTD 711-0909A

26" Auger Shaft (646F)

$

$

Not available

8

MTD 711-1024A

30" Auger Shaft (666H)

$136.99

$

Usually ships in 3-6 days

0

9

MTD 914-0388

#61 Hi-Pro Key 3/16" x 5/8" Dia.

$7.99

$

In Stock, Qty 5

0

10

MTD 915-0143

Spiral Pin 1.25" Lg.
(Superseded to 715-0143)

$

$

Not available

11

MTD 717-0526

Impeller Shaft
(Superseded to 717P0526)

$108.99

$

In Stock, Qty 6

0

12

MTD 917-0528A

Worm Gear
(Superseded to 917-04861)

$43.99

$

In Stock, Qty 20+

0

13

MTD 718-0186

Thrust Collar

$8.49

$

In Stock, only 2 left!

0

14

MTD 721-0327

Oil Seal

$6.99

$

In Stock, Qty 20+

0

15

MTD 936-0351

Fl-Wash. .76" I.D. x 1.5" O.D.
(Superseded to 736-0351)

$4.49

$

In Stock, Qty 20+

0

16

MTD 936-0369

Fl-Wash. .5" I.D. x 1" O.D.
(Superseded to 736-0369)

$4.49

$

In Stock, Qty 8

0

17

MTD 936-0445

Fl-Wash. .76" I.D. x 1.49" O.D.
(Superseded to 736-0445)

$

$

Not available

19

MTD 941-0376

Flange Bearing .75" I.D.

$8.99

$

In Stock, Qty 7

0

20

MTD 948-0108

Flange Bearing .503" I.D.

$8.99

$

In Stock, only 4 left!

0

21

MTD 684-0039D

24" Auger Housing Ass'y. (616E)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 684-0039D-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

MTD 684-0039D-0498

No Longer Available HOUSINGAS - OLD CUB YELLOW (0498)

$

$

Not available

MTD 684-0039D-0629

HOUSING ASM-24" - SILVER FLAKE (0629)

$

$

Not available

MTD 684-0039D-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 684-0039D-0650

HOUSING ASM-24" - RED METALLIC (0650)

$

$

Not available

MTD 684-0039D-0662

HOUSING ASM-24" - OYSTER GRAY (0662)

$

$

Not available

MTD 684-0039D-0665

HOUSING ASM-24" - YARDMAN GREEN (0665)

$

$

Not available

MTD 684-0039D-0687

HOUSING ASM-24" - PINE GREEN (0687)

$

$

Not available

MTD 684-0039D-0689

HOUSING ASM-24" - POLO GREEN (0689)

$

$

Not available

MTD 684-0039D-0691

HOUSING ASM-24" - BLACK JACK (0691)

$

$

Not available

MTD 684-0039D-0716

"No Longer Available HOUSING ASM-24""" - CUB YELLOW-99 (0716)

$

$

Not available

MTD 684-0039D-0709

"No Longer Available HOUSING ASM-24""" - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

21

MTD 684-0040A

26" Auger Housing Ass'y. (646F)
(Superseded to 684-0040D)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 684-0040A-0483

HOUSING ASM-26" - CHARCOAL GRAY (0483)

$

$

Not available

MTD 684-0040A-0498

No Longer Available HOUSING AS - OLD CUB YELLOW (0498)

$

$

Not available

MTD 684-0040A-0638

HOUSING ASM-26" - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 684-0040A-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

MTD 684-0040A-0629

HOUSING ASM-26" - SILVER FLAKE (0629)

$

$

Not available

MTD 684-0040A-0665

HOUSING ASM-26" - YARDMAN GREEN (0665)

$

$

Not available

MTD 684-0040A-0667

HOUSING ASM-26" - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 684-0040A-0689

HOUSING ASM-26" - POLO GREEN (0689)

$

$

Not available

$

$

21

MTD 684-0055

30" Auger Housing Ass'y. (666H)

Note: NLA

Variations

MTD 684-0055-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

MTD 684-0055-0662

No Longer Available HOUSING AS - OYSTER GRAY (0662)

$

$

Not available

$

$

22

MTD 710-0157

Hex Bolt 5/16-24 x .75" Lg.

$4.49

$

In Stock, Qty 8

0

23

MTD 710-0260A

Carriage Bolt 5/16-18 x .62" Lg.

$4.49

$

In Stock, Qty 20+

0

24

MTD 710-0451

Carriage Bolt 5/16-18 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

25

MTD 912-3057

Hex Nut 5/16-24 Thd.

$6.99

$

In Stock, only 3 left!

0

26

MTD 912-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

27

MTD 936-0119

L-Wash. 5/16" I.D.

$4.99

$

In Stock, Qty 20+

0

28

MTD 736-0242

Bell-Wash. .345" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

29

MTD 784-5580

Slide Shoe

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 784-5580-0637

Snow Slide Shoe, Black - POWDER BLACK (0637)

$23.99

$

In Stock, Qty 20+

0

MTD 784-5580-0638

Snow Slide Shoe, Black - MTD/TROY-BILT RED (0638)

$23.99

$

In Stock, Qty 20+

0

MTD 784-5580-0662

Snow Slide Shoe, Black - OYSTER GRAY (0662)

$23.99

$

In Stock, Qty 20+

0

MTD 784-5580-0665

Snow Slide Shoe, Black - YARDMAN GREEN (0665)

$23.99

$

In Stock, Qty 20+

0

MTD 784-5580-0688

Snow Slide Shoe, Black - SPRING GREEN (0688)

$23.99

$

In Stock, Qty 20+

0

MTD 784-5580-0721

Snow Skid Shoe - SEARS RED (0721)

$23.99

$

In Stock, Qty 18

0

MTD 784-5580-4044

Snow Skid Shoe - CRAFTSMAN RED (4044)

$23.99

$

In Stock, Qty 18

0

MTD 784-5580-0691

Snow Slide Shoe, Black - BLACK JACK (0691)

$23.99

$

In Stock, Qty 7

0

MTD 784-5580-0729

Snow Skid Shoe - STORM GRAY (0729)

$23.99

$

In Stock, Qty 20+

0

MTD 784-5580-4043

Snow Skid Shoe - CRAFTSMAN METALLIC GRAY (4043)

$23.99

$

In Stock, Qty 20+

0

$23.99

$

In Stock, Qty 20+

0

30

MTD 753-0625

24" Shave Plate (616E)
(Superseded to 790-00120-0637)

$34.99

$

In Stock, Qty 20+

0

30

MTD 753-0626

26" Shave Plate (646F)
(Superseded to 790-00121-0637)

$36.99

$

In Stock, Qty 20+

0

30

MTD 790-00119-0637

30" Shave Plate (666H)

$39.99

$

In Stock, only 3 left!

0

31

MTD 710-0286

Truss Mach. Scr. 1/4-20 x .5" Lg.

$4.49

$

Usually ships in 3-6 days

0

32

MTD 912-0287

Hex Nut 1/4-20 Thd.

$4.99

$

Usually ships in 3-6 days

0

33

MTD 731-1379D

Chute Adapter

$65.99

$

In Stock, only 1 left!

0

34

MTD 936-0175

Spring Washer 1/4" I.D.

$3.99

$

In Stock, only 3 left!

0

35

MTD 710-0459A

Hex Bolt 3/8-24 x 1.5" Lg. (Gr. 5)

$6.99

$

In Stock, Qty 8

0

36

MTD 710-0812

Hex Bolt 1/4-20 x .75" Lg. (Gr. 5)

$

$

Not available

37

MTD 912-0116

Hex Ins. L-Nut 3/8-24 Thd.
(Superseded to 712-0116)

$

$

Not available

38

MTD 912-0181

Hex Top L-Nut 3/8-16 Thd.
(Superseded to 712-0181)

$

$

Not available

40

MTD 912-0291

Hex L-Nut 1/4-20 Thd.
(Superseded to 712-0291)

$

$

Not available

41

MTD 932-0611

Ext. Spring 3.6" Lg.

$7.49

$

In Stock, Qty 20+

0

42

MTD 936-0167

Fl-Wash. 5/8" I.D. x 1.25"

$6.99

$

In Stock, Qty 7

0

43

MTD 936-0329

L-Wash. 1/4" I.D.

$4.49

$

In Stock, Qty 11

0

44

MTD 938-0281

Shld. Bolt .625" Dia. x .170" Lg.
(Superseded to 738-0281)

$

$

Not available

45

MTD 756-0178

Fl-Idler 2.75" O.D.

$20.99

$

In Stock, only 4 left!

0

46

MTD 984-0064-0637

Auger Idler Brkt.

$32.99

$

In Stock, only 3 left!

0

47

MTD 710-3038

Hex Bolt 5/16-18 x 5/8" Lg.

$4.99

$

In Stock, only 3 left!

0

50

MTD 941-0309

Ball Bearing .75" I.D.

$74.99

$

Usually ships in 3-6 days

0

51

MTD 984-0065-0637

Blower Fan Ass'y.
(Superseded to 684-06276-0637)

$90.99

$

In Stock, only 1 left!

0

52

MTD 915-0114

Spiral Pin 1.5" Lg
(Superseded to 715-0114)

$9.49

$

In Stock, only 3 left!

0

53

MTD 710-0890A

Shear Bolt 5/16-18 x 1.5" Lg.

$1.99

$

In Stock, Qty 20+

0

54

MTD 912-0158

Hex Cent. L-Nut 5/16-18 Thd.

$3.49

$

In Stock, Qty 13

0

55

MTD 736-0188

Fl-Wash .76" I.D. x 1.49"

$4.49

$

In Stock, Qty 20+

0

56

MTD 741-0493A

Flange Bushing .8" I.D.
(Superseded to 741-0493C)

$4.49

$

In Stock, Qty 20+

0

57

MTD 984-0022

Chute Crank Ass'y.

$99.99

$

In Stock, only 3 left!

0

59

MTD 912-0429

Hex Ins. L-Nut 5/16-18 Thd.
(Superseded to 712-0429)

$4.49

$

In Stock, Qty 20+

0

60

MTD 914-0507

Cotter Pin 3/32" Dia x 75"

$4.49

$

In Stock, Qty 17

0

61

MTD 915-0138

Roll Pin 1/8" Dia. x 63" Lg

$4.99

$

In Stock, only 1 left!

0

62

MTD 720-0201A

Chute Crank Knob

$10.99

$

In Stock, only 4 left!

0

63

MTD 926-0100

Push Nut
(Superseded to 726-0100)

$

$

Not available

64

MTD 684-04181-0637

Spiral Ass'y. - L.H. (616E)

Note: For model 616E

$178.99

$

In Stock, only 1 left!

0

64

MTD 684-04180-0637

Spiral Ass'y. - R.H.

Note: For model 616E

$

$

Not available

64

MTD 684-04183-0637

Spiral Ass'y. - L.H. (646F)

Note: For model 646F

$

$

Not available

64

MTD 684-04182-0637

Spiral Ass'y. - R.H.

Note: For model 646F

$187.99

$

Usually ships in 3-6 days

0

64

MTD 684-04187-0637

Spiral Ass'y. - L.H. (666H)

Note: For model 666H

$

$

Not available

64

MTD 684-04186-0637

Spiral Ass'y. - R.H.

Note: For model 666H

$201.99

$

Usually ships in 3-6 days

0

65

MTD 936-0140

Fl-Wash. 385" I.D. x .62" O.D.
(Superseded to 736-0140)

$

$

Not available

67

MTD 784-5678

Upper Chute Crank Brkt.

Note: NLA

Variations

MTD 784-5678-0637

No Longer Available BRACKET-CH - POWDER BLACK (0637)

$

$

Not available

$

$

68

MTD 784-5647-0637

Lower Chute Crank Brkt.

$14.99

$

In Stock, Qty 7

0

69

MTD 941-0475

Plastic Bushing .38" I.D

$4.49

$

In Stock, Qty 20+

0

70

MTD 05845C-0637

Bearing Housing

$23.99

$

In Stock, only 2 left!

0

75

MTD 941-0300

Plastic Bearing w/Flats

$14.99

$

In Stock, only 3 left!

0

76

MTD 05931A

Bearing Housing

$10.99

$

In Stock, only 2 left!

0

77

MTD 731-0851A

Chute Flange Keeper

$4.49

$

In Stock, Qty 20+

0

78

MTD 720-04072A

Knob (616E)

$6.99

$

In Stock, Qty 20+

0

79

MTD 710-0262

Carriage Bolt 5/16-18 x 1.5" Lg.

$3.99

$

In Stock, Qty 12

0

82

MTD 912-0107

Hex L-Nut 1/4-20 Thd.

$4.99

$

In Stock, only 1 left!

0

83

MTD 731-04426A

Upper Chute (616E)
(Superseded to 731-04426C)

$19.99

$

In Stock, only 4 left!

0

83

MTD 731-04427A

Upper Chute (646F & 666H)
(Superseded to 731-04427B)

$16.99

$

In Stock, only 1 left!

0

84

MTD 731-1300E

Lower Chute

$56.99

$

In Stock, Qty 8

0

85

MTD 936-0231

Fl-Wash. .344" I.D. x 1.125"
(Superseded to 736-0231)

$

$

Not available

86

MTD 710-0924

Truss Mach. Scr 1/4-20 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

87

MTD 936-0142

Fl-Wash. 1/4" I.D.
(Superseded to 736-0142)

$4.99

$

In Stock, only 4 left!

0

88

MTD 710-0896

Hex AB-Tap Scr 1/4 x .62" Lg. (646F)

$4.49

$

In Stock, Qty 20+

0

89

MTD 731-1313C

Cable Guide (646F & 666H)

$11.99

$

In Stock, Qty 20+

0

90

MTD 784-5594

Cable Bracket (646F & 666H)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 784-5594-0498

Cable Bracket - OLD CUB YELLOW (0498)

$11.99

$

In Stock, only 1 left!

0

MTD 784-5594-0637

Cable Bracket - POWDER BLACK (0637)

$11.99

$

In Stock, only 1 left!

0

MTD 784-5594-0716

Cable Bracket - CUB YELLOW-99 (0716)

$11.99

$

In Stock, only 1 left!

0

$10.99

$

Usually ships in 3-6 days

0

91

MTD 946-0896

Chute Control Cable (646F & 666H)

$56.99

$

In Stock, only 1 left!

0

92

MTD 946-0901

Chute Control Cable w/Clip (646F)

$64.99

$

Usually ships in 3-6 days

0

93

UNKNOWN

$

$

Not available

94

UNKNOWN

$

$

Not available

95

MTD 710-0805

Hex Bolt 5/16-18 x 1.5" Lg.
(Superseded to 710-0805A)

$4.49

$

In Stock, only 3 left!

0

96

MTD 705-5225

Chute Reinforcement

$

$

Not available

97

MTD 721-0325

Plug

$4.49

$

In Stock, only 4 left!

0
