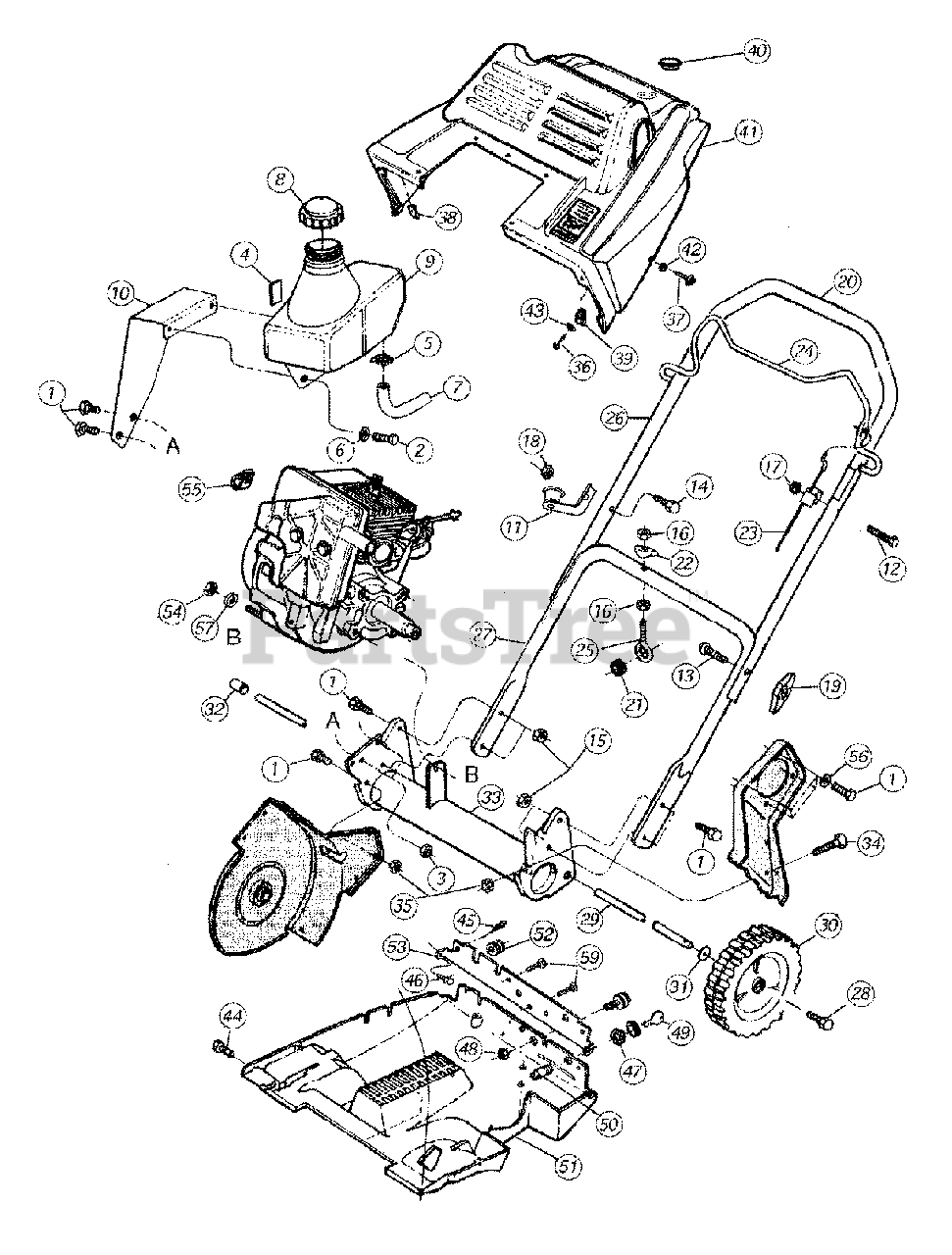

SB-50 (317-262-190) - White Outdoor Snow Boss Snow Thrower (1997) Frame And Handle Parts Diagram

Snow Boss Snow Thrower

Frame And Handle Parts Diagram

  • Title

1

MTD 710-3008

Hex Screw: 5/16 - 18 x .75 Gr 2

$4.49

$

In Stock, Qty 20+

0

2

MTD 710-0896

Hex Screw: 1/4 - 14 x .625

$4.49

$

In Stock, Qty 20+

0

3

MTD 712-0265

Sems Nut

$3.99

$

Usually ships in 3-6 days

0

4

MTD 722-0157

Foam Strip

$4.49

$

Usually ships in 3-6 days

0

5

MTD 726-0205

Hose Clamp 1/2" OD

$3.99

$

In Stock, Qty 20+

0

6

MTD 736-0173

Flat Washer

$4.49

$

In Stock, Qty 20+

0

7

MTD 751-10349

Hose, Fuel Line

$9.49

$

Usually ships in 3-6 days

0

8

MTD 751-10049

Fuel Tank Cap
(Superseded to 751-0603B)

$23.99

$

In Stock, only 3 left!

0

9

MTD 751-0635

Fuel Tank

$

$

Not available

10

MTD 784-0368

Support Bracket

$

$

Not available

11

MTD 684-0089

Bracket Assembly, Rope Guide

Note: NLA

$

$

Not available

12

MTD 710-0501

Hex Screw: 1/4 - 20 x 2.0 Gr 5

$7.49

$

Usually ships in 3-6 days

0

13

MTD 710-1174

Carriage Bolt: 5/16 - 18 x 2.0 Lg. Carved

$7.49

$

In Stock, Qty 20+

0

14

MTD 710-1270

Oval C-Sunk Screw

$4.49

$

Usually ships in 3-6 days

0

15

MTD 712-0265

Sems Nut

$3.99

$

Usually ships in 3-6 days

0

16

MTD 912-0267

Hex Nut: 5/16 - 18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

17

MTD 712-0271

Sems Nut 1/4 - 20

$4.49

$

In Stock, Qty 19

0

18

MTD 712-0324

Top Lock Nut 1/4 - 20

$3.99

$

In Stock, Qty 16

0

19

MTD 920-0284

Knob Assembly
(Superseded to 720-0284)

$6.99

$

In Stock, Qty 20+

0

20

MTD 720-0296

Foam Grip, Handle

Note: NLA

$

$

Not available

21

MTD 735-0234

Grommet: .44 ID x .94 OD x .50

$5.49

$

In Stock, only 2 left!

0

22

MTD 936-0451

Side Lock Washer
(Superseded to 736-0451)

$4.49

$

In Stock, Qty 18

0

23

MTD 746-0934

Drive Cable, Auger

Note: NLA

$

$

Not available

24

MTD 747-0942

Auger Bail, Drive Dipped

Note: NLA

$

$

Not available

25

MTD 747-0943

Eye Bolt 5/16 - 18

Note: NLA

$

$

Not available

26

MTD 749-0994

Upper Handle

Note: NLA

Variations

MTD 749-0994-0637

No Longer Available HANDLE-UPP - POWDER BLACK (0637)

$

$

Not available

$

$

27

MTD 749-0995-0637

Lower Handle

$

$

Not available

28

MTD 710-0773

Tap Screw: 3/8 - 16 x .5

$7.49

$

In Stock, only 3 left!

0

29

MTD 711-1123

Axle, Tube

Note: NLA

$

$

Not available

30

MTD 734-1797

Wheel Assembly

$

$

Not available

31

MTD 936-0108

Flat washer: .510 ID x .75 OD x .03

$6.99

$

In Stock, only 4 left!

0

32

MTD 950-1069

Spacer

$

$

Not available

33

MTD 684-0086-0637

Frame Assembly

$

$

Not available

34

MTD 710-1088

Hex Cap Screw: 5/16 - 18 x 1.00

Note: NLA

$

$

Not available

35

MTD 712-0265

Sems Nut

$3.99

$

Usually ships in 3-6 days

0

36

MTD 710-1329

Hex Screw

Note: NLA

$

$

Not available

37

MTD 710-1339

Ab Screw

$

$

Not available

38

MTD 726-0342

Retainer Clip, U-Style

Note: NLA

$

$

Not available

39

MTD 726-0344

U Nut

Note: NLA

$

$

Not available

40

MTD 731-0732

Snap-In Plug

$

$

Not available

41

MTD 731-1748

Upper Engine Cover: Oyster Gray 662

Note: NLA

$

$

Not available

42

MTD 736-0173

Flat Washer

$4.49

$

In Stock, Qty 20+

0

43

MTD 936-0400

Flat Washer
(Superseded to 736-0400)

$

$

Not available

44

MTD 710-0751

Hex Screw: 1/4 - 20 x .625

$3.99

$

In Stock, Qty 20+

0

45

MTD 710-1334

Tap Screw: 10 - 24 x .75

Note: NLA

$

$

Not available

46

MTD 710-1335

Tap Screw: 10 - 25 x .75

Note: NLA

$

$

Not available

47

MTD 712-0252

Jam Nut: 5/8 - 32 x .12

$5.99

$

Usually ships in 3-6 days

0

48

MTD 712-0271

Sems Nut 1/4 - 20

$4.49

$

In Stock, Qty 19

0

49

MTD 925-0201

Ignition Key

$9.49

$

Usually ships in 3-6 days

0

50

MTD 925-1425

Recoil Starter Key

$35.99

$

In Stock, Qty 6

0

51

MTD 731-1747

Lower Engine Cover : Oyster Gray 662

Note: NLA

$

$

Not available

52

MTD 750-1049

Grommet: .280 x .750 x .40

Note: NLA

$

$

Currently unavailable

53

MTD 784-0361

Control Panel

Note: NLA

$

$

Not available

54

MTD 712-0265

Sems Nut 5/16 - 18

$3.99

$

Usually ships in 3-6 days

0

55

MTD 726-0152

Mounting Clamp

Note: NLA

$

$

Not available

56

MTD 936-0119

Lock Washer

$4.99

$

In Stock, Qty 20+

0

57

MTD 936-0275

Flat Washer
(Superseded to 736-0275)

$

$

Not available

58

MTD 710-04669

Tap Screw

Note: (Electric Start Models only)

$3.49

$

In Stock, Qty 20+

0

59

MTD 629-0236

Cord Assembly

Note: (Electric Start Models only)

$

$

Not available
