SB-50 (317-262-190) - White Outdoor Snow Boss Snow Thrower (1997) Auger And Drive Parts Diagram

Snow Boss Snow Thrower

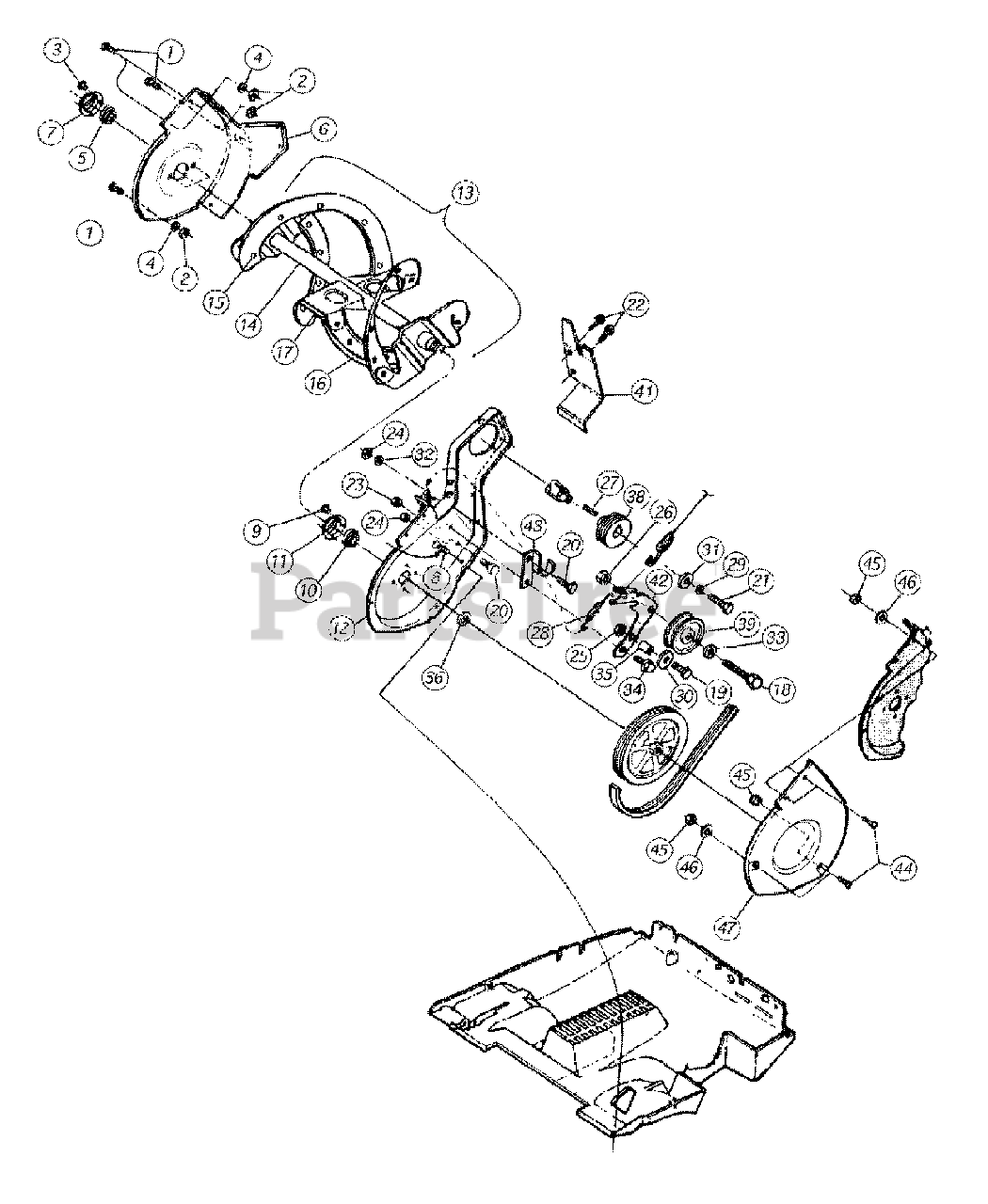

Auger And Drive Parts Diagram

  • Title

1

MTD 710-0473

Truss Machine Screw

$4.49

$

In Stock, only 2 left!

0

2

MTD 912-0121

Hex Nut
(Superseded to 712-0121)

$4.49

$

In Stock, Qty 20+

0

3

MTD 928-0145

Rivet

$

$

Not available

4

MTD 936-0400

Flat Washer
(Superseded to 736-0400)

$

$

Not available

5

MTD 941-0155

Ball Bearing, Auger Axle

$23.99

$

In Stock, Qty 18

0

6

MTD 784-0355

Frame, RH

Note: NLA

Variations

MTD 784-0355-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

MTD 784-0355-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

MTD 784-0355-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

$

$

7

MTD 784-0357

Retainer Bearing

Note: NLA

$

$

Not available

8

MTD 710-0751

Hex Screw: 1/4 - 20 X .625 Gr 2

$3.99

$

In Stock, Qty 20+

0

9

MTD 928-0145

Rivet .252 Dia X .31

$

$

Not available

10

MTD 941-0155

Ball Bearing, Auger Axle

$23.99

$

In Stock, Qty 18

0

11

MTD 784-0357

Retainer Bearing

Note: NLA

$

$

Not available

12

MTD 784-0359

Frame, LH

Note: NLA

Variations

MTD 784-0359-0637

No Longer Available FRAME-LH - POWDER BLACK (0637)

$

$

Not available

$

$

13

MTD 684-0087

Auger Assembly, Complete

Note: NLA

$

$

Not available

14

MTD 684-0085

Auger Assembly, Weld.

Note: NLA

$

$

Not available

15

MTD 928-0197

Rivet, Truss

$

$

Not available

16

MTD 731-1717

Auger Blade

$20.99

$

In Stock, only 1 left!

0

17

MTD 731-1716

Auger Paddle

$6.99

$

Usually ships in 3-6 days

0

18

MTD 710-0520

Hex Screw: 3/8 - 16 X 1.50 Gr 5

$4.49

$

In Stock, Qty 6

0

19

MTD 710-0597

Hex Screw: 1/4 - 20 X 1.0 Gr 5

$3.99

$

In Stock, Qty 14

0

20

MTD 710-3015

Hex Screw: 1/4 - 20 X .75 Gr 5

$3.99

$

In Stock, Qty 20+

0

21

MTD 710-1245

Hex Screw: 5/16 - 24 X .88 Gr 2

$8.49

$

In Stock, only 2 left!

0

22

MTD 710-1335

Hex Screw

Note: NLA

$

$

Not available

23

MTD 712-0265

Sems Nut: 5/16 - 18

$3.99

$

Usually ships in 3-6 days

0

24

MTD 712-0271

Sems Nut: 1/4 - 20

$4.49

$

In Stock, Qty 10

0

25

MTD 912-0291

Lock Nut: 1/4 - 20
(Superseded to 712-0291)

$

$

Not available

26

MTD 912-0431

Flanged Lock Nut

$4.99

$

In Stock, Qty 20+

0

27

MTD 914-0105

Key

$3.99

$

Usually ships in 3-6 days

0

28

MTD 732-0691

Extension Spring

Note: NLA

$

$

Not available

29

MTD 936-0119

Lock Washer

$4.99

$

In Stock, Qty 20+

0

30

MTD 936-0123

Flat Washer: .344 ID X 1.12 OD

$6.49

$

Usually ships in 3-6 days

0

31

MTD 736-0262

Flat Washer: .385 ID X .87 OD X .092

$3.99

$

Usually ships in 3-6 days

0

32

MTD 936-0463

Flat Washer: .25 ID X .62 OD
(Superseded to 736-0463)

$4.49

$

In Stock, only 2 left!

0

33

MTD 736-3050

Flat Washer: .406 ID X .81 OD X .051

$4.49

$

In Stock, Qty 16

0

34

MTD 738-0961

Shoulder Screw

Note: NLA

$

$

Not available

35

MTD 750-1045

Spacer, Brake Belt

Note: NLA

$

$

Not available

36

MTD 750-1046

Spacer, Auger Pulley

$

$

Not available

37

MTD 954-0452

Belt, Auger Drive

$51.99

$

Usually ships in 3-6 days

0

38

MTD 756-0652

Engine Pulley

Note: NLA

$

$

Not available

39

MTD 756-0653

Idler Pulley

Note: NLA

$

$

Not available

40

MTD 756-0654

Auger Pulley

$

$

Not available

41

MTD 784-0356A-0662

Shield, Bolt

$

$

Not available

42

MTD 784-0358

Idler Arm

Note: NLA

$

$

Not available

43

MTD 784-0362

Bracket, Belt

Note: NLA

$

$

Not available

44

MTD 710-0425

Machine Screw #10 - 24 X .62

$4.99

$

Usually ships in 3-6 days

0

45

MTD 912-0121

Hex Nut
(Superseded to 712-0121)

$4.49

$

In Stock, Qty 20+

0

46

MTD 936-0400

Flat Washer: .218 ID X .62 OD X .063
(Superseded to 736-0400)

$

$

Not available

47

MTD 784-0360-0637

Belt Guard

$

$

Not available
