SB-45 (31A-152-190) - White Outdoor Snow Boss Snow Thrower (2002) General Assembly Parts Diagram

Snow Boss Snow Thrower

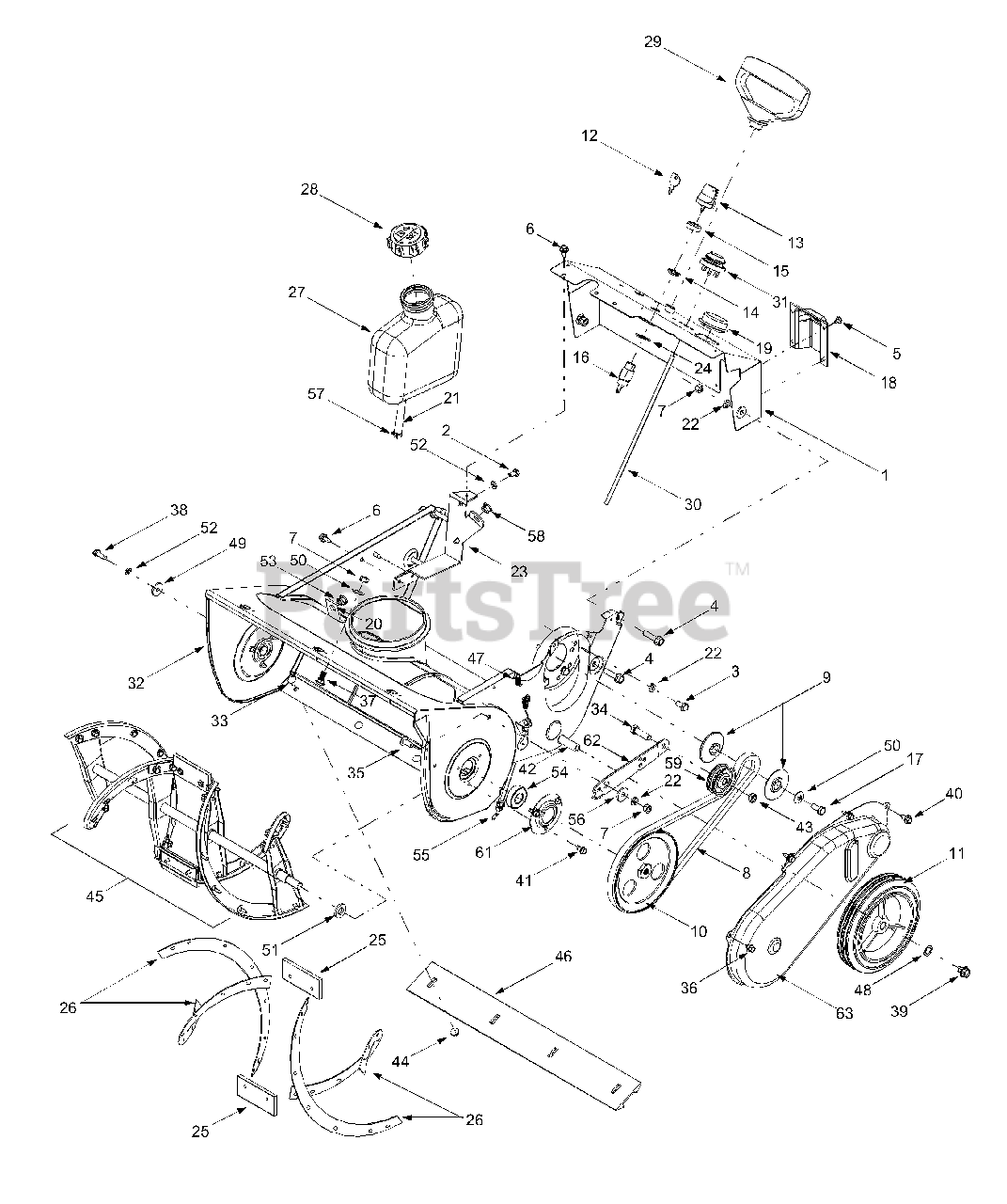

General Assembly Parts Diagram

  • Title

1

MTD 684-0054A

Dash Assembly

Note: NLA

Variations

MTD 684-0054A-0650

No Longer Available PANEL-DASH - RED METALLIC (0650)

$

$

Not available

MTD 684-0054A-0716

No Longer Available PANEL-DASH - CUB YELLOW-99 (0716)

$

$

Not available

$

$

2

MTD 710-3013

Hex Cap Screw, 1/4-20 x .50

$4.99

$

In Stock, only 1 left!

0

3

MTD 710-3025

Hex Cap Screw, 5/16-24 x .625

$3.99

$

In Stock, Qty 8

0

4

MTD 710-1090

Hex Flange Screw, 5/16-18 x 1.25

$3.99

$

Usually ships in 3-6 days

0

5

MTD 710-1268

Screw, #10-16 x .375

$4.49

$

In Stock, only 2 left!

0

6

MTD 710-1652

Self-tapping Screw, 1/4-20 x .625

$4.49

$

In Stock, Qty 20+

0

7

MTD 912-3010

Hex Nut, 5/16-18
(Superseded to 712-3010)

$4.49

$

In Stock, Qty 20+

0

8

MTD 954-0101A

Drive Belt

$28.99

$

In Stock, Qty 20+

0

9

MTD 956-0416B

Pulley Half-.625 x 2.25

$10.99

$

In Stock, only 2 left!

0

10

MTD 756-0475

Auger Drive Pulley

$79.99

$

Usually ships in 3-6 days

0

11

MTD 734-1176

Wheel Assembly, 7 x 1.5

Note: NLA

$

$

Not available

12

MTD 925-0201

Ignition Key

$9.49

$

In Stock, only 1 left!

0

13

MTD 725-1341B

Ignition Key w/ Plastic Cover

$10.99

$

In Stock, only 1 left!

0

14

MTD 925-1346

Ignition Nut, 5/8-32

$

$

Not available

15

MTD 725-1347

Ignition Switch Cap

$4.99

$

In Stock, only 1 left!

0

16

MTD 925-1425

Ignition Switch

$35.99

$

In Stock, Qty 6

0

17

MTD 710-0157

Hex Cap Screw, 5/16-24 x .75

$4.49

$

In Stock, Qty 18

0

18

MTD 731-1089A

Choke Cover

$

$

Not available

19

MTD 731-1133C

Spark Plug Cap

$

$

Not available

20

MTD 784-5720-0637

Chute Crank Bracket

$

$

Not available

21

MTD 751-10349

Fuel Line Hose

$9.49

$

Usually ships in 3-6 days

0

22

MTD 936-0119

Lock Washer, 5/16

$4.99

$

In Stock, Qty 20+

0

23

MTD 705-5139A-0637

Fuel Tank Support Bracket

$

$

Not available

24

MTD 736-0225

Internal Lock Washer, 5/8 x 1.058 x .046

$4.49

$

In Stock, only 2 left!

0

25

MTD 931-0782A

Rubber Paddle

$6.99

$

In Stock, Qty 10

0

26

MTD 931-0780A

Rubber Paddle/Spiral

$27.99

$

In Stock, Qty 14

0

27

MTD 751-0540A

Gas Tank, 2 qt.

$

$

Not available

28

MTD 751-10049

Fuel Cap (50:1 Red Print)
(Superseded to 751-0603B)

$23.99

$

Usually ships in 3-6 days

0

29

MTD 7510009636

Recoil Handle (Mitten Grip)

$

$

Not available

30

MTD TC-32180C

Primer Tube

$6.99

$

In Stock, Qty 9

0

31

MTD TC-570682A

Primer Bulb

$10.99

$

In Stock, Qty 7

0

32

MTD 684-0114B

Auger Housing Assembly

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 684-0114B-0638

No Longer Available HSG ASM-AU - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 684-0114B-0483

No Longer Available HSG ASM-AU - CHARCOAL GRAY (0483)

$

$

Not available

MTD 684-0114B-0498

No Longer Available HOUSING AS - OLD CUB YELLOW (0498)

$

$

Not available

MTD 684-0114B-0629

No Longer Available HSG ASM-AU - SILVER FLAKE (0629)

$

$

Not available

MTD 684-0114B-0650

No Longer Available HSG ASM-AU - RED METALLIC (0650)

$

$

Not available

MTD 684-0114B-0662

No Longer Available HSG ASM-AU - OYSTER GRAY (0662)

$

$

Not available

MTD 684-0114B-0665

No Longer Available HSG ASM-AU - YARDMAN GREEN (0665)

$

$

Not available

MTD 684-0114B-0684

No Longer Available HSG ASM-AU - ZINC YELLOW (0684)

$

$

Not available

MTD 684-0114B-0687

No Longer Available HSG ASM-AU - PINE GREEN (0687)

$

$

Not available

MTD 684-0114B-0691

No Longer Available HSG ASM-AU - BLACK JACK (0691)

$

$

Not available

MTD 684-0114B-0709

No Longer Available HSG ASM-AU - MASTERCRAFT GREEN (0709)

$

$

Not available

MTD 684-0114B-0716

No Longer Available - CUB YELLOW-99 (0716)

$

$

Not available

$

$

33

MTD 710-0167

Screw, 1/4-20 x .50
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

34

MTD 710-0191

Cap Screw, 3/8-24 x 1.25

$4.99

$

In Stock, Qty 9

0

35

MTD 710-0323

Trus Machine Screw, 5/16-18 x .75

$4.99

$

In Stock, only 2 left!

0

36

MTD 710-0352

Hex Index Washer Screw, 1/4-14 x .375

$4.99

$

Usually ships in 3-6 days

0

37

MTD 710-0451

Carriage Bolt, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

38

MTD 710-0642

Self-tapping Screw 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

39

MTD 710-0773

Self-tapping Screw 3/8-16 x .50

$7.49

$

In Stock, only 3 left!

0

40

MTD 710-0896

Self-tapping Screw, 1/4-14 x .625

$4.49

$

In Stock, Qty 20+

0

41

MTD 710-0599

Self-tapping Screw, 1/4-14 x .50

$4.49

$

In Stock, Qty 20+

0

42

MTD 753-05480

Axle, .35 x .5 x 20.75

$

$

Not available

43

MTD 912-0116

Jam Lock Nut, 3/8-24
(Superseded to 712-0116)

$

$

Not available

44

MTD 912-3027

Hex Flange Lock Nut, 1/4-20

$4.49

$

In Stock, Qty 18

0

45

MTD 984-04027A

Solid Shaft Auger Assembly

$196.99

$

In Stock, Qty 10

0

46

MTD 731-1033

Shave Plate, 2.66 x 19.88

$47.99

$

In Stock, Qty 14

0

47

MTD 932-0357A

Extension Spring, .33 x 1.12
(Superseded to 732-0357A)

$4.49

$

In Stock, Qty 13

0

48

MTD 936-0108

Flat Washer, .51 x .75 x .033

$6.99

$

In Stock, only 4 left!

0

49

MTD 936-0176

Flat Washer, .265 x .938 x .120
(Superseded to 736-0176)

$4.99

$

In Stock, only 4 left!

0

50

MTD 736-0242

Belleville Washer, .340 x .872

$4.49

$

In Stock, Qty 20+

0

51

MTD 936-0326

Flat Washer, .51 x 1.0 x .125
(Superseded to 736-0326)

$4.49

$

In Stock, only 4 left!

0

52

MTD 936-0329

Lock Washer, 1/4

$4.49

$

In Stock, Qty 11

0

53

MTD 941-0475

Plastic Bushing

$4.49

$

In Stock, Qty 20+

0

54

MTD 941-0600

Ball Bearing, 17mm x 40mm x 12mm

$25.99

$

In Stock, Qty 20+

0

55

MTD 946-0910A

Cable, 41.78"

Note: (Includes end spring)

$29.99

$

In Stock, Qty 16

0

56

MTD 748-0234

Shoulder Spacer

$4.49

$

In Stock, Qty 20+

0

57

MTD 726-0205

Hose Clamp, .49

$3.99

$

In Stock, Qty 18

0

58

MTD 941-0475

Plastic Bushing, .38

$4.49

$

In Stock, Qty 20+

0

59

MTD 756-0313

Flat Idler Pulley, 1.88 x .50 x 2.12

$26.99

$

In Stock, Qty 6

0

60

MTD 710-0895

Hi-Lo Self-tapping Screw, 1/4-15 x .75

$6.49

$

Usually ships in 3-6 days

0

61

MTD 784-5174-0637

Bearing Cup

$

$

Not available

62

MTD 753-05156

Brake Idler Bracket

$

$

Not available

63

MTD 784-5176

Belt Cover
(Superseded to 790-00045C-0637)

Variations

MTD 784-5176-0483

Belt Cover, Black - CHARCOAL GRAY (0483)

$57.99

$

Usually ships in 3-6 days

0

MTD 784-5176-0629

Belt Cover, Black - SILVER FLAKE (0629)

$57.99

$

Usually ships in 3-6 days

0

MTD 784-5176-0637

Belt Cover, Black - POWDER BLACK (0637)

$57.99

$

Usually ships in 3-6 days

0

MTD 784-5176-0638

Belt Cover, Red - MTD/TROY-BILT RED (0638)

$57.99

$

Usually ships in 3-6 days

0

MTD 784-5176-0716

Belt Cover, Black - CUB YELLOW-99 (0716)

$57.99

$

Usually ships in 3-6 days

0

MTD 784-5176-0498

USE 790-00045A COVER-BELT - OLD CUB YELLOW (0498)

$46.99

$

Usually ships in 3-6 days

0

MTD 784-5176-0650

COVER-BELT - RED METALLIC (0650)

$46.99

$

Usually ships in 3-6 days

0

MTD 784-5176-0662

COVER-BELT - OYSTER GRAY (0662)

$46.99

$

Usually ships in 3-6 days

0

MTD 784-5176-0674

COVER-BELT - YARDMAN YELLOW (0674)

$46.99

$

Usually ships in 3-6 days

0

MTD 784-5176-0691

COVER-BELT SINGLE - BLACK JACK (0691)

$

$

Not available

MTD 784-5176-0665

COVER-BELT SINGLE - YARDMAN GREEN (0665)

$

$

Not available

$57.99

$

Usually ships in 3-6 days

0
