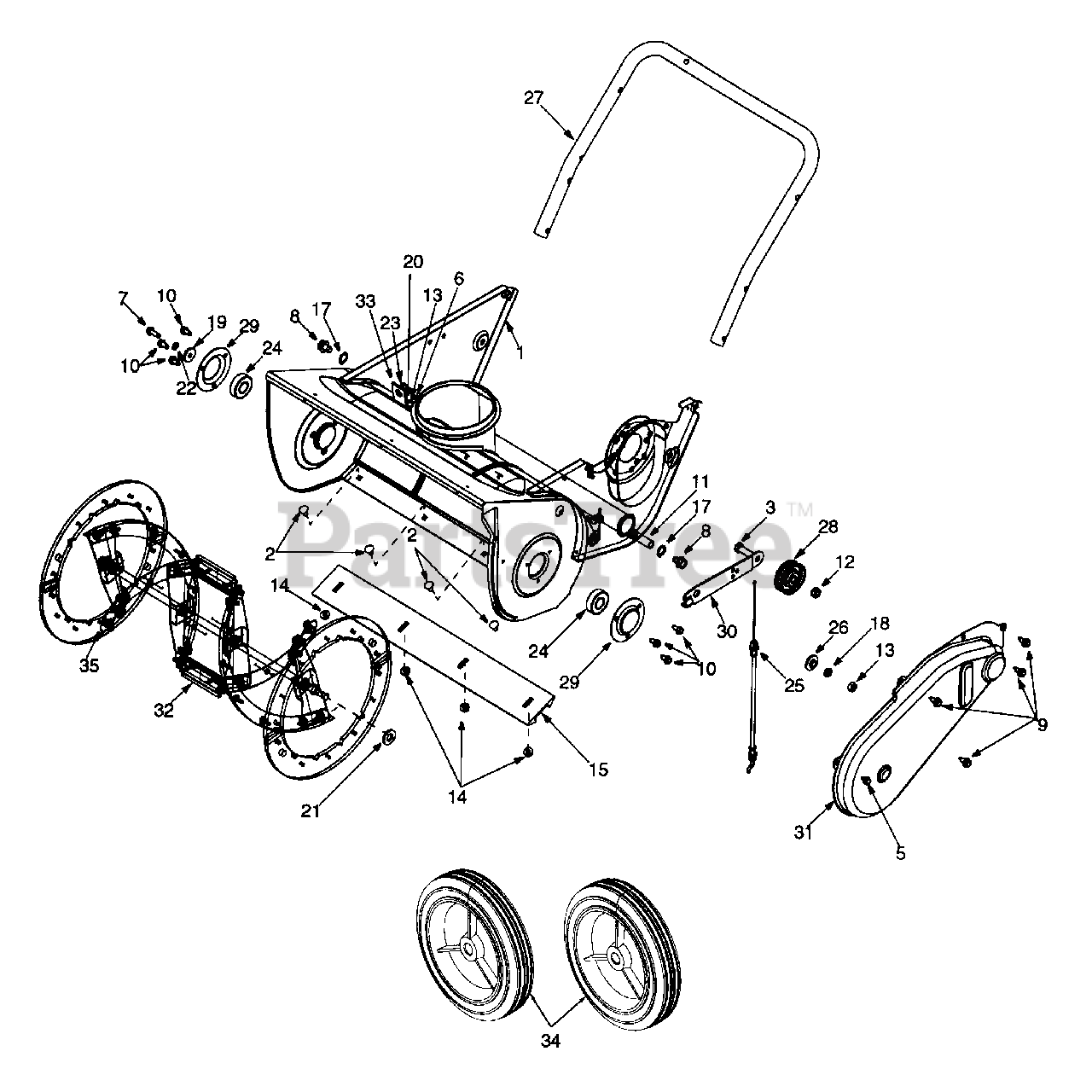

SB-45 (31A-152-190) - White Outdoor Snow Boss Snow Thrower (2000) General Assembly Parts Diagram

Snow Boss Snow Thrower

General Assembly Parts Diagram

  • Title

1

MTD 984-0114

Auger Housing Assembly

Variations

MTD 984-0114-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 984-0114-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

MTD 984-0114-0498

No Longer Available HOUSING AS - OLD CUB YELLOW (0498)

$

$

Not available

MTD 984-0114-0629

No Longer Available HOUSING - SILVER FLAKE (0629)

$

$

Not available

MTD 984-0114-0650

No Longer Available - RED METALLIC (0650)

$

$

Not available

MTD 984-0114-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

MTD 984-0114-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

MTD 984-0114-0684

No Longer Available - ZINC YELLOW (0684)

$

$

Not available

MTD 984-0114-0687

No Longer Available - PINE GREEN (0687)

$

$

Not available

MTD 984-0114-0691

No Longer Available - BLACK JACK (0691)

$

$

Not available

MTD 984-0114-0709

No Longer Available - MASTERCRAFT GREEN (0709)

$

$

Not available

MTD 984-0114-0716

No Longer Available No Longer - CUB YELLOW-99 (0716)

$

$

Not available

$

$

2

MTD 710-0167

Carriage Screw 1/4-20 x 0.5"
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

3

MTD 710-0191

Special Screw 3/8-24 x 1.25" Gr.8

$4.99

$

In Stock, Qty 9

0

4

MTD 710-0323

Truss Mach. Screw 5/16-18 x 0.75"

$4.99

$

In Stock, only 2 left!

0

5

MTD 710-0352

Hex Screw 1/4-14 x 0.375"

$4.99

$

Usually ships in 3-6 days

0

6

MTD 710-0451

Carriage Bolt 5/16-18 x 0.75"

$4.49

$

In Stock, Qty 20+

0

7

MTD 710-0642

Hex TT Screw 1/4-20 x 0.75"

$4.49

$

In Stock, Qty 20+

0

8

MTD 710-0773

Hex TT Screw 3/8-16 x 0.5"

$7.49

$

In Stock, only 3 left!

0

9

MTD 710-0896

AB Screw 1/4-14 x 0.625"

$4.49

$

In Stock, Qty 20+

0

10

MTD 710-0599

B Screw 1/4-14 x 0.5"

$4.49

$

In Stock, Qty 20+

0

11

MTD 753-05480

Axle Tube

$

$

Not available

12

MTD 912-0116

Jam Nut
(Superseded to 712-0116)

$

$

Not available

13

MTD 912-3010

Hex Nut
(Superseded to 712-3010)

$4.49

$

In Stock, Qty 20+

0

14

MTD 912-3027

Hex Flange Lock Nut

$4.49

$

In Stock, Qty 20+

0

15

MTD 731-1033

Shave Plate

$47.99

$

In Stock, Qty 13

0

16

MTD 932-0357A

Extension Spring
(Superseded to 732-0357A)

$4.49

$

In Stock, Qty 13

0

17

MTD 936-0108

Flat Washer

$6.99

$

In Stock, only 4 left!

0

18

MTD 936-0119

Lock Washer

$4.99

$

In Stock, Qty 20+

0

19

MTD 936-0176

Flat Washer
(Superseded to 736-0176)

$4.99

$

In Stock, only 4 left!

0

20

MTD 736-0242

Belleville Washer

$4.49

$

In Stock, Qty 20+

0

21

MTD 936-0326

Flat Washer
(Superseded to 736-0326)

$4.49

$

In Stock, only 4 left!

0

22

MTD 936-0329

Lock Washer

$4.49

$

In Stock, Qty 11

0

23

MTD 941-0475

Bushing

$4.49

$

In Stock, Qty 20+

0

24

MTD 941-0600

Ball Bearing

$25.99

$

In Stock, Qty 20+

0

25

MTD 946-0910A

Clutch Cable

$29.99

$

In Stock, Qty 18

0

26

MTD 748-0234

Spacer

$4.49

$

In Stock, Qty 20+

0

27

MTD 749-0796B-0637

Lower Handle

$

$

Not available

28

MTD 756-0313

Idler: Flat

$26.99

$

In Stock, Qty 5

0

29

MTD 784-5174-0637

Bearing Cup

$

$

Not available

30

MTD 753-05156

Idler Bracket: Brake

$

$

Not available

31

MTD 784-5176

Belt Cover
(Superseded to 790-00045C-0637)

Variations

MTD 784-5176-0483

Belt Cover, Black - CHARCOAL GRAY (0483)

$57.99

$

Usually ships in 3-6 days

0

MTD 784-5176-0629

Belt Cover, Black - SILVER FLAKE (0629)

$57.99

$

Usually ships in 3-6 days

0

MTD 784-5176-0637

Belt Cover, Black - POWDER BLACK (0637)

$57.99

$

Usually ships in 3-6 days

0

MTD 784-5176-0638

Belt Cover, Red - MTD/TROY-BILT RED (0638)

$57.99

$

Usually ships in 3-6 days

0

MTD 784-5176-0716

Belt Cover, Black - CUB YELLOW-99 (0716)

$57.99

$

Usually ships in 3-6 days

0

MTD 784-5176-0498

USE 790-00045A COVER-BELT - OLD CUB YELLOW (0498)

$46.99

$

Usually ships in 3-6 days

0

MTD 784-5176-0650

COVER-BELT - RED METALLIC (0650)

$46.99

$

Usually ships in 3-6 days

0

MTD 784-5176-0662

COVER-BELT - OYSTER GRAY (0662)

$46.99

$

Usually ships in 3-6 days

0

MTD 784-5176-0674

COVER-BELT - YARDMAN YELLOW (0674)

$46.99

$

Usually ships in 3-6 days

0

MTD 784-5176-0691

COVER-BELT SINGLE - BLACK JACK (0691)

$

$

Not available

MTD 784-5176-0665

COVER-BELT SINGLE - YARDMAN GREEN (0665)

$

$

Not available

$57.99

$

Usually ships in 3-6 days

0

32

MTD 984-04027A

Auger Assembly

$196.99

$

In Stock, Qty 10

0

33

MTD 784-5720-0637

Bracket: Chute Crank

$

$

Not available

34

MTD 734-1797

Wheel Assembly: Grey

$

$

Not available

35

MTD 753-0613

Auger Rubber Replacement

$130.99

$

In Stock, Qty 5

0
