SB-45 (31A-152-190) - White Outdoor Snow Boss Snow Thrower (2000) Controls & Shroud Parts Diagram

Snow Boss Snow Thrower

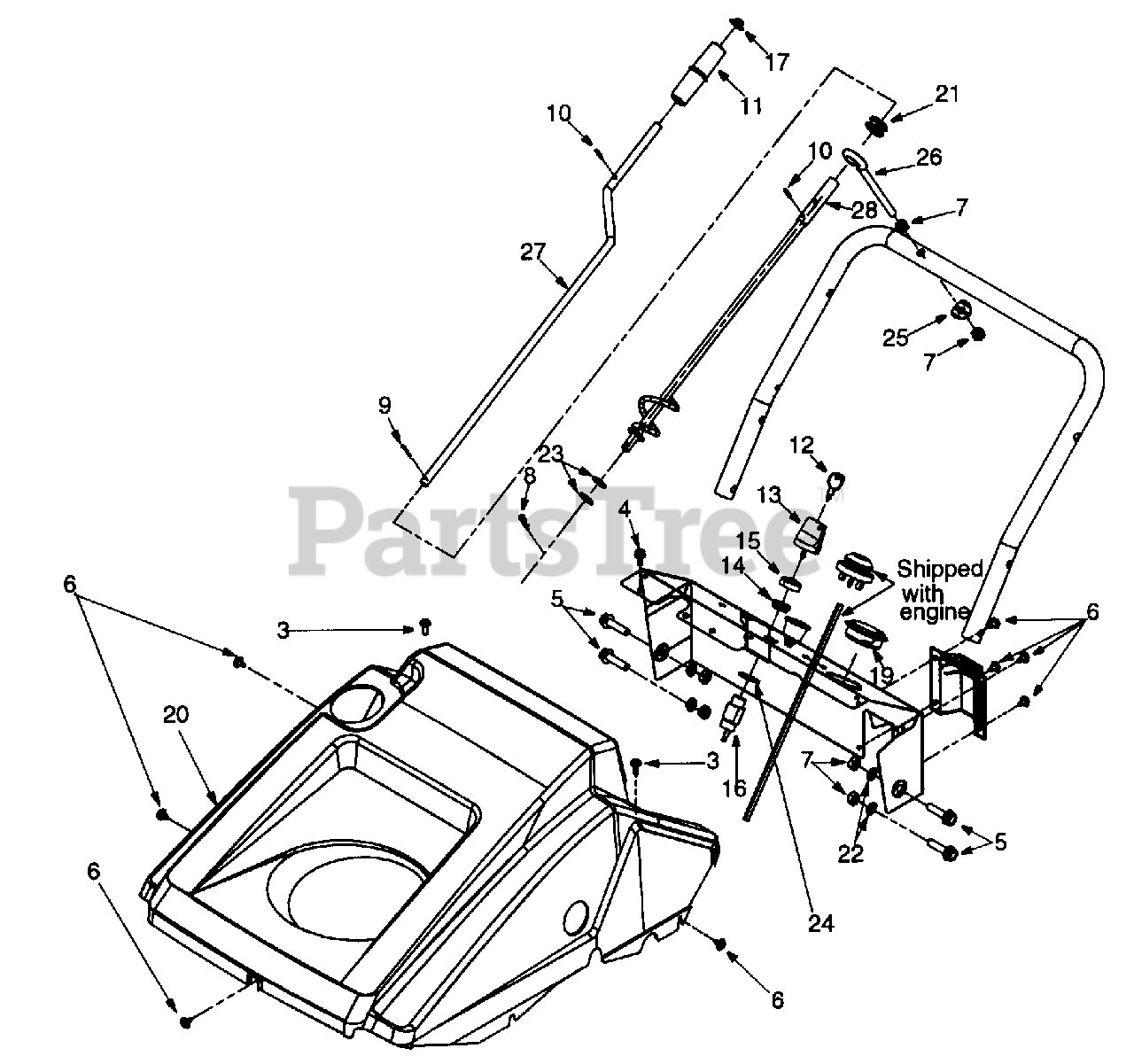

Controls & Shroud Parts Diagram

  • Title
1

MTD 684-0054

Dash: 21" Mitten Panel Assy.

Note: NLA

$

$

Not available

2

MTD 684-0126-0637

Chute Crank Assembly

$

$

Not available

3

MTD 710-04669

Special Screw

$3.49

$

In Stock, Qty 20+

0

4

MTD 710-0599

B Screw 1/4-14 x 0.5"

$4.49

$

In Stock, Qty 20+

0

5

MTD 710-1090

Hex Flange Screw

$3.99

$

Usually ships in 3-6 days

0

6

MTD 710-1268

Special Screw

$4.49

$

In Stock, Qty 20+

0

7

MTD 912-3010

Hex Nut: 5/16-18
(Superseded to 712-3010)

$4.49

$

In Stock, Qty 20+

0

8

MTD 914-0104

Cotter Pin
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

9

MTD 914-0507

Cotter Pin

$4.49

$

In Stock, Qty 17

0

10

MTD 915-0138

Roll Pin

$4.99

$

In Stock, only 1 left!

0

11

MTD 720-0201A

Chute Crank Knob

$10.99

$

In Stock, Qty 5

0

12

MTD 925-0201

Ignition Key

$9.49

$

In Stock, only 1 left!

0

13

MTD 725-1341B

Ignition Key w/o Logo

$10.99

$

In Stock, only 1 left!

0

14

MTD 925-1346

Ignition Switch Nut

$

$

Not available

15

MTD 725-1347

Ignition Switch Cap

$4.99

$

In Stock, only 1 left!

0

16

MTD 925-1425

Switch: Key Recoil Start

$35.99

$

In Stock, Qty 6

0

17

MTD 926-0100

Push Cap
(Superseded to 726-0100)

$

$

Not available

18

MTD 731-1089A

Choke Cover

$

$

Not available

19

$

$

Not available

20

MTD 731-1551A

Engine Shroud: Grey

Note: NLA

$

$

Not available

21

MTD 735-0234

Rubber Grommet

$5.49

$

In Stock, only 2 left!

0

22

MTD 936-0119

Lock Washer

$4.99

$

In Stock, Qty 20+

0

23

MTD 936-0185

Flat Washer
(Superseded to 736-0185)

$3.99

$

In Stock, Qty 20+

0

24

MTD 736-0225

Internal Lock Washer

$4.49

$

In Stock, only 2 left!

0

25

MTD 936-0451

Saddle Washer
(Superseded to 736-0451)

$4.49

$

In Stock, Qty 18

0

26

MTD 747-0697

Eye Bolt

$8.49

$

In Stock, only 1 left!

0

27

MTD 747-0737-0637

Chute Crank: Upper

$45.99

$

Usually ships in 3-6 days

0

28

MTD 950-0785

Spacer

$32.99

$

Usually ships in 3-6 days

0
