SB-410 (312-440-190) - White Outdoor Snow Boss Snow Thrower (1992) Wheel & Axle Ass'y Parts Diagram

Snow Boss Snow Thrower

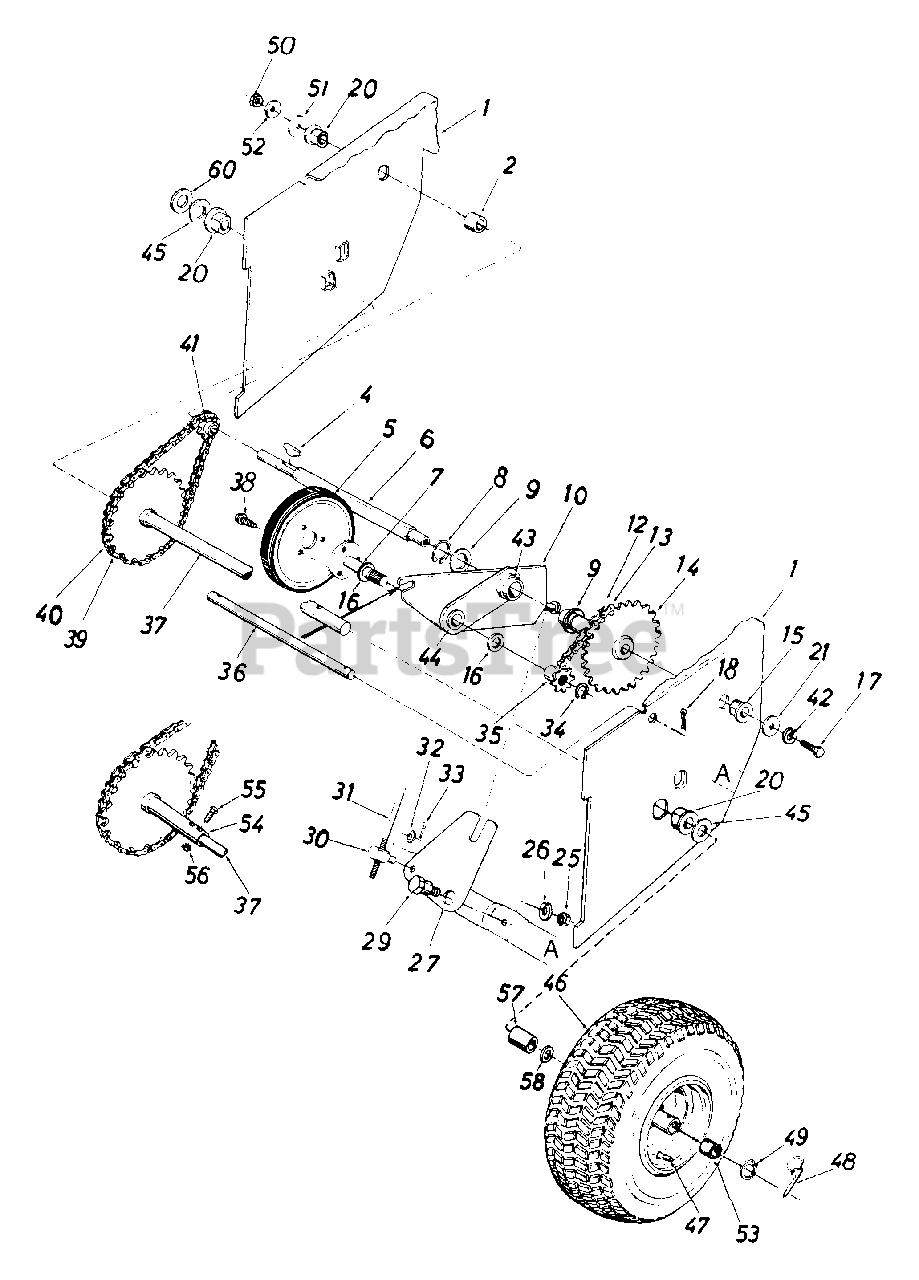

Wheel & Axle Ass'y Parts Diagram

  • Title

1

White Outdoor 784-5197

Frame Ass'y.

$

$

Not available

2

White Outdoor 750-0499

Spacer .50" I.D. x .75" O.D. x .78" Lg.

$23.99

$

Usually ships in 3-6 days

0

4

White Outdoor 714-0129

#4 Hi-Pro Key 3/32 x 5/8" Dia.
(Superseded to 914-0129)

$

$

Not available

5

White Outdoor 05080A

Friction Wheel Ass'y.
(Superseded to 05080AP)

Note: Code: N Notates a new part (not previously existing)

$30.99

$

In Stock, Qty 11

0

6

White Outdoor 738-0496A

Hex Shaft

Note: Code: N Notates a new part (not previously existing)

$

$

Not available

7

White Outdoor 05883

Friction Wheel Mounting Plate Ass'y.

$

$

Not available

8

White Outdoor 716-0102

Snap Ring 1.00" Dia. Shaft

$5.49

$

In Stock, Qty 20+

0

9

White Outdoor 736-0163

Fl-Wash. 1.00" x 1.63" O.D. x .03

$4.49

$

In Stock, Qty 20+

0

10

White Outdoor 05880

Sliding Bracket Ass'y.

$

$

Not available

12

White Outdoor 713-0285

#41 Chain 1/2" Pitch x 35 Links

$

$

Not available

13

White Outdoor 713-0723

Master Link for #41 Chain
(Superseded to 913-0723)

$

$

Not available

14

713-0281

32 Teeth Sprocket Ass'y.

$

$

Not available

15

White Outdoor 741-0225

Hex Flange Brg. .630" I.D.
(Superseded to 941-0225)

$7.49

$

In Stock, Qty 20+

0

16

White Outdoor 736-0290

Fl-Wash. .62" I.D. x 1.00" O.D. x .06

$6.99

$

In Stock, Qty 20+

0

17

White Outdoor 710-0538

Hex Lock Bolt 5/16-18 x .62" Lg.

$4.49

$

In Stock, Qty 9

0

18

White Outdoor 714-0507

Cotter Pin 3/32" Dia. x .75" Lg.

$4.49

$

In Stock, Qty 12

0

20

White Outdoor 741-0490

Flange Brg. w/Flats .75" I.D.
(Superseded to 941-0490)

$13.99

$

In Stock, Qty 20+

0

21

White Outdoor 736-0231

Fl-Wash. .34" I.D. x 1.12" O.D. x .125

$4.99

$

In Stock, Qty 20+

0

25

White Outdoor 712-0342

Hex Jam Nut 3/8-16 Thd.
(Superseded to 912-3008)

$4.99

$

In Stock, Qty 19

0

26

White Outdoor 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

27

White Outdoor 05898A

Shifting Linkage Bracket

Note: Code: N Notates a new part (not previously existing)

$

$

Not available

29

White Outdoor 738-0281

Shld. Bolt .625" Dia. x .170" Lg.

$10.99

$

In Stock, Qty 7

0

30

White Outdoor 711-0677

Adjustment Ferrule
(Superseded to 911-0677)

$17.99

$

In Stock, only 4 left!

0

31

White Outdoor 747-0356

Shifting Rod 5/16" Dia. x 32.50" Lg.

$

$

Not available

32

White Outdoor 736-0264

Fl-Wash. .34" I.D. x .64" O.D. x .06

$6.99

$

In Stock, only 1 left!

0

33

White Outdoor 714-0507

Cotter Pin 3/32" Dia. x .75" Lg.

$4.49

$

In Stock, Qty 12

0

34

White Outdoor 716-0145

Snap Ring .562" Dia. Shaft
(Superseded to 716-0397)

$

$

Not available

35

White Outdoor 713-0280

Sprocket 7 Teeth x .50" Pitch

$

$

Not available

36

738-0497

Shaft .50" Dia. x 9.50" Lg.

$

$

Not available

37

White Outdoor 713-0323

32 Teeth Wheel Axle Ass'y.

Note: (440 & 550)

$

$

Not available

White Outdoor 738-0713

Wheel Axle

Note: (586)

$

$

Not available

38

White Outdoor 710-0600

Hex Wash. Hd. Self-Tap Scr. 5/6-24 x .50" Lg.

$3.49

$

Usually ships in 3-6 days

0

39

White Outdoor 713-0270

#41 Chain 1/2" Pitch x 43 Links

Note: (440 & 450)

$

$

Not available

White Outdoor 713-0287

#420 Chain 1/2" Pitch x 39 Links
(Superseded to 913-0287)

Note: (550 & 586)

$

$

Not available

40

White Outdoor 713-0723

Master Link for #41 Chain
(Superseded to 913-0723)

Note: (440 & 450)

$

$

Not available

White Outdoor 713-0154

Master Link for #420 Chain
(Superseded to 913-0154)

Note: (550 & 586)

$

$

Not available

41

White Outdoor 748-0204

8 Teeth Center Sprocket

$

$

Not available

42

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

43

White Outdoor 741-0476

Bearing
(Superseded to 741-04488)

$9.49

$

In Stock, only 3 left!

0

44

White Outdoor 748-0184

Bronze Bearing

$7.49

$

Usually ships in 3-6 days

0

45

White Outdoor 736-0188

Fl-Wash. .76" I.D. x 1.49 O.D.

Note: (440, 450 & 550)

$4.49

$

In Stock, Qty 20+

0

White Outdoor 736-0315

Fl-Washer

Note: (586 only)

$6.99

$

In Stock, Qty 6

0

46

734-1528

Wheel Ass'y. Comp. 13 x 5.0

Note: (440 & 550)

$

$

Not available

734-1147

Rim Only 13 x 5.0

Note: (440 & 550)

$

$

Not available

White Outdoor 734-1527

Tire Only 13 x 5.0

Note: (440 & 550)

Variations

White Outdoor 734-1527-0901

SNOW HOG TIRE 13 X 5 - Carlisle (0901)

$

$

Not available

White Outdoor 734-1527-0905

DURO SNOW HOG TIRE 13 X 5 - Duro (0905)

$

$

Not available

$

$

46

White Outdoor 734-1521

Wheel Ass'y. Comp. 13 x 6.5

Note: (586)

$

$

Not available

734-1145

Rim Only 13 x 6.5

Note: (586)

$

$

Not available

White Outdoor 734-1520

Tire Only 13 x 6.5

Note: (586)

$

$

Not available

47

White Outdoor 734-0255

Air Valve
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

48

White Outdoor 714-0143

Klick Pin
(Superseded to 714-0143A)

$6.49

$

In Stock, Qty 7

0

49

White Outdoor 716-0101

Snap Ring .75 Dia.

$3.99

$

In Stock, Qty 20+

0

50

White Outdoor 712-0200A

Hex Ins. L-Nut 1/2-20 Thd.

Note: Code: N Notates a new part (not previously existing)

$4.49

$

In Stock, only 1 left!

0

51

White Outdoor 736-0257

Fl-Wash. .53 I.D. x 1.25 O.D. x .10
(Superseded to 936-0179)

$4.99

$

In Stock, only 2 left!

0

52

White Outdoor 736-0253

Bell-Wash. .50 I.D. x 1.0 O.D. x .075

$3.99

$

In Stock, Qty 20+

0

53

White Outdoor 741-0401

Sleeve Brg.
(Superseded to 941-0401)

$7.49

$

In Stock, Qty 12

0

54

White Outdoor 713-0384

32 Teeth Sprocket Hub Ass'y.

Note: (586)

$

$

Not available

55

White Outdoor 710-0698

Hex Bolt 1/4-28 x 1.5"

$

$

Not available

56

White Outdoor 712-0896

Hex L-Nut 1/4-28 Thd. (586)

$4.99

$

In Stock, Qty 6

0

57

White Outdoor 750-0506

Spacer

Note: (586)

$

$

Not available

58

White Outdoor 736-0287

Fl-Washer

Note: (586)

$4.49

$

In Stock, Qty 20+

0

60

White Outdoor 736-0315

Fl-Washer

Note: (586 Only)

$6.99

$

In Stock, Qty 6
