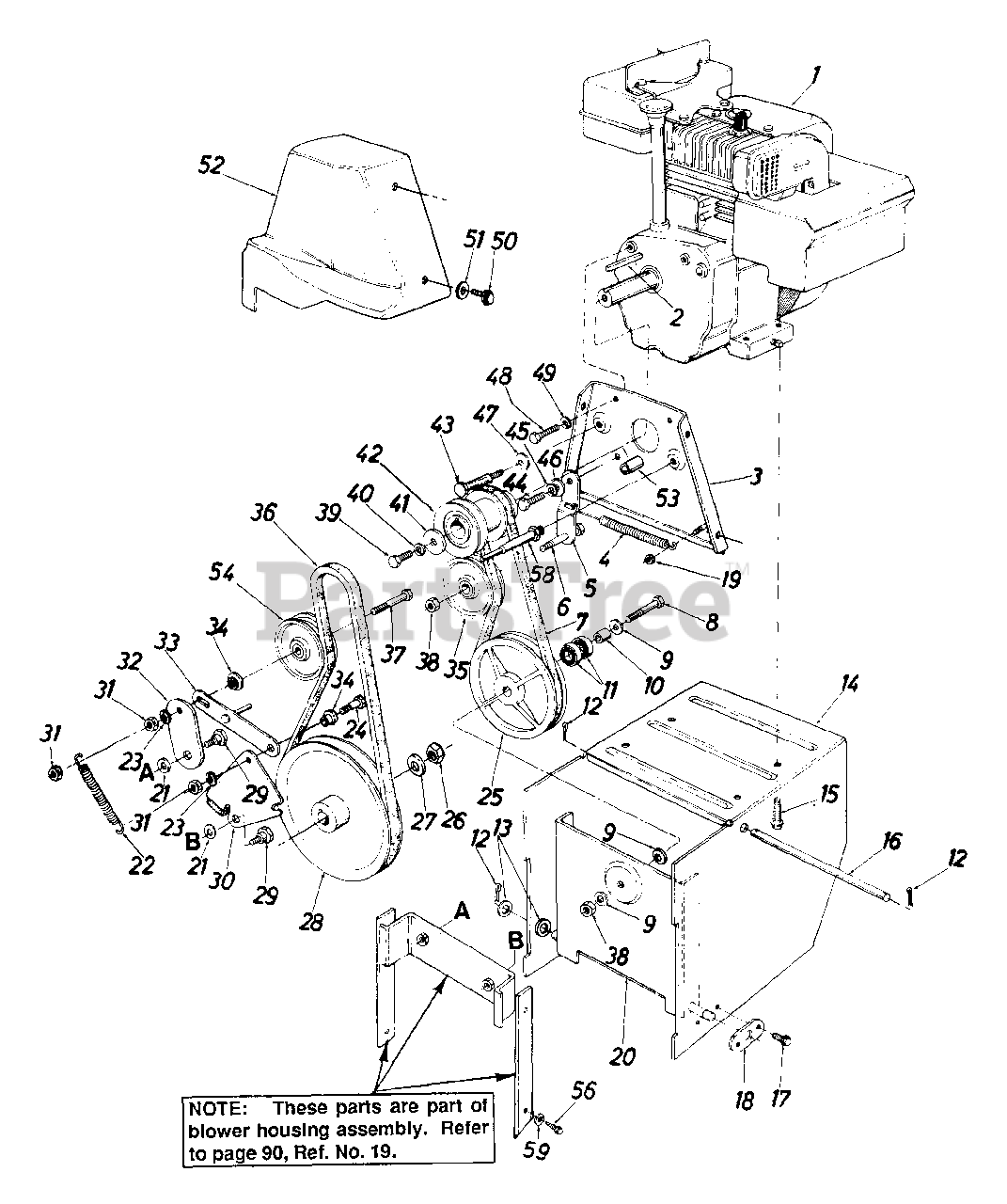

SB-410 (312-440-190) - White Outdoor Snow Boss Snow Thrower (1992) Belts, Pulleys & Frame Ass'y Parts Diagram

Snow Boss Snow Thrower

Belts, Pulleys & Frame Ass'y Parts Diagram

  • Title

1

Engine

$

$

Not available

2

White Outdoor 714-0133

Sq. Key 3/16" x 1.50" Lg.

Note: (440, 550 & 552)

$4.99

$

In Stock, Qty 12

0

White Outdoor 714-0114

Sq. Key 1/4" x 2.0" Lg.
(Superseded to 914-0114)

Note: (586)

$4.49

$

In Stock, only 1 left!

0

3

05872A

Engine Plate Ass'y.

Note: Code: N Notates a new part (not previously existing)

$

$

Not available

4

White Outdoor 732-0429

Extension Spring .50" O.D. x 3.97" Lg.
(Superseded to 932-0429A)

$8.99

$

In Stock, Qty 20+

0

5

White Outdoor 05896

Drive Clutch Idler Brkt.

$

$

Not available

6

White Outdoor 710-0191

Hex Bolt 3/8-24 x 1.25" Lg.

$4.99

$

In Stock, Qty 8

0

7

White Outdoor 754-0256

"V"-Belt
(Superseded to 954-0256)

$47.99

$

In Stock, only 2 left!

0

8

White Outdoor 710-0459

Hex Bolt 3/8-24 x 1.50" Lg.
(Superseded to 710-0459A)

$6.99

$

In Stock, Qty 8

0

9

White Outdoor 736-0105

Bell-Wash. .40" I.D. x .88" O.D. x .06

$4.49

$

In Stock, Qty 20+

0

10

White Outdoor 711-0396

Spacer .38" I.D. x .62" O.D. x .75" Lg.

$11.99

$

Usually ships in 3-6 days

0

11

White Outdoor 741-0155

Ball Brg. .62" I.D. x 1.38" O.D. x .44
(Superseded to 941-0155)

$23.99

$

In Stock, Qty 18

0

12

White Outdoor 714-0507

Cotter Pin 3/32" Dia. x .75" Lg.

$4.49

$

In Stock, only 2 left!

0

13

White Outdoor 736-0272

Fl-Wash. .53" I.D. x 1.00" O.D. x .125

$4.99

$

In Stock, Qty 20+

0

14

White Outdoor 784-5197

Frame Ass'y.

$

$

Not available

15

White Outdoor 710-0502A

Hex Wash. Hd. Self-Tap Scr. 3/8-16 x 1.25" Lg.

Note: Code: N Notates a new part (not previously existing)

$6.99

$

In Stock, only 2 left!

0

16

738-0497

Shaft .50" Dia. x 9.50" Lg.

$

$

Not available

17

White Outdoor 710-0599

Hex Wash. Hd. Self-Tap Scr. 1/4-20 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

18

White Outdoor 05897

Axle Bracket

$

$

Not available

19

White Outdoor 712-0107

Hex L-Nut 1/4-20 Thd.
(Superseded to 912-0107)

$4.99

$

In Stock, only 1 left!

0

20

05878

Drive Pulley Support Brkt. Ass'y.

$

$

Not available

21

White Outdoor 736-0219

Bell-Wash. .40" I.D. x 1.13" O.D.
(Superseded to 936-0219)

$4.49

$

Usually ships in 3-6 days

0

22

White Outdoor 732-0550

Extension Spring .56" O.D. x 4" Lg.

$

$

Not available

23

White Outdoor 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

24

White Outdoor 710-0723

Hex Scr. 3/8-16 x 1.25" Lg.

$4.99

$

In Stock, only 3 left!

0

25

White Outdoor 05921

6.00" O.D. Drive Pulley Ass'y.

Note: (Incl. Ref. #11)

$

$

Not available

26

White Outdoor 712-0923

Hex Jam Cent. L-Nut 5/8-18 Thd.

$6.99

$

Usually ships in 3-6 days

0

27

White Outdoor 736-0116

Fl-Wash. .64" I.D. x .94" O.D. x .06
(Superseded to 936-0116)

$6.99

$

In Stock, only 1 left!

0

28

White Outdoor 756-0344

1/2" V-Pulley .625" I.D. x 7.50" O.D.

Note: (440, 550 & 552)

$81.99

$

Usually ships in 3-6 days

0

White Outdoor 756-0418

5/8" V-Pulley .625" I.D. x 7.50" O.D.

Note: (586)

$

$

Not available

29

White Outdoor 738-0281

Shld. Bolt .625" Dia. x .170" Lg. (3/8-16)

$10.99

$

In Stock, only 1 left!

0

30

White Outdoor 784-5061

Brake Bracket Ass'y.

Note: (440, 550 & 552)

$

$

Not available

White Outdoor 784-5048

Brake Brkt. Ass'y.

Note: (586)

$

$

Not available

31

White Outdoor 712-0342

Hex Ins. L-Nut 3/8-16 Thd.
(Superseded to 912-3008)

$4.99

$

In Stock, Qty 19

0

32

White Outdoor 05895

Auger Clutch Idler Brkt.

$

$

Not available

33

White Outdoor 784-5245

Brake Linkage Ass'y.

$

$

Not available

34

White Outdoor 738-0347

Shld. Spacer .625" I.D.
(Superseded to 938-0347)

$10.99

$

Usually ships in 3-6 days

0

35

White Outdoor 756-0137

Fl-Idler Pulley 2.25" O.D.

$

$

Not available

36

White Outdoor 754-0257

"V"-Belt
(Superseded to 954-0257)

Note: (440, 550 & 552)

$36.99

$

In Stock, only 1 left!

0

White Outdoor 754-0282

"V"-Belt
(Superseded to 954-0282)

Note: (586)

$47.99

$

In Stock, only 4 left!

0

37

White Outdoor 710-0427

Hex Bolt 3/8-16 x 2" Lg.
(Superseded to 710-3144)

$4.49

$

In Stock, Qty 7

0

38

White Outdoor 712-0116

Hex Ins. Jam L-Nut 3/8-24 Thd.

$4.99

$

In Stock, Qty 6

0

39

White Outdoor 710-0459

Hex Bolt 3/8-24 x 1.50" Lg.
(Superseded to 710-0459A)

$6.99

$

In Stock, Qty 8

0

40

White Outdoor 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

41

White Outdoor 736-0247

Bell-Wash. .40" I.D. x 1.25" O.D.

Note: (440, 550 & 552)

$9.49

$

In Stock, Qty 16

0

White Outdoor 736-0242

Bell-Wash. .345" I.D. x .88" O.D.

Note: (586)

$4.49

$

In Stock, Qty 20+

0

42

White Outdoor 756-0421

Double Groove Engine Pulley

Note: (440, 550 & 552)

$

$

Not available

White Outdoor 756-0241B

Double Groove Engine Pulley

Note: (586). Code: N Notates a new part (not previously existing)

$99.99

$

In Stock, only 1 left!

0

43

White Outdoor 738-0215A

Shld. Scr. .498" x 3.0" Lg.

Note: (440, 550 & 552). Code: N Notates a new part (not previously existing)

$9.49

$

Usually ships in 3-6 days

0

White Outdoor 711-0769

Stud 3/8-16 x 3.37" Lg.

Note: (586)

$

$

Not available

44

White Outdoor 710-0117

Hex Bolt 5/16-24 x 1.00" Lg.
(Superseded to 710-0888)

$4.49

$

In Stock, Qty 5

0

45

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

46

White Outdoor 748-0234

Shld. Spacer .27" Lg.

$4.49

$

Usually ships in 3-6 days

0

47

White Outdoor 736-0105

Bell-Wash. .40" I.D. x .88" x .06

$4.49

$

In Stock, Qty 20+

0

48

White Outdoor 710-0237

Hex Bolt 5/16-24 x .62" Lg.

$4.49

$

In Stock, only 1 left!

0

49

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

50

White Outdoor 710-0599

Hex Wash. Hd. Self-Tap Scr. 1/4-20 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

51

White Outdoor 736-0173

Fl-Wash. .28" I.D. x .75" O.D. x .06

$4.49

$

In Stock, only 4 left!

0

52

White Outdoor 731-0642

Belt Cover

$31.99

$

Usually ships in 3-6 days

0

53

White Outdoor 750-0456

Spacer

Note: (440, 550 & 552)

$4.49

$

In Stock, Qty 20+

0

54

White Outdoor 756-0225

Fl-Idler Pulley 2.75" O.D.

$

$

Not available

56

White Outdoor 710-0623

Hex Wash. Hd. Self-Tap Scr. 3/8-16 x .75" Lg.

$4.49

$

In Stock, only 2 left!

0

?57

White Outdoor 725-0954

Ignition Key
(Superseded to TC-35062)

Note: (Not shown)

$3.99

$

In Stock, only 1 left!

0

58

White Outdoor 711-0769

Stud 3/8-16 x 3.37" Lg.

$

$

Not available

59

White Outdoor 736-0217

L-Wash. 3/8" I.D. - H.D.

$4.49

$

In Stock, Qty 9

0
