SB-400 (313-192-190) - White Outdoor Snow Boss Snow Thrower (1993) Snow Thrower Parts Diagram

Snow Boss Snow Thrower

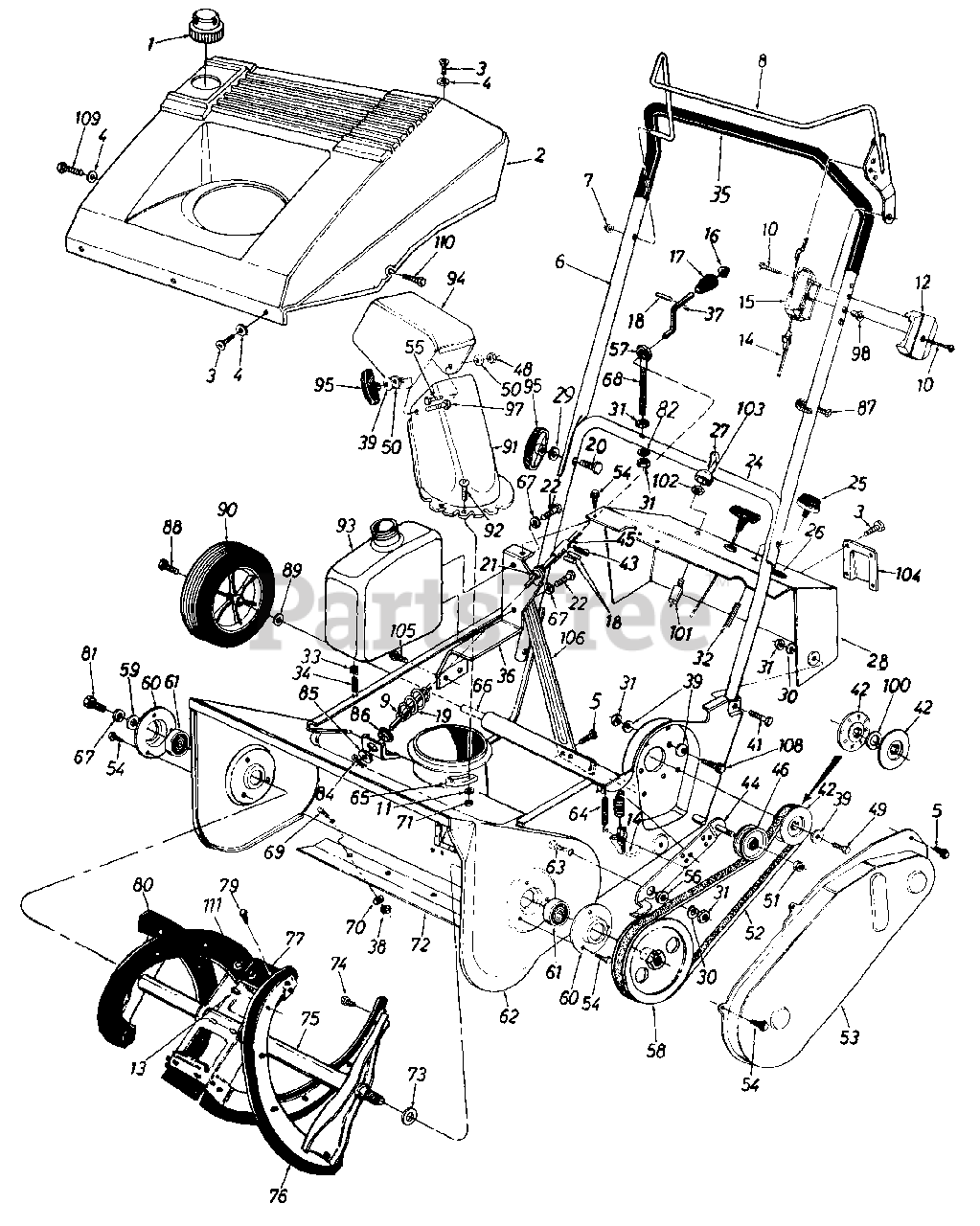

Snow Thrower Parts Diagram

  • Title

1

MTD 751-0603A

Gas Tank Cap
(Superseded to 751-0603B)

$23.99

$

Usually ships in 3-6 days

0

2

MTD 731-1087A

Shroud

$

$

Not available

3

MTD 710-0351

Hex B-Tap Scr. #10 x .5" Lg.

$4.49

$

Usually ships in 3-6 days

0

4

MTD 736-0931

Fl-Wash. .203" I.D. x .41"

$4.99

$

In Stock, only 1 left!

0

5

MTD 910-0892

Hex L-Wash. Hd. AB-Tap 1/4 x .62" Lg.

$

$

Not available

6

MTD 749-0711A

Upper Handle

Note: NLA

Variations

MTD 749-0711A-0637

No Longer Available HANDLE-UPP - POWDER BLACK (0637)

$

$

Not available

MTD 749-0711A-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

7

MTD 726-0135

Cap Speed Nut

$6.99

$

In Stock, only 1 left!

0

8

MTD 784-5346A

Control Handle Ass'y. - L.H.

Note: NLA

$

$

Not available

9

MTD 936-0140

Fl-Wash. .385" I.D. x .62"
(Superseded to 736-0140)

$

$

Not available

10

MTD 710-0796

Truss Mach. Hi-B Tap Scr. #12 x 1.5" Lg.

$5.49

$

In Stock, only 1 left!

0

11

MTD 936-0142

Fl-Wash. .281" I.D. x .5" O.D.
(Superseded to 736-0142)

$4.99

$

In Stock, Qty 20+

0

12

MTD 731-0817A

Control Panel Half

$

$

Not available

13

MTD 928-0180

Pop Rivet .187" Dia.

$

$

Not available

14

MTD 946-0506

Clutch Cable 35" Lg.

$37.99

$

Usually ships in 3-6 days

0

15

MTD 731-0816

Control Panel Half

Note: NLA

$

$

Not available

16

MTD 926-0100

Push Cap 3/8" Rod
(Superseded to 726-0100)

$

$

Not available

17

MTD 720-0201A

Knob - 3/8" Dia. Hole

$10.99

$

In Stock, Qty 5

0

18

MTD 915-0138

Roll Pin 1/8" Dia. x .63" Lg.

$4.99

$

In Stock, only 1 left!

0

19

MTD 784-5497

Lower Chute Crank Ass'y.

$

$

Not available

20

MTD 710-1174

Curved Carriage Bolt 5/16-18 x 1.75" Lg.

$7.49

$

In Stock, Qty 20+

0

21

MTD 735-0234

Chute Crank Grommet

$5.49

$

In Stock, only 2 left!

0

22

MTD 910-0289

Hex Bolt 1/4-20 x .5" Lg.

$3.99

$

In Stock, only 3 left!

0

24

MTD 749-0796B-0637

Lower Handle

$

$

Not available

25

MTD TC-570682A

Primer

$10.99

$

In Stock, Qty 7

0

26

MTD 731-1133C

Plastic Plug

$

$

Not available

27

MTD 725-1341B

Key

$10.99

$

In Stock, only 1 left!

0

28

MTD 784-5572

Dash Panel Ass'y.

Note: NLA

Variations

MTD 784-5572-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

MTD 784-5572-0629

No Longer Available - SILVER FLAKE (0629)

$

$

Not available

MTD 784-5572-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

MTD 784-5572-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 784-5572-0650

No Longer Available - RED METALLIC (0650)

$

$

Not available

MTD 784-5572-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

MTD 784-5572-0674

No Longer Available - YARDMAN YELLOW (0674)

$

$

Not available

MTD 784-5572-0686

No Longer Available - SIMPLICITY ORANGE (0686)

$

$

Not available

$

$

29

MTD 936-0451

Saddle Wash. .32" I.D. x .937" O.D.
(Superseded to 736-0451)

$4.49

$

In Stock, Qty 18

0

30

MTD 936-0119

L-Wash. 5/16" I.D.

$4.99

$

In Stock, Qty 20+

0

31

MTD 912-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

32

MTD TC-32180C

Primer Hose - 9" Lg.

$6.99

$

In Stock, Qty 9

0

33

MTD 726-0205

Hose Clamp - 1/2" O.D.

$3.99

$

In Stock, Qty 18

0

34

MTD 751-10349-28

Gas Line - 26" Lg.

$41.99

$

In Stock, only 1 left!

0

35

MTD 720-0295

Foam Grip 22" Lg.

$33.99

$

Usually ships in 3-6 days

0

36

MTD 705-5139

Gas Tank Support Brkt.

Note: NLA

$

$

Not available

37

MTD 747-0737-0637

Upper Chute Crank

$45.99

$

Usually ships in 3-6 days

0

38

MTD 912-0298

Hex Jam Nut 1/4-20 Thd.

$6.49

$

Usually ships in 3-6 days

0

39

MTD 736-0242

Bell-Wash. .345" I.D. x .88"

$4.49

$

In Stock, Qty 20+

0

41

MTD 710-0805

Hex Bolt 5/16-18 x 1.5" Lg.
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

42

MTD 956-0416B

3/8" "V"-Pulley Half .625" I.D. x 6.0" O.D.

$10.99

$

In Stock, only 2 left!

0

43

MTD 914-0111

Cotter Pin 3/32" Dia.
(Superseded to 714-0111)

$4.99

$

In Stock, Qty 13

0

44

MTD 753-05156

Idler Brake Brkt. Ass'y.

$

$

Not available

45

MTD 950-0785

Spacer .38" I.D. x 1.12" Lg.

$32.99

$

Usually ships in 3-6 days

0

46

MTD 756-0313

Fl-Idler w/Flanges 2.12" O.D.

$26.99

$

In Stock, Qty 6

0

48

MTD 912-0158

Hex L-Nut 5/16-18 Thd.

$3.49

$

In Stock, Qty 13

0

49

MTD 710-0157

Hex Bolt 5/16-24 x .75" Lg.

$4.49

$

In Stock, Qty 18

0

50

MTD 936-0231

Fl-Wash. .344" I.D. x 1.25"
(Superseded to 736-0231)

$

$

Not available

51

MTD 912-0296

Hex Patch L-Nut 3/8-24 Thd.

$2.99

$

In Stock, only 1 left!

0

52

MTD 954-0101A

V-Belt

$28.99

$

In Stock, Qty 20+

0

53

MTD 784-5176

Belt Cover
(Superseded to 790-00045C-0637)

Variations

MTD 784-5176-0483

Belt Cover, Black - CHARCOAL GRAY (0483)

$57.99

$

Usually ships in 3-6 days

0

MTD 784-5176-0629

Belt Cover, Black - SILVER FLAKE (0629)

$57.99

$

Usually ships in 3-6 days

0

MTD 784-5176-0637

Belt Cover, Black - POWDER BLACK (0637)

$57.99

$

Usually ships in 3-6 days

0

MTD 784-5176-0638

Belt Cover, Red - MTD/TROY-BILT RED (0638)

$57.99

$

Usually ships in 3-6 days

0

MTD 784-5176-0716

Belt Cover, Black - CUB YELLOW-99 (0716)

$57.99

$

Usually ships in 3-6 days

0

MTD 784-5176-0498

USE 790-00045A COVER-BELT - OLD CUB YELLOW (0498)

$46.99

$

Usually ships in 3-6 days

0

MTD 784-5176-0650

COVER-BELT - RED METALLIC (0650)

$46.99

$

Usually ships in 3-6 days

0

MTD 784-5176-0662

COVER-BELT - OYSTER GRAY (0662)

$46.99

$

Usually ships in 3-6 days

0

MTD 784-5176-0674

COVER-BELT - YARDMAN YELLOW (0674)

$46.99

$

Usually ships in 3-6 days

0

MTD 784-5176-0691

COVER-BELT SINGLE - BLACK JACK (0691)

$

$

Not available

MTD 784-5176-0665

COVER-BELT SINGLE - YARDMAN GREEN (0665)

$

$

Not available

$57.99

$

Usually ships in 3-6 days

0

54

MTD 710-0352

Hex B-Tap Scr. 1/4" x .38" Lg.

$4.99

$

Usually ships in 3-6 days

0

55

MTD 710-0451

Carriage Bolt 5/16-18 x .75"

$4.49

$

In Stock, Qty 20+

0

56

MTD 748-0234

Shld. Spacer .50" Dia. x .27"

$4.49

$

In Stock, Qty 20+

0

57

MTD 941-0475

Plastic Bushing .38" I.D.

$4.49

$

In Stock, Qty 20+

0

58

MTD 756-0475

1/2" "V"-Pulley 1/2-20 L.H. x 6"

$79.99

$

Usually ships in 3-6 days

0

59

MTD 936-0176

Fl-Wash. 1/4" I.D. x .93" O.D.
(Superseded to 736-0176)

$4.99

$

In Stock, only 4 left!

0

60

MTD 784-5174-0637

Bearing Cup

$

$

Not available

61

MTD 941-0600

Ball Brg. .669" I.D. x 1.574"

$25.99

$

In Stock, Qty 20+

0

62

MTD 784-5325D

Blower Hsg. Ass'y.

Note: NLA

Variations

MTD 784-5325D-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

MTD 784-5325D-0498

No Longer Available HOUSING AS - OLD CUB YELLOW (0498)

$

$

Not available

MTD 784-5325D-0629

No Longer Available - SILVER FLAKE (0629)

$

$

Not available

MTD 784-5325D-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 784-5325D-0662

No Longer Available HOUSING AS - OYSTER GRAY (0662)

$

$

Not available

$

$

63

MTD 710-0323

Truss Mach. Scr. 5/16-18 x .75" Lg.

$4.99

$

In Stock, only 2 left!

0

64

MTD 932-0357A

Extension Spring 1.12" Lg.
(Superseded to 732-0357A)

$4.49

$

In Stock, Qty 13

0

65

MTD 731-0851A

Chute Flange Keeper

$4.49

$

In Stock, Qty 20+

0

66

MTD 711-0848

Wheel Axle 20.6" Lg.

Note: NLA

$

$

Not available

67

MTD 936-0329

L-Wash. 1/4" I.D.

$4.49

$

In Stock, Qty 11

0

68

MTD 747-0697

Eyebolt

$8.49

$

In Stock, only 1 left!

0

69

MTD 710-0167

Carriage Bolt 1/4-20 x .50"
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

70

MTD 736-0173

Fl-Wash. .281" I.D. x .73"

$4.49

$

In Stock, Qty 20+

0

71

MTD 912-0291

Hex L-Nut 1/4-20 Thd.
(Superseded to 712-0291)

$

$

Not available

72

MTD 731-1033

Shave Plate

$47.99

$

In Stock, Qty 14

0

73

MTD 936-0326

Fl-Wash. .510" I.D. x 1.0" O.D.
(Superseded to 736-0326)

$4.49

$

In Stock, only 4 left!

0

74

MTD 710-0896

Hex Wash. B-Tap Scr. 1/4 x .62" (Spec.)

$4.49

$

In Stock, Qty 20+

0

75

MTD 984-04027A

Auger Ass'y.

$196.99

$

In Stock, Qty 10

0

76

MTD 931-0780A

Rubber Spiral - L.H.

$27.99

$

In Stock, Qty 14

0

77

MTD 931-0782A

Rubber Paddle

$6.99

$

In Stock, Qty 10

0

79

MTD 710-04669

Hex Wash. B-Tap Scr. #10 x .62" Lg.

$3.49

$

In Stock, Qty 20+

0

80

MTD 931-0780A

Rubber Spiral - R.H.

$27.99

$

In Stock, Qty 14

0

81

MTD 710-0875

Hex Wash. TT-Tap Cl-Scr. 1/4-20 x .75" Lg.

$3.99

$

In Stock, only 2 left!

0

82

MTD 936-0451

Saddle Wash. .32" I.D.
(Superseded to 736-0451)

$4.49

$

In Stock, Qty 18

0

84

MTD 914-0507

Cotter Pin 3/32" Dia. x .75"

$4.49

$

In Stock, Qty 17

0

85

MTD 936-0133

Fl-Wash. .406" I.D. x 1.25"
(Superseded to 736-0133)

$

$

Not available

86

MTD 741-0403

Hex Bushing .385" I.D.

$

$

Not available

87

MTD 725-0157

Cable Tie

$3.99

$

In Stock, only 2 left!

0

88

MTD 710-0773

Hex Tap Scr. 3/8-24 x .88" Lg.

$7.49

$

In Stock, only 3 left!

0

89

MTD 936-0108

Fl-Wash. .510" I.D. x .75"

$6.99

$

In Stock, only 4 left!

0

90

MTD 734-1176

7" Wheel & Tire Ass'y.

Note: NLA

$

$

Not available

91

MTD 731-0915C

Lower Chute

$

$

Not available

92

MTD 710-0924

Truss Mach. Scr. 1/4-20 x .75"

$4.49

$

In Stock, Qty 20+

0

93

MTD 751-0540A

Fuel Tank - Two Qt.

$

$

Not available

94

MTD 731-04426A

Upper Chute
(Superseded to 731-04426C)

$19.99

$

In Stock, only 3 left!

0

95

MTD 720-04072A

Knob Handle Ass'y.

$6.99

$

In Stock, Qty 20+

0

97

MTD 710-0276

Carriage Bolt 5/16-18 x 1"

$3.99

$

In Stock, Qty 11

0

98

MTD 731-0524

Control Disc Pin

Note: NLA

$

$

Not available

100

MTD 936-0116

Fl-Wash. .635" I.D. x .93" O.D. x .06"

$6.99

$

In Stock, only 1 left!

0

101

MTD 925-1425

Key Switch

$35.99

$

In Stock, Qty 6

0

102

MTD 925-1346

Ignition Switch Nut 5/8-32 Thd.

$

$

Not available

103

MTD 725-1347

Ignition Switch Cap

$4.99

$

In Stock, only 1 left!

0

104

MTD 731-1089A

Choke Cover

$

$

Not available

105

MTD 710-0599

Hex Wash. Hd. Tap Scr. 1/4-.5" Lg.

$4.49

$

In Stock, Qty 20+

0

106

MTD 784-5603

Gas Tank Brace

Note: NLA

Variations

MTD 784-5603-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

108

MTD 710-0759

Hex Bolt 5/16-18 x 5/8" Lg.

$6.99

$

Usually ships in 3-6 days

0

109

MTD 710-1056

Pan Hd. Tap Scr. #10 x 1.25" Lg.

Note: NLA

$

$

Not available

110

MTD 710-0788

Hex Wash. Hd. Tap Scr. 1/4-20 x 1" Lg.

$7.49

$

In Stock, only 2 left!

0

111

MTD 710-1017

Torx AB-Tap Scr. 1/4 x .62" Lg.

$8.49

$

In Stock, Qty 9

0

MTD OEM-390-996

120V Electric Starter Kit

Note: NLA

$

$

Not available
