SB-40 (316-152-190) - White Outdoor Snow Boss Snow Thrower (1996) Engine And V-Belt Parts Diagram

Snow Boss Snow Thrower

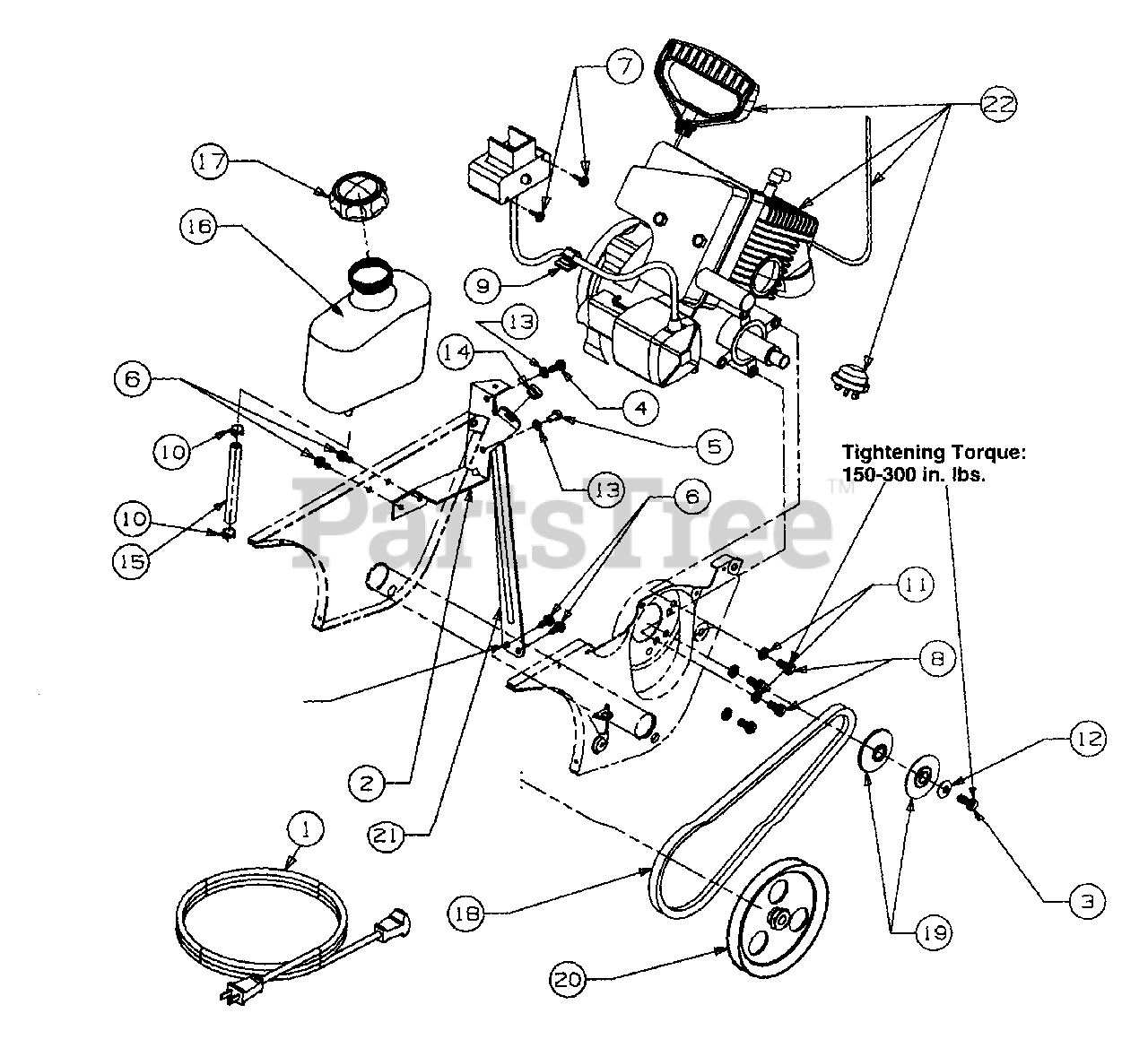

Engine And V-Belt Parts Diagram

  • Title

1

MTD 629-0236

Cord - Extension 110V3M 2 Prong

Note: For model 316E162-190 Only

$

$

Not available

2

MTD 705-5139

Bracket - Support Fuel Tank

Note: NLA

$

$

Not available

3

MTD 710-0157

Screw - Hex Cap

$4.49

$

In Stock, Qty 18

0

4

MTD 710-0751

Screw - Hex Cap

$3.99

$

In Stock, Qty 20+

0

5

MTD 910-0289

Screw - Hex

$3.99

$

In Stock, only 3 left!

0

6

MTD 710-0896

Screw - Washer

$4.49

$

In Stock, Qty 20+

0

7

MTD 710-04669

Screw - Hex

Note: For model 316E162-190 Only

$3.49

$

In Stock, Qty 20+

0

8

MTD 710-3025

Screw - Hex Cap

$3.99

$

In Stock, Qty 8

0

9

MTD 726-0152

Clamp - Mounting

Note: NLA - For model 316E162-190 Only

$

$

Not available

10

MTD 726-0205

Clamp - Hose

$3.99

$

In Stock, Qty 18

0

11

MTD 936-0119

Washer - Lock

$4.99

$

In Stock, Qty 20+

0

12

MTD 736-0242

Washer - Bell

$4.49

$

In Stock, Qty 20+

0

13

MTD 936-0329

Washer - Lock

$4.49

$

In Stock, Qty 11

0

14

MTD 941-0475

Bushing - Plastic

$4.49

$

In Stock, Qty 20+

0

15

MTD 751-10349-16

Hose - Fuel Line 16"

$19.99

$

In Stock, Qty 11

0

16

MTD 751-0540A

Tank - Fuel 2 Qt.

$

$

Not available

17

MTD 751-0603A

Cap - Fuel
(Superseded to 751-0603B)

$23.99

$

In Stock, only 1 left!

0

18

MTD 954-0101A

V-Belt

$28.99

$

In Stock, Qty 20+

0

19

MTD 956-0416B

V-Pulley Half

$10.99

$

In Stock, only 2 left!

0

20

MTD 756-0475

Pulley

$79.99

$

Usually ships in 3-6 days

0

21

MTD 784-5603

Brace - Fuel Tank

Note: NLA

Variations

MTD 784-5603-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

22

Engine

Note: Obtain from Manufacturer

$

$

Not available
