SB-40 (315-152-190) - White Outdoor Snow Boss Snow Thrower (1995) Gas Tank & Pulley Illustration Parts Diagram

Snow Boss Snow Thrower

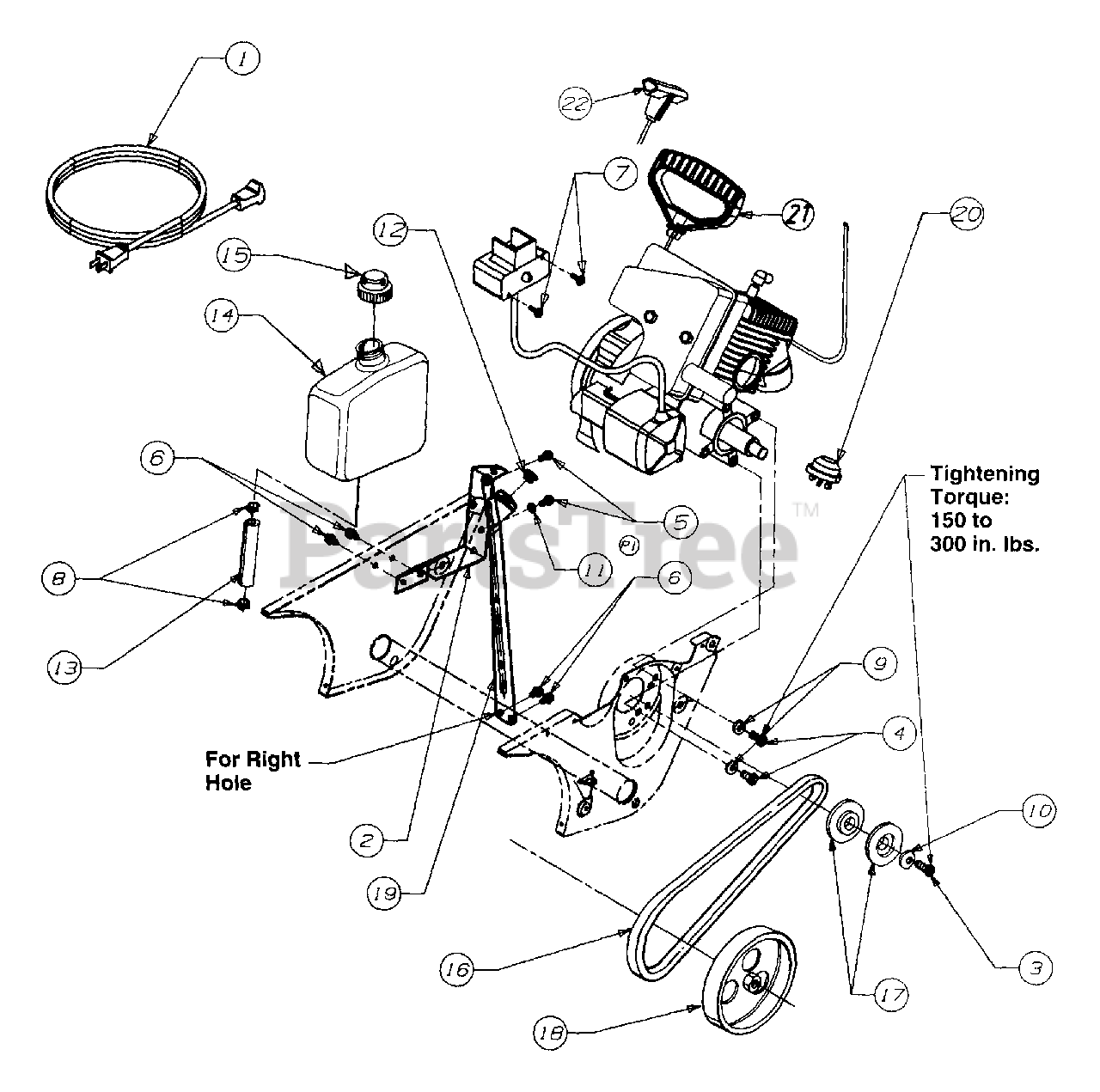

Gas Tank & Pulley Illustration Parts Diagram

  • Title

1

MTD 629-0236

Cord, Ext. 120V (E162 Only)

$

$

Not available

2

MTD 705-5139

Gas Tank Support Brkt.

Note: NLA

$

$

Not available

3

MTD 710-0157

Scr., Hex Cap 5/16-24, .750 Gr. 5

$4.49

$

In Stock, Qty 15

0

4

MTD 710-0237

Scr., Hex Cap 5/16-24, .620 Gr. 5

$4.49

$

In Stock, only 1 left!

0

5

MTD 710-0599

Scr., Hex Wash. 1/4-20, .500 Gr. 2

$4.49

$

In Stock, Qty 20+

0

6

MTD 910-0892

Scr., Hex Wash. 1/4 x .62 AB Tapp

$

$

Not available

7

MTD 710-04669

Scr., Hex B-Tapp Wash. #10-16 x .62 (E162 Only)

$3.49

$

In Stock, Qty 20+

0

8

MTD 726-0205

Hose Clamp

$3.99

$

In Stock, Qty 20+

0

9

MTD 936-0119

L-Wash. 5/16 I.D.

$4.99

$

In Stock, Qty 20+

0

10

MTD 736-0242

Wash., Bell. .345 I.D. x .88 O.D. x .06

$4.49

$

In Stock, Qty 20+

0

11

MTD 936-0329

Wash., Lock 1/4

$4.49

$

In Stock, Qty 9

0

12

MTD 941-0475

Bushing, Plastic

$4.49

$

In Stock, Qty 20+

0

13

MTD 751-10349

Hose, Fuel Line 25 x 16"

$9.49

$

Usually ships in 3-6 days

0

14

MTD 751-0540A

Tank, 2 Quart

$

$

Not available

15

MTD 751-0603A

Fuel Cap
(Superseded to 751-0603B)

$23.99

$

In Stock, only 3 left!

0

16

MTD 954-0101A

V - Belt

$28.99

$

In Stock, Qty 20+

0

17

MTD 956-0416B

V - Pulley Half

$10.99

$

In Stock, only 2 left!

0

18

MTD 756-0475

Pulley

$79.99

$

Usually ships in 3-6 days

0

19

MTD 784-5603

Brace, Gas Tank

Note: NLA

Variations

MTD 784-5603-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

20

MTD TC-570682A

Primer

$10.99

$

In Stock, Qty 5

0

21

MTD 7510009636

Handle, Mitten (E162)

$

$

Not available

22

MTD 7519630

Handle, Recoil (152)

Note: NLA

$

$

Not available
