SB-30 (31A-142-190) - White Outdoor Snow Boss Snow Thrower (1999) Shroud And Chute Crank Assembly Parts Diagram

Snow Boss Snow Thrower

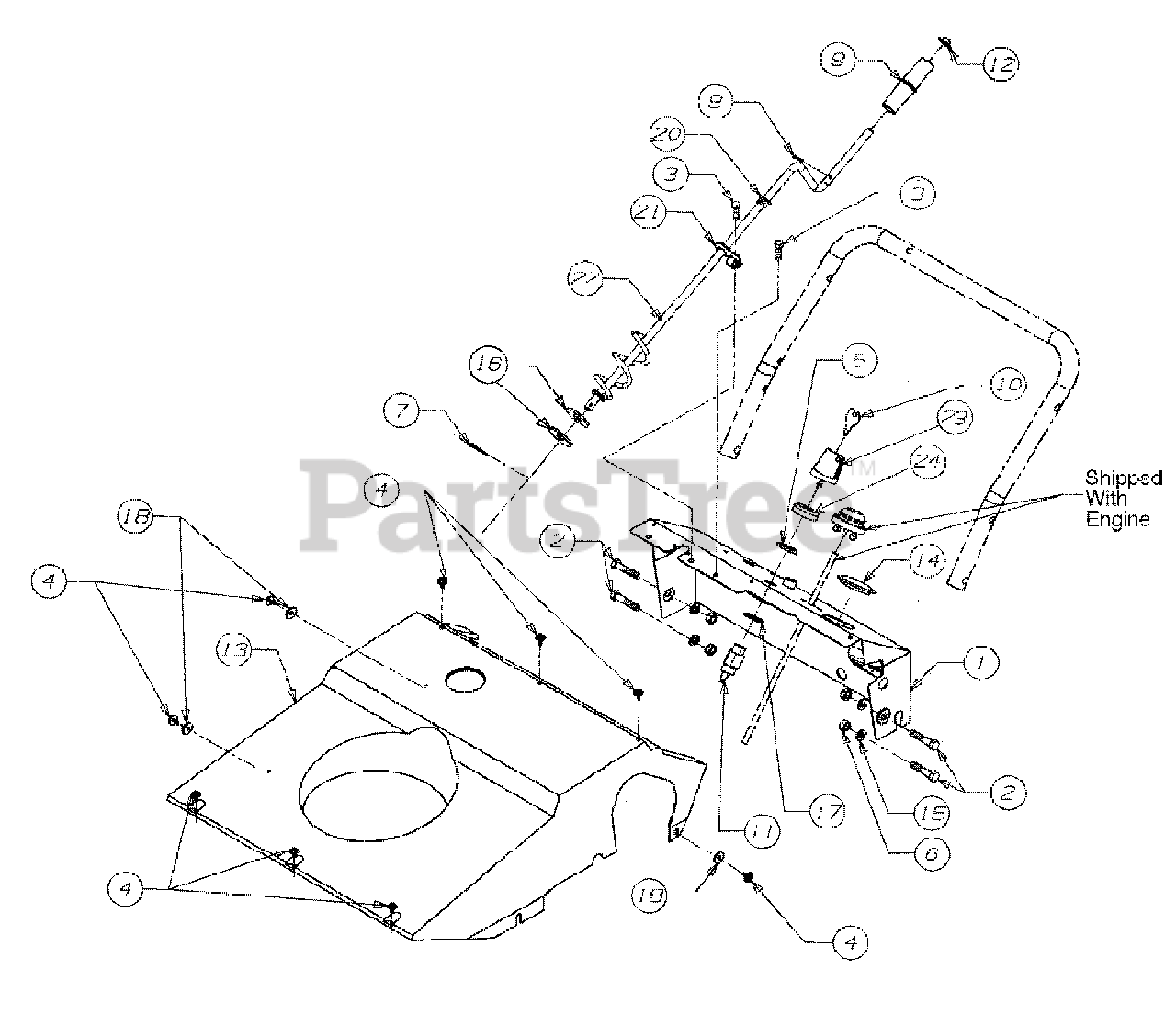

Shroud And Chute Crank Assembly Parts Diagram

  • Title
1

MTD 684-0056-0662

Dash-21"

Note: NLA

$

$

Not available

2

MTD 710-0805

Screw-Hex
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

3

MTD 710-0895

Screw-Hex Tap

$6.49

$

Usually ships in 3-6 days

0

4

MTD 710-1268

Screw-Hex Tap

$4.49

$

In Stock, only 2 left!

0

5

MTD 712-1346

Nut Hex

Note: NLA

$

$

Currently unavailable

6

MTD 912-0267

Nut-Hex
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

7

MTD 914-0474

Pin-Cotter
(Superseded to 714-0474)

$

$

Not available

8

MTD 915-0138

Pin Roll

$4.99

$

In Stock, only 1 left!

0

9

MTD 720-0201A

Knob-Chute Crank

$10.99

$

In Stock, Qty 5

0

10

MTD 925-0201

Key-Ignition - Std.

$9.49

$

In Stock, only 1 left!

0

11

MTD 925-1425

Switch-Key

$35.99

$

In Stock, Qty 6

0

12

MTD 926-0100

Nut Push
(Superseded to 726-0100)

$

$

Not available

13

MTD 731-1553

Shroud-Grey

Note: NLA

$

$

Not available

14

$

$

Not available

15

MTD 936-0119

Washer Lock

$4.99

$

In Stock, Qty 20+

0

16

MTD 936-0185

Washer-Flat
(Superseded to 736-0185)

$3.99

$

In Stock, Qty 20+

0

17

MTD 736-0225

Washer Internal Lock

$4.49

$

In Stock, only 2 left!

0

18

MTD 936-0400

Washer Flat
(Superseded to 736-0400)

$

$

Not available

20

MTD 941-0475

Bushing

$4.49

$

In Stock, Qty 20+

0

21

MTD 784-5178A

Bracket Chute Crank

$

$

Not available

22

MTD 784-5344

Crank Ass'y. Chute

$

$

Not available

23

MTD 725-1341B

Key-Ignition w/Bell Cover

$10.99

$

In Stock, only 1 left!

0

24

MTD 725-1347

Cover - Ignition Switch

$4.99

$

In Stock, only 1 left!

0
