SB-30 (315-142-190) - White Outdoor Snow Boss Snow Thrower (1995) Engine Support and Gas Tank Parts Diagram

Snow Boss Snow Thrower

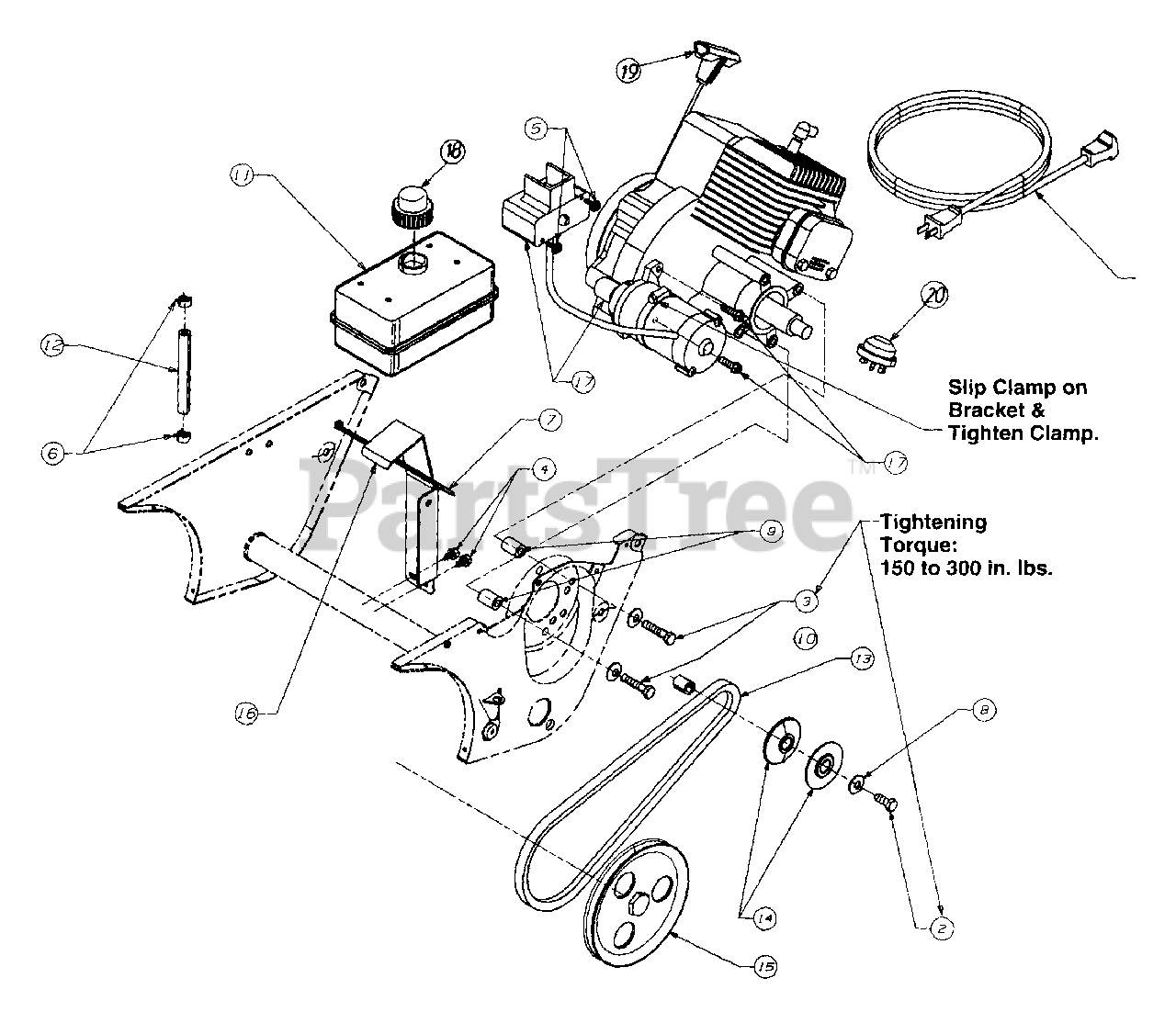

Engine Support and Gas Tank Parts Diagram

  • Title

1

MTD 629-0236

Cord, Extension 120V (E142 Only)

$

$

Not available

2

MTD 710-0157

Screw, Hex Cap

$4.49

$

In Stock, Qty 15

0

3

MTD 710-0805

Screw, Hex Cap
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

4

MTD 910-0892

Screw, Hex Washer

$

$

Not available

5

MTD 710-04669

Screw, Hex Self-Tapping (E142 Only)

$3.49

$

In Stock, Qty 20+

0

6

MTD 726-0205

Hose Clamp

$3.99

$

In Stock, Qty 20+

0

7

MTD 726-0225

Cable Tie

Note: NLA

$

$

Not available

8

MTD 736-0242

Washer, Bell

$4.49

$

In Stock, Qty 20+

0

9

MTD 950-0589

Spacer

$6.49

$

Usually ships in 3-6 days

0

10

MTD 750-0716

Spacer
(Superseded to 750-0716A)

$

$

Not available

11

MTD 751-0352

Tank, Gas 1 Qt.
(Superseded to TC-32660A)

$

$

Not available

12

MTD 751-0535

Hose, Fuel Line .25 x 6"

Note: NLA

$

$

Currently unavailable

13

MTD 954-0367

V - Belt

$29.99

$

In Stock, Qty 20+

0

14

MTD 956-0416B

V - Pulley Half

$10.99

$

In Stock, only 2 left!

0

15

MTD 756-0550

Pulley

$

$

Not available

16

MTD 784-5177

Engine Support Brkt.

Note: NLA

Variations

MTD 784-5177-0637

No Longer Available BRACKET-EN - POWDER BLACK (0637)

$

$

Not available

$

$

17

MTD 8511133106

Starter (E142 Only)

Note: NLA

$

$

Currently unavailable

18

MTD 7514B50126

Gas Cap

Note: NLA

$

$

Currently unavailable

19

MTD 7519630

Handle, Recoil

Note: NLA

$

$

Not available

20

MTD TC-570682A

Primer

$10.99

$

In Stock, Qty 5

0
