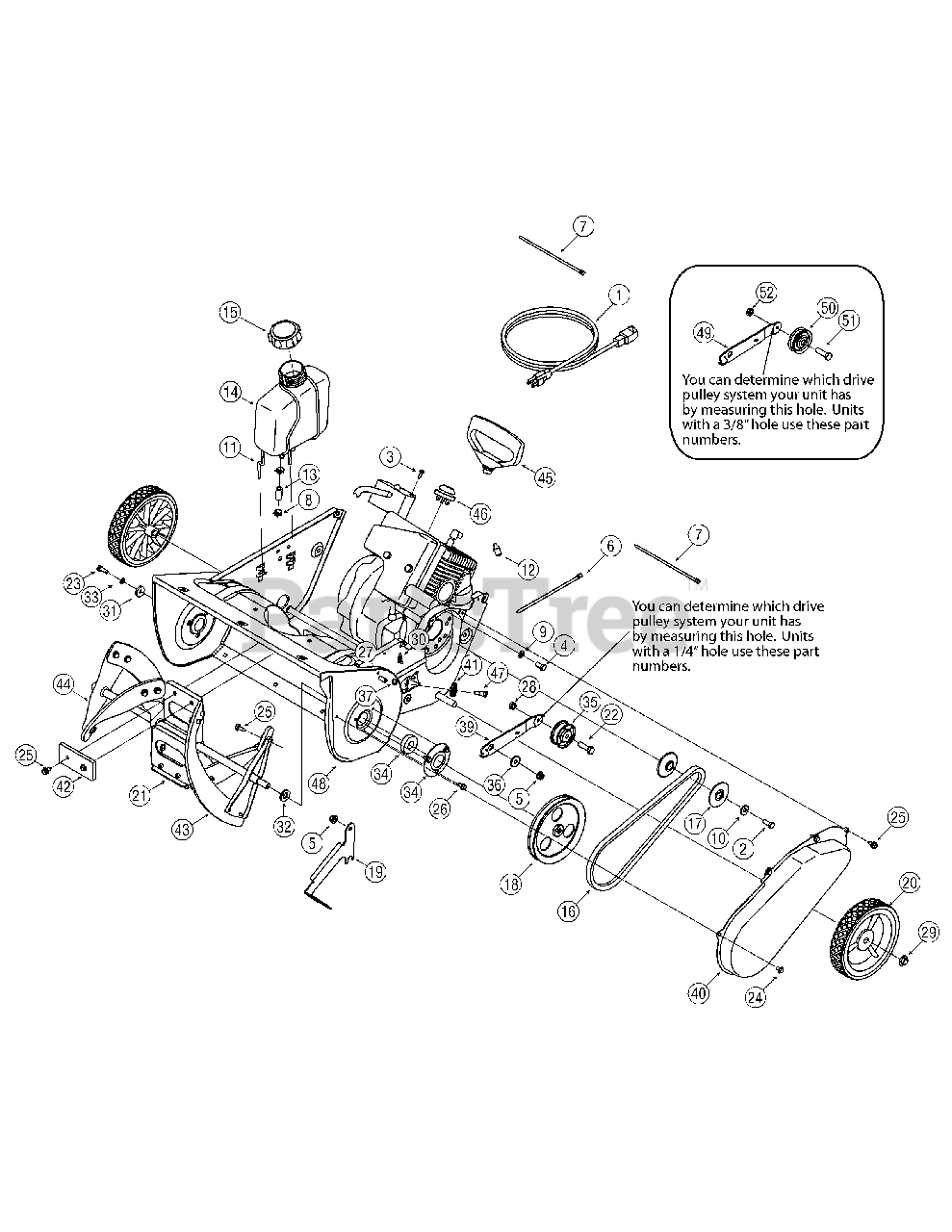

SB-221 (31AS235-790) - White Outdoor Snow Boss 21" Snow Thrower (2005-2) General Assembly Parts Diagram

Snow Boss 21" Snow Thrower

General Assembly Parts Diagram

  • Title

1

White Outdoor 629-0236

Extension Cord

$

$

Not available

2

White Outdoor 710-0627

Hex Screw, 5/16-24 x .75

$4.49

$

In Stock, Qty 20+

0

3

White Outdoor 710-1003

Screw, #10-16 x .625
(Superseded to 710-04669)

$3.49

$

In Stock, Qty 10

0

4

White Outdoor 710-3025

Hex Screw, 5/16-18 x .625

$3.99

$

In Stock, Qty 8

0

5

White Outdoor 712-04063

Hex Flange Lock Nut, 5 1/16-18

$3.99

$

In Stock, Qty 20+

0

6

White Outdoor 725-0157

Push Mount Cable Tie

$3.99

$

In Stock, only 2 left!

0

7

White Outdoor 726-0154

Push Mount Cable Tie
(Superseded to 926-0154)

$6.49

$

Usually ships in 3-6 days

0

8

White Outdoor 726-0205

Clamp, Hose

$3.99

$

In Stock, Qty 18

0

9

White Outdoor 736-0119

Washer, Lock 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

10

White Outdoor 736-0159

Flat Washer .349 x .879 x .063

$4.49

$

In Stock, Qty 20+

0

11

White Outdoor 747-04150

Gas Tank Support Wire

$

$

Not available

12

White Outdoor 7511825510

Choke Lever Knob
(Superseded to TC-35511)

$1.99

$

Usually ships in 3-12 days

0

13

751-0535

Hose, Fuel Line

$

$

Not available

14

White Outdoor 751-10023

Tank, Fuel
(Superseded to 951-10023)

$

$

Not available

15

White Outdoor 751-10049

Cap, Fuel
(Superseded to 751-0603B)

$23.99

$

In Stock, only 2 left!

0

16

White Outdoor 754-0101A

V-Belt, 1/2
(Superseded to 954-0101A)

$28.99

$

In Stock, Qty 20+

0

17

White Outdoor 756-0416B

Pulley Half, .625 ID x 2.25 OD
(Superseded to 956-0416B)

$10.99

$

In Stock, only 2 left!

0

18

White Outdoor 756-0475

Pulley, 1/2 V 1/2-20 LH x 6.0

$79.99

$

Usually ships in 3-6 days

0

19

White Outdoor 790-00225

2-Cycle Mounting Bracket
(Superseded to 790-00225-0637)

Variations

White Outdoor 790-00225-0637

BRACKET:ENGINE 2 - POWDER BLACK (0637)

$

$

Not available

$

$

20

White Outdoor 734-04070

Wheel, 7 x 1.61 Dia. Tread

$18.99

$

Usually ships in 3-6 days

0

21

White Outdoor 684-04027A

Auger Assembly Complete
(Superseded to 984-04027A)

$196.99

$

In Stock, Qty 10

0

22

White Outdoor 710-0106

Hex Screw, 1/4-20 x 1.00 Gr.5

$3.99

$

In Stock, only 2 left!

0

23

White Outdoor 710-0642

Hex Screw 1/4-20 x .75 Gr. 5

$4.49

$

In Stock, Qty 20+

0

24

White Outdoor 710-0653

Self-tapping Screw 1/4-20 x x 3.75

$4.49

$

In Stock, Qty 13

0

25

White Outdoor 710-0896

Hex Screw, 1/4-14 x 0.625"

$4.49

$

In Stock, Qty 20+

0

26

White Outdoor 710-1005

Self-tapping Screw, 1/4-14 x .50
(Superseded to 710-0599)

$4.49

$

In Stock, Qty 20+

0

27

White Outdoor 710-3008

Hex Screw 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

28

White Outdoor 712-04064

Hex Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

29

White Outdoor 726-0299

Push Cap, 1/2"

$8.49

$

In Stock, Qty 20+

0

30

White Outdoor 732-0357A

Extension Spring

$4.49

$

In Stock, only 3 left!

0

31

White Outdoor 736-0176

Flat Washer .265 x .938 x.120

$4.99

$

In Stock, Qty 6

0

32

White Outdoor 736-0326

Flat Washer .510 x 1.0 x1.25

$4.49

$

In Stock, only 4 left!

0

33

White Outdoor 736-0329

Lock Washer, 1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

34

White Outdoor 741-0600

Ball Bearing 17 x 40 x 12
(Superseded to 941-0600)

$25.99

$

In Stock, Qty 20+

0

35

White Outdoor 684-04168

Idler Pulley (Pulley hole 1/4")

$38.99

$

Usually ships in 3-6 days

0

36

White Outdoor 748-0234

Shoulder Spacer .25

$4.49

$

Usually ships in 3-6 days

0

37

White Outdoor 712-0896

Hex Lock Nut 1/4-28

$4.99

$

In Stock, Qty 6

0

38

White Outdoor 784-5174

Bearing Cup
(Superseded to 784-5174-0637)

Variations

White Outdoor 784-5174-0637

BEARING CUP-POWDER BLACK - POWDER BLACK (0637)

$

$

Not available

$

$

39

White Outdoor 790-00238A

Idler Brkt. w/Brake (Pulley hole 1/4")
(Superseded to 790-00238A-0637)

Variations

White Outdoor 790-00238A-0637

Idler Bracket with Brake - POWDER BLACK (0637)

$10.99

$

Usually ships in 3-6 days

0

$10.99

$

Usually ships in 3-6 days

0

40

White Outdoor 790-00045

Belt Cover
(Superseded to 790-00045C)

Variations

White Outdoor 790-00045-0638

Belt Cover, Red - MTD/TROY-BILT RED (0638)

$57.99

$

Usually ships in 3-6 days

0

White Outdoor 790-00045-0691

COVER-BELT SINGLE - BLACK JACK (0691)

$

$

Not available

White Outdoor 790-00045-0662

COVER-BELT SINGLE - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 790-00045-0665

COVER-BELT SINGLE - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 790-00045-0709

COVER-BELT SINGLE - MASTERCRAFT GREEN (0709)

$

$

Not available

$46.99

$

Usually ships in 3-6 days

0

41

White Outdoor 756-0625

Cable Roller

$9.49

$

In Stock, Qty 16

0

42

White Outdoor 735-04033

Rubber Paddle

$8.49

$

In Stock, Qty 20+

0

43

White Outdoor 735-04032

Crescent Spiral

$18.99

$

In Stock, Qty 20+

0

44

White Outdoor 684-04025A

Auger Axle
(Superseded to 984-04027A)

Variations

White Outdoor 684-04025A-0637

Auger Assembly, 21" Complete - POWDER BLACK (0637)

$196.99

$

In Stock, Qty 10

0

$196.99

$

In Stock, Qty 10

0

45

White Outdoor 7510009636

Recoil Handle, Mitten

$

$

Not available

46

White Outdoor 7512B1476

Primer
(Superseded to TC-570682A)

$10.99

$

In Stock, only 1 left!

0

47

White Outdoor 738-0924

Carriage Screw 1/4-28
(Superseded to 738-0924A)

$6.99

$

In Stock, Qty 5

0

48

White Outdoor 684-04167

Auger Assembly Housing 21"

Variations

White Outdoor 684-04167-0665

HOUSING ASSY:AUGER - YARDMAN GREEN (0665)

$168.99

$

Usually ships in 3-6 days

0

White Outdoor 684-04167-0638

HOUSING ASSY:AUGER - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 684-04167-0650

HOUSING ASSY:AUGER - RED METALLIC (0650)

$

$

Not available

White Outdoor 684-04167-0668

HOUSING ASSY:AUGER - MOSS GREEN (0668)

$

$

Not available

White Outdoor 684-04167-0691

HOUSING ASSY:AUGER - BLACK JACK (0691)

$

$

Not available

White Outdoor 684-04167-0709

HOUSING ASSY:AUGER - MASTERCRAFT GREEN (0709)

$

$

Not available

$146.99

$

Usually ships in 3-6 days

0

49

White Outdoor 790-00238

Idler Brkt. w/ Brake (Pulley hole 38")
(Superseded to 790-00238A-0637)

$10.99

$

Usually ships in 3-6 days

0

50

White Outdoor 756-0313

Idler Pulley (3/8" hole)

$26.99

$

In Stock, Qty 6

0

51

White Outdoor 710-0191

Hex Screw 3/8-24 x 1.25

$4.99

$

In Stock, Qty 8

0

52

White Outdoor 712-0116

Jam Lock Nut 3/8--24

$4.99

$

In Stock, Qty 6

0
