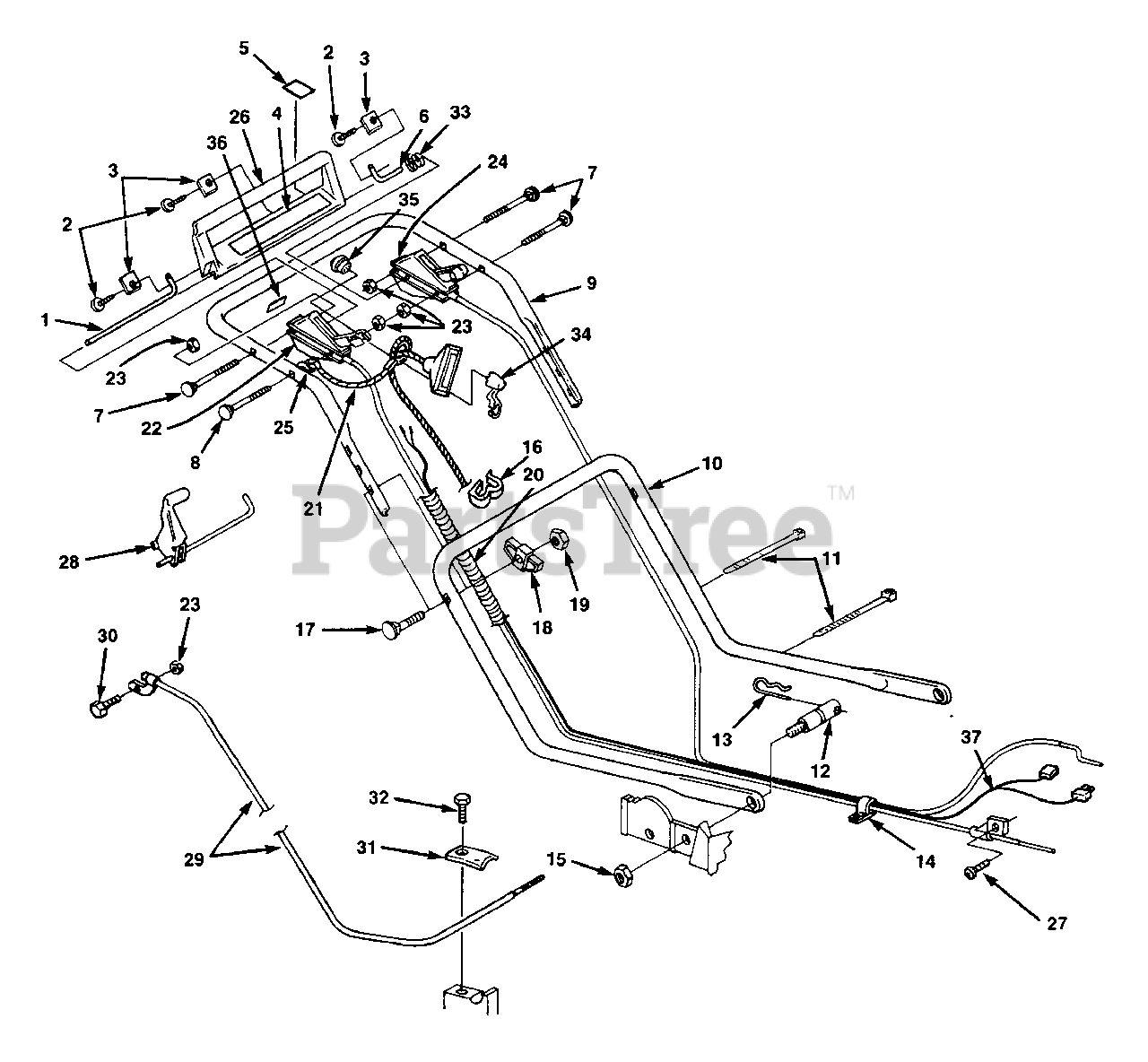

SB 21 P4E (UT-30087) - Homelite 21" Superbagger Walk-Behind Mower Handles And Controls Parts Diagram

21" Superbagger Walk-Behind Mower

Handles And Controls Parts Diagram

  • Title
1

SHAFT- Pivot

Note: Not used in this model

$

$

Not available

2

Homelite JA408881

SCREW- Rd. hd. (1/4-10 x 5/8")

$

$

Not available

3

Homelite JA992570

CLAMP- Pivot shaft

$

$

Currently unavailable

4

Homelite JA994070

DECAL- Brake bail

$

$

Currently unavailable

5

Homelite JA994090

DECAL- Blade Rotation

$4.49

$

Usually ships in 3-7 days

0

6

Homelite JA992560

SHAFT- Pivot (short)

$

$

Currently unavailable

7

Homelite JA992920

BOLT- Sq. neck

$

$

Currently unavailable

8

BOLT- Sq. neck

Note: Not used in this model

$

$

Not available

9

Homelite JA992350

HANDLE Upper

$

$

Currently unavailable

10

Homelite JA992360

HANDLE Lower

$

$

Currently unavailable

11

Homelite JA994274

TIE- Cable

$

$

Not available

12

Homelite JA359178

STUD- Handle Mtg.

$

$

Not available

13

Homelite JA460306

PIN- Cotter hair

$

$

Not available

$

$

Currently unavailable

15

Homelite JA445775

NUT- Hex Flange (5/16-18)
(Superseded to UP06674)

$

$

Not available

16

Homelite JA359289

CLIP- Cover

$30.99

$

Usually ships in 3-7 days

0

17

Homelite JA359102

BOLT Sq. neck

$

$

Not available

18

Homelite JA339550

KNOB Handle

$

$

Not available

19

Homelite JA443106

NUT- Hex (5/16-18)
(Superseded to 81018)

$

$

Not available

20

Homelite JA990626

COVER- Control cable

$

$

Not available

21

Homelite JA995390

ROPE- Restraint

$48.99

$

Usually ships in 3-7 days

0

22

Homelite JA992467

CONTROL- Manual start

$

$

Currently unavailable

23

Homelite JA444708

NUT- Hex locking (1/4-20)

$

$

Currently unavailable

24

Homelite JA993032

CONTROL- Throttle

$

$

Not available

25

WASHER- Curved

Note: Not used in this model

$

$

Not available

26

Homelite JA993190

BAIL- Brake control

$

$

Currently unavailable

27

Homelite JA403586

SCREW- Hex hd. (10-32 x 3/8")
(Superseded to UP07186)

$4.99

$

Usually ships in 3-7 days

0

28

Homelite JA995541

LEVER- Traction
(Superseded to JA995540)

$

$

Currently unavailable

29

Homelite JA991075

CABLE- Traction

$

$

Not available

30

Homelite JA400116

SCREW- Hex hd. (1/4-20 x 1 1/2")

$

$

Not available

$

$

Not available

32

Homelite JA409908

SCREW- Hx. hd.

$3.99

$

Usually ships in 3-7 days

0

33

Homelite JA990141

SPRING- Compression

$

$

Not available

34

Homelite JA990605

HOUSING- Switch

$

$

Not available

35

$

$

Currently unavailable

36

Homelite JA990618

DECAL- Switch

$

$

Currently unavailable

37

Homelite JA991226

WIRING HARNESS

$

$

Not available
