SB 21 P4E (UT-30065-A) - Homelite 21" Superbagger Walk-Behind Mower Grass Catcher Parts Diagram

21" Superbagger Walk-Behind Mower

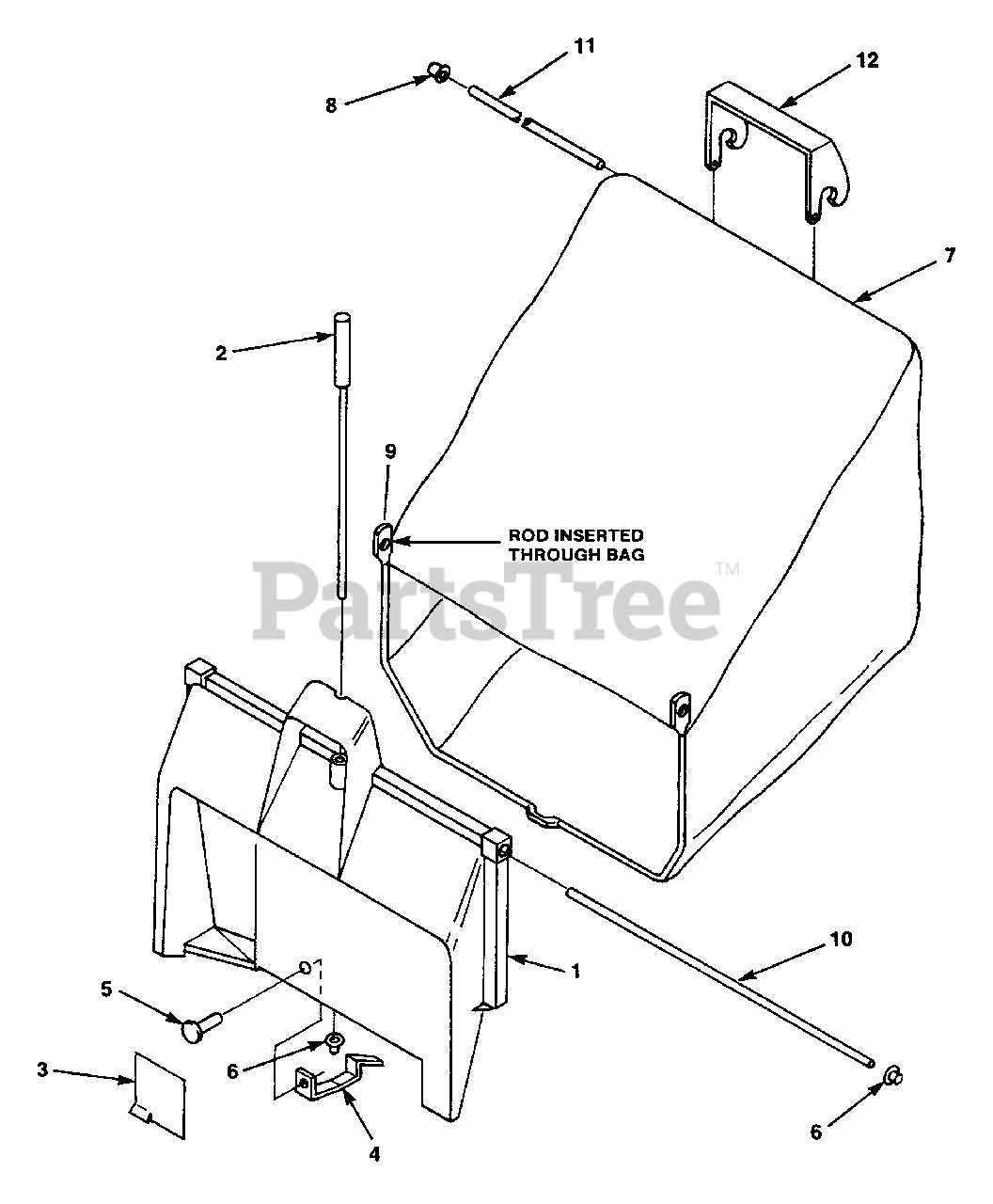

Grass Catcher Parts Diagram

  • Title
1

Homelite JA991789

ADAPTOR- Bag

Note: (includes #2 thru #6)

$

$

Currently unavailable

2

Homelite JA162009

ROD- Latch release
(Superseded to JA991788)

$

$

Not available

3

Homelite JA375660

DEFLECTOR

$

$

Currently unavailable

$

$

Currently unavailable

5

Homelite JA464845

RIVET- Pop 5/32 x 3/8

$

$

Currently unavailable

6

$

$

Currently unavailable

7

Homelite JA518759

GRASS CATCHER-

Note: (incl. #6 & #8)

$

$

Currently unavailable

8

$

$

Currently unavailable

9

Homelite JA336651

ROD- Bag Support

$

$

Not available

10

Homelite JA359168

ROD- Bag hinge

$

$

Currently unavailable

11

Homelite JA359169

ROD- Upper bag

$

$

Not available

12

Homelite JA991786

HANDLE- Upper bag

$

$

Not available
