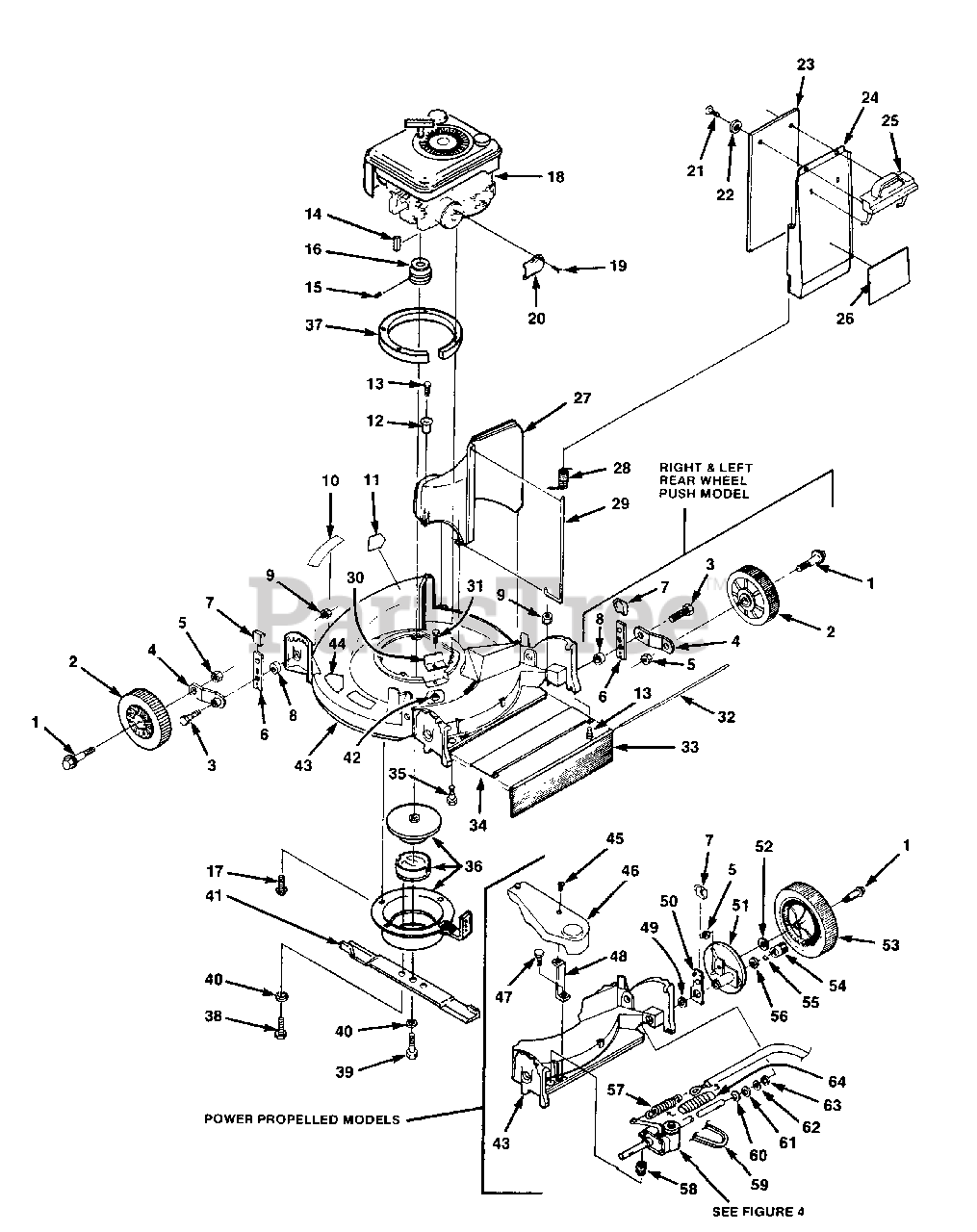

SB 21 P4C (UT-30063) - Homelite 21" Superbagger Walk-Behind Mower Mower Parts Diagram

21" Superbagger Walk-Behind Mower

Mower Parts Diagram

  • Title

1

Homelite JA359181

BOLT- Axle

$8.99

$

Usually ships in 3-7 days

0

2

Homelite JA121956

WHEEL & TIRE ASSEMBLY
(Superseded to UP06670)

$

$

Not available

3

Homelite JA359180

BOLT

$

$

Not available

4

Homelite JA991287

WHEEL- Adjuster arm
(Superseded to GP031455)

$

$

Currently unavailable

5

Homelite JA445776

NUT- 3/8-24

$

$

Currently unavailable

6

Homelite JA990087

SPRING
(Superseded to GP586051)

$44.99

$

Usually ships in 3-7 days

0

7

Homelite JA336623

KNOB
(Superseded to UP06697)

$

$

Not available

8

Homelite JA358362

SPACER

$

$

Not available

9

Homelite JA445775

NUT- Flange 5/16-20
(Superseded to UP06674)

$

$

Not available

10

Homelite JA991245

DECAL- Product ID

$

$

Currently unavailable

11

Homelite JA339460

DECAL- Warning

$

$

Not available

12

Homelite JA473183

SIMPSON EYELET

$10.99

$

Usually ships in 3-7 days

0

13

Homelite JA408878

SCREW- 1/4-20 x 3/4

$

$

Not available

14

Homelite JA463107

KEY- 5/8 x 5/32

$

$

Not available

15

Homelite JA422541

SCREW- Set 8/32

$5.99

$

Usually ships in 3-7 days

0

16

Homelite JA991176

PULLEY- Drive

$

$

Currently unavailable

17

Homelite JA409912

SCREW- (5/16 - 18)

$8.49

$

Usually ships in 3-7 days

0

18

Homelite JA991277

ENGINE- 3.5 H.P.

$

$

Currently unavailable

Homelite JA991908

ENGINE- 4.0 H.P.

$

$

Currently unavailable

19

Homelite JA408880

SCREW- #8-32 x 3/8

$

$

Currently unavailable

20

Homelite JA359256

DEFLECTOR

$

$

Not available

21

Homelite JA408881

SCREW- 1/4-10 x 5/8

$

$

Not available

22

Homelite JA453023

WASHER- Plain 1/4
(Superseded to 678013001)

$2.49

$

Usually ships in 3-7 days

0

23

Homelite JA359283

DAMP- Flap

$

$

Not available

24

Homelite JA991174

DOOR- Chute

$

$

Currently unavailable

25

Homelite JA390154

HANDLE

$9.99

$

Usually ships in 3-7 days

0

26

Homelite JA991217

DECAL- Door

$

$

Currently unavailable

27

Homelite JA991283

CHUTE

$

$

Currently unavailable

28

Homelite JA359258

SPRING
(Superseded to JA992947)

$

$

Not available

29

Homelite JA359167

PIN- Hinge

$

$

Not available

30

Homelite JA991401

COVER- Belt opening

Note: Not used on this product

$

$

Currently unavailable

31

Homelite JA409907

SCREW- 1/4-20 x 1/2

Note: Not used on this product

$

$

Not available

32

Homelite JA359170

ROD- Drag flap

$

$

Currently unavailable

33

Homelite JA359257

FLAP- Drag

$

$

Currently unavailable

34

Homelite JA991285

COVER

$

$

Currently unavailable

35

Homelite JA408885

SCREW- 3/8-16 x 2 1/4

$

$

Currently unavailable

36

Homelite JA991027

BLADE/BRAKE/CLUTCH

$

$

Currently unavailable

37

Homelite JA991235

RING- Engine

$

$

Currently unavailable

38

Homelite JA401208

SCREW- 3/8-16 x 1

$

$

Currently unavailable

39

Homelite JA401209

SCREW- 3/8-24 x 2

$

$

Currently unavailable

40

Homelite JA446142

WASHER- Lock 3/8

$

$

Not available

41

Homelite JA991189

BLADE-21"

$

$

Currently unavailable

42

Homelite JA444708

NUT- 1/4-20

Note: Not used on this product

$

$

Currently unavailable

43

Homelite JA991269

DECK ASSEMBLY

Note: (incl. decals)

$

$

Currently unavailable

44

Homelite JA993664

DECAL- Foot pad

$

$

Currently unavailable

45

Homelite JA408879

SCREW- 1/4-20 x 3/4

$

$

Currently unavailable

46

Homelite JA991219

COVER- Drive

$

$

Currently unavailable

47

Homelite JA409704

SCREW- Hex #10-16

$

$

Not available

48

Homelite JA359260

SUPPORT

$

$

Currently unavailable

49

Homelite JA359141

SPACER

$

$

Not available

50

Homelite JA991288

SPRING

$

$

Not available

51

Homelite JA990074

DRIVE WHEEL SUPPORT ASSY.
(Superseded to GP095304)

$

$

Not available

52

Homelite JA359500

WASHER

$

$

Not available

53

Homelite JA161596

WHEEL & TIRE
(Superseded to JA993975)

$

$

Not available

54

Homelite JA204244

PINION (R.H.)

$

$

Not available

Homelite JA204245

PINION (L.H.)

$

$

Currently unavailable

55

Homelite JA313659

PAWL- Pinion

$

$

Not available

56

Homelite JA351077

WASHER

$

$

Not available

57

Homelite JA375748

SPRING- Extension

$

$

Not available

58

Homelite JA359266

SPRING- Compression

$

$

Not available

59

Homelite JA991218

BELT- Drive

$

$

Not available

60

Homelite JA458451

RING- Eaton

$3.49

$

Usually ships in 3-7 days

0

61

Homelite JA353406

WASHER

$

$

Not available

62

Homelite JA328147

WASHER

$

$

Not available

63

Homelite JA454037

WASHER

$

$

Not available

64

Homelite JA359270

COVER- Spring

$

$

Currently unavailable
