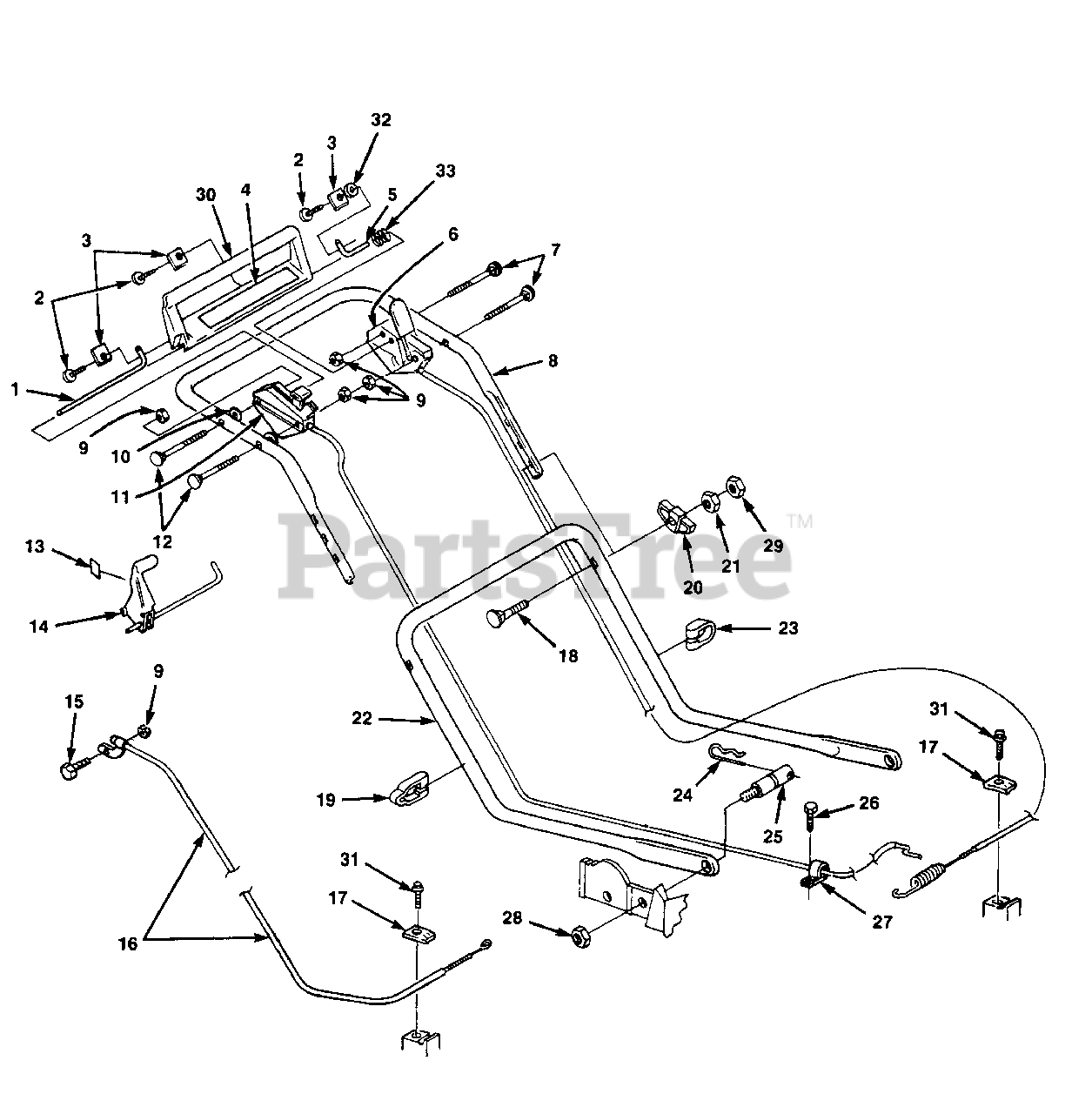

SB 21 C (UT-30064) - Homelite 21" Superbagger Walk-Behind Mower Handles & Controls Parts Diagram

21" Superbagger Walk-Behind Mower

Handles & Controls Parts Diagram

  • Title

1

Homelite JA995550

SHAFT- Pivot

$

$

Currently unavailable

2

Homelite JA408881

SCREW- 1/4-10 x 5/8

$

$

Not available

3

Homelite JA992570

CLAMP- Pivot shaft

$

$

Currently unavailable

4

Homelite JA994070

DECAL- Brake bail

$

$

Currently unavailable

5

Homelite JA992560

SHAFT- Pivot

$

$

Currently unavailable

6

Homelite JA991353

CONTROL- Blade/Brake/Clutch

$

$

Currently unavailable

7

Homelite JA992930

BOLT- Sq. Nk.

$5.49

$

Usually ships in 3-7 days

0

8

Homelite JA992350

HANDLE- Upper

$

$

Currently unavailable

9

Homelite JA444708

NUT- Hex 1/4-20

$

$

Currently unavailable

10

Homelite JA991469

SPACER

$

$

Currently unavailable

11

Homelite JA991214

CONTROL- Throttle
(Superseded to JA993035)

$

$

Currently unavailable

12

Homelite JA992920

BOLT- Sq. Nk.

$

$

Currently unavailable

13

Homelite JA994080

DECAL

Note: Not used on this product

$

$

Currently unavailable

14

Homelite JA995541

LEVER- Assembly-Traction
(Superseded to JA995540)

Note: Not used on this product

$

$

Currently unavailable

15

Homelite JA400116

SCREW- 1/4-20 x 1 1/2

Note: Not used on this product

$

$

Not available

16

Homelite JA991075

CABLE- Traction

Note: Not used on this product

$

$

Not available

17

Homelite JA991065

CLAMP

$

$

Not available

18

Homelite JA359102

BOLT

$

$

Not available

19

Homelite JA995410

CLAMP- Cable double
(Superseded to JA994274)

$

$

Not available

20

Homelite JA339550

KNOB- Handle

$

$

Not available

21

Homelite JA443106

NUT- Hex 5/16 x 18
(Superseded to 81018)

$

$

Not available

22

Homelite JA992360

HANDLE- Lower

$

$

Currently unavailable

23

Homelite JA995420

CLAMP- Cable single
(Superseded to JA994274)

$

$

Not available

24

Homelite JA460306

PIN- Cotter hair

$

$

Not available

25

Homelite JA359178

STUD

$

$

Not available

26

Homelite JA408878

SCREW- 1/4-20 x 3/4

$

$

Not available

27

Homelite JA994310

CLAMP

$

$

Currently unavailable

28

Homelite JA445775

NUT- Flange 5/16-18
(Superseded to UP06674)

$

$

Not available

29

Homelite JA444718

NUT- Lock 5/16 x 18

$

$

Not available

30

Homelite JA991448

BAIL- Brake control

$

$

Currently unavailable

31

Homelite JA409908

SCREW- 1/4-20 x 5/8

$3.99

$

Usually ships in 3-7 days

0

32

Homelite JA453023

WASHER
(Superseded to 678013001)

$1.99

$

Usually ships in 3-7 days

0

33

Homelite JA990141

SPRING

$

$

Not available
