SB 180 BV - Weed Eater Blower Blower Assembly Parts Diagram

Blower

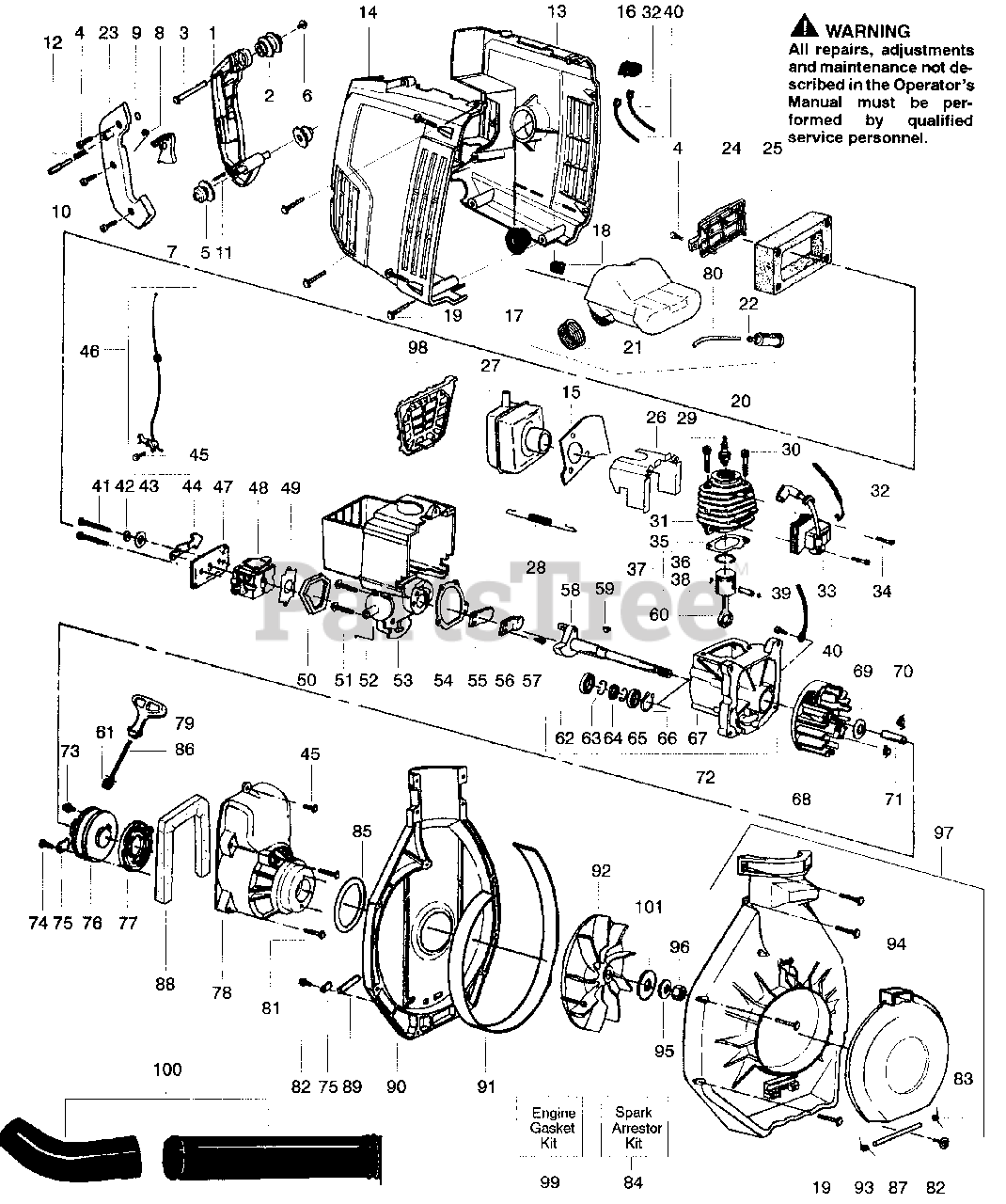

Blower Assembly Parts Diagram

  • Title

1

Poulan 530069863

Handle Kit

$

$

Not available

2

Poulan 530026994

Isolator

$

$

Not available

3

Poulan 530029111

Spacer-Isolator

$1.99

$

Usually ships in 3-10 days

0

4

Poulan 530015635

Screw

$5.99

$

In Stock, only 4 left!

0

5

Poulan 530029130

Isolator-Handle (Rear)

$3.99

$

In Stock, only 1 left!

0

6

Poulan 530015813

Screw

$0.99

$

Usually ships in 3-10 days

0

7

Poulan 530029072

Trigger

$

$

Not available

8

Poulan 530027597

Spring-Lever Return

$3.99

$

In Stock, only 4 left!

0

9

Poulan 530015702

"C" Clip-Throttle Lock

$

$

Not available

10

Poulan 530029117

Throttle Lock Button

$

$

Not available

11

Poulan 530015840

Pin-Handle

$0.99

$

Usually ships in 3-10 days

0

12

Poulan 530024772

Spring-Throttle

$4.99

$

Usually ships in 3-10 days

0

13

Poulan 530052458

Shroud-Left

$18.99

$

Usually ships in 3-10 days

0

14

Poulan 530052457

Shroud-Right

$18.99

$

Usually ships in 3-10 days

0

15

Poulan 530053346

Heat Shield
(Superseded to 530058957)

$6.49

$

In Stock, only 2 left!

0

16

Poulan 530069572

Switch Kit

$9.49

$

In Stock, only 3 left!

0

17

Poulan 530029129

Isolator-Engine Mount

$3.99

$

Usually ships in 3-10 days

0

18

Poulan 530029295

Isolator Tank

$0.99

$

Usually ships in 3-10 days

0

19

Poulan 530015814

Screw

$6.49

$

In Stock, Qty 16

0

20

Poulan 530014263

Fuel Tank Ass'y.

Note: (Incl. #21, 22 & 80)

$

$

Not available

21

Poulan 530014347

Fuel Cap Ass'y.

$9.49

$

In Stock, Qty 15

0

22

Poulan 530014362

Fuel Pick-up Ass'y.
(Superseded to 530095646)

$6.99

$

In Stock, Qty 19

0

23

Poulan 530014160

Handle Cover Ass'y.

Note: (Incl. #9, 10 & 12)

$

$

Not available

24

Poulan 530052456

Cover-Filter

$2.49

$

Usually ships in 3-10 days

0

25

Poulan 530029112

Air Filter (Foam)

$

$

Not available

26

Poulan 530029404

Air Baffle

$2.99

$

Usually ships in 3-10 days

0

27

Poulan 530069293

Muffler Kit

$12.99

$

Usually ships in 3-10 days

0

28

Poulan 530029116

Spring-Muffler

$1.99

$

Usually ships in 3-10 days

0

29

Poulan 952030201

Spark Plug (RCJ-8Y)
(Superseded to 952030150)

$3.99

$

In Stock, Qty 20+

0

30

Poulan 530001624

Screw

$3.99

$

Usually ships in 3-10 days

0

31

Poulan 530069626

Cylinder Kit

$

$

Not available

32

Poulan 530029425

Lead Wire (Switch)

$1.99

$

Usually ships in 3-10 days

0

33

Poulan 530039137

Ignition Module

$54.99

$

In Stock, only 1 left!

0

34

Poulan 530015816

Screw

$3.99

$

Usually ships in 3-10 days

0

35

Poulan 530019178

Gasket-Cylinder
(Superseded to 530019267)

$4.99

$

In Stock, only 4 left!

0

36

Poulan 530025875

Piston Ring

$

$

Not available

37

Poulan 530069349

Piston Kit

Note: (Incl. #36, 38, & Pin)

$42.99

$

In Stock, only 1 left!

0

38

Poulan 530015162

Retainer

$6.49

$

In Stock, only 1 left!

0

39

Poulan 530015306

Screw

$3.99

$

Usually ships in 3-10 days

0

40

Poulan 530029426

Ground Wire (Switch)

$1.99

$

Usually ships in 3-10 days

0

41

Poulan 530015849

Screw

$6.49

$

In Stock, only 1 left!

0

42

Poulan 530015254

Washer

$3.99

$

In Stock, only 2 left!

0

43

Poulan 530015852

Spacer-Choke

$3.49

$

In Stock, only 1 left!

0

44

Poulan 530029114

Choke Shutter

$

$

Not available

45

Poulan 530015775

Screw

$6.49

$

In Stock, only 2 left!

0

46

Poulan 530037492

Cable Assembly

$

$

Not available

47

Poulan 530029115

Plate-Air Filter Mtg.

$1.99

$

Usually ships in 3-10 days

0

48

Poulan 530069644

Carburetor Ass'y. Kit
(Superseded to 545081825)

Note: (WT 141A w/ Limiter Cap)

$66.99

$

Usually ships in 3-10 days

0

49

Poulan 530019164

Gasket - Carb

$7.49

$

In Stock, only 2 left!

0

50

Poulan 530019165

Seal - Foam/Reed Block

$3.99

$

In Stock, only 2 left!

0

51

Poulan 530015771

Screw

$6.49

$

In Stock, Qty 6

0

52

Poulan 530029113

Ground Wire (Static)

$0.99

$

Usually ships in 3-10 days

0

53

Poulan 530047696

Reed Block/Heat Shield

$

$

Not available

54

Poulan 530019166

Gasket-Reed Block/C'case

$3.99

$

Usually ships in 3-10 days

0

55

Poulan 530027593

Reed Valve

$6.49

$

In Stock, only 2 left!

0

56

Poulan 530027594

Reed Stop

$5.99

$

Usually ships in 3-10 days

0

57

Poulan 530016064

Screw

$4.99

$

In Stock, only 2 left!

0

58

Poulan 530047669

Crankshaft Ass'y.

$18.99

$

Usually ships in 3-10 days

0

59

Poulan 530015126

Flywheel Key

$3.99

$

Usually ships in 3-10 days

0

60

Poulan 530010960

Connecting Rod Ass'y.

$18.99

$

Usually ships in 3-10 days

0

61

Poulan 530069232

Rope Kit

$7.49

$

In Stock, Qty 19

0

62

Poulan 530032103

Inner Bearing

$

$

Not available

63

Poulan 530015787

Retaining Ring

$3.99

$

Usually ships in 3-10 days

0

64

Poulan 530019158

Crankshaft Seal

$6.49

$

Usually ships in 3-10 days

0

65

Poulan 530032102

Outer Bearing

$

$

Not available

66

Poulan 530015789

Retaining Ring (Shaft)

$4.99

$

Usually ships in 3-10 days

0

67

Poulan 530014016

Crankcase Ass'y.

$

$

Not available

68

Poulan 530039189

Flywheel Ass'y.

Note: (Incl. #70)

$

$

Not available

69

Poulan 530347987

Washer
(Superseded to 530016030)

$3.99

$

Usually ships in 3-10 days

0

70

Poulan 530023817

Spring-Starter Dog

$6.49

$

In Stock, Qty 5

0

71

Poulan 530038386

Spacer-Flywheel

$2.99

$

Usually ships in 3-10 days

0

72

Poulan 530047705

Crankcase/Crankshaft Assy.

Note: (Incl. #58 & 62-67)

$

$

Not available

73

Poulan 530016080

Screw

$6.49

$

Usually ships in 3-10 days

0

74

Poulan 530015496

Screw

$3.99

$

Usually ships in 3-10 days

0

75

Poulan 530027523

Retainer

$7.49

$

In Stock, only 2 left!

0

76

Poulan 530069486

Starter Pulley Kit

Note: (Incl. #73)

$10.99

$

Usually ships in 3-10 days

0

77

Poulan 530042085

Starter Spring
(Superseded to 545008010)

$9.49

$

In Stock, Qty 20+

0

78

Poulan 530069714

Fan Housing Kit

Note: (Incl. #61, 71, 73-77, 79 & 86)

$

$

Not available

79

Poulan 530027569

Starter Handle

$6.49

$

Usually ships in 3-10 days

0

80

Poulan 530069247

Line Kit

$7.99

$

In Stock, Qty 20+

0

81

Poulan 530015769

Screw

$3.99

$

Usually ships in 3-10 days

0

82

Poulan 530015815

Screw

$3.99

$

In Stock, only 2 left!

0

83

Poulan 530015672

Spring-Torsion (Left)

$

$

Not available

84

Poulan 530069348

Spark Arrestor Kit

$

$

Not available

85

Poulan 530019167

"O" Ring-Seal

$

$

Not available

86

Poulan 530029182

Eyelet-Flange

$4.99

$

Usually ships in 3-10 days

0

87

Poulan 530015647

Pin-Pivot

$1.49

$

In Stock, only 1 left!

0

88

Poulan 530049185

Sponge-Air Dam

$7.99

$

Usually ships in 3-10 days

0

89

Poulan 530029119

Tube - Rope Retainer

$0.99

$

Usually ships in 3-10 days

0

90

Poulan 530094710

Blower Housing (Upper)

$8.99

$

Usually ships in 3-10 days

0

91

Poulan 530029173

Band-Blower Hsg.

$6.49

$

Usually ships in 3-10 days

0

92

Poulan 530014157

Impeller Ass'y.
(Superseded to 530047077)

Note: (Incl. Hub)

$

$

Not available

93

Poulan 530015667

Spring-Torsion (Right)

$3.99

$

Usually ships in 3-10 days

0

94

Poulan 530047700

Inlet Door

$5.99

$

Usually ships in 3-10 days

0

95

Poulan 530015441

Washer-Conical

$4.99

$

Usually ships in 3-10 days

0

96

Poulan 530001733

Nut

$

$

Not available

97

Poulan 530047736

Blower Housing (Lower)

Note: (Incl. #82, 83, 87, 93 & 94)

$

$

Not available

98

Poulan 530069692

Muffler Guard Kit

$4.99

$

In Stock, only 1 left!

0

99

Poulan 530069294

Gasket Kit

Note: (Incl. #35, 49, 50 & 54)

$

$

Not available

100

Poulan 530069961

Tube & Nozzle Kit

$

$

Not available

101

Poulan 530015818

Washer-Impeller

$1.49

$

Usually ships in 3-10 days

0

Poulan 530087854

Operator's Manual

Note: (Not Shown)

$4.99

$

Usually ships in 3-10 days

0

Poulan 530047885

Decal - Door Instruction (Not a serviceable part)

Note: (Not Shown)

$

$

Not available

Poulan 530047876

Decal - Blower Warning

Note: (Not Shown)

$

$

Not available

Poulan 530031159

Hex Wrench (5/32)

Note: (Not Shown)

$4.99

$

In Stock, only 1 left!

0
