SB-140 (31B-140-000) - White Outdoor Snow Boss Snow Thrower (2002) Handle Assembly (Part 2) Parts Diagram

Snow Boss Snow Thrower

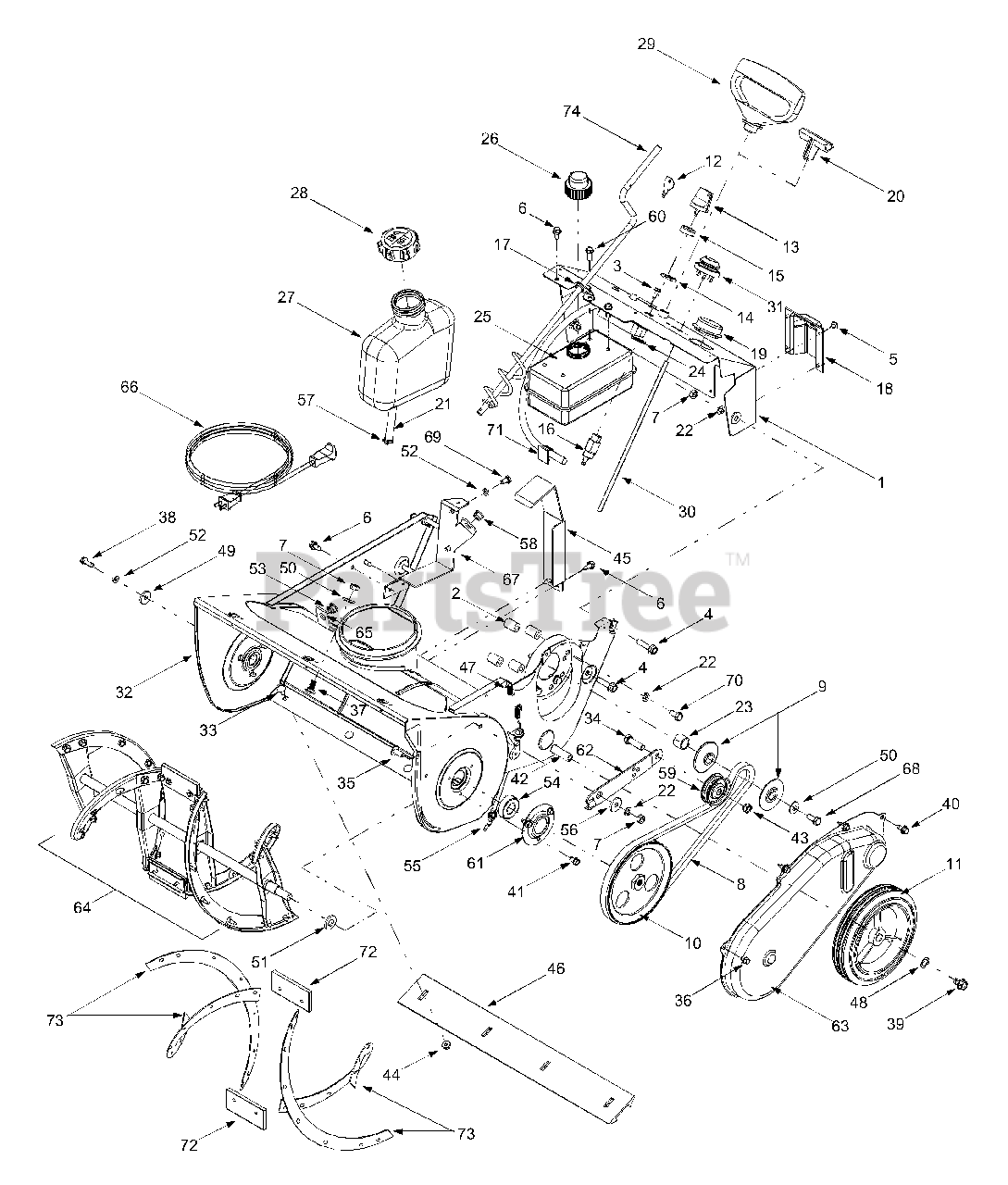

Handle Assembly (Part 2) Parts Diagram

  • Title

1

White Outdoor 684-0056

Dash Assembly

Note: Model 140

Variations

White Outdoor 684-0056-0498

No Longer Available PANEL-DASH - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 684-0056-0629

PANEL-DASH - SILVER FLAKE (0629)

$

$

Not available

White Outdoor 684-0056-0637

PANEL-DASH - POWDER BLACK (0637)

$

$

Not available

White Outdoor 684-0056-0638

PANEL-DASH - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 684-0056-0662

Dash-21" - OYSTER GRAY (0662)

$

$

Not available

$

$

2

White Outdoor 750-0589

Spacer, .325 x .625 x .88
(Superseded to 950-0589)

Note: Model 140

$6.49

$

Usually ships in 3-6 days

0

3

White Outdoor 710-1003

Screw, #10-16 x .625
(Superseded to 710-04669)

$3.49

$

In Stock, Qty 20+

0

4

White Outdoor 710-1090

Hex Flange Screw, 5/16-18 x 1.25

$3.99

$

Usually ships in 3-6 days

0

5

White Outdoor 710-1268

Screw, #10-16 x .375

$4.49

$

In Stock, Qty 20+

0

6

White Outdoor 710-1652

Self-tapping Screw, 1/4-20 x .625

$4.49

$

In Stock, Qty 20+

0

7

White Outdoor 712-3010

Hex Nut, 5/16-18

$4.49

$

In Stock, Qty 20+

0

8

White Outdoor 754-0367

Drive Belt
(Superseded to 954-0367)

Note: Model 140

$29.99

$

In Stock, Qty 20+

0

9

White Outdoor 756-0416B

Pulley Half-.625 x 2.25
(Superseded to 956-0416B)

$10.99

$

In Stock, only 2 left!

0

10

White Outdoor 756-0475

Auger Drive Pulley

$79.99

$

Usually ships in 3-6 days

0

11

White Outdoor 734-1176

Wheel Assembly, 7 x 1.5

$

$

Not available

12

White Outdoor 725-0201

Ignition Key
(Superseded to 925-0201)

$9.49

$

In Stock, only 1 left!

0

13

White Outdoor 725-1341B

Ignition Key w/ Plastic Cover

$10.99

$

In Stock, only 1 left!

0

14

White Outdoor 712-0252

Jam Nut, 5/8-32

Note: Model 140, 150, E150

$5.99

$

Usually ships in 3-6 days

0

15

White Outdoor 725-1347

Ignition Switch Cap

$4.99

$

In Stock, only 1 left!

0

16

White Outdoor 725-1425

Ignition Switch
(Superseded to 925-1425)

$35.99

$

In Stock, Qty 6

0

17

White Outdoor 784-5178A

Chute Crank Bracket

Note: Model 140

$

$

Not available

18

White Outdoor 731-1089A

Choke Cover

$

$

Not available

19

White Outdoor 731-1133C

Spark Plug Cap

$

$

Not available

20

White Outdoor 7510009630

Recoil Handle

Note: (Standard)

$

$

Not available

21

751-0535

Fuel Line Hose

$

$

Not available

22

White Outdoor 736-0119

Lock Washer, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

23

White Outdoor 750-0716

Spacer, .630 x .88 x .680
(Superseded to 750-0716A)

$

$

Not available

24

White Outdoor 736-0225

Internal Lock Washer, 5/8 x 1.058 x .046

$4.49

$

In Stock, only 2 left!

0

25

White Outdoor 751-0352

Gas Tank, 1 qt
(Superseded to TC-32660A)

Note: Model 140

$

$

Not available

26

White Outdoor 751-0353

Fuel Cap
(Superseded to TC-410240)

Note: For 751-0352

$9.49

$

Usually ships in 3-12 days

0

27

Gas Tank, 2 qt.

Note: Model 150, E150, E162, E172; Not used

$

$

Not available

28

Fuel Cap

Note: For 751-0540A (50:1 Red Print); Not used

$

$

Not available

29

White Outdoor 7510009636

Recoil Handle (Mitten Grip)

$

$

Not available

30

White Outdoor 723-0354

Primer Tube
(Superseded to TC-32180C)

$6.99

$

In Stock, only 4 left!

0

31

White Outdoor 751-0354

Primer Bulb
(Superseded to TC-570682A)

$10.99

$

In Stock, Qty 6

0

32

White Outdoor 684-0114A

Auger Housing Assembly

Variations

White Outdoor 684-0114A-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 684-0114A-0629

No Longer Available - SILVER FLAKE (0629)

$

$

Not available

White Outdoor 684-0114A-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 684-0114A-0650

No Longer Available - RED METALLIC (0650)

$

$

Not available

White Outdoor 684-0114A-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 684-0114A-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 684-0114A-0684

No Longer Available - ZINC YELLOW (0684)

$

$

Not available

White Outdoor 684-0114A-0687

No Longer Available - PINE GREEN (0687)

$

$

Not available

White Outdoor 684-0114A-0691

No Longer Available - BLACK JACK (0691)

$

$

Not available

White Outdoor 684-0114A-0709

HOUSING ASSY-AUGER - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

33

White Outdoor 710-0167

Screw, 1/4-20 x .50
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

34

White Outdoor 710-0191

Cap Screw, 3/8-24 x 1.25

$4.99

$

In Stock, Qty 9

0

35

White Outdoor 710-0323

Trus Machine Screw, 5/16-18 x .75

$4.99

$

In Stock, only 2 left!

0

36

White Outdoor 710-0352

Hex Index Washer Screw, 1/4-14 x .375

$4.99

$

Usually ships in 3-6 days

0

37

White Outdoor 710-0451

Carriage Bolt, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

38

White Outdoor 710-0642

Self-tapping Screw 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

39

White Outdoor 710-0773

Self-tapping Screw 3/8-16 x .50

$7.49

$

In Stock, only 3 left!

0

40

White Outdoor 710-0896

Self-tapping Screw, 1/4-14 x .625

$4.49

$

In Stock, Qty 20+

0

41

White Outdoor 710-1005

Self-tapping Screw, 1/4-14 x .50
(Superseded to 710-0599)

$4.49

$

In Stock, Qty 20+

0

42

White Outdoor 711-0848A

Axle, .35 x .5 x 20.75
(Superseded to 753-05480)

$

$

Not available

43

White Outdoor 712-0116

Jam Lock Nut, 3/8-24

$4.99

$

In Stock, Qty 6

0

44

White Outdoor 712-3027

Hex Flange Lock Nut, 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 17

0

45

White Outdoor 784-5177

Engine Support Bracket

Note: Model 140

Variations

White Outdoor 784-5177-0637

BRACKET-ENG SUP - POWDER BLACK (0637)

$

$

Not available

$

$

46

White Outdoor 731-1033

Shave Plate, 2.66 x 19.88

$47.99

$

In Stock, Qty 14

0

47

White Outdoor 732-0357A

Extension Spring, .33 x 1.12

$4.49

$

In Stock, Qty 13

0

48

White Outdoor 736-0108

Flat Washer, .51 x .75 x .033

$6.99

$

Usually ships in 3-6 days

0

49

White Outdoor 736-0176

Flat Washer, .265 x .938 x .120

$4.99

$

In Stock, only 4 left!

0

50

White Outdoor 736-0242

Belleville Washer, .340 x .872

$4.49

$

In Stock, Qty 20+

0

51

White Outdoor 736-0326

Flat Washer, .51 x 1.0 x .125

$4.49

$

In Stock, only 4 left!

0

52

White Outdoor 736-0329

Lock Washer, 1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

53

White Outdoor 741-0475

Plastic Bushing
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

54

White Outdoor 741-0600

Ball Bearing, 17mm x 40mm x 12mm
(Superseded to 941-0600)

$25.99

$

In Stock, Qty 20+

0

55

White Outdoor 746-0910A

Cable, 41.78"
(Superseded to 946-0910A)

Note: (Includes end spring)

$29.99

$

In Stock, Qty 18

0

56

White Outdoor 748-0234

Shoulder Spacer

$4.49

$

In Stock, Qty 20+

0

57

White Outdoor 726-0205

Hose Clamp, .49

$3.99

$

In Stock, Qty 18

0

58

White Outdoor 741-0475

Plastic Bushing, .38
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

59

White Outdoor 756-0313

Flat Idler Pulley, 1.88 x .50 x 2.12

$26.99

$

In Stock, Qty 5

0

60

White Outdoor 710-0895

Hi-Lo Self-tapping Screw, 1/4-15 x .75

$6.49

$

Usually ships in 3-6 days

0

61

White Outdoor 784-5174

Bearing Cup
(Superseded to 784-5174-0637)

Variations

White Outdoor 784-5174-0637

BEARING CUP-POWDER BLACK - POWDER BLACK (0637)

$

$

Not available

$

$

62

White Outdoor 784-5175B

Brake Idler Bracket
(Superseded to 753-05156)

Variations

White Outdoor 784-5175B-0637

KIT:IDLER SINGLE S - POWDER BLACK (0637)

$

$

Not available

$

$

63

White Outdoor 784-5176

Belt Cover
(Superseded to 790-00045C-0637)

Variations

White Outdoor 784-5176-0483

Belt Cover, Black - CHARCOAL GRAY (0483)

$57.99

$

Usually ships in 3-6 days

0

White Outdoor 784-5176-0629

Belt Cover, Black - SILVER FLAKE (0629)

$57.99

$

Usually ships in 3-6 days

0

White Outdoor 784-5176-0637

Belt Cover, Black - POWDER BLACK (0637)

$57.99

$

Usually ships in 3-6 days

0

White Outdoor 784-5176-0638

Belt Cover, Red - MTD/TROY-BILT RED (0638)

$57.99

$

Usually ships in 3-6 days

0

White Outdoor 784-5176-0650

COVER-BELT - RED METALLIC (0650)

$46.99

$

Usually ships in 3-6 days

0

White Outdoor 784-5176-0662

COVER-BELT - OYSTER GRAY (0662)

$46.99

$

Usually ships in 3-6 days

0

White Outdoor 784-5176-0674

COVER-BELT - YARDMAN YELLOW (0674)

$46.99

$

Usually ships in 3-6 days

0

White Outdoor 784-5176-0691

COVER-BELT SINGLE - BLACK JACK (0691)

$

$

Not available

White Outdoor 784-5176-0665

COVER-BELT SINGLE - YARDMAN GREEN (0665)

$

$

Not available

$57.99

$

Usually ships in 3-6 days

0

64

White Outdoor 784-5485

Solid Shaft Auger Assembly
(Superseded to 984-04027A)

Variations

White Outdoor 784-5485-0498

Auger Assembly, 21" Complete - OLD CUB YELLOW (0498)

$196.99

$

In Stock, Qty 10

0

White Outdoor 784-5485-0662

Auger Assembly, 21" Complete - OYSTER GRAY (0662)

$196.99

$

In Stock, Qty 10

0

White Outdoor 784-5485-0688

Auger Assembly, 21" Complete - SPRING GREEN (0688)

$196.99

$

In Stock, Qty 10

0

$196.99

$

In Stock, Qty 10

0

65

White Outdoor 784-5720

Chute Crank Bracket
(Superseded to 784-5720-0637)

Variations

White Outdoor 784-5720-0637

BRACKET CRANK - POWDER BLACK (0637)

$

$

Not available

$

$

66

White Outdoor 629-0236

110V Extension Cord, 2-prong

$

$

Not available

67

Fuel Tank Support Bracket

Note: Model 150, E150, E162 & E172; Not used

$

$

Not available

68

White Outdoor 710-0157

Hex Cap Screw, 5/16-24 x .75

$4.49

$

In Stock, Qty 18

0

69

White Outdoor 710-3013

Hex Cap Screw, 1/4-20 x .50

$4.99

$

In Stock, Qty 11

0

70

Hex Cap Screw, 5/16-24 x .625

Note: Model 150, E150, E162, E172; Not used

$

$

Not available

White Outdoor 710-0805

Hex Cap Screw, 5/16-18 x 1.50
(Superseded to 710-0805A)

Note: Model 140

$4.49

$

In Stock, Qty 20+

0

71

White Outdoor 726-0152

Self-adhesive Clamp, .5

Note: (For starter cable)

$

$

Not available

72

White Outdoor 731-0782

Rubber Paddle
(Superseded to 931-0782A)

$6.99

$

In Stock, Qty 10

0

73

White Outdoor 731-0780A

Rubber Paddle/Spiral
(Superseded to 931-0780A)

$27.99

$

In Stock, Qty 14

0

74

White Outdoor 784-5344

Chute Crank Assembly

Note: Model 140

$

$

Not available

OEM-390-697

Electric Start Kit

Note: Accessories & Kits; Not Shown

$

$

Not available

White Outdoor OEM-737-0325

MTD Two-Cycle Snow Thrower Oil
(Superseded to OL-250)

Note: (Contains six 2.6 oz. bottles); Accessories & Kits; Not Shown

$4.99

$

In Stock, only 2 left!

0

White Outdoor 753-0451

Shave Plate

Note: (Includes replacement shave plate and hardware); Accessories & Kits; Not Shown

$67.99

$

In Stock, only 1 left!

0

White Outdoor 753-0613

Auger Rubber Paddle Kit

Note: (Includes replacement rubber paddles and hardware); Accessories & Kits; Not Shown

$130.99

$

In Stock, Qty 5

0
