SB-140 (31A-140-000) - White Outdoor Snow Boss Snow Thrower (2001) General Assembly Parts Diagram

Snow Boss Snow Thrower

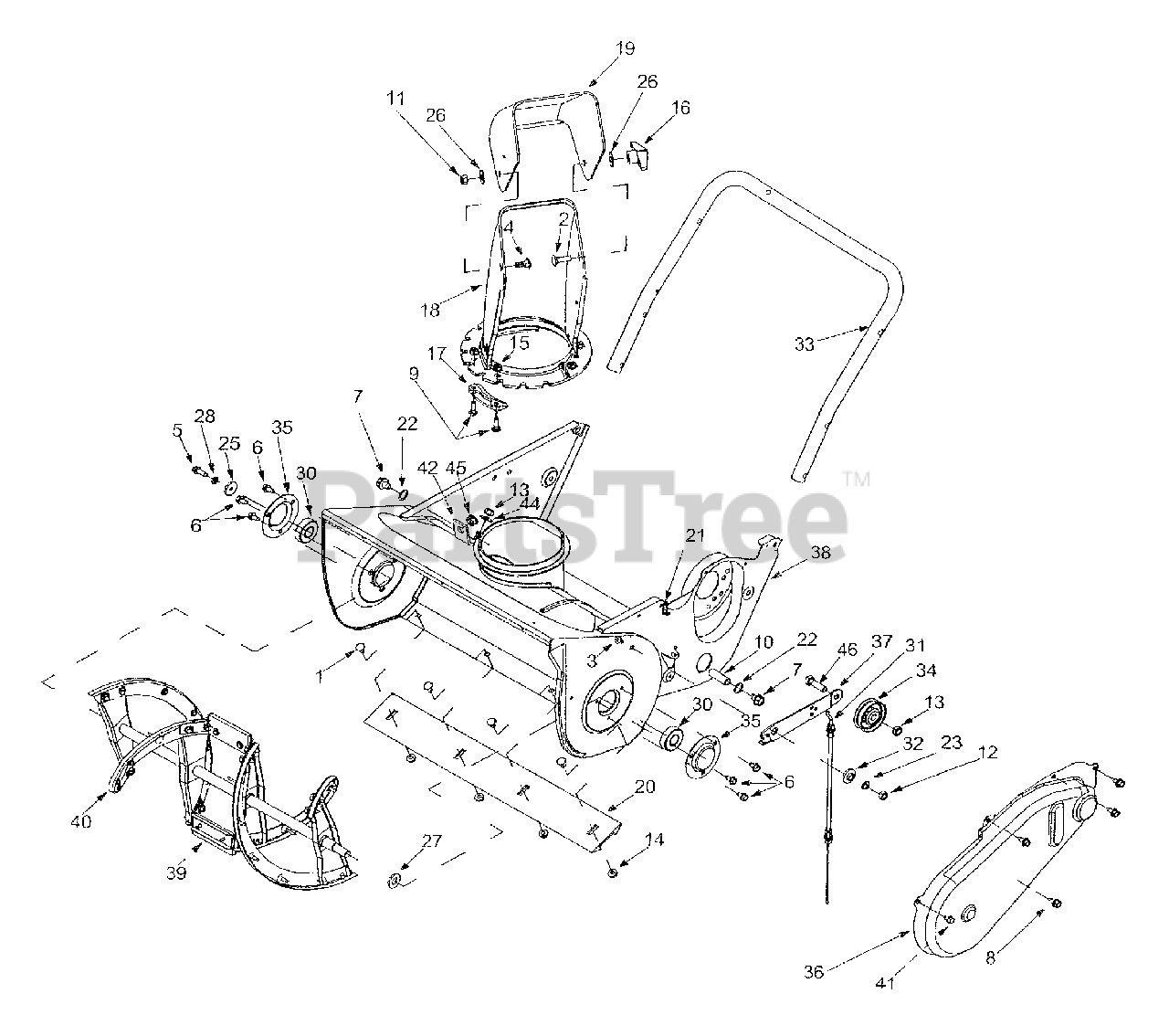

General Assembly Parts Diagram

  • Title

1

White Outdoor 710-0167

Carriage Bolt
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

2

White Outdoor 710-0276

Carriage Bolt

$3.99

$

In Stock, Qty 20+

0

3

White Outdoor 710-0323

Pan Head Screw

$4.99

$

In Stock, only 2 left!

0

4

White Outdoor 710-0451

Carriage Bolt

$4.49

$

In Stock, Qty 20+

0

5

White Outdoor 710-0642

Hex Washer Screw

$4.49

$

In Stock, Qty 20+

0

6

White Outdoor 710-1005

Hex Washer Screw
(Superseded to 710-0599)

$4.49

$

In Stock, Qty 20+

0

7

White Outdoor 710-0773

Hex Washer Screw

$7.49

$

In Stock, only 3 left!

0

8

White Outdoor 710-0896

Hex Washer Screw

$4.49

$

In Stock, Qty 20+

0

9

White Outdoor 710-3015

Hex Cap Screw

$3.99

$

In Stock, Qty 20+

0

10

White Outdoor 711-0848A

Axle
(Superseded to 753-05480)

$

$

Not available

11

White Outdoor 712-0429

Hex Center Lock Nut

$4.49

$

In Stock, Qty 20+

0

12

White Outdoor 712-3010

Hex Nut

$4.49

$

In Stock, Qty 20+

0

13

White Outdoor 712-0116

Hex Lock Nut

$4.99

$

In Stock, Qty 6

0

14

White Outdoor 712-3027

Hex Lock Flange Nut
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

15

White Outdoor 712-3027

Hex Lock Flanged Nut
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

16

White Outdoor 720-0284

Knob

$6.99

$

In Stock, Qty 20+

0

17

White Outdoor 731-0851A

Chute Keeper

$4.49

$

In Stock, Qty 20+

0

18

731-09158

Lower Chute

$

$

Not available

19

White Outdoor 731-0921

Upper Chute
(Superseded to 731-04426C)

$19.99

$

In Stock, Qty 11

0

20

White Outdoor 731-1033

Shave Plate

$47.99

$

In Stock, Qty 13

0

21

White Outdoor 732-0357A

Extension Spring

$4.49

$

In Stock, Qty 13

0

22

White Outdoor 736-0108

Flat Washer

$6.99

$

Usually ships in 3-6 days

0

23

White Outdoor 736-0119

Lock Washer
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

25

White Outdoor 736-0176

Flat Washer

$4.99

$

In Stock, only 4 left!

0

26

White Outdoor 736-0159

Washer

$4.49

$

In Stock, Qty 20+

0

27

White Outdoor 736-0326

Flat Washer

$4.49

$

In Stock, only 2 left!

0

28

White Outdoor 736-0329

Lock Washer
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

30

White Outdoor 741-0600

Ball Bearing
(Superseded to 941-0600)

$25.99

$

In Stock, Qty 20+

0

31

White Outdoor 746-0910A

Cable-Clutch
(Superseded to 946-0910A)

$29.99

$

In Stock, Qty 16

0

32

White Outdoor 748-0234

Spacer

$4.49

$

In Stock, Qty 20+

0

33

White Outdoor 749-0796

Handle-Lower

Variations

White Outdoor 749-0796-0637

HANDLE-LWR 21"S/T - POWDER BLACK (0637)

$

$

Not available

$

$

34

White Outdoor 756-0313

Flat Idler

$26.99

$

In Stock, only 3 left!

0

35

White Outdoor 784-5174

Bearing Cup
(Superseded to 784-5174-0637)

Variations

White Outdoor 784-5174-0637

BEARING CUP-POWDER BLACK - POWDER BLACK (0637)

$

$

Not available

$

$

36

White Outdoor 784-5176

Cover-Belt
(Superseded to 790-00045C-0637)

Variations

White Outdoor 784-5176-0483

Belt Cover, Black - CHARCOAL GRAY (0483)

$57.99

$

Usually ships in 3-6 days

0

White Outdoor 784-5176-0629

Belt Cover, Black - SILVER FLAKE (0629)

$57.99

$

Usually ships in 3-6 days

0

White Outdoor 784-5176-0637

Belt Cover, Black - POWDER BLACK (0637)

$57.99

$

Usually ships in 3-6 days

0

White Outdoor 784-5176-0638

Belt Cover, Red - MTD/TROY-BILT RED (0638)

$57.99

$

Usually ships in 3-6 days

0

White Outdoor 784-5176-0650

COVER-BELT - RED METALLIC (0650)

$46.99

$

Usually ships in 3-6 days

0

White Outdoor 784-5176-0662

COVER-BELT - OYSTER GRAY (0662)

$46.99

$

Usually ships in 3-6 days

0

White Outdoor 784-5176-0674

COVER-BELT - YARDMAN YELLOW (0674)

$46.99

$

Usually ships in 3-6 days

0

White Outdoor 784-5176-0691

COVER-BELT SINGLE - BLACK JACK (0691)

$

$

Not available

White Outdoor 784-5176-0665

COVER-BELT SINGLE - YARDMAN GREEN (0665)

$

$

Not available

$57.99

$

Usually ships in 3-6 days

0

37

784-51758

Idler/Brake Bracket

$

$

Not available

38

White Outdoor 684-0114

Blower Housing

Variations

White Outdoor 684-0114-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 684-0114-0629

No Longer Available - SILVER FLAKE (0629)

$

$

Not available

White Outdoor 684-0114-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 684-0114-0650

No Longer Available - RED METALLIC (0650)

$

$

Not available

White Outdoor 684-0114-0662

No Longer Available No Longer Available - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 684-0114-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 684-0114-0684

No Longer Available - ZINC YELLOW (0684)

$

$

Not available

White Outdoor 684-0114-0687

No Longer Available - PINE GREEN (0687)

$

$

Not available

White Outdoor 684-0114-0709

HOUSING ASSY-AUGER - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

39

White Outdoor 784-5485

Auger Ass'y Comp
(Superseded to 984-04027A)

Variations

White Outdoor 784-5485-0498

Auger Assembly, 21" Complete - OLD CUB YELLOW (0498)

$196.99

$

In Stock, Qty 10

0

White Outdoor 784-5485-0662

Auger Assembly, 21" Complete - OYSTER GRAY (0662)

$196.99

$

In Stock, Qty 10

0

White Outdoor 784-5485-0688

Auger Assembly, 21" Complete - SPRING GREEN (0688)

$196.99

$

In Stock, Qty 10

0

$196.99

$

In Stock, Qty 10

0

40

White Outdoor 753-0613

Auger Rubber Replacement

$130.99

$

In Stock, Qty 5

0

41

White Outdoor 710-0352

Hex Washer Screw

$4.99

$

Usually ships in 3-6 days

0

42

White Outdoor 784-5720

Crank Bracket
(Superseded to 784-5720-0637)

Variations

White Outdoor 784-5720-0637

BRACKET CRANK - POWDER BLACK (0637)

$

$

Not available

$

$

?43

White Outdoor 710-0451

Cap Screw

$4.49

$

In Stock, Qty 20+

0

44

White Outdoor 736-0242

Bell Washer

$4.49

$

In Stock, Qty 20+

0

45

White Outdoor 741-0475

Bushing
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

46

White Outdoor 710-0191

Hex Screw

$4.99

$

In Stock, Qty 9

0
