SB-1355 W (31AE993J190) - White Outdoor Snow Boss Snow Thrower (2001) Drive Belt Parts Diagram

Snow Boss Snow Thrower

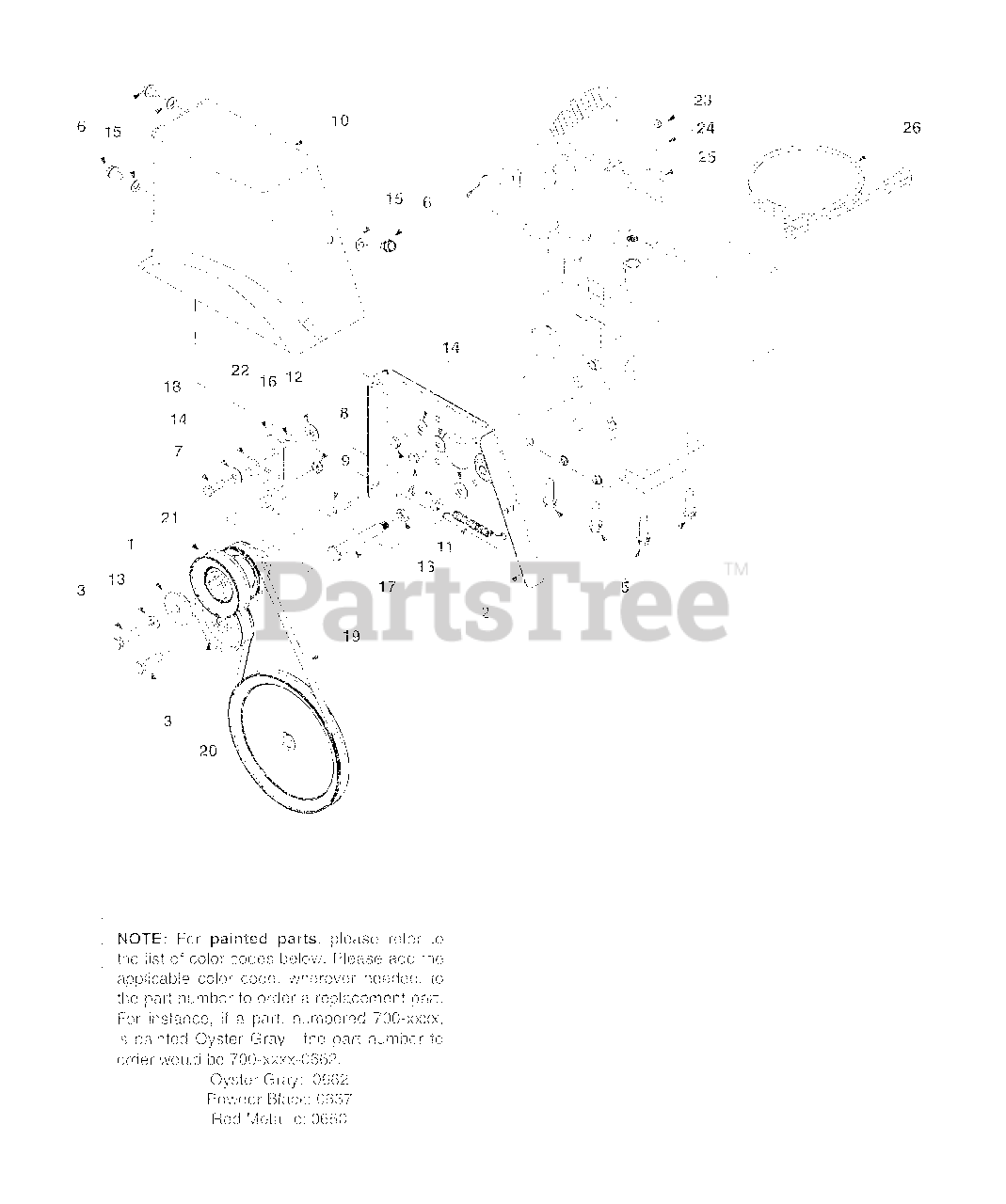

Drive Belt Parts Diagram

  • Title

1

White Outdoor 07386

Washer

$

$

Not available

2

White Outdoor 684-0123A

Belt Cover Bracket Assembly
(Superseded to 684-0123A-0637)

Variations

White Outdoor 684-0123A-0637

BRACKET-BELT COVER - POWDER BLACK (0637)

$

$

Not available

$

$

3

White Outdoor 710-0191

Hex Screw 3/8-24 x 1.25"

$4.99

$

In Stock, Qty 8

0

4

White Outdoor 710-0237

Hex Screw 5/16-24 x .625"

$4.49

$

In Stock, only 1 left!

0

5

White Outdoor 710-0502A

Tf Sems Screw

$6.99

$

In Stock, only 2 left!

0

6

White Outdoor 710-0607

Tf Screw 5/16-18 x 0.5"

$6.99

$

In Stock, Qty 12

0

7

White Outdoor 710-1245

Hex Lock Screw 5/16-24 x .875"

$8.49

$

In Stock, only 2 left!

0

8

White Outdoor 712-0116

Jam Nut

$4.99

$

In Stock, Qty 6

0

9

White Outdoor 714-0118

Key

$6.99

$

In Stock, only 4 left!

0

10

White Outdoor 731-0321

Belt Cover
(Superseded to 931-2531)

$51.99

$

Usually ships in 3-6 days

0

11

White Outdoor 732-0303

Extension Spring
(Superseded to 932-0303)

$10.99

$

In Stock, Qty 12

0

12

White Outdoor 736-0159

5/16 Washer

$4.49

$

In Stock, Qty 20+

0

13

White Outdoor 736-0217

Lock Washer

$4.49

$

In Stock, Qty 9

0

14

White Outdoor 736-0242

Beleville Washer

$4.49

$

In Stock, Qty 20+

0

15

White Outdoor 736-0264

Flat Washer

$6.99

$

In Stock, only 1 left!

0

16

737-3007

Grease

$

$

Not available

17

White Outdoor 738-0215A

Shoulder Screw

$9.49

$

Usually ships in 3-6 days

0

18

White Outdoor 748-0234

Shoulder Spacer

$4.49

$

Usually ships in 3-6 days

0

19

White Outdoor 754-0131

V-Belt
(Superseded to 954-0131)

$28.99

$

In Stock, Qty 5

0

20

White Outdoor 756-0240

Flat Idler

$

$

Not available

21

White Outdoor 756-0241B

Double Pulley

$99.99

$

In Stock, only 1 left!

0

22

White Outdoor 784-5726

Idler Bracket

$39.99

$

Usually ships in 3-6 days

0

23

White Outdoor 712-0324

Hex Lock Nut: 1/4-20

$3.99

$

In Stock, Qty 17

0

24

White Outdoor 732-0705

Cable Guide

$11.99

$

Usually ships in 3-6 days

0

25

White Outdoor 736-0173

Flat Washer

$4.49

$

In Stock, only 4 left!

0

26

White Outdoor 629-0071

Extension Cord: 110V, 3-prong
(Superseded to 929-0071B)

$21.99

$

In Stock, only 2 left!

0
