SB-1350 W (31AE993J190) - White Outdoor Snow Boss Snow Thrower (2000) Auger Assembly & Drive Belt 1355W Parts Diagram

Snow Boss Snow Thrower

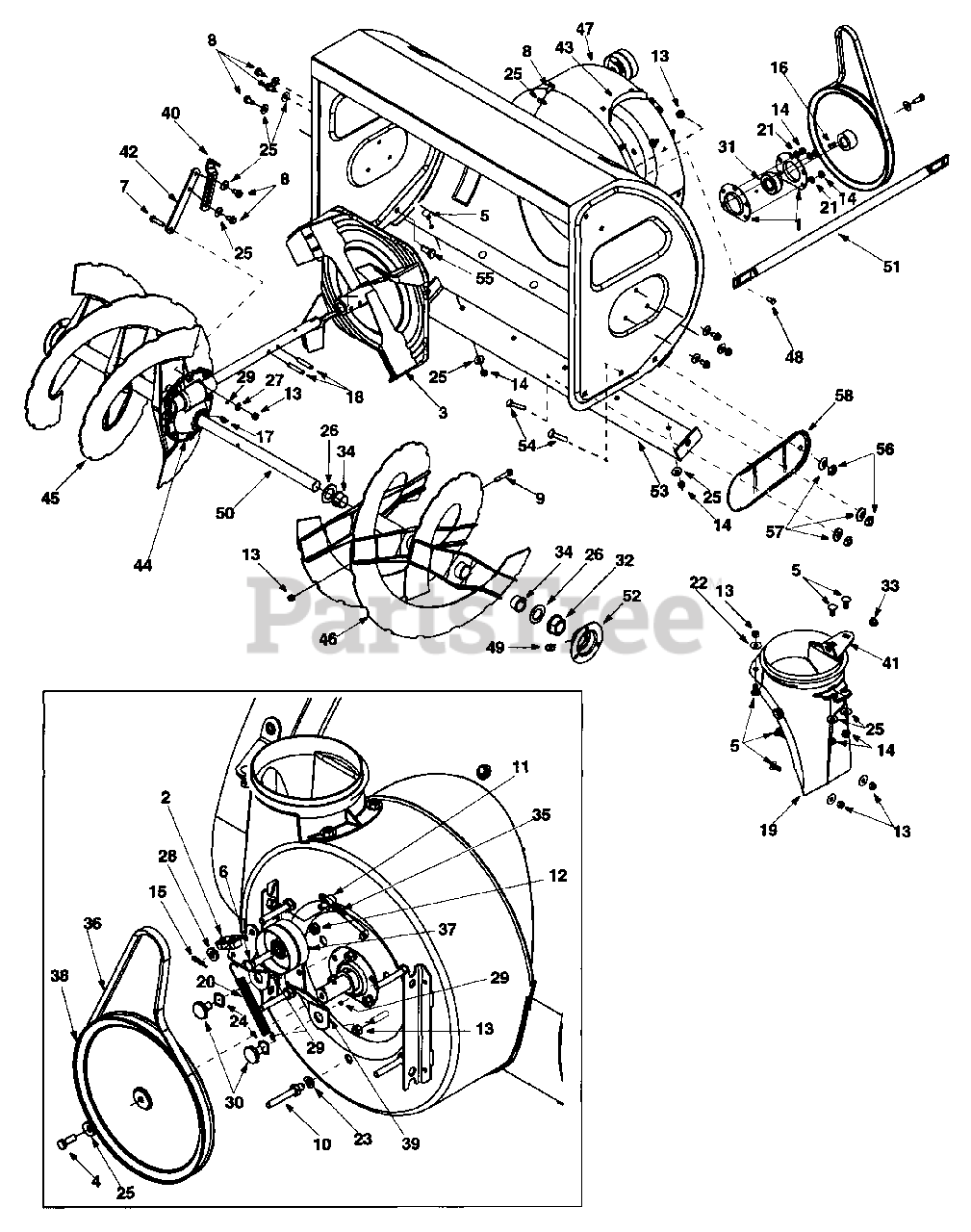

Auger Assembly & Drive Belt 1355W Parts Diagram

  • Title

1

MTD 05244B

Bearing Housing

$23.99

$

Usually ships in 3-6 days

0

2

MTD 918-0281A

Bracket Assembly: Auger Break

$64.99

$

In Stock, only 2 left!

0

3

MTD 684-0090B-0637

Impeller Assembly: 16"

$

$

Not available

4

MTD 710-0371

Hex Lock Bolt 5/16-18 x .875"
(Superseded to 710-1880)

$4.99

$

In Stock, Qty 11

0

5

MTD 710-0451

Carriage Bolt 5/16-18 x .750"

$4.49

$

In Stock, Qty 20+

0

6

MTD 710-0459A

Hex Screw, Special 3/8-24 x 1.5"

$6.99

$

In Stock, Qty 8

0

7

MTD 710-0528

Hex Screw 5/16-18 x 1.25"

$4.49

$

In Stock, Qty 19

0

8

MTD 710-0604A

Self-Tapp. Screw 5/16-18 x .625"

$4.49

$

In Stock, Qty 20+

0

9

MTD 710-0891

Shear Bolt 5/16-18 x 1.75"

$7.49

$

In Stock, Qty 10

0

10

MTD 911-0640

Stud
(Superseded to 711-0640)

$7.99

$

Usually ships in 3-6 days

0

11

MTD 911-0677

Ferrule

$17.99

$

In Stock, only 4 left!

0

12

MTD 912-0116

Jam Nut 3/8-24
(Superseded to 712-0116)

$

$

Not available

13

MTD 912-0429

Hex Lock Nut 5/16-18
(Superseded to 712-0429)

$4.49

$

In Stock, Qty 20+

0

14

MTD 912-3010

Hex Nut 5/16-18
(Superseded to 712-3010)

$4.49

$

In Stock, Qty 20+

0

15

MTD 914-0104

Hairpin Clip
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

16

MTD 914-0126

Key
(Superseded to 714-0126)

$4.99

$

In Stock, Qty 12

0

17

MTD 914-0135

Key
(Superseded to 714-0135)

$

$

Not available

18

MTD 915-0118

Spiral Pin
(Superseded to 715-0118)

$

$

Not available

19

MTD 731-1696B

Chute Adapter

$91.99

$

In Stock, Qty 11

0

20

MTD 732-0858

Extension Spring

$24.99

$

In Stock, only 4 left!

0

21

MTD 936-0119

Lock Washer

$4.99

$

In Stock, Qty 20+

0

22

MTD 936-0159

5/16 Washer
(Superseded to 736-0159)

$

$

Not available

23

MTD 936-0169

Lock Washer
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

24

MTD 736-0174

Wave Washer

$6.99

$

In Stock, Qty 8

0

25

MTD 736-0242

Beleville Washer

$4.49

$

In Stock, Qty 20+

0

26

MTD 736-0250

Flat Washer

$4.49

$

In Stock, Qty 20+

0

27

MTD 936-0271

Spring Washer

$4.49

$

In Stock, Qty 10

0

28

MTD 936-3008

Flat Washer

$6.99

$

Usually ships in 3-6 days

0

29

MTD n/a

Grease

$

$

Currently unavailable

30

MTD 938-0281

Shoulder Screw
(Superseded to 738-0281)

$

$

Not available

31

MTD 941-0185

Self-Aligning Bearing

$66.99

$

In Stock, only 1 left!

0

32

MTD 941-0170

Flange Bearing w/ Flats

$19.99

$

In Stock, Qty 6

0

33

MTD 941-0475

Plastic Bushing

$4.49

$

In Stock, Qty 20+

0

34

MTD 741-0494

Flange Bushing

$3.99

$

In Stock, Qty 20+

0

35

MTD 747-0980

Idler Rod: Auger
(Superseded to 747-0980A)

$47.99

$

Usually ships in 3-6 days

0

36

MTD 954-0222A

V-Belt

$40.99

$

In Stock, Qty 7

0

37

MTD 756-0178

Flat Idler

$20.99

$

In Stock, only 4 left!

0

38

MTD 756-0243

Pulley

$94.99

$

Usually ships in 3-6 days

0

39

MTD 784-0385D

Idler Bracket: Auger

$29.99

$

Usually ships in 3-6 days

0

40

MTD 784-5076-0637

Support Bracket

$46.99

$

Usually ships in 3-6 days

0

41

MTD 784-5123-0637

Chute Crank Bracket

$17.99

$

In Stock, only 1 left!

0

42

MTD 784-5710-0637

Support Plate

$8.49

$

Usually ships in 3-6 days

0

43

MTD 784-5711-0637

Chute Bracket

$

$

Not available

44

MTD 618-0436

Gear Assembly: Auger w/Grease Fitting

$710.99

$

Usually ships in 3-6 days

0

45

MTD 684-04196-0662

Spiral Assembly RH
(Superseded to 684-04196-0637)

$291.99

$

Usually ships in 3-6 days

0

46

MTD 684-04197-0662

Spiral Assembly LH
(Superseded to 684-04197-0637)

$284.99

$

Usually ships in 3-6 days

0

47

MTD 684-0155A-0662

Auger Housing Assembly

$

$

Not available

48

MTD 710-3008

Hex Screw 5/16-18 x .75"

$4.49

$

In Stock, Qty 20+

0

49

MTD 937-3000

Lube Fitting

$4.99

$

In Stock, Qty 20+

0

50

MTD 738-0492

Spiral Axle

$205.99

$

Usually ships in 3-6 days

0

51

MTD 749-1117

Support Tube

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 749-1117-0637

TUBE-SUPPORT - POWDER BLACK (0637)

$

$

Not available

MTD 749-1117-0716

SUPPORT TUBE (CUB YELLOW-99) - CUB YELLOW-99 (0716)

$

$

Not available

$

$

52

MTD 784-0315-0637

Bearing Housing
(Superseded to 784-0315A-0637)

$

$

Not available

53

MTD 790-00280-0637

Shave Plate

$60.99

$

In Stock, only 3 left!

0

54

MTD 710-0389

Carriage Screw

$4.49

$

Usually ships in 3-6 days

0

55

MTD 710-3168

Carriage Bolt

$3.99

$

In Stock, Qty 20+

0

56

MTD 712-0798

Hex Nut 3/8-16

$4.49

$

In Stock, Qty 6

0

57

MTD 736-0105

Bell Washer

$4.49

$

In Stock, Qty 20+

0

58

MTD 784-5697

Slide Shoe

Variations

MTD 784-5697-0716

Snow Skid Shoe, Yellow - CUB YELLOW-99 (0716)

$44.99

$

In Stock, only 2 left!

0

MTD 784-5697-0606

Snow Skid Shoe, Orange - MAJESTIC ORANGE (0606)

$44.99

$

In Stock, Qty 7

0

MTD 784-5697-0637

Snow Skid Shoe, Black - POWDER BLACK (0637)

$44.99

$

In Stock, only 2 left!

0

MTD 784-5697-0717

Snow Skid Shoe, Sliver - SILVER MIST (0717)

$45.99

$

Usually ships in 3-6 days

0

MTD 784-5697-0638

Snow Skid Shoe, Red - MTD/TROY-BILT RED (0638)

$44.99

$

In Stock, only 2 left!

0

MTD 784-5697-0650

Snow Skid Shoe, Red - RED METALLIC (0650)

$44.99

$

In Stock, only 2 left!

0

MTD 784-5697-0684

SHOE-SKID - ZINC YELLOW (0684)

$45.99

$

Usually ships in 3-6 days

0

MTD 784-5697-4033

Snow Skid Shoe, Flint - FLINT MICA (4033)

$44.99

$

In Stock, only 2 left!

0

MTD 784-5697-0691

SHOE-SKID - BLACK JACK (0691)

$44.99

$

In Stock, only 2 left!

0

MTD 784-5697-4021

SHOE-SKID - CUB YELLOW 2 (4021)

$44.99

$

In Stock, only 2 left!

0

$45.99

$

Usually ships in 3-6 days

0
