SB-1350 W (31AE993I190) - White Outdoor Snow Boss Snow Thrower (2001) Handle & Chute Assembly 1350W Parts Diagram

Snow Boss Snow Thrower

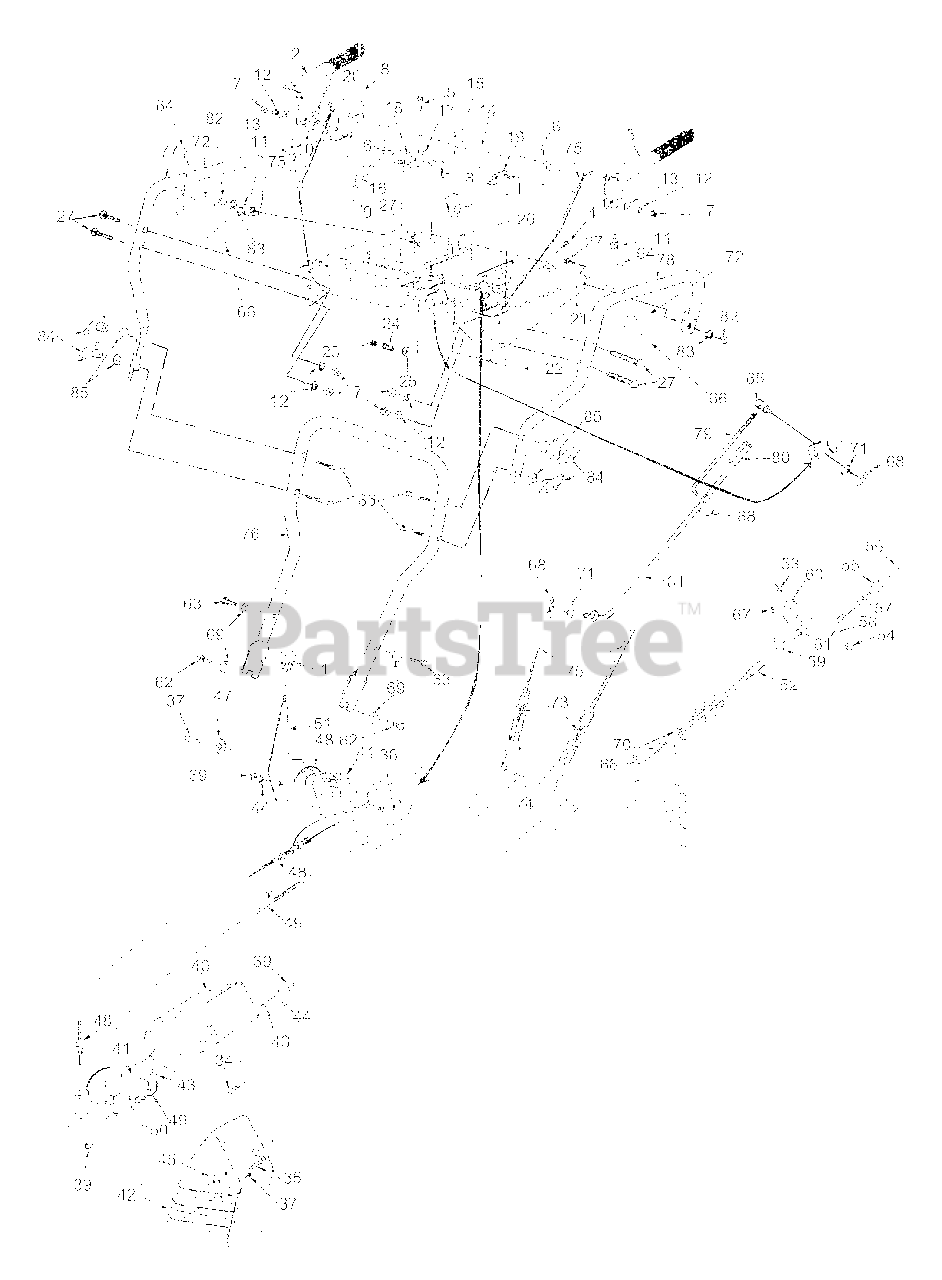

Handle & Chute Assembly 1350W Parts Diagram

  • Title

1

MTD 920-0232

Shift Knob

$10.99

$

In Stock, only 1 left!

0

2

MTD 705-5218

Engage Handle Le Blk Dip Rh

$37.99

$

Usually ships in 3-6 days

0

3

MTD 705-5219

Engage Handle Lf Blk Dip Lh

$37.99

$

Usually ships in 3-6 days

0

4

MTD 710-0351

Pan Head B-tapp Scr #10 x .5

$4.49

$

In Stock, only 2 left!

0

5

MTD 710-0599

Hwhd Sf-tap Scr 1/4-20 x 1/2 Lg.

$4.49

$

In Stock, Qty 20+

0

6

MTD 711-0653

Clevis Pin .31 Dia x 1.0

$3.99

$

Usually ships in 3-6 days

0

7

MTD 912-3010

Nut Hex 5/16-18 Gd 5
(Superseded to 712-3010)

$4.49

$

In Stock, Qty 20+

0

8

MTD 914-0507

Cot-pin 3/32 Dia x 1.0

$4.49

$

In Stock, Qty 17

0

9

MTD 732-0145

Comp Spring .36 Dia x 1.0 Lg

$4.49

$

In Stock, only 1 left!

0

10

MTD 732-0746

Spring Torsion .44 ID

$4.49

$

In Stock, Qty 13

0

11

MTD 935-0199A

Rubber Bumper .63 Dia
(Superseded to 735-0199A)

$7.99

$

In Stock, only 4 left!

0

12

MTD 936-0119

Lock Washer 5/16

$4.99

$

In Stock, Qty 20+

0

13

MTD 736-0509

Wsher Spcl. .345 I.D. x .72 OD

$6.99

$

In Stock, only 1 left!

0

14

MTD 747-0877

Cam Rod

$22.99

$

Usually ships in 3-6 days

0

15

MTD 748-0362

Clutch Lock Cam

$7.99

$

Usually ships in 3-6 days

0

16

MTD 948-0363

Clutch Lock Pawl

$16.99

$

Usually ships in 3-6 days

0

17

MTD 784-5679-0637

Supt Brkt 5/8 L.H.

$8.99

$

Usually ships in 3-6 days

0

18

MTD 784-5680-0637

Supt Brkt 5/8 R.H.

$12.99

$

Usually ships in 3-6 days

0

19

MTD 784-5681

Supt Brkt 3/8 L.H.

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 784-5681-0637

BRACKET-HANDLE SUP - POWDER BLACK (0637)

$9.49

$

Usually ships in 3-6 days

0

$9.49

$

Usually ships in 3-6 days

0

20

MTD 784-5682-0637

Supt Brkt 3/8 R.H.

$28.99

$

Usually ships in 3-6 days

0

21

MTD 684-0102

Pnl Asm Hndl W/tilt
(Superseded to 684-0102A)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 684-0102-0638

PANEL ASM:HANDLE - MTD/TROY-BILT RED (0638)

$143.99

$

Usually ships in 3-6 days

0

MTD 684-0102-0650

PANEL ASM:HANDLE - RED METALLIC (0650)

$124.99

$

Usually ships in 3-6 days

0

MTD 684-0102-0662

PANEL ASM:HANDLE - OYSTER GRAY (0662)

$143.99

$

Usually ships in 3-6 days

0

MTD 684-0102-0665

PANEL ASM:HANDLE - YARDMAN GREEN (0665)

$143.99

$

Usually ships in 3-6 days

0

MTD 684-0102-0689

PANEL ASM:HANDLE - POLO GREEN (0689)

$124.99

$

Usually ships in 3-6 days

0

MTD 684-0102-0716

HANDLE PANEL ASSEMBLY (CUB YELLOW-99) - CUB YELLOW-99 (0716)

$153.99

$

Usually ships in 3-6 days

0

MTD 684-0102-0721

PANEL ASM:HANDLE - SEARS RED (0721)

$133.99

$

Usually ships in 3-6 days

0

$133.99

$

Usually ships in 3-6 days

0

22

MTD 710-0459A

Scr Hex Cap 3/8-24 x 1.5 Gd 5

$6.99

$

In Stock, Qty 8

0

23

MTD 912-0116

Hex Ins L-nut 3/8-24
(Superseded to 712-0116)

$

$

Not available

24

MTD 732-0193

Compression Spring .39 ID x .88

$4.99

$

In Stock, Qty 6

0

25

MTD 736-0105

Bell Wash .40 ID x .88 OD x .06

$4.49

$

In Stock, Qty 20+

0

26

MTD 753-05395

Shift Handle

$

$

Not available

27

MTD 710-0458

Carriage Bolt 5/16-18 x 1.75

$4.49

$

In Stock, only 4 left!

0

34

MTD 710-0276

Carriage Bolt 5/16-18 x 1.00

$3.99

$

In Stock, Qty 14

0

35

MTD 710-0458

Carriage Bolt 5/16-18 x 1.75

$4.49

$

In Stock, only 4 left!

0

36

MTD 710-0805

Hex Scr 5/16-18 x 1.5
(Superseded to 710-0805A)

$4.49

$

In Stock, only 3 left!

0

37

MTD 710-0896

HWHD B Tapp Scr 1/4 x 5/8 Lg.

$4.49

$

In Stock, Qty 20+

0

39

MTD 912-0429

Hex Ins L-nut 5/16-18
(Superseded to 712-0429)

$4.49

$

In Stock, Qty 20+

0

40

MTD 731-0846C

6" Upper Chute Remote Tilt

$52.99

$

Usually ships in 3-6 days

0

41

MTD 731-1313C

Chute Tilt Cable Guide

$11.99

$

In Stock, Qty 20+

0

42

MTD 731-0903E

6" Lower Chute Remote Tilt

$43.99

$

In Stock, Qty 8

0

43

MTD 931-1319

Chute Pivot Spacer

$

$

Not available

44

MTD 936-0159

Fl-wash .344 ID x .88 OD x .063
(Superseded to 736-0159)

$

$

Not available

45

MTD 936-0231

Flt Wshr .344 x 1.125 x .125
(Superseded to 736-0231)

$

$

Not available

47

MTD 736-0506A

Contoured Washer

$

$

Not available

48

MTD 946-0902

Chute Control Cable 66"

$49.99

$

Usually ships in 3-6 days

0

49

MTD 946-0903

Chute Control Cable 66" W/clip

$53.99

$

In Stock, only 1 left!

0

50

MTD 784-5594

Cable Bracket Chute Tilt

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 784-5594-0498

Cable Bracket - OLD CUB YELLOW (0498)

$11.99

$

In Stock, only 1 left!

0

MTD 784-5594-0637

Cable Bracket - POWDER BLACK (0637)

$11.99

$

In Stock, only 1 left!

0

MTD 784-5594-0716

Cable Bracket - CUB YELLOW-99 (0716)

$11.99

$

In Stock, only 1 left!

0

$10.99

$

Usually ships in 3-6 days

0

51

MTD 784-5604A-0637

Chute Tilt Handle

$25.99

$

Usually ships in 3-6 days

0

52

MTD 684-0053B-0637

Lower Chute Directional Control

$

$

Not available

53

MTD 710-3015

Hex Scr 1/4-20 x .75 Lg Gd5

$3.99

$

In Stock, Qty 20+

0

54

MTD 912-0287

Hex Nut 1/4-20

$4.99

$

Usually ships in 3-6 days

0

55

MTD 720-0201A

Chute Directional Control Knob

$10.99

$

In Stock, only 4 left!

0

56

MTD 926-0100

Push Cap 3/8 Palnut #375011
(Superseded to 726-0100)

$

$

Not available

57

MTD 936-0117

Flat Washer .38 ID x .60 OD x .033

$7.49

$

In Stock, only 1 left!

0

58

MTD 736-0270

Bell Wash .26 ID x .75 OD x .06T

$3.99

$

In Stock, Qty 20+

0

59

MTD 747-0624-0637

Upper Chute Directional Control

$24.99

$

Usually ships in 3-6 days

0

60

MTD 705-5266-0637

Brkt chute directional control

$15.99

$

Usually ships in 3-6 days

0

61

MTD 941-0475

Plastic Bushing .380 ID

$4.49

$

In Stock, Qty 20+

0

62

MTD 710-0216

Hex Scr 3/8-16 x .75

$4.49

$

In Stock, Qty 16

0

63

MTD 710-0347

Hex Scr 3/8-16 x 1.75

$5.49

$

In Stock, Qty 20+

0

64

MTD 710-1625

Scr Oval C/sunk #10-24 x 1.75

$6.99

$

Usually ships in 3-6 days

0

65

MTD 911-0677

Adjustment Ferrule

$17.99

$

In Stock, only 4 left!

0

66

MTD 712-0127

#10-24 Flat Weld Nut

$3.49

$

In Stock, Qty 13

0

67

MTD 914-0101

Internal Cot-pin 1/2 Dia
(Superseded to 714-0101)

$

$

Not available

68

MTD 914-0104

Inter Cot-pin 5/16 Dia
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

69

MTD 736-0105

Bell Wash .4 ID x .88 OD x .06

$4.49

$

In Stock, Qty 20+

0

70

MTD 936-0185

Fl-wash .406 ID x .74 OD x .063
(Superseded to 736-0185)

$3.99

$

In Stock, only 3 left!

0

71

MTD 936-0275

Fl-wash Sae .34 x .68 x .062
(Superseded to 736-0275)

$

$

Not available

72

MTD 746-0950A

Trigger Ass'y Steer

$22.99

$

Usually ships in 3-6 days

0

73

MTD 712-0324

Hex Ins L-nut 1/4-20

$3.99

$

In Stock, Qty 17

0

74

MTD 732-0184

Extension Spring

$25.99

$

Usually ships in 3-6 days

0

75

MTD 646-0012

Cable Clutch Drive

$36.99

$

In Stock, only 1 left!

0

76

MTD 749-0991

Handle Lower

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 749-0991-0637

Lower Handle - POWDER BLACK (0637)

$79.99

$

Usually ships in 3-6 days

0

MTD 749-0991-0638

HANDLE-LOWER - MTD/TROY-BILT RED (0638)

$68.99

$

Usually ships in 3-6 days

0

MTD 749-0991-0650

HANDLE-LOWER - RED METALLIC (0650)

$79.99

$

Usually ships in 3-6 days

0

MTD 749-0991-0665

HANDLE-LOWER - YARDMAN GREEN (0665)

$79.99

$

Usually ships in 3-6 days

0

MTD 749-0991-0691

HANDLE-LOWER - BLACK JACK (0691)

$79.99

$

Usually ships in 3-6 days

0

MTD 749-0991-4033

HANDLE-LOWER - FLINT MICA (4033)

$79.99

$

Usually ships in 3-6 days

0

$68.99

$

Usually ships in 3-6 days

0

77

MTD 749-0990A

Handle Upper R.H.

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 749-0990A-0637

HANDLE-UPPER RT - POWDER BLACK (0637)

$94.99

$

Usually ships in 3-6 days

0

MTD 749-0990A-0638

HANDLE-UPPER RT - MTD/TROY-BILT RED (0638)

$94.99

$

Usually ships in 3-6 days

0

MTD 749-0990A-0650

HANDLE-UPPER RT - RED METALLIC (0650)

$76.99

$

Usually ships in 3-6 days

0

MTD 749-0990A-0665

HANDLE-UPPER RT - YARDMAN GREEN (0665)

$76.99

$

Usually ships in 3-6 days

0

MTD 749-0990A-0691

HANDLE-UPPER RT - BLACK JACK (0691)

$82.99

$

Usually ships in 3-6 days

0

$82.99

$

Usually ships in 3-6 days

0

78

MTD 749-0989A

Handle Upper L.H.

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 749-0989A-0637

HANDLE-UPPER LH - POWDER BLACK (0637)

$91.99

$

Usually ships in 3-6 days

0

MTD 749-0989A-0638

HANDLE-UPPER LH - MTD/TROY-BILT RED (0638)

$91.99

$

Usually ships in 3-6 days

0

MTD 749-0989A-0650

HANDLE-UPPER LH - RED METALLIC (0650)

$79.99

$

Usually ships in 3-6 days

0

MTD 749-0989A-0665

HANDLE-UPPER LH - YARDMAN GREEN (0665)

$79.99

$

Usually ships in 3-6 days

0

MTD 749-0989A-0691

HANDLE-UPPER LH - BLACK JACK (0691)

$79.99

$

Usually ships in 3-6 days

0

$79.99

$

Usually ships in 3-6 days

0

79

MTD 747-0997

Upper Shift Rod 5/16 x 10.57

$69.99

$

Usually ships in 3-6 days

0

80

MTD 950-0963

2 Pc Shift Rod Connector

$34.99

$

In Stock, only 3 left!

0

81

MTD 747-0983A

Lower Shift Rod 3/8 x 14.75

$45.99

$

Usually ships in 3-6 days

0

82

MTD 912-0287

Hex Nut 1/4-20

$4.99

$

Usually ships in 3-6 days

0

83

MTD 736-0270

Bell Wash .26 ID x .75 OD x .06T

$3.99

$

In Stock, Qty 20+

0

84

MTD 920-0284

Wingnut
(Superseded to 720-0284)

$6.99

$

In Stock, Qty 20+

0

85

MTD 736-0242

Bell Wash .345 ID x .88 OD x .060

$4.49

$

In Stock, Qty 20+

0

86

MTD 710-0572

Carriage Bolt 5/16-18 x 2.5

$4.49

$

In Stock, only 4 left!

0
