SB-1350 W (31AE993I190) - White Outdoor Snow Boss Snow Thrower (2000) Frame & Drive Assembly 1350W Parts Diagram

Snow Boss Snow Thrower

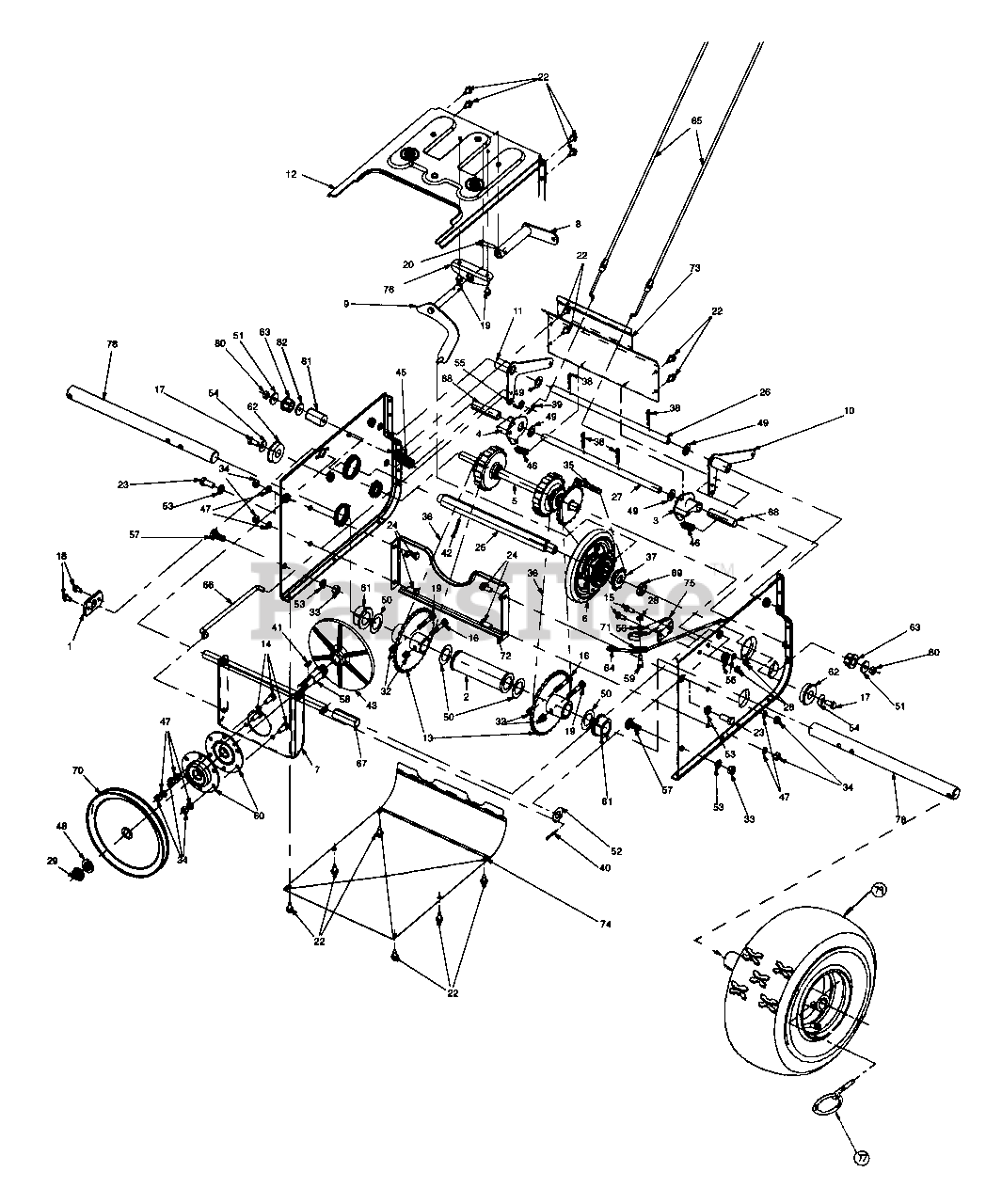

Frame & Drive Assembly 1350W Parts Diagram

  • Title

1

MTD 05523

Pivot Axle Brkt..63 Hole - Zinc

Note: NLA

$

$

Not available

2

MTD 618-0278

Bush Asm slev
(Superseded to 918-0278)

$

$

Not available

3

MTD 618-0279P

Dogg Asm Dr Lh
(Superseded to 918-0279A)

$42.99

$

Usually ships in 3-6 days

0

4

MTD 618-0280P

Dogg Asm Dr Rh
(Superseded to 918-0280A)

$42.99

$

Usually ships in 3-6 days

0

5

MTD 918-0282E

Shf Asm Dr

$559.99

$

Usually ships in 3-6 days

0

6

MTD 618-0296A

Whl Asm Brg 6.0 OD Friction
(Superseded to 918-0296B)

$207.99

$

Usually ships in 3-6 days

0

7

MTD 684-0115-0637

Brkt Asm Supt Friction Dr

$

$

Not available

8

MTD 684-0116

Arm Asm Shift

Note: NLA

Variations

MTD 684-0116-0637

No Longer Available ARM ASM-S - POWDER BLACK (0637)

$

$

Not available

$

$

9

MTD 684-0117

Shft Asm Rod

$91.99

$

Usually ships in 3-6 days

0

10

MTD 684-0118A-0637

Brkt Asm Actr Auger
(Superseded to 684-0118B-0637)

$

$

Not available

11

MTD 684-0119B-0637

Brkt Asm Actr Dr

$

$

Not available

12

MTD 684-0120

Frm Asm Trans

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 684-0120-0498

FRAME ASSY-TRANSMI - OLD CUB YELLOW (0498)

$

$

Not available

MTD 684-0120-0638

No Longer Available FRAME ASM - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 684-0120-0650

No Longer Available FRAME ASM - RED METALLIC (0650)

$

$

Not available

MTD 684-0120-0662

Frame Assembly - OYSTER GRAY (0662)

$

$

Not available

MTD 684-0120-0665

No Longer Available FRAME ASM - YARDMAN GREEN (0665)

$

$

Not available

MTD 684-0120-0716

No Longer Available FRAME ASM - CUB YELLOW-99 (0716)

$

$

Not available

$

$

13

MTD 684-0122

Spkt Asm 32t

$238.99

$

Usually ships in 3-6 days

0

14

MTD 710-3008

Hex Scr 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

15

MTD 910-0195

Hhcs 1/4-28 .625 Gr5 std

$3.99

$

In Stock, only 1 left!

0

16

MTD 710-3180

Hex Scr 5/16-18 x 2.00

$5.49

$

In Stock, Qty 20+

0

17

MTD 710-0538

Hhcs 5/16-18 x .625 Gr5 Lock

$4.49

$

In Stock, Qty 7

0

18

MTD 710-0599

Scr TT 1/4-20 x .5 Hxindwsh

$4.49

$

In Stock, Qty 20+

0

19

MTD 710-3103

Hex Scr 5/16-18 2.00 Lg

$4.49

$

In Stock, Qty 20+

0

20

MTD 710-0788

Scr Hexwash 1/4-20 x 2.00

$7.49

$

In Stock, only 2 left!

0

22

MTD 710-1652

Scr Ab 1/4-20 .625 Hxindwsh

$4.49

$

In Stock, Qty 20+

0

23

MTD 710-3001

Hhcs 3/8-16 x .880 Gr5 Std

$7.49

$

In Stock, Qty 9

0

24

MTD 710-3008

Scr Cap 5/16-18x.75Gr5

$4.49

$

In Stock, Qty 20+

0

25

MTD 711-1191

Shf Dr.875 Hex

$

$

Not available

26

MTD 711-1193

Shf Sctr

$

$

Not available

27

MTD 711-1194

Shf Actr Dr

$

$

Not available

28

MTD 912-0138

Hex Nut 1/4-28
(Superseded to 712-0138)

$

$

Not available

29

MTD 712-0221

Hex Ins Jam L-nut 5/8-18

$

$

Not available

32

MTD 912-0429

Hex Ins L-nut 5/16-18
(Superseded to 712-0429)

$4.49

$

In Stock, Qty 20+

0

33

MTD 712-0798

Hex Nut 3/8-16

$4.49

$

In Stock, Qty 6

0

34

MTD 912-3010

Nut Hex 5/16-18 Gd 5
(Superseded to 712-3010)

$4.49

$

In Stock, Qty 20+

0

35

MTD 713-0284

#41 Chain 1/2 Pitch x 36 L

$24.99

$

Usually ships in 3-6 days

0

36

MTD 713-0286

#420 Chain 1/2 Pitch x 40 L

$66.99

$

Usually ships in 3-6 days

0

37

MTD 713-0413

Spkt 10t #41 x .500

$12.99

$

Usually ships in 3-6 days

0

38

MTD 914-0101

Internal Cot-pin 1/2 Dia
(Superseded to 714-0101)

$

$

Not available

39

MTD 914-0104

Intern Cot-pin 5/16 Dia
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

40

MTD 914-0115

Cotter Pin 1/8 Dia x 1
(Superseded to 714-0115)

$3.99

$

In Stock, Qty 20+

0

41

MTD 914-0388

#61 Hi-pro-key 3/16 x 5/8

$7.99

$

In Stock, Qty 20+

0

42

MTD 915-0249

Spring Pin Roll 5/32

$6.99

$

In Stock, Qty 20+

0

43

MTD 917-0302

Aluminum Drive Plate

$82.99

$

In Stock, only 1 left!

0

45

MTD 932-0121

Idler Extension Spring

$14.99

$

In Stock, only 1 left!

0

46

MTD 932-0209

Extension Spring

$7.99

$

In Stock, only 2 left!

0

47

MTD 936-0119

Lock Washer 5/16

$4.99

$

In Stock, Qty 20+

0

48

MTD 936-0158

Lock Washer 5/8

$4.49

$

In Stock, Qty 11

0

49

MTD 936-0160

Wash F1.531 ID x.930 OD x.05

$4.49

$

In Stock, only 1 left!

0

50

MTD 936-0163

Wash Fl 1.03 ID x 1.62 OD
(Superseded to 736-0163)

$

$

Not available

51

MTD 936-0300

Wash Fit 1/4 ID x .930 OD x.12
(Superseded to 736-0300)

$4.49

$

In Stock, Qty 20+

0

52

MTD 736-0187

Wash Flt .640 ID x 1.24 OD x .06 1

$4.49

$

In Stock, Qty 20+

0

53

MTD 936-0217

Lock Washer 3/8 Heavy
(Superseded to 736-0217)

$4.49

$

In Stock, Qty 6

0

54

MTD 736-0242

Bell Wash .345 ID x .88 OD

$4.49

$

In Stock, Qty 20+

0

55

MTD 936-0275

Fl-wash Sae .34 x.68.062
(Superseded to 736-0275)

$

$

Not available

56

MTD 936-0329

Lock Washer 1/4

$4.49

$

In Stock, Qty 9

0

57

MTD 738-0143

Shld Scr .498 Dia x .340

$4.49

$

In Stock, Qty 20+

0

58

MTD 738-0279

Drive Plate Spindle

$57.99

$

Usually ships in 3-6 days

0

59

MTD 738-0924A

Scr Shldr .340 D. 1/4 Ab

$6.99

$

In Stock, Qty 5

0

60

MTD 741-0163A

Asm Brg Hsg

$48.99

$

Usually ships in 3-6 days

0

61

MTD 941-0170

Flange Brg Pm W/flts 1.0

$19.99

$

In Stock, Qty 6

0

62

MTD 941-0563

Ball Bearing W/snap Ring

$36.99

$

In Stock, Qty 7

0

63

MTD 941-0597

Brg Hex Flange x.564 ID

$12.99

$

In Stock, Qty 10

0

64

MTD 946-0951A

Cb Idlr Auger

$45.99

$

In Stock, only 3 left!

0

65

MTD 746-0949A

Cbl Strg

$52.99

$

Usually ships in 3-6 days

0

66

MTD 747-0973

Rod Clu Dr

$48.99

$

Usually ships in 3-6 days

0

67

MTD 750-1097

Spcr Spit .64 x .77 x 2.1

Note: NLA

$

$

Not available

68

MTD 750-0903B

Split Spacer 1/2 x 5/8 x 2.44

$10.99

$

Usually ships in 3-6 days

0

69

MTD 950-0997

Spcr .675 ID x 1.00 OD x .23

$6.99

$

In Stock, only 4 left!

0

70

MTD 756-0344

1/2 V-pulley .62 ID x 7.5

$81.99

$

Usually ships in 3-6 days

0

71

MTD 756-0625

Cable Guide Roller

$9.49

$

In Stock, Qty 14

0

72

MTD 784-0377-0637

Brkt Supt Frm

$

$

Not available

73

MTD 784-0379

Cvr Frm Upr

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 784-0379-0498

UPPER FRAME COVER - OLD CUB YELLOW (0498)

$15.99

$

Usually ships in 3-6 days

0

MTD 784-0379-0638

COVER:UPPER FRAME: - MTD/TROY-BILT RED (0638)

$12.99

$

Usually ships in 3-6 days

0

MTD 784-0379-0716

UPPER FRAME COVER - CUB YELLOW-99 (0716)

$15.99

$

Usually ships in 3-6 days

0

MTD 784-0379-0650

COVER:UPPER FRAME: - RED METALLIC (0650)

$

$

Not available

MTD 784-0379-0662

No Longer Available COVER-UPPE - OYSTER GRAY (0662)

$

$

Not available

MTD 784-0379-0665

No Longer Available COVER-UPPE - YARDMAN GREEN (0665)

$

$

Not available

$13.99

$

Usually ships in 3-6 days

0

74

MTD 784-0380

Cvr Frm Lwr

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 784-0380-0498

LOWER FRAME COVER - OLD CUB YELLOW (0498)

$

$

Not available

MTD 784-0380-0637

COVER-LOWER FRAME - POWDER BLACK (0637)

$

$

Not available

MTD 784-0380-0638

COVER-LOWER FRAME - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 784-0380-0650

COVER-LOWER FRAME - RED METALLIC (0650)

$

$

Not available

MTD 784-0380-0662

COVER-LOWER FRAME - OYSTER GRAY (0662)

$

$

Not available

MTD 784-0380-0665

COVER-LOWER FRAME - YARDMAN GREEN (0665)

$

$

Not available

MTD 784-0380-0716

LOWER FRAME COVER - CUB YELLOW-99 (0716)

$

$

Not available

$

$

75

MTD 784-0384-0637

Brkt Gde Auger Cbl

$

$

Not available

76

MTD 784-5590

Shift Bracket Frame

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 784-5590-0637

Shift Fram Bracket - POWDER BLACK (0637)

$15.99

$

Usually ships in 3-6 days

0

MTD 784-5590-0662

Shift Fram Bracket - OYSTER GRAY (0662)

$15.99

$

Usually ships in 3-6 days

0

MTD 784-5590-0638

BRACKET-SHIFT FRAM - MTD/TROY-BILT RED (0638)

$15.99

$

Usually ships in 3-6 days

0

MTD 784-5590-4033

BRACKET-SHIFT FRAM - FLINT MICA (4033)

$12.99

$

Usually ships in 3-6 days

0

MTD 784-5590-0650

BRACKET-SHIFT FRAM - RED METALLIC (0650)

$

$

Not available

MTD 784-5590-0689

BRACKET-SHIFT FRAM - POLO GREEN (0689)

$

$

Not available

MTD 784-5590-4021

BRACKET-SHIFT FRAM - CUB YELLOW 2 (4021)

$

$

Not available

$12.99

$

Usually ships in 3-6 days

0

77

MTD 714-0151A

Klik Pin Assy Danuse

$41.99

$

Usually ships in 3-6 days

0

78

MTD 738-0975

Axle 1.0 OD x 14.1 Lg

$182.99

$

In Stock, only 1 left!

0

79

MTD 734-1593

Cmp Whl Assy 16 x 6.5 Snohog
(Superseded to 734-1593A)

Variations

MTD 734-1593-0911

WHEEL-COMPL 16 X 6 - Carlisle Gray (0911)

$

$

Not available

MTD 734-1593-0931

No Longer Available WHEEL ASM - Carlisle Beige (0931)

$

$

Not available

MTD 734-1593-0941

WHEEL-COMPL 16 X 6 - Carlisle Yellow (0941)

$

$

Not available

$225.99

$

Usually ships in 3-6 days

0

80

MTD 912-0116

Jam L-Nut 3/8-24 Thd.
(Superseded to 712-0116)

$

$

Not available

81

MTD 750-1196

Spacer

Note: NLA

$

$

Not available

82

MTD 736-0639

Fl-Washer

$

$

Not available
