SB-1350 W (31AE993I190) - White Outdoor Snow Boss Snow Thrower (2000) Drive Belt 1350W Parts Diagram

Snow Boss Snow Thrower

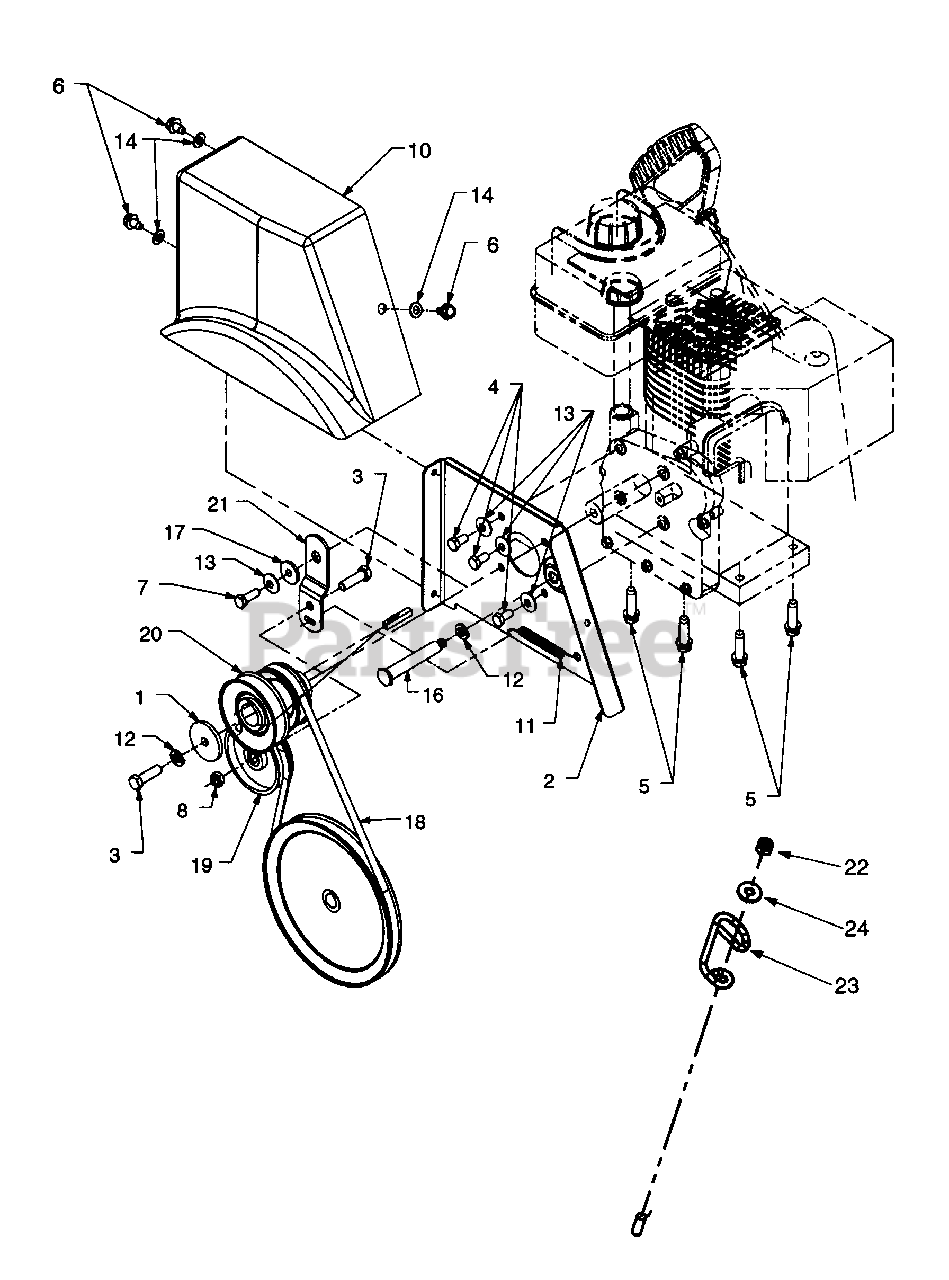

Drive Belt 1350W Parts Diagram

  • Title

1

MTD 07386

Washer .390 I.D. x 1.75

$

$

Not available

2

MTD 684-0123A-0637

Brkt Asm:Cvr:Belt

$

$

Not available

3

MTD 710-0191

Hex Head Screw

$4.99

$

In Stock, Qty 9

0

4

MTD 710-0237

Hex Hd. Screw 5/16-24 x .625

$4.49

$

In Stock, only 1 left!

0

5

MTD 710-0502A

Hex TT-Tap Scr. 3/8-16 x 1.25" Lg.

$6.99

$

In Stock, only 2 left!

0

6

MTD 710-0607

Hex Wash. Screw 5/16-18

$6.99

$

In Stock, Qty 9

0

7

MTD 710-1245

Hex Lock Screw 5/16-24x.875

$8.49

$

In Stock, only 4 left!

0

8

MTD 912-0116

Jam Nut 3/8-24 Thd.
(Superseded to 712-0116)

$

$

Not available

9

MTD 714-0118

Key

$6.99

$

In Stock, only 4 left!

0

10

MTD 931-2531

Belt Cover

$51.99

$

In Stock, only 1 left!

0

11

MTD 932-0303

Spring: Extension

$10.99

$

In Stock, Qty 11

0

12

MTD 936-0217

L-Wash. 3/8
(Superseded to 736-0217)

$4.49

$

In Stock, Qty 6

0

13

MTD 736-0242

Bell-Wash. .340 I.D. x .872 O.D.

$4.49

$

In Stock, Qty 20+

0

14

MTD 936-0264

Fl-Wash. .330 I.D. x .630 x .06

$6.99

$

In Stock, only 2 left!

0

16

MTD 738-0215A

Shld. Screw .498 x 2.99 Lg.

$9.49

$

Usually ships in 3-6 days

0

17

MTD 748-0234

Shld. Spacer

$4.49

$

In Stock, Qty 20+

0

18

MTD 954-0131

Variable Speed Belt

$28.99

$

In Stock, Qty 7

0

19

MTD 756-0240

Fl-Idler Pulley 3.0" Dia.

$

$

Not available

20

MTD 756-0241B

Double Pulley

$99.99

$

In Stock, only 4 left!

0

21

MTD 784-5726

Idler: Brkt

$39.99

$

Usually ships in 3-6 days

0

22

MTD 712-0324

Hex Lock Nut 1/4-20

$3.99

$

In Stock, Qty 16

0

23

MTD 732-0705

Cable Control Wire

$11.99

$

Usually ships in 3-6 days

0

24

MTD 736-0173

Fl-Wash. .28 x .74 x .063

$4.49

$

In Stock, Qty 20+

0
